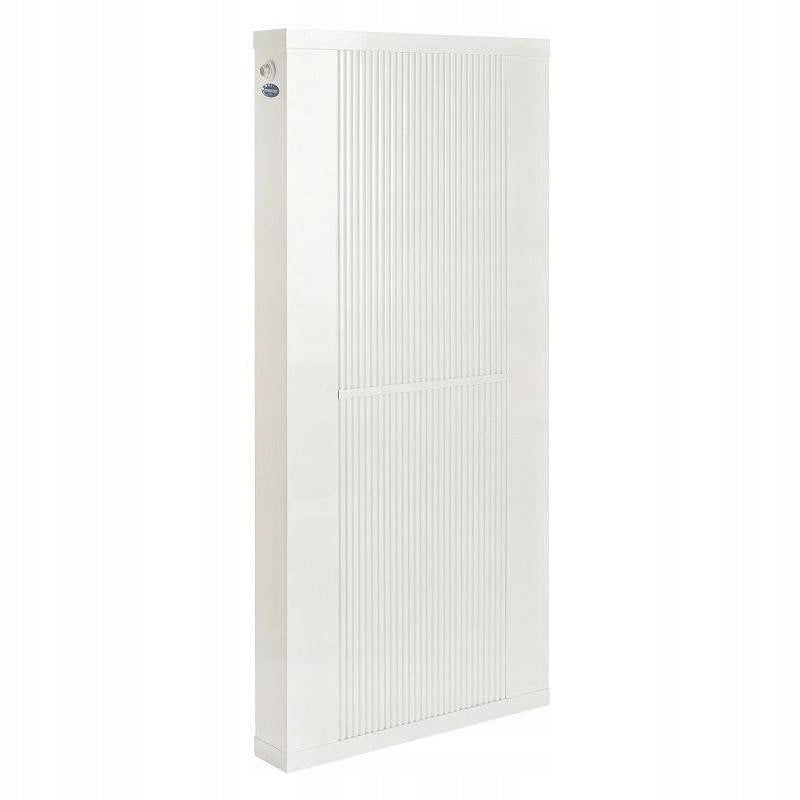

Radiatorius REGULUS 755x1400 SOLLARIUS, apatinis pajungimas

Trumpai apie prekę

Prekė: Radiatorius REGULUS 755x1400 SOLLARIUS, apatinis pajungimas. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Regulus
• Modelis: SD0814
• Plotis: 1400 mm
• Aukštis: 755 mm
• Spalva: white

- RADIATORS - BOILERS - PUMPS - TANKS - FITTINGS - FAST DELIVERY - PRODUCT AVAILABLE IN ONE OF THE WAREHOUSES -

#ID OF PRODUCT : SD0814

PRODUCT EAN : 5907657044379

PRODUCT WEIGHT: 16,3kg

HEIGHT: 755mm

WIDTH: 1400mm

DEPTH: 90mm

DESCRIPTION OF THE PRODUCT:

The REGULUS-system Sollarius radiator consists of two systems: a water system and a heat dissipation system.

• The water system is made of evenly spaced horizontal copper heating pipes connected at the ends with vertical copper collective collectors.
• The heat dissipation system is made of aluminum sheet lamellas mounted vertically on the heating pipes of the water system. Properly bent front and rear edges of the lamellas adhere tightly to each other to form the front and rear walls of the radiator.

The combination of copper and aluminum is a dry connection, therefore there is no electrochemical phenomenon in it.

• Cover: powder coating

Accessories:

• hand vent ½,
• thermostatic valve with pre-set (only in radiators with BOTTOM connection),
• hangers for mounting,
• set of gaskets, screws,

Connection side:

• right or left
• Operating pressure: 1,5 MPa
• Maximum supply temperature: 110 °C
• Connection type: lower GW ½
• Connection spacing: 50 mm

Mixed heat emission method: radiation + convection,wavy, very large heat transfer area,low water capacity, low thermal inertia - radiators quickly reach full rated power for a given supply temperature,which enables precise, energy-efficient and easily controllable heating,high efficiency at low supply temperatures,perfect for installation based on low temperature heating medium – condensing boilers,heat pumps, high resistance to variable and high pressure.
