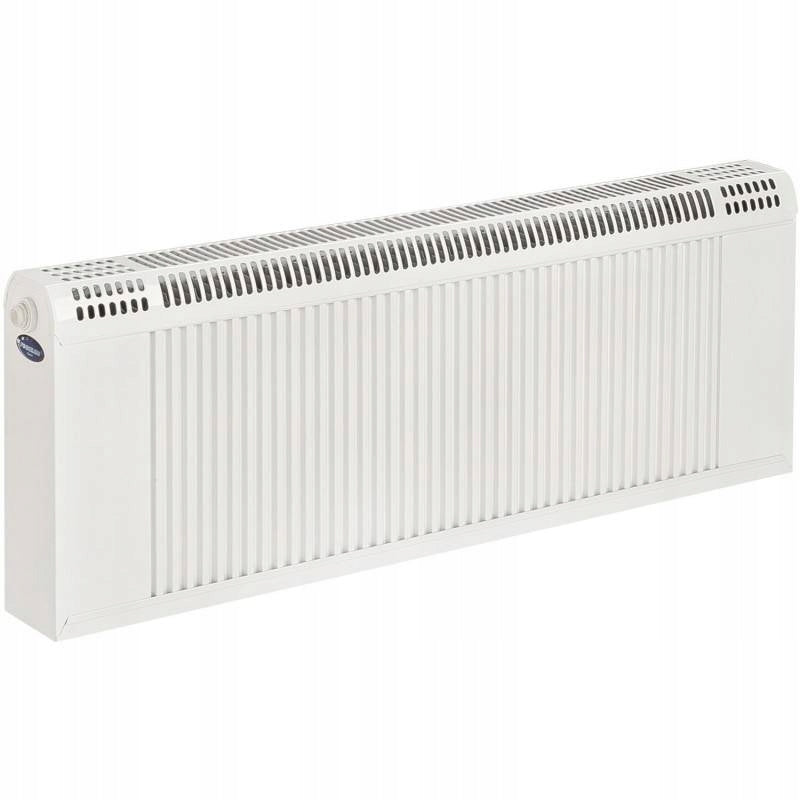

Radiatorius REGULUS 395x1600, prijungimas apačioje

Trumpai apie prekę

Prekė: Radiatorius REGULUS 395x1600, prijungimas apačioje. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Regulus
• Modelis: RD0416
• Plotis: 1600 mm
• Aukštis: 395 mm
• Spalva: white

- RADIATORS - BOILERS - PUMPS - TANKS - FITTINGS - FAST DELIVERY - PRODUCT AVAILABLE IN ONE OF THE WAREHOUSES

PRODUCT DESCRIPTION: The REGULUS-REGULLUS radiator consists of two systems: a water system and a heat dissipation system. The water system is made of evenly spaced horizontal copper heating pipes connected at the ends with vertical copper collective collectors. The heat dissipation system is made of aluminum sheet lamellas mounted vertically on the heating pipes of the water system. Properly bent front and rear edges of the lamellas adhere tightly to each other to form the front and rear walls of the radiator. The combination of copper and aluminum is a dry connection, therefore there is no phenomenon elektrochemiczne.Pokrycie: powder coating

Accessories:

• hand vent ½,
• thermostatic valve with pre-set (only in radiators with BOTTOM connection),
• hangers for mounting,
• set of gaskets, screws,

Connection side:

• right or left
• Operating pressure: 1,5 MPa
• Maximum supply temperature: 110 °C
• Connection type: lower GW ½
• Connection spacing: 50 mm

mixed method of heat emission: radiation + convection, corrugated, very large heat exchange surface, small water capacity, low thermal inertia - radiators quickly reach full rated power for a given supply temperature, which enables precise, energy-saving and easily controllable heating, high efficiency at low supply temperatures, perfect for installations based on low temperature of the heating medium - condensing boilers, heat pumps, high resistance to variable and high pressure

Specifications
