Pusiau automatinis suvirinimo inverteris SHERMAN DIGIMIG 200 CHROME 230V 200A PULS++

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo inverteris SHERMAN DIGIMIG 200 CHROME 230V 200A PULS++. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: Sherman DIGIMIG 200 Chrome
• Ilgis: 410 mm
• Plotis: 165 mm
• Aukštis: 240 mm

➡ SYNERGISTIC SEMI-AUTOMATIC WITH PULSE ⬅

WELDING MACHINE SHERMAN DIGIMIG 200 CHROME

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

When making a purchase on this auction, you will receive a free Sherman thermal mug - 1 pc.

➡ The Sherman thermal mug with a capacity of 350 ml is a practical solution for people who value comfort, durability and elegant design.

➡ Perfect for work, travel, in the car or during walks.

➡ Made of high quality stainless steel, the cup provides very good thermal insulation. Thanks to double walls, it effectively maintains the temperature of the drink – both hot and cold – for a long time.

➡ Your coffee ☕ or tea 🍵 will stay pleasantly warm even for several hours.

Available Modes:

• MIG PULS - synergistic settings with single pulse,
• MIG SYN - MIG/MAG welding with synergistic settings,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

The SHERMAN DIGIMIG 200 CHROME welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium (MMA, MIG/MAG, TIG Lift DC),

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

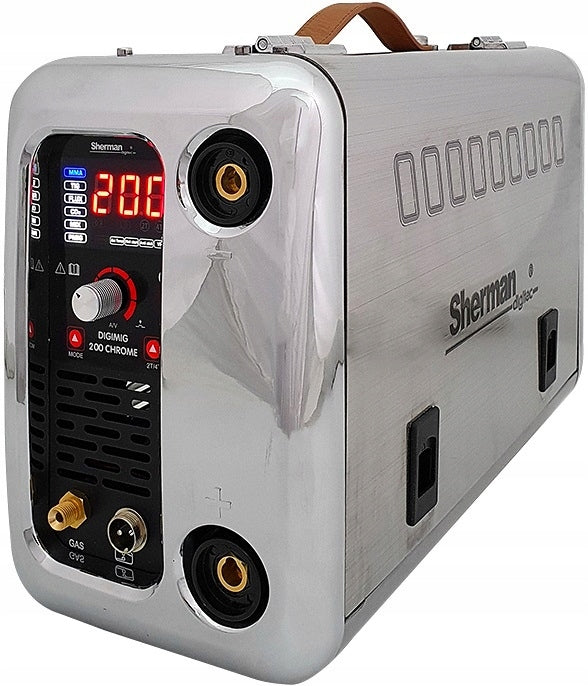

SHERMAN DIGIMIG 200 CHROME has a readable and easy to use function panel, which has m.in.:

• Multifunction knob,
• Source control button 2T/4T,
• Welding method selection button,
• Display.

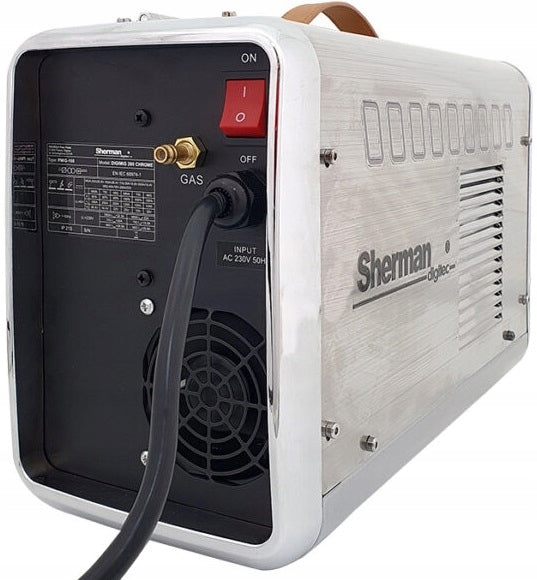

The shielding gas connection, power switch, power cord and fan are located on the back of the device.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ ANTI STICK - short-circuit function - reduces the welding current to a minimum value when the welder makes a mistake and the electrode is glued to the welded material. This makes it easier to detach the electrode from the welded material and protects the electrode holder from damage.

✔ VRD - reduces the idle resting voltage on the electrode to a safe value. Provides shock safety when working in humid environments.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ VERSATILITY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work as well as for light, casual workshop work.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roller feeder enables precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩POWER SUPPLY PARAMETERS

• Power supply: AC 230V 50Hz
• Voltage without load: 60V
• Max. Power consumption: 7,1 kVA
• Network security: 25A

⏩MIG/MAG WELDING PARAMETERS

• Welding current: 40 - 200A
• Maximum current consumption: 26,9A
• Welding voltage: 16 - 22 V
• Wire feeder type: 2-roll
• Wire spool diameters: 100 mm, 200 mm
• Working cycle: 200A / 60%

⏩WELDING PARAMETERS MMA

• Welding current: 20 - 160A
• Maximum current consumption: 32,3A
• Welding current regulation: smooth
• Working cycle: 160A / 60%

⏩WELDING PARAMETERS TIG

• Welding current: 20 - 200A
• Maximum current consumption: 20A
• Working cycle: 200A / 60%

⏩OTHER

• Weight: 6 KG
• Execution technology: IGBT
• Enclosure protection class: IP21S
• Dimensions: 410 x 165 x 240 mm

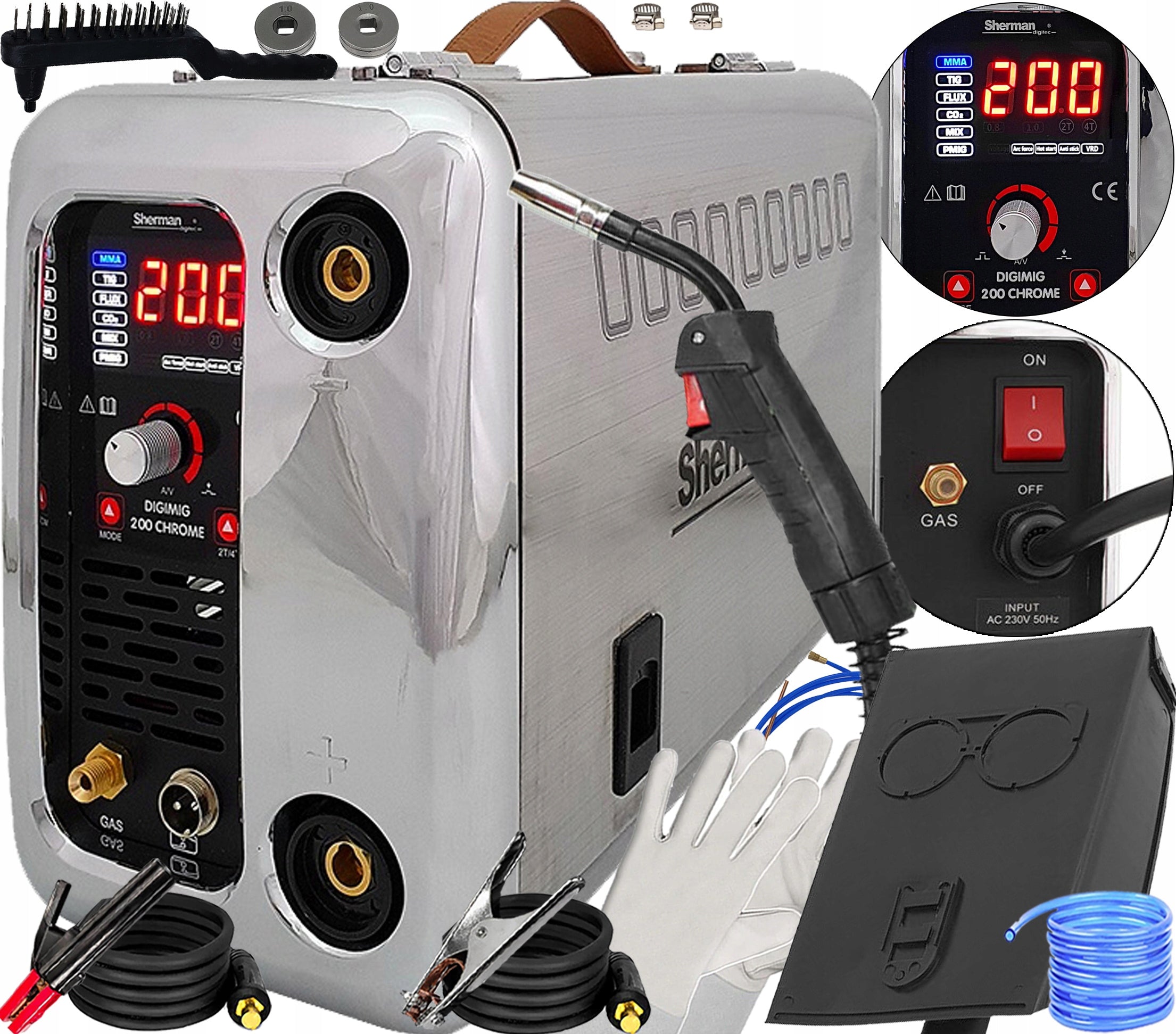

ORIGINAL PRDUCENT SET, WHICH INCLUDES:

• Welding machine SHERMAN DIGIMIG 200 CHROME - 1 pc.
• welding cable MIG MB15/3m - 1 pc.
• mass cable - 1 pc.
• electrode cable - 1 pc.
• Teflon cartridge blue - 3m - 1 pc.
• Welding disc - 1 pc.
• Hammer with brush - 1 pc.
• Welding gloves
• Gas hose - 1 pc.
• Clamping bands - 2 pcs.
• Instruction for operating in Polish
• Guarantee card

+ FREE Thermal mug Sherman - 1 pc.

SET OF 1 MIG WITHOUT MB15 INDUCTANCE.
