Pusiau automatinis suvirinimo inverteris MIG/MAG MMA TIG 200KVA 230V

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo inverteris MIG/MAG MMA TIG 200KVA 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Majster Polska
• Modelis: MP-0109
• Ilgis: 420 mm
• Plotis: 220 mm
• Aukštis: 300 mm

Our welding machine has true parameters, not inflated as in many other devices.

not as in budget semi-automatics , fixed mount, ever-tangled wires, problem when replacing with new ones

you can weld any method, plus or minus on the welding torch

made of thick pressed sheet metal, opened on massive COMPOSITE hinges, simplicity and reliability above all

included roll supporting 2 wire thickness 0,8 -1,0mm with notching, works without slipping

very intuitive , quick and easy to use panel - controlled by 1 button and 2 knobs

Indicates AMPERER, Thickness of welded material and welding method

This device will allow you to weld any welding method in which pole changes are required (plus - minus )

Flux - requires negative polarity on the mig handle, mass should be (+)

MIG with Co2 cylinder- standard polarity, plus on the mig handle, the mass is to be (-)

The welder has a durable metal housing made of pressed thick sheet metal and solid fully composite hinges

Each element is simple , thoughtful , long-lasting, here there is no room for compromise

Professional feeder with roller 0,8/1,0 mm, precise wire guidance on ball bearing, powerful electric motor with copper winding.

The roller has notching, which prevents slipping, always feeds the wire securely

for MIG/MAG welding of low-carbon structural steels, boiler and marine steels and fine-grained carbon-manganese steels in gas shielding.

Self-shielding welding wire for welding steel elements without the use of shielding gas.

The use of wire allows welding without the need for gas cylinders

Welding cables with increased length up to 1,6m, standard manufacturers supply about 1,0m max

The set includes everything you need to work: a MIG handle, MMA handles, and a self-shielding wire. When you buy our semi-automatic, you get a complete set ready to use – you can start welding right away.

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

⏩ The device from the MAJSTER Pro series is a semi-automatic welding machine designed for welding steel in gas shielding and self-shielding wire FCAW (FLUX), MIG/MAG, MMA, as well as TIG Lift method (this requires the purchase of an additional TIG Lift welding handle)

⭐ It is intended for all kinds of welding work, in locksmith workshops, repair workshops, bodywork, farm, etc.

✅ The power source was built on IGBT LATEST GENERATION transistors ensuring minimum electromagnetic interference, small power losses in basic systems, enabling increase in efficiency and reliability of the power source, lower consumption

⏩ The welding machine works with 1 kg wire and 0.8-1.0mm diameter

The FCAW method is arc welding with core (powder) wire.

⭐ This is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding.

⏩ FCAW welding combines the advantages of both wrapped electrode welding and MAG welding: very high efficiency (no need to change the electrode frequently) can also be welded outdoors (the flux also protects against weld oxidation) the welder does not have to have very high qualifications.

✅Technical data:

• -- Brand - Majster PRO
• --Model MP0126
• -- Output current- 200A Power greater than 90% of allegro 300A
• --Welding methods: MIG/MAG, MMA, FLUX - semi-automatic welding with self-shielding wire "without gas"
• -- Voltage - 230v 50Hz
• -- idle current voltage - 62V
• --Wire diameter: 0.8 - 1,0 mm
• -- MMA electrode diameter - 1,6-5.0mm
• -- Rated duty cycle (efficiency) 60%
• -- Efficiency - 85%
• -- insulation class - IP21S
• -- net/ gross weight - 8kg / 8,6kg
• -- dimensions - 45 / 27,5 x 27,5

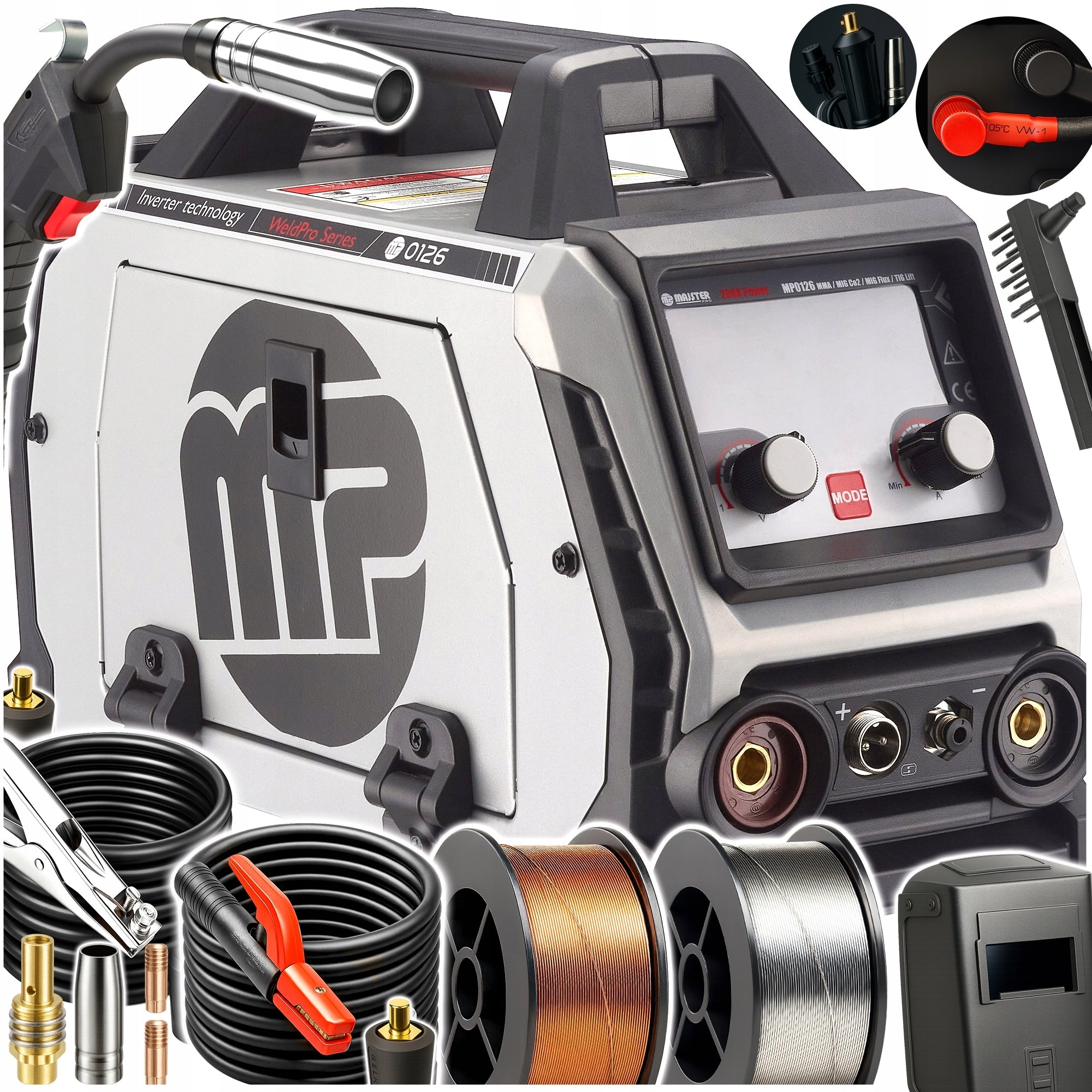

✅Included:

• semi-automatic MP0126
• cable with EURO mig, mig/flux handle
• MMA electrode cable
• mass cable
• shielding wire 0,45kg 0,8mm
• welding wire 1kg 0,8mm
• welding mask
• brush with hammer

All trademarks and company names included in the auction are used for informational purposes only and are the sole property of these companies.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Majster Polska
Parametry	Power consumption	4.6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	15.5 kg
Parametry	Welding range	20–250 A
Parametry	Height	300 mm
Parametry	Length	420 mm
Parametry	Width	220 mm
Parametry	Length of ground cable	150 cm
Parametry	Welding cable length	170 cm
Parametry	Product weight with unit packaging	17 kg
Parametry	Manufacturer code	MP-0109
Parametry	EAN (GTIN)	5904553380518
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
