Trumpai apie prekę

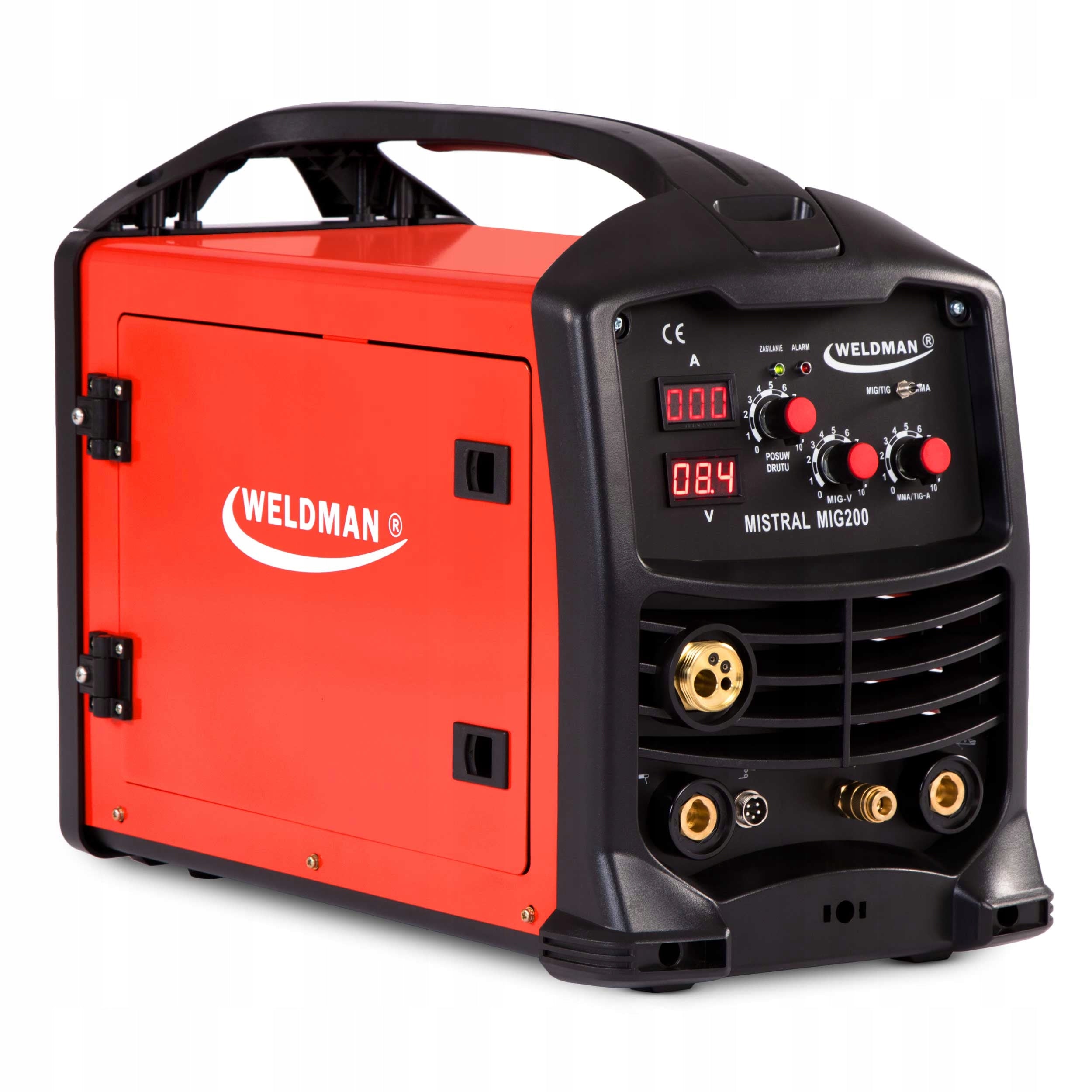

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN MISTRAL MIG 200 MAG MMA TIG 230V 200A IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: 103 102 ZESTAW#WLKP
- Ilgis: 583 mm
- Plotis: 283 mm
- Aukštis: 423 mm
Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
CHECK OUT THE BENEFITS OF THE WELDMAN MISTRAL MIG 200 WELDING MACHINE:
- POSSIBILITY OF WELDING WITH THREE METHODS WHEN BUYING ONE WELDING MACHINE! MIG MAG, TIG DC, MMA!
- IMPROVED AND MORE ADVANCED IGBT TRANSISTOR
- DIGITAL DISPLAYS
- CLEAR AND EASY TO USE CONTROL PANEL
- SINGLE-PHASE POWER SUPPLY 230V
- LARGE WORK CYCLE 60%
- SMOOTH WIRE FEED
- SMOOTH REGULATION OF WELDING CURRENT
- OPTIMAL SIZE AND WEIGHT
- VERIFIED MANUFACTURER
- IDEAL FOR HOUSEHOLDS AND WORKSHOPS
Check the other values and find out what else you will receive by choosing our offer
MISTRAL MIG 200 is used for welding using the MIG/MAG or FLUX method, MMAelectrodes wrapped in direct current (DC) and the TIG method with direct current (DC) with contact arc ignition (TIG LIFT - control in the handle). The compact and compact design makes the device applicable in repair work in halls and in the field. Inside the welding machine there is a wire feeder. It allows you to attach spools up to 5kg/200mm. Above the wire feeder is placed the EXTEND WIRE button, which allows you to quickly insert the wire into the handle without letting go of gas before welding.
A WELDING MACHINE THAT IS UNBEATABLE IN ITS CATEGORY
- ideal for welding low carbon, low alloy (MAG), alloy (MIG) steel
- ideal for welding stainless steels (inox)
- ideal for welding aluminium and its alloys
MODERNITY AND FUNCTIONALITY:
- Max. 5 kg spool D200
- Panel in Polish
- MIG/TIG and MMA operating method switch
- Two digital displays of welding current parameters (ammeter, voltmeter)
- Electronically controlled smooth regulation of welding current and wire feed speed
- 2-roll wire feeder
- In TIG welding method contact arc glow (TIG LIFT)
- Red LED on the front panel informs about shutdown due to overload
- Green LED on the front panel informs about connecting the device to the power supply
- Two gas connections on the rear panel allow simultaneous connection of argon cylinders and carbon dioxide cylinders
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph
- Frequency: 50Hz
- Power protection: 20A
- Idle current voltage: 56V
MIG WELDING PARAMETERS
- Welding current: 50-200A
- Efficiency: 60%
- Welding current: 200A
- Welding current voltage: 24V
WELDING PARAMETERS MMA
- Welding current: 10-200A
- Efficiency: 60%
- Welding current: 200A
- Welding current voltage: 28V
- Diameter of electrode: 1.6 – 4.0
WELDING PARAMETERS TIG DC LIFT
- Welding current: 10-200A
- Efficiency: 60%
- Welding current: 200A
- Welding current voltage: 18V
- Arc glow: tactile
PHYSICAL PARAMETERS
- Wire diameters: FE: 0,8-1,0 SS: 0,8-1,0 AL : 0,8-1,0 FLUX: 0,9-1,2
- Spool size: 5 kg (200mm)
- Type of wire feeder: 2-roll
- Cooling: fan
- Isolation class: F
- Security rating: IP 21S
- Dimensions: 58x28x42 cm
- Weight: 16 kg

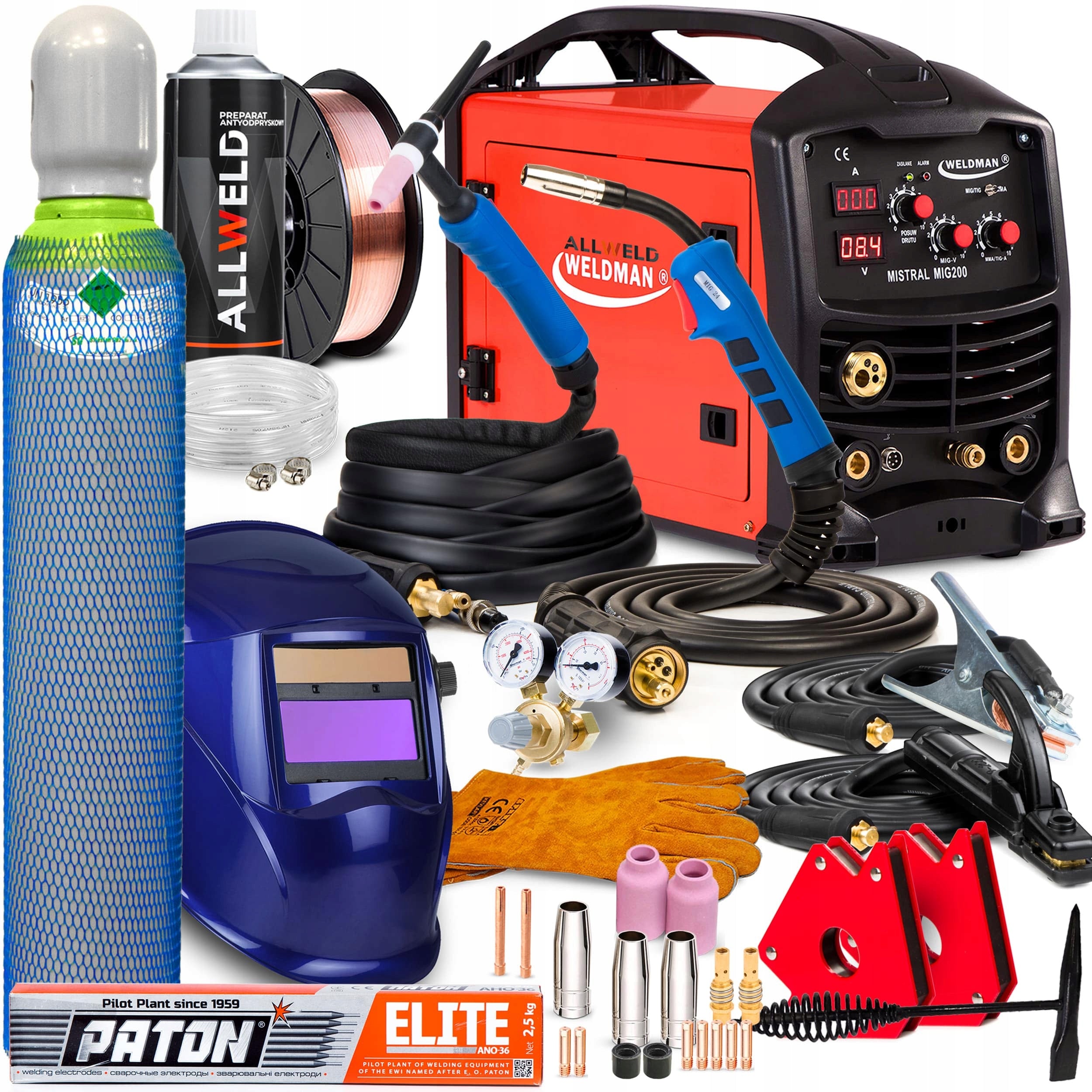

INCLUDED IN THE SET:
- Professional AUTOMATIC visor - MAGNUM NOVA - available in four colours (red, blue, grey, black)
- Factory new reusable cylinder with Ar(82%)/CO2(18%) mixture with a capacity of 8l. The cylinders have 10 years of legalization and can be filled at any point with technical gases.
- Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
- Sturdy and durable hammer
- Welding wire SG2 5kg - precision winding
- Magnetic Angles 22kg - 2pcs
- Gloves welding - 1 pair
- Anti-chipping preparation - protects the nozzle and metal against welding chipping.
- Electrodes PATON - 1kg
- Clamping bands - 2pcs
- Gas hose - for connecting the reducer to the welding machine
- Set of consumable parts of MB15 handle (nozzles, connectors, tips, insulators)
NECESSARY SET NEEDED TO START WELDING WORK WITH MIGOMAT.
THE SET INCLUDES:
- Welding machine WELDMAN MISTRAL MIG 200
- Welding torch MIG/MAG type MB15 - 3m
- Welding torch TIG type SR26 - 4m
- Bulk holder - 2m
- Electrode holder - 2m
- Gas connections for technical hose 8 mm - 2pcs
- Welding disc
- Brush
- Operating elements of the MIG holder (nozzle x2, current tip x3)
- Operating elements of the TIG handle (cork x2, bushing x3, connector, nozzle x3)
- User manual and warranty card

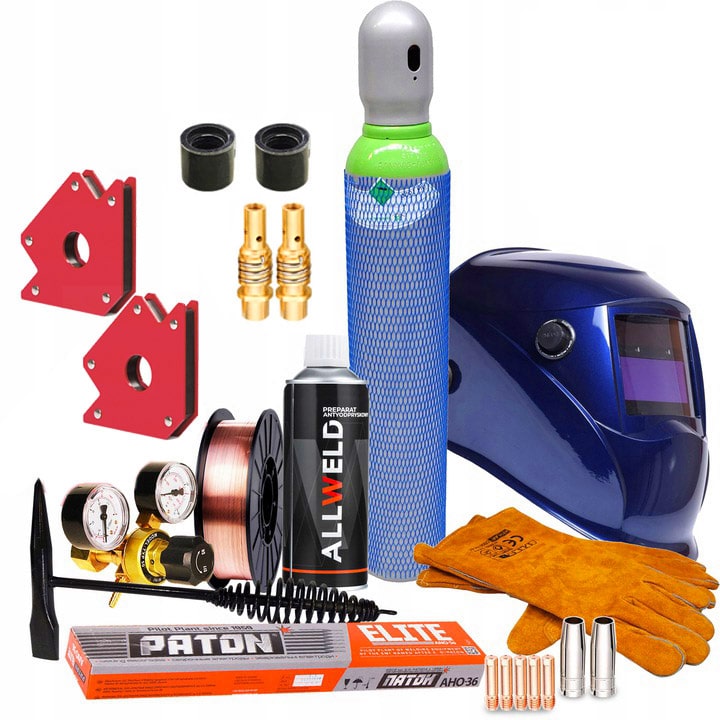

+ WELDING ACCESSORIES:
- Welding visor MAGNUM NOVA
- Cylinder with Argon/CO2 gas mixture
- Cylinder reducer Ar/CO2 MINI with two pressure gauges
- Sturdy and durable hammer
- Welding wire SG2 - 5kg
- Magnetic Angles 22kg - 2pcs
- Welding gloves - 1 pair
- Anti-chipping preparation ALLWELD
- Electrodes PATON - 1kg
- Clamp Bands - 2pcs
- Gas connection hose - 1 pc
CONSUMABLE PARTS OF THE HANDLE:
- Gas nozzles - 2 pcs.
- Current switches with spring - 2 pcs.
- Current terminals - 5 pcs.
- Burner insulators - 2 pcs.
PLEASE INFORM US IN THE ORDER NOTES ABOUT THE COLOR OF THE VISOR YOU CHOOSE.
IN THE ABSENCE OF INFORMATION, WE SEND THE VISOR RANDOMLY.
IN THE ABSENCE OF THE VISOR COLOR CHOSEN BY YOU, WE RESERVE THE RIGHT TO SEND THE CURRENTLY AVAILABLE VERSION.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 6.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 16 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Height | 423 mm |
| Parametry | Length | 583 mm |
| Parametry | Width | 283 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 22 kg |
| Parametry | Manufacturer code | 103 102 ZESTAW#WLKP |
| Parametry | EAN (GTIN) | 5905214997540 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle |
