Pusiau automatinis suvirinimo aparatas WELDMAN MAGIC MIG 250 MMA IGBT 4x4 200A

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas WELDMAN MAGIC MIG 250 MMA IGBT 4x4 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: Spawarka Weldman MAGIC MIG 250

WELDMAN SEMI-AUTOMATIC WELDING MAGIC MIG 250 - WELDING KIT #5

Brand: WELDMAN | Welding methods: MIG/MAG, MMA, FLUX | Power supply: 230V, 400V | Welding current: 200A | Efficiency: 60%/200A

TECHNICAL DATA:

• Power supply voltage [V]: 230/400V
• Idle current voltage [V]: 77(230V)/67(400V)
• Welding current adjustment range [A]: 40-200
• Efficiency max at 40°C EN 60974-1: 200A@60% 155A@100%
• Wire diameter [mm]: 0,6-1,0
• Max spool weight [kg]: 15
• Protection class [IP]: 21
• Dimensions [cm]: 78x33x53
• Weight [kg]: 23,5

IGBT TECHNOLOGY

Modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has an impact on a significant extension of reliable operation of welding equipment.

DEGREE OF PROTECTION

IP determines the extent to which the device is resistant to solid and water contaminants entering. IP21S means that the device is adapted to work indoors and is not suitable for use in rain and snow.

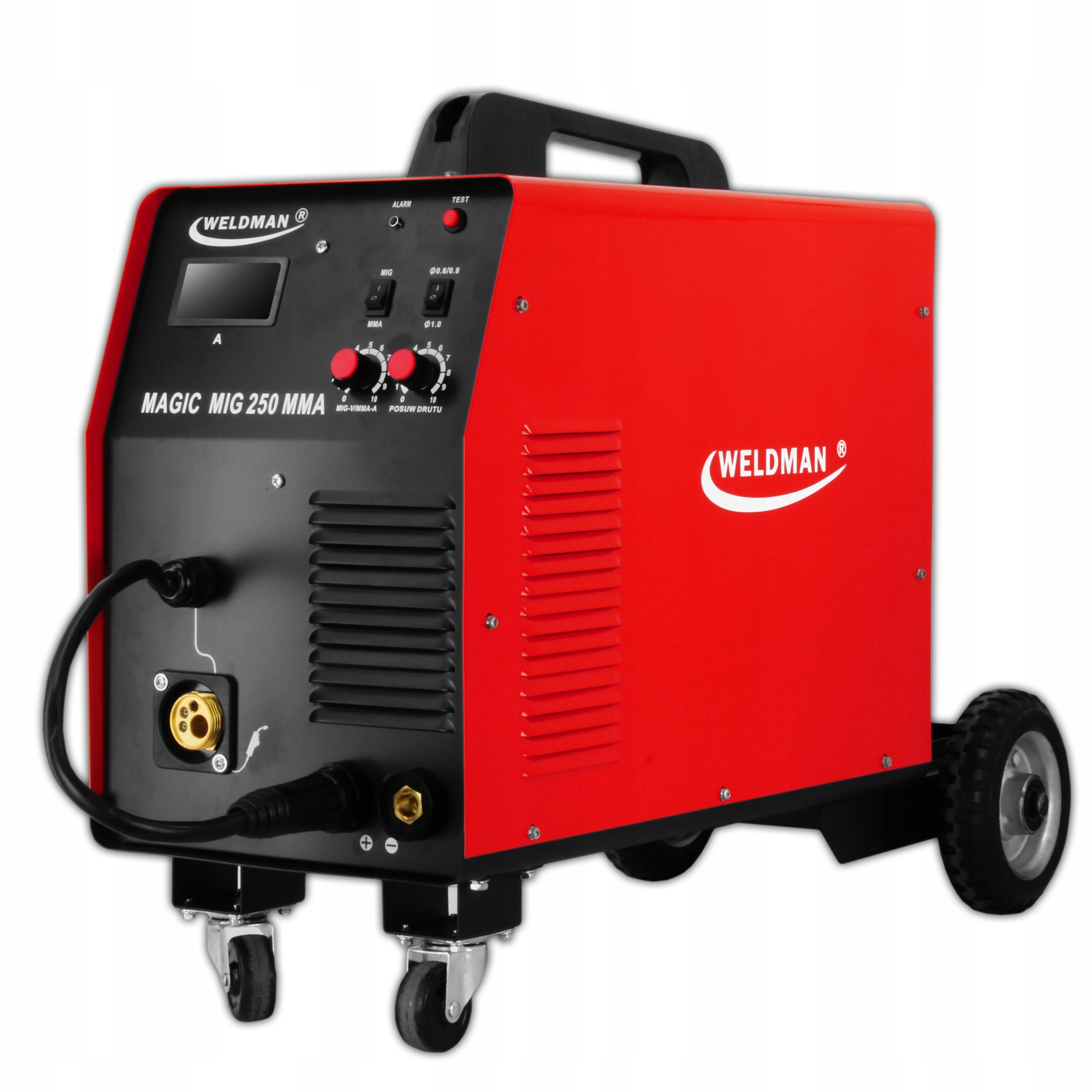

SEMI-AUTOMATIC WELDING MAGIC MIG 250

The device, which was made in the inverter technology IGBT. It is used for welding methods:

• MIG-MAG welding wire in gas shield,
• FLUX welding wire without shielding gas,
• MMA with direct current (DC) electrode

Thanks to these capabilities, the Magic Mig 250 is able to simplify many tasks.

Designed for welding with welding wires with a diameter of 0,6-1,0 mm, self-shielded wires 0,9 mm and electrodes wrapped with a diameter of up to 4 mm of low carbon steel, low alloy (MAG), alloy (MIG), aluminium and iron castings.

The MAGIC MIG 250 model is powered by a cable with a 400V plug and additionally has a adapter power supply from 400V to 230V. Max spool 15 kg D300.

Application primarily in small workshops, services that deal with automotive tinsmithing, farms and wherever mobility and effective operation of the set are required for work.

PROTECTION AGAINST OVERHEATING

The power source is equipped with a thermal, automatic switch overload. When the temperature of the welding machine is too high, the protection will disconnect the welding current and the overheating indicator diode will light up. After the temperature drops, the circuit breaker will automatically reset.

MMA

A method in which a wrapped electrode is used, consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes.

WORK CYCLE

The work cycle is based on a 10-minute period. The work cycle 60% means that after 6 minutes the operation of the device is required 4-minute break. The 100% duty cycle means that the device can work continuously, without interruptions.

MIG/MAG

Arc welding in gas shields is one of the most commonly used processes for the manufacture of welded structures.

PRODUCT CHARACTERISTICS

• Single-phase power supply 230 V and interphase (400V)- allows you to work with the device practically anywhere with access to the electrical network
• Readable display : welding current, welding voltage, wire feed speed
• Device equipped with EURO socket for connecting a welding torch
• Maximum spool with wire - 15 kg
• Polarity change for FLUX welding without shielding gas
• Accurate adjustment of welding arc length
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• The device is equipped with overload protection, which increases its reliability
• Professional wire feeder: internal, 2-roll
• The device has a fan cooling system which significantly increases its efficiency
• CHANGE OF POLARITY - WELDING WITHOUT GAS. Thanks to the variable polarity, it is possible to weld using the FLUX method with powder wire without shielding gas. The wire is filled with flux producing protective gases during welding.
• EASY TO USE, EASY TO READ CONTROL PANEL:
• EURO CONNECTOR
• Chassis for gas cylinder and wheel driving is a huge advantage of this device, allows for easy transport of the welding machine with all accessories.
• Standard connection of welding torches, which allows connection of various types of torches (e.g. prepared for welding Aluminium by replacing the Teflon cartridge and current tip).

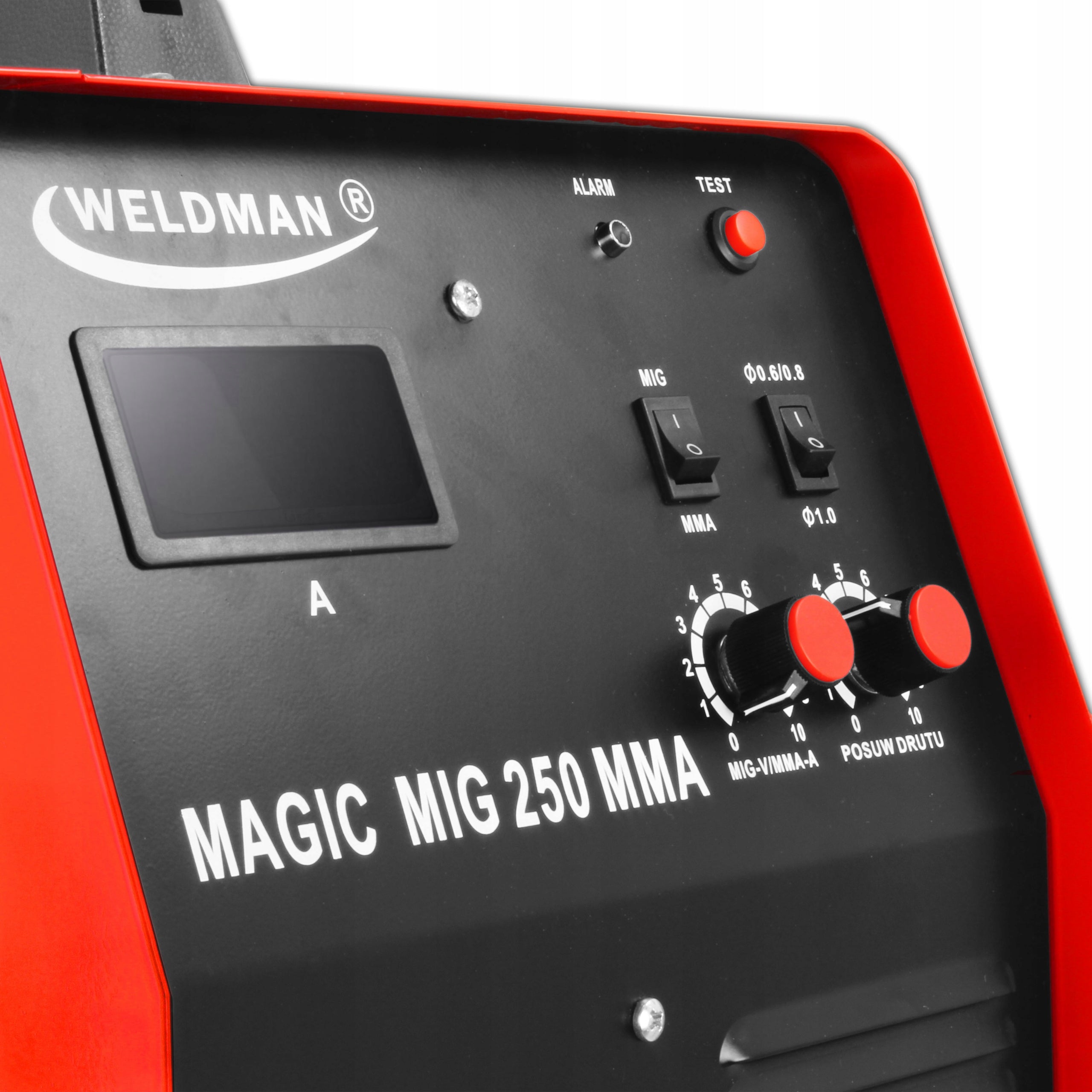

• Simple control panel enables precise and smooth parameter adjustment. The digital display indicates the actual current during welding.

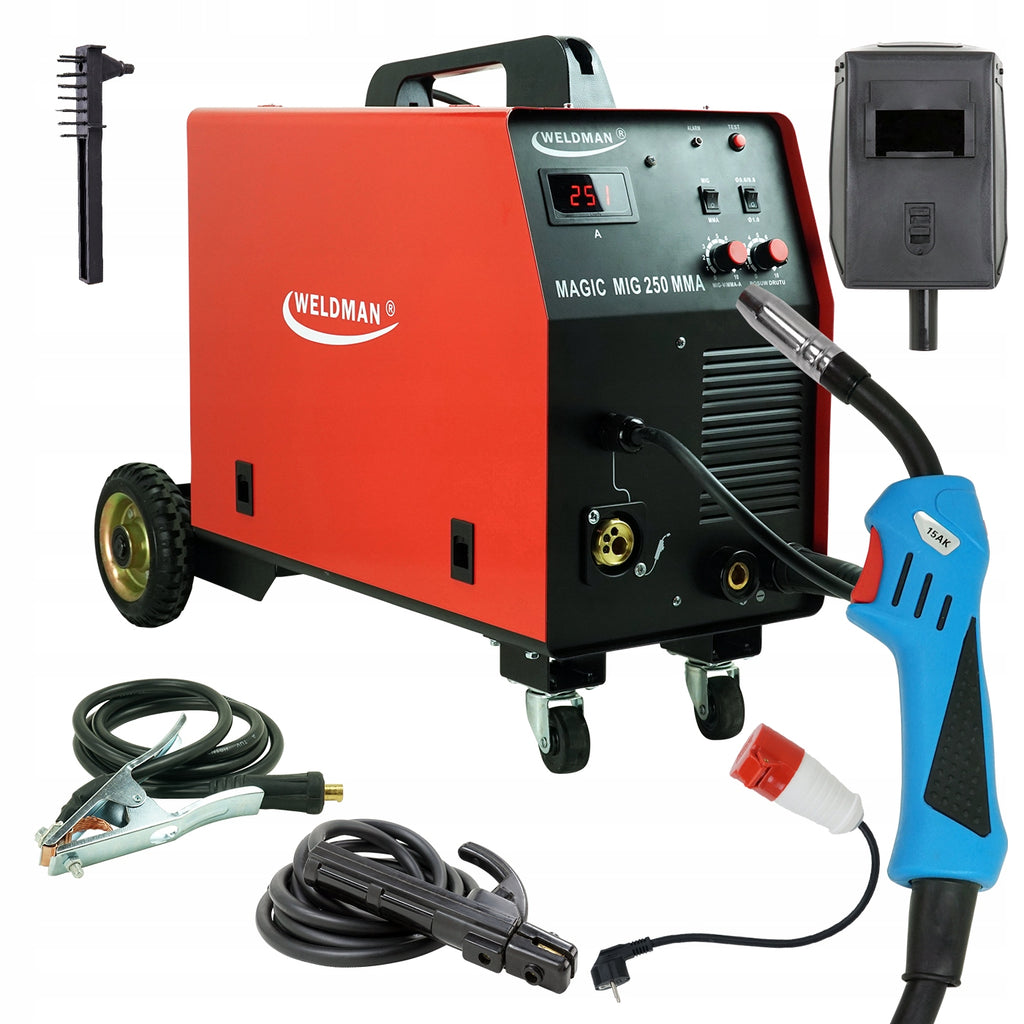

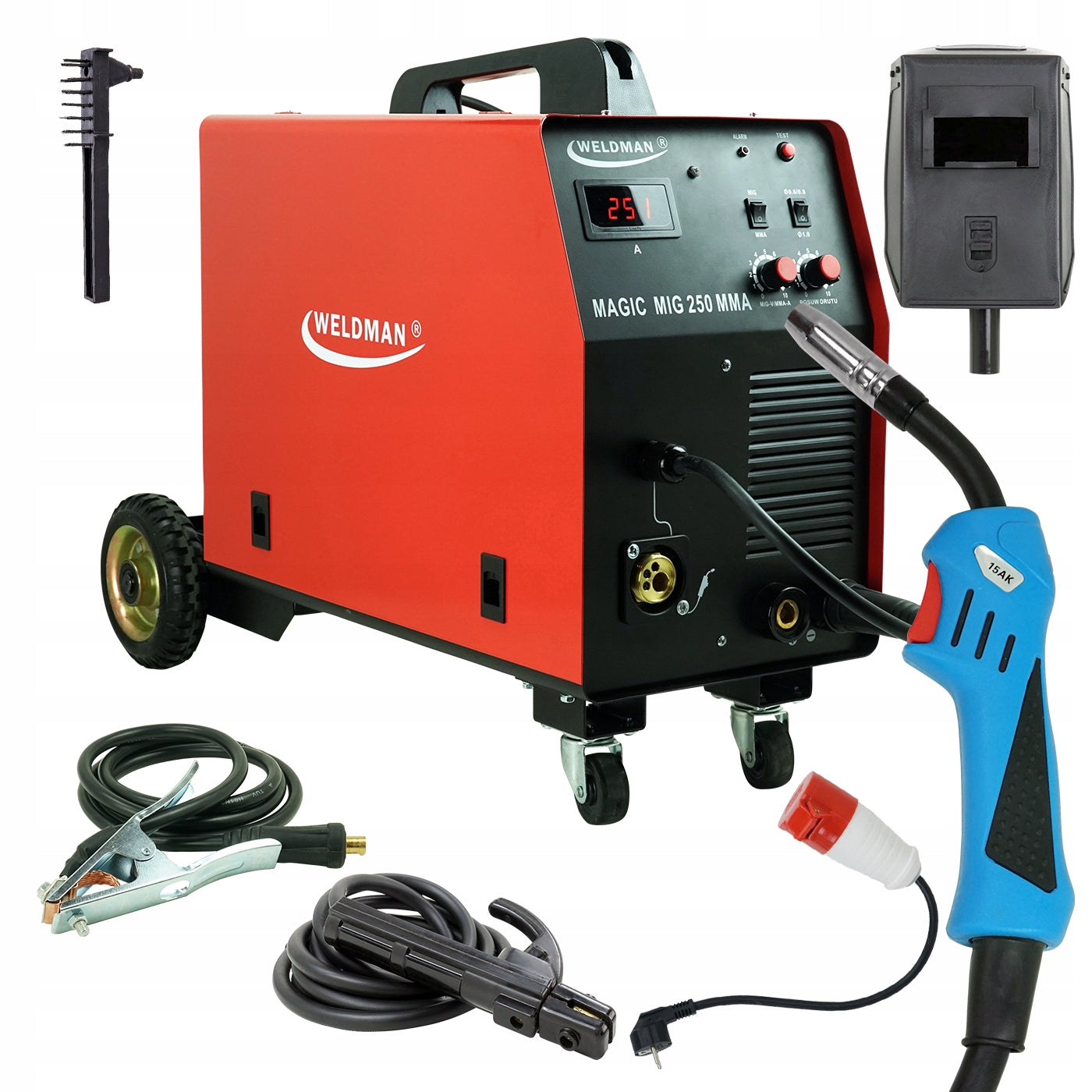

THE SUPPLY SHALL INCLUDE:

• MAGIC MIG 250 welder
• Welding torch MB 15 3m
• DX 50 electrode holder with 2,5 m cable,
• DX 50 Mass Cable with 2m Mass Clamp
• Power Adapter from 400V to 230V
• Brush
• Welding shield
• Operating instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	23.5 kg
Parametry	Welding range	40–200 A
Parametry	Manufacturer code	Spawarka Weldman MAGIC MIG 250
Parametry	EAN (GTIN)	5902701751357
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Supply voltage (V)	230,400
Parametry	Additional features	welding mask included,infinitely adjustable welding current,LCD display
