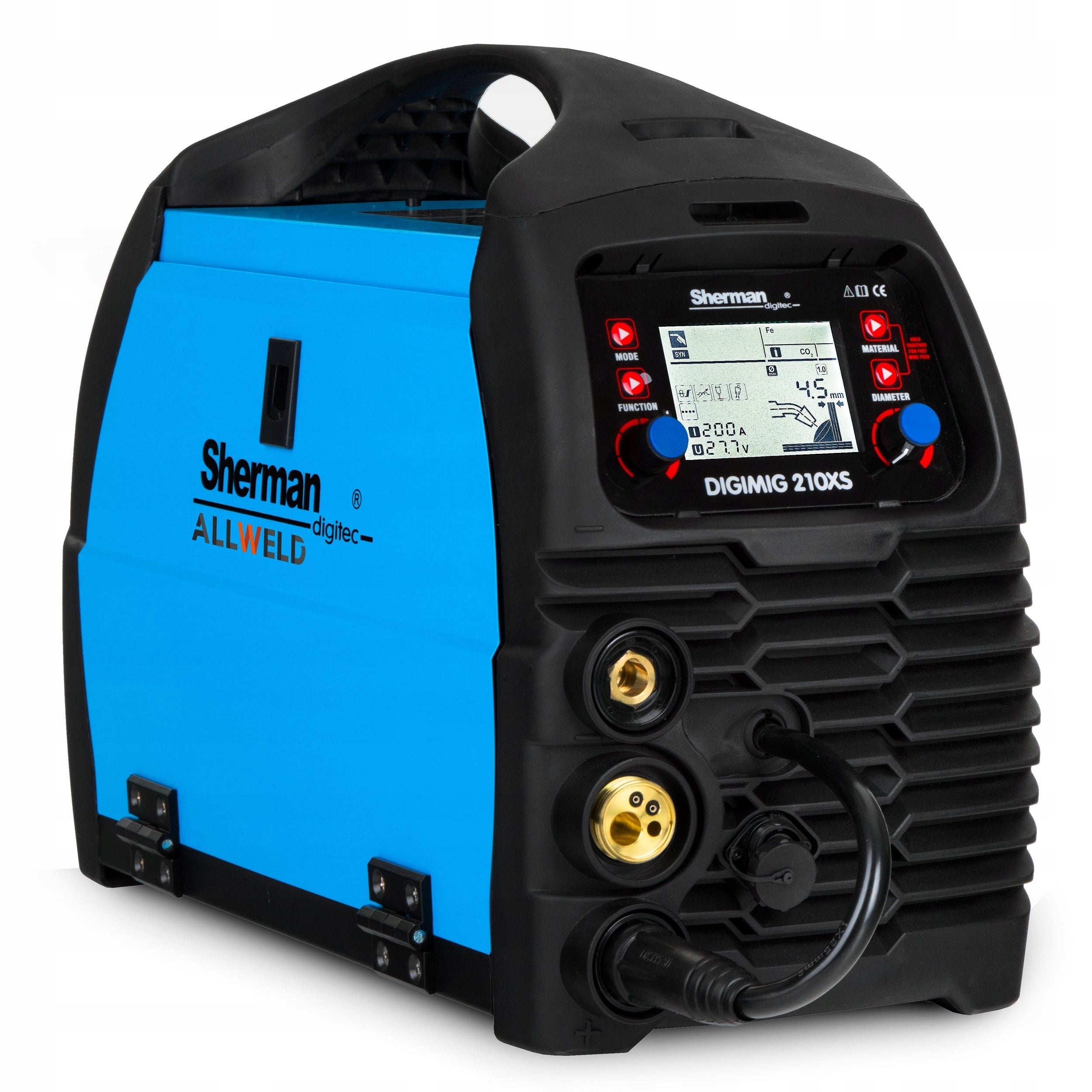

Pusiau automatinis suvirinimo aparatas SHERMAN DIGIMIG 210XS MIG MAG MMA TIG 230V 200A 3in1

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas SHERMAN DIGIMIG 210XS MIG MAG MMA TIG 230V 200A 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: 7812583 MAPR-15-T
• Ilgis: 531 mm
• Plotis: 231 mm
• Aukštis: 391 mm

SYNERGIC SEMI-AUTOMATIC WELDING MACHINE SHERMAN ! 3in1 WELDING MACHINE WITH MANY FUNCTIONS

Manufacturer: SHERMAN ║ Welding methods: MIG/MAG, MMA, TIG, FLUX, SYNERGY ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 40%

• Power 200A and 40% duty cycle
• 3in1 MIG / MAG , MMA , TIG Lift welding machine
• Welding steel, metal color and aluminium
• Support for CO2, Ar and mixtures of these gases
• Synergy mode - automatic selection of settings for the welded material
• Synergistic programs for welding steel carbon, aluminium, steel stainless and copper
• Correction voltage welding in synergistic mode
• Manual selection parameters
• Weldable without gas FLUX
• Possibility to connect a handle type Spool Gun
• inverter technology IGBT
• Adjustable inductance in synergistic and manual mode - allowing for lutowelding
• fast extension function wire
• Adjustable wire burning time
• 2T/4T mode - for short and long welds
• ANTI STICK
• Adjustable SPOT function
• Voltage regulation system VRD
• Adjustable function POST GAS
• Adjustable function ARC FORCE
• Adjustable function HOT START
• Protection against overheating
• Memory last selected settings

Sherman MIG 200 HD allows for welding using MIG-MAG, MMA, TIG DC LIFT methods. The advantage is the possibility of welding with FLUX self-shielding wires thanks to the polarity change function. The device will be used in workshop and hobby works. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum. The welding machine enables the lutowelding process, thanks to which galvanized sheets can be freely combined. A special feature of the semi-automatic SHERMAN is the possibility of automatic selection of parameters welding (synergy). The welding machine itself selects parameters based on the set value of the welding current. The device also has a mode manual, with the possibility of manual settings. In this mode, the migomat allows you to change the welding current and the voltage value of the electric arc. This feature can be particularly useful for more experienced welders.

IGBT - a solution that provides a minimum of electromagnetic interference with small power losses in basic systems, enabling increased efficiency and reliability of the power source.

ANTI STICK consists in cutting off/minimizing the welding voltage and current in the event of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

VRD - a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

SPOT WELDING - for making even, point strains, with adjustable welding time. Mainly used for joining sheet metal "on the tab" or pre-connecting the structure.

HOT START "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.

2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process is stopped at the second press. This is a more convenient solution for longer welds.

REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

ARC FORCE – it is used to improve the stability of combustion in the short arc and prevent the electrode from “sticking”. When a drop of metal separates from the electrode, the current is automatically raised to a given level - if there is a suitable switch (as in the "Professional" series). By lowering the “Electric arc force” to reduce energy consumption from a weak grid or increasing it in a strong grid, the stability of arc combustion is even much better improved.

SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph, 3ph
• Frequency: 50 Hz
• Maximum power consumption: 7,1 kVA
• Maximum power consumption: 32 A

TECHNICAL PARAMETERS

• MIG/MAG welding current: 20 ÷ 200A
• MIG/MAG welding voltage: 14,5 ÷ 24 V
• TIG Lift welding current: 10 ÷ 200 A
• MMA welding current: 10 ÷ 200 A
• MIG/MAG efficiency: 40%
• TIG DC, MMA efficiency: 35%
• Feeder: 2-roller
• Spool diameters with wire: 100, 200mm
• - Subwoofer Spool size: 5kg
• Wire diameter: 0,8/0,9/1,0/1,2 mm
• Speed feed wire: 2 – 20m/min
• Inductance: -10 – +10
• Time burn wire: 0 – 10 s
• Correction voltage welding: -3.0 – +3.0 V
• Efflux gas: 0 – 2 s
• ARC FORCE (MMA): 0-10
• HOT START (MMA) 0 – 10

ADDITIONAL FUNCTIONS

• SYNERGY
• MODE MANUAL
• BRAZING
• 2T/4T
• VRD
• SPOT
• FLUX
• ANTI -STICK
• POSTGAS
• ARC FORCE
• HOT START
• SETTING MEMORY

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: fan
• Dimensions: 530 × 230 × 390 mm
• Weight: 13kg

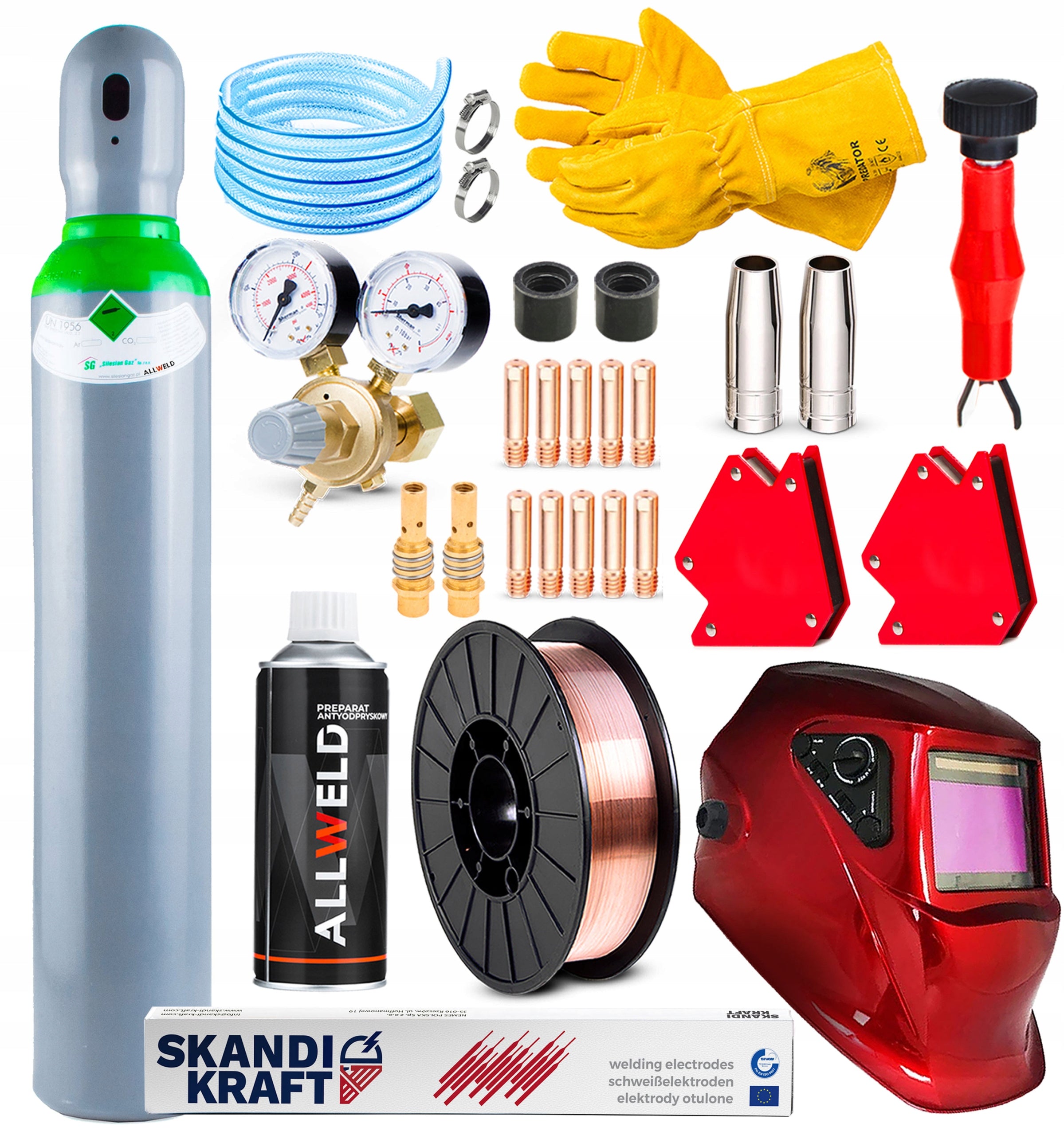

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Self-tinting visor MAGNUM TURBO TRUE COLOR - a safe mask with an enlarged field of view of 100 x 60mm, 4 sensors and a reaction time of 1/30000 s, for full eye protection.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SKANDI KRAFT 1kg - 1 pack

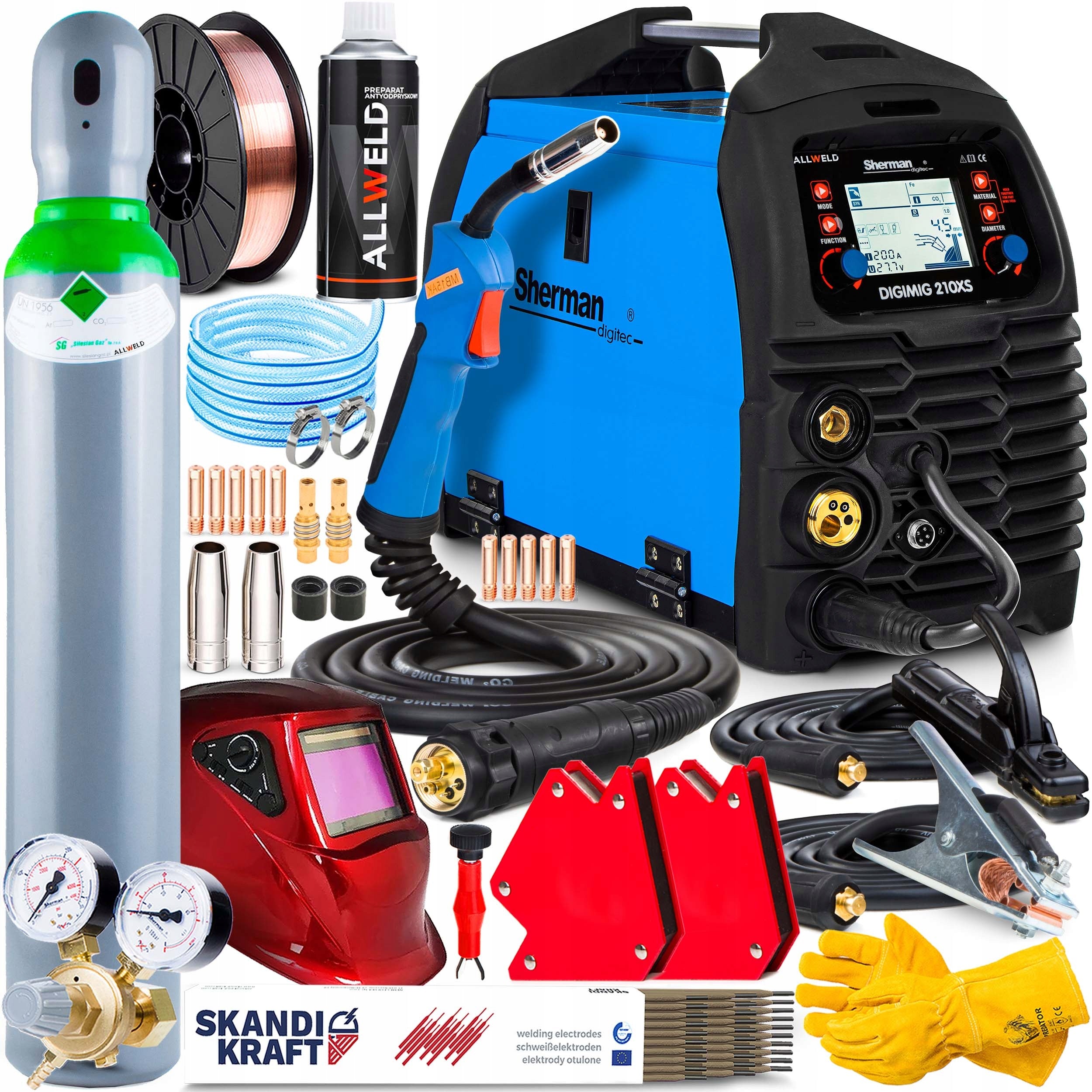

BY BUYING FROM US YOU GET

• Sherman DIGIMIG 210 XS Synergy
• Welding torch MIG/MAG Type MB 15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Instruction in Polish
• Guarantee Card

ADDITIONAL ACCESSORIES:

• The visor self-tinting Magnum Turbo TRUE COLOR
• Bottle with gas mixture Argon/CO2
• Reducer cylinder Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 0,8mm - 5kg
• Preparation anti-chipping ALLWELD
• Angle magnetic 11kg - 2 pcs.
• Electrodes SKANDI KRAFT - 1kg
• Flame-retardant gloves for welding
• Gas hose - 2m
• Clamping bands - 2 pcs.
• Scraper for gas nozzles

+HANDLE CONSUMABLE PARTS:

• Gas nozzles - 2 pcs.
• Current connectors - 2 pcs.
• Ends current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sherman
Parametry	Power consumption	7.1 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	35%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	14 kg
Parametry	Welding range	20–200 A
Parametry	Height	391 mm
Parametry	Length	531 mm
Parametry	Width	231 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	16.5 kg
Parametry	Manufacturer code	7812583 MAPR-15-T
Parametry	EAN (GTIN)	5905214997717
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
