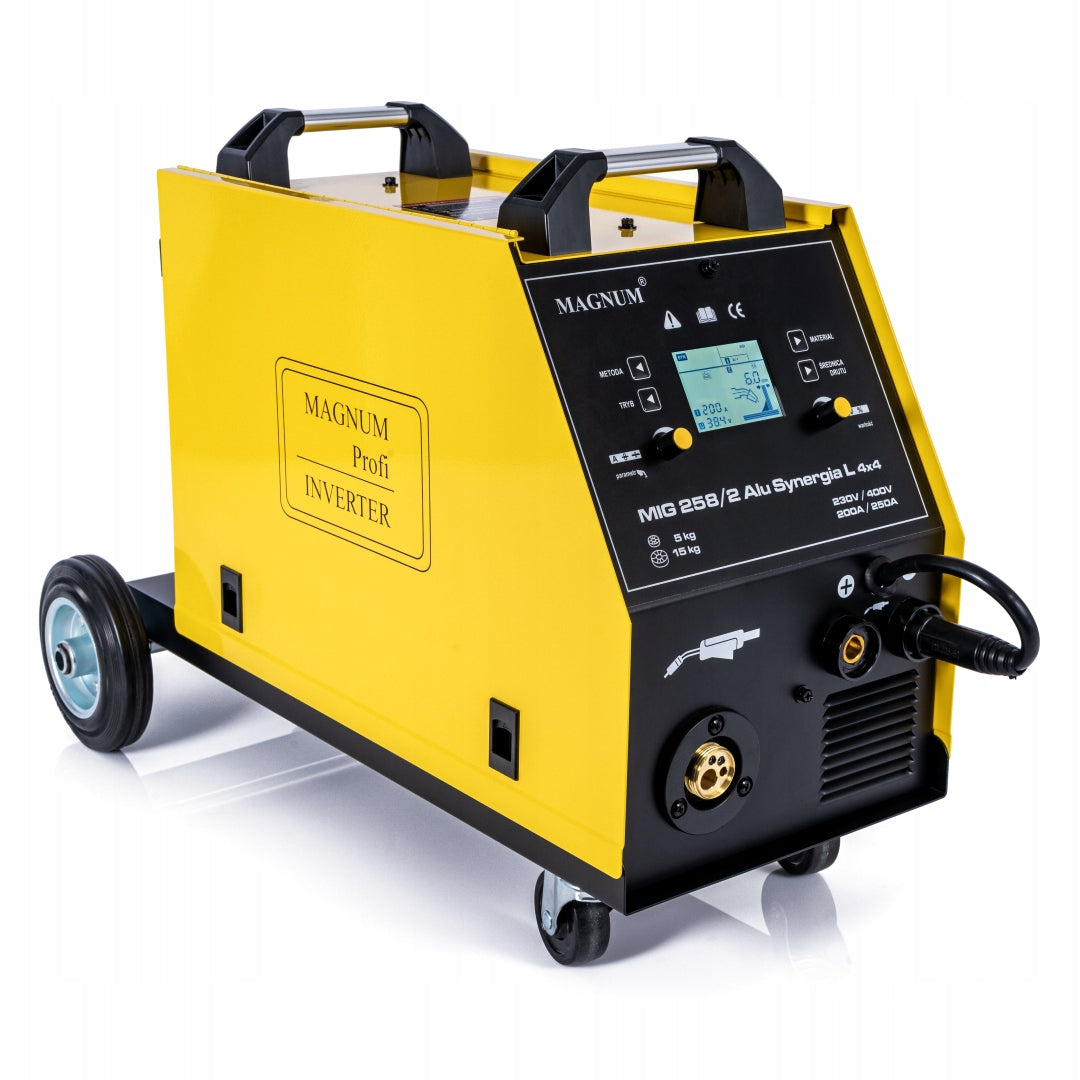

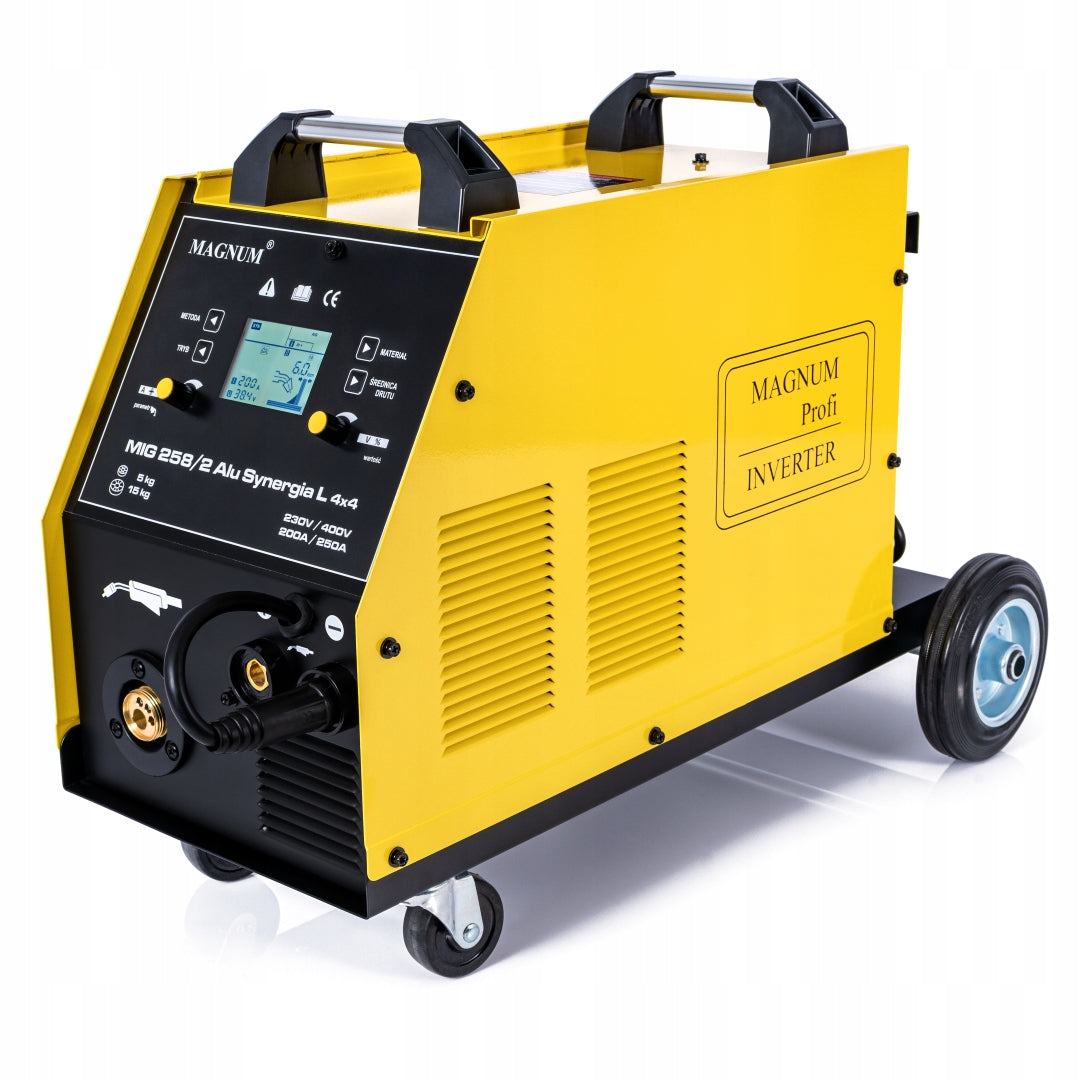

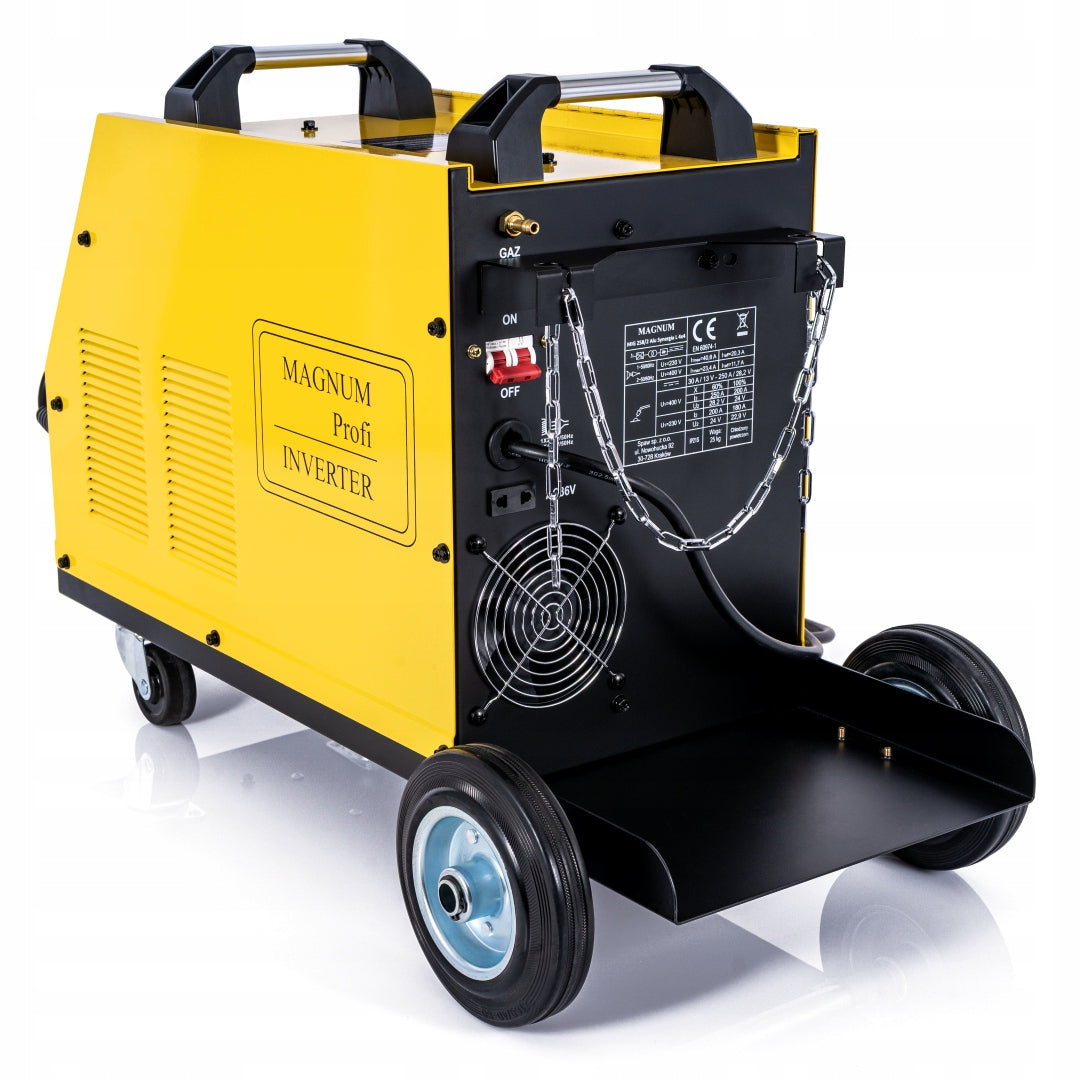

Pusiau automatinis suvirinimo aparatas MIGOMAT MIG258/2 ALU SYNERGY L 4X4 MMA, 230/400 MAGNUM

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIGOMAT MIG258/2 ALU SYNERGY L 4X4 MMA, 230/400 MAGNUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 258/2 ALSY

SEMI-AUTOMATIC INVERTER MAGNUM MIG258/2 ALU SYNERGY L 4X4, MMA, 230/400, 230V-200A/60%, 400V-250A/60%, 4X4, GP50, spool 5/15 kg

TECHNICAL PARAMETERS

• Power supply 230V or 400V/50Hz
• Efficiency 60%
• Welding current 230 [V] 200 A
• Welding current 400 [V] 250 A
• Idle voltage 77 V
• Wire spool max. 15 kg
• Wire diameter 0.6 mm - 1.2 mm
• Power supply protection 230 [V] 25 A (C)
• Power supply protection 400 [V] 16 A (C)
• Enclosure protection IP21S
• Cooling of the device AIR
• Cooling the GAS handle
• Weight 25 kg

MAGNUM MIG 258 ALU SYNERGY L 4×4 is an advanced welding device designed for professionals and demanding workshop users. The welding machine is designed for manual, electric MIG/MAG, MMA, TIG LIFT, FCAW and spot welding, as well as for solder welding. Powered by 230 V or 400 V.

The device allows welding of all weldable metals and their alloys, including low- and high-alloy carbon steels, stainless steels, aluminum, copper and their alloys. The use of modern IGBT transistors translates into high efficiency, reliability, reduction of electromagnetic interference and lower electricity consumption.

Advanced synergy and feeder 4×4

MIG 258 ALU SYNERGIA L 4X4 offers MIG/MAG welding in manual and synergistic mode, with ready-made programs dedicated to:

• steel,
• stainless steels,
• aluminium,
• Soldering.

The four-roll 4×4 wire feeder ensures stable and precise wire feeding, especially important for welding aluminum.

The device is equipped with specialized programs:

• COLD WELD – allows welding thin sheets without the risk of overheating,
• FAST MIG – allows for fast and deep welding with a limited amount of chipping.

Features:

• MIG/MAG welding | MMA | TIG LIFT | POINTS | FCAW
• 230 V or 400 V power supply
• wire feeder 4×4
• chassis with space for cylinder
• manual mode
• synergistic mode
• built-in synergistic programs (including soldering)
• adjustable wire access speed
• regulated inductance
• adjustable wire burning height (BURN BACK)
• adjustable initial current value (HOT START)
• adjustable gas outflow time after welding
• adjustable spot welding time
• regulation of the final current (crater filling)
• Features: 2T/4T/S4T | HOT START | ARC FORCE | VRD

APPLICATION

MIG 258 ALU SYNERGY L 4×4 is a device designed for:

• locksmith and repair workshops
• Automotive industry
• production and steel structures
• professional welding work requiring precision and reliability

• Semi-automatic welding machine MIG258 ALU SYNERGY L 4x4
• Welding torch MB13/3
• Electrode holder
• Bulk holder,
• Warranty card
• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Manufacturer code	U MI 258/2 ALSY
Parametry	EAN (GTIN)	5905323123809
