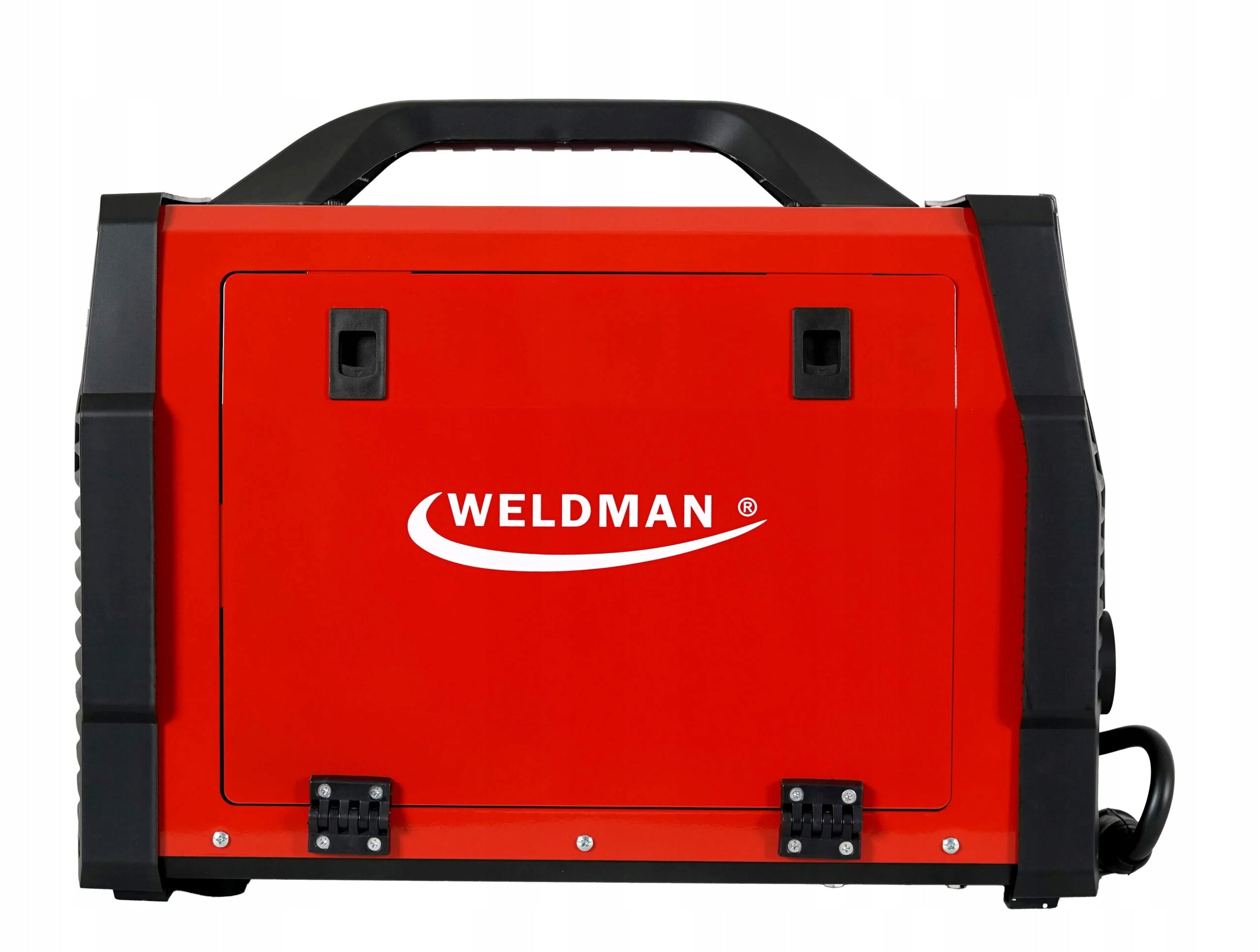

Pusiau automatinis suvirinimo aparatas MIGOMAT 230 Pulse MIG/TIG/MMA Weldman

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIGOMAT 230 Pulse MIG/TIG/MMA Weldman. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: 103 132

The MICRO MIG 230 PULS welder is based on IGBT inverter technology.

The welder has synergy function, material separation, soldering, inductance regulation,

2-bar/4-bar/point welding handle operating mode, gas outflow time adjustment before welding

and after welding and adjustment of the initial speed of wire extension.

The welding machine is designed for welding methods: MIG/MAG, MIG/MAG with pulse (synergy), FLUX

(without gas shield), MMA (welding with DC electrodes), TIG DC LIFT (contact)

arc glow) of carbon steels, stainless steels, alloy steels, cast iron and aluminum.

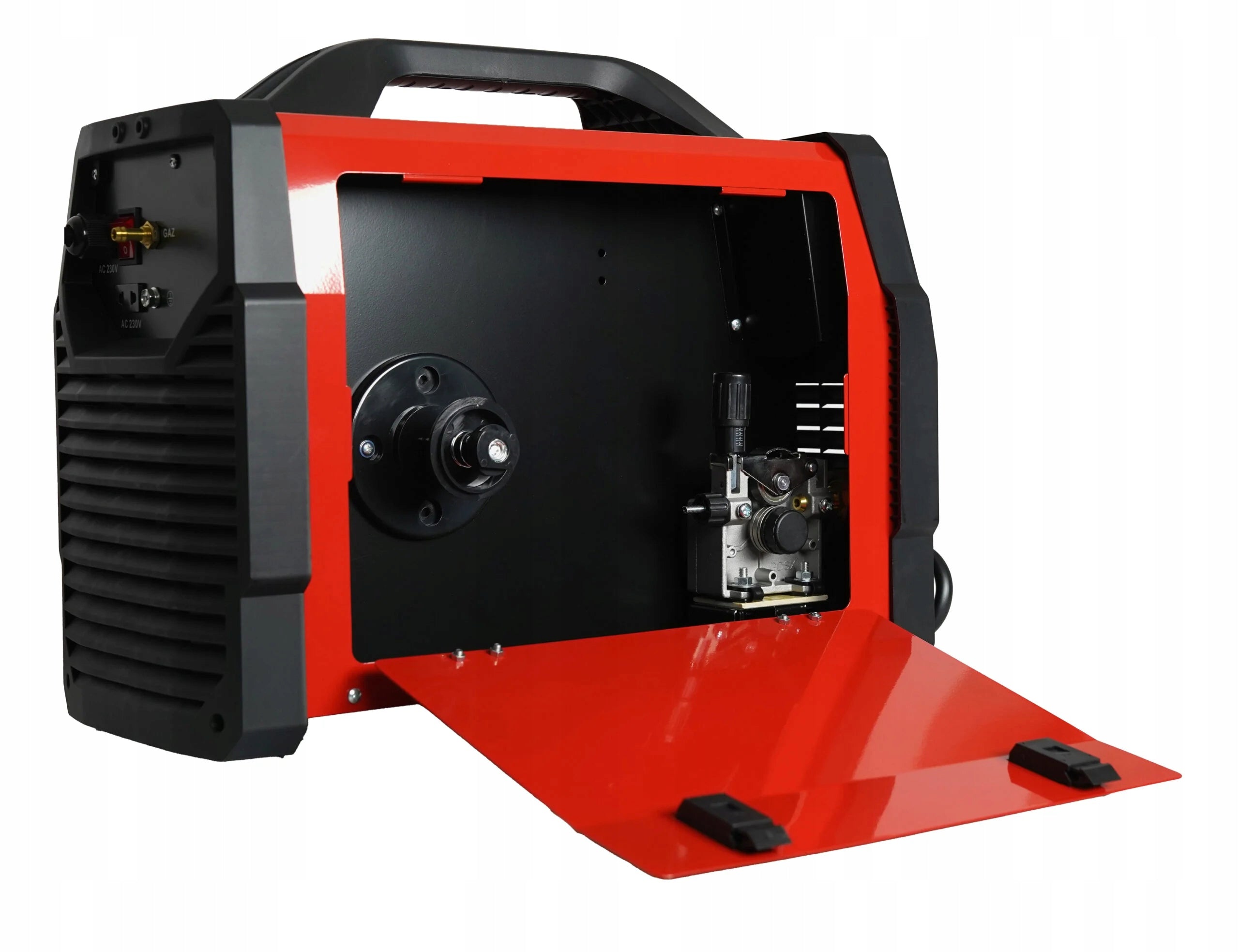

Inside the welding machine there is a wire feeder that allows you to attach a spool up to 5kg.

Setting other parameters of the device is done using the control panel, on which

displays and control knobs are placed. The above solution enables easy and fast

setting and reading all welding parameters.

The welder is designed for home and semi-professional users.

TECHNICAL DATA

Supply voltage [V] 230

Idle current voltage [V] 70

Welding current adjustment range [A] MIG/MAG 20-210

MMA 20-210 TIG 10-210

Max efficiency at 40°C EN 60974-1 210A@60% 163A@100

Dimensions [cm] 48,5X24X40

Weight [kg] 11,7

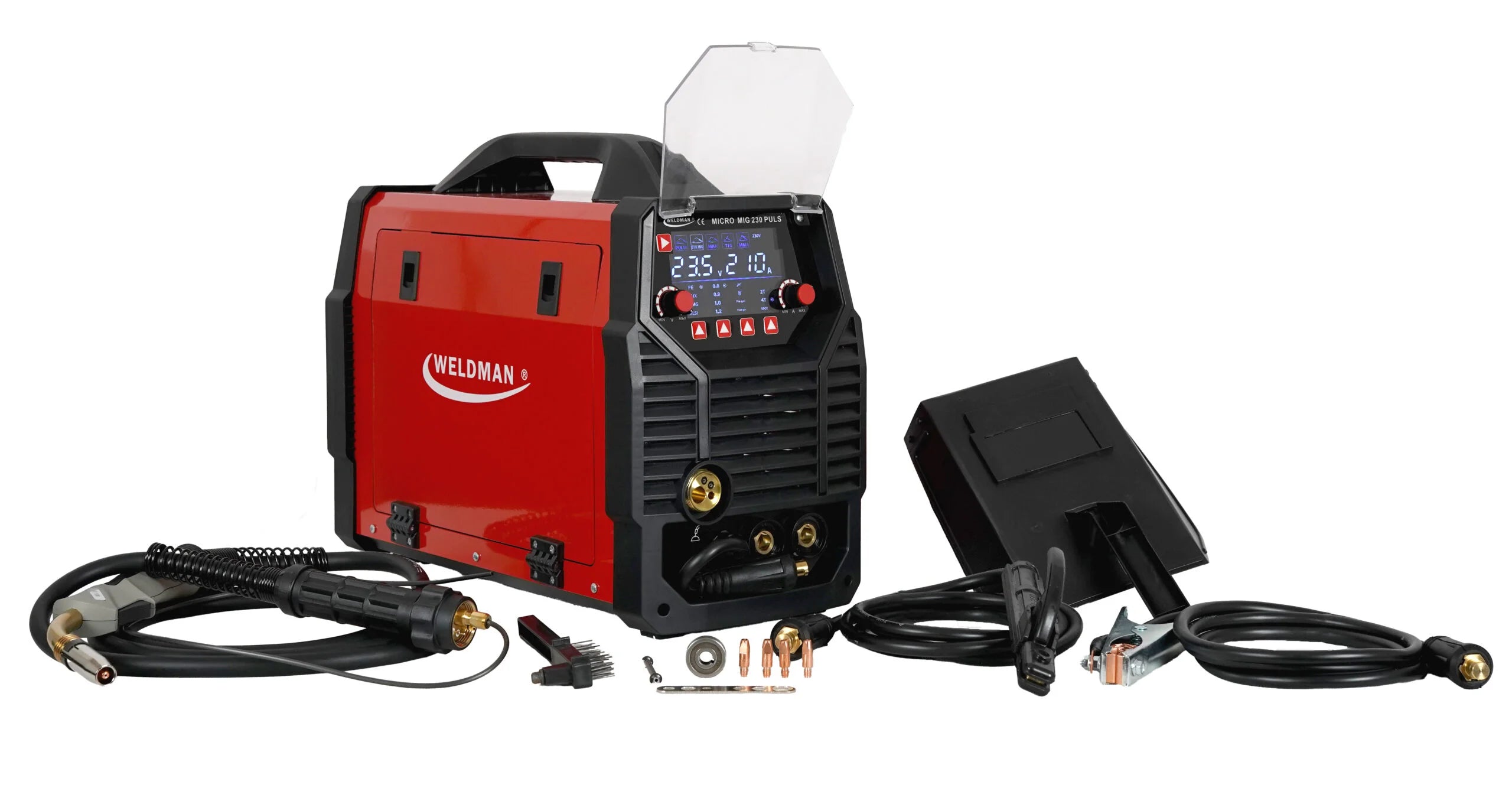

DELIVERY CONTAINS

• MIG welding torch 24 3m
• 2 m mass cable with 300A mass clamp (DX50)
• cable 2,5 m with electrode holder 200A (DX50)
• 2 m power cord with 230V plug
• 230V power socket located on the rear panel
• gas connection (8 mm technical hose connector)
• additional roll for Fe 0,8-1,0 V mm wire feeder
• Welding disc and brush
