Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę

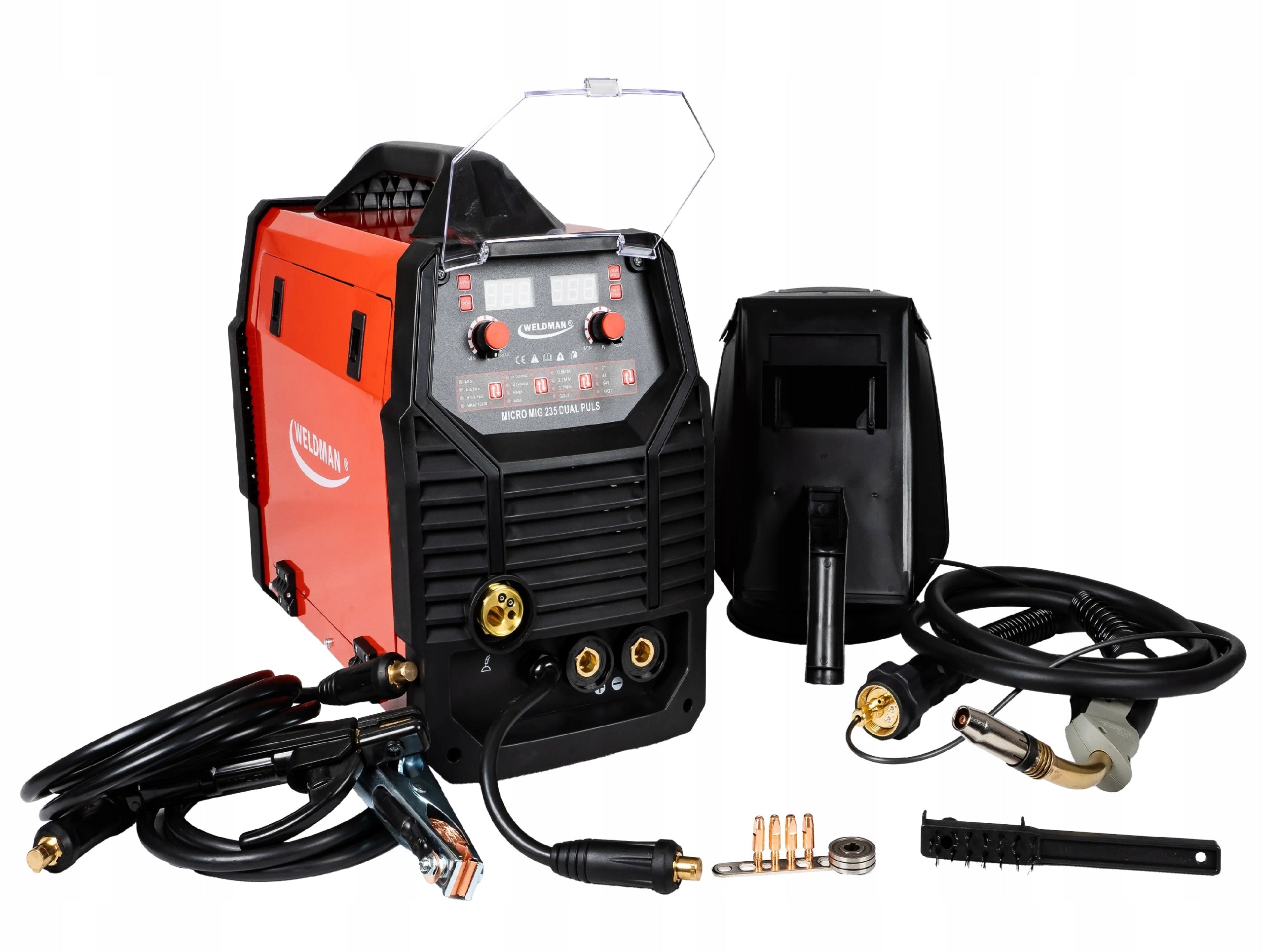

Prekė: Pusiau automatinis suvirinimo aparatas MIG/MAG, MMA, TIG Weldman 20-220 A 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: 103 133
- Ilgis: 485 mm
- Plotis: 240 mm
- Aukštis: 400 mm

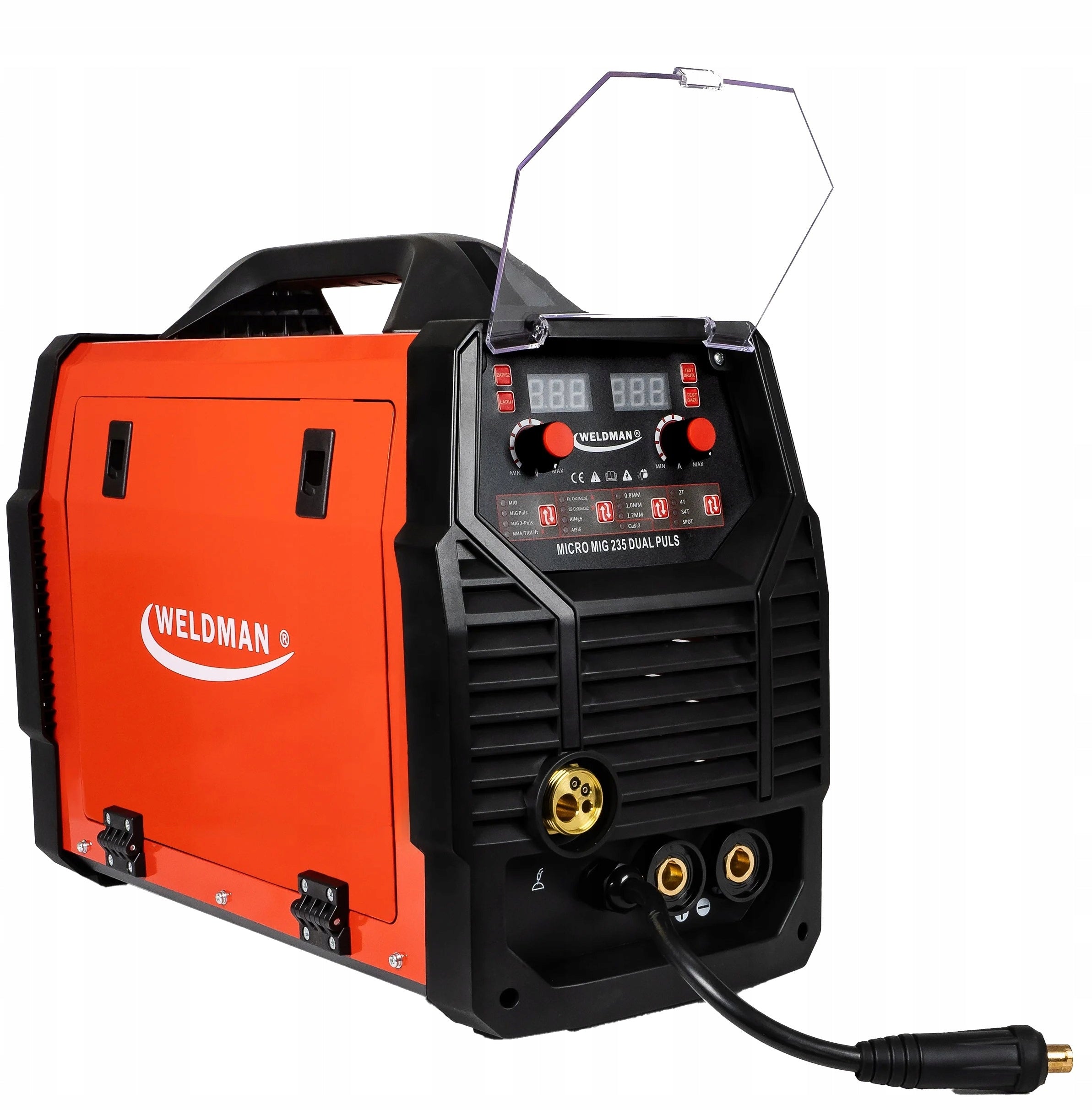

WELDMAN MICRO MIG 235 DUAL PULSE
| Brand: Weldman | Welding methods: MIG/MAG, MMA, TIG DC | Power supply: 230V | Welding current: 220A | Efficiency: 60% |
MICRO MIG 235 DUAL PULSE – Professional welding machine for demanding users
● The MICRO MIG 235 DUAL PULSE welder is a technologically advanced device that is perfect for a wide range of applications, both in the flashing industry, workshops and in individual use. With its innovative IGBT inverter technology, this semi-automatic welding machine combines the best features of modern transistors, ensuring performance, reliability and precision in any welding project.
⭐ Key Features and Functions:
-
✅ Multifunctional Operating Modes:
⫸ MIG/MAG – Gas-shielded welding, ideal for carbon steel, alloy steel, and aluminum.
⫸ MIG/MAG with Pulse – For demanding projects, provides a stable arc and minimizes spatter.
⫸ MIG/MAG with Double Pulse – Excellent for welding aluminum, allows for aesthetic welds without excessive distortion.
⫸ FLUX (Gasless Welding) – Suitable for field work and situations with limited access to shielding gas.
⫸ MMA – Stick welding with DC current, offering versatility and efficiency.
⫸ TIG DC LIFT – Precise TIG welding with lift arc ignition, ensuring high-quality welds.
-
✅ Modern Protections and Cooling:
⫸ Protection against overvoltage and overcurrent.
⫸ Thermal protection to prevent the device from overheating.
⫸ Advanced FUN STOP cooling system that extends the device's lifespan.
-
✅ Easy Operation and Intuitive Interface:
⫸ Clear control panel with displays and ergonomic knobs.
⫸ Setting operating parameters is quick and convenient, significantly improving the welding process and work efficiency.
⫸ Selection of 2-stroke/4-stroke/S4T/spot welding modes – provides flexibility to adapt to various needs.
-
✅ Material Separation and Brazing:
⫸ Ideal solution for welding thin steel sheets and aluminum, with full control over the welding process.
▶ The MICRO MIG 235 DUAL PULSE Welder is designed for semi-professional users, offering a wide range of capabilities. It is perfect for professional workshops as well as for individual welding tasks. Its robust construction and advanced features guarantee unmatched quality and reliability.
»Choose the MICRO MIG 235 DUAL PULSE and elevate the quality of your welds to a new level!«
⚠ Equipment:
- ❯ MIG welding torch 24 – 3 m long, ensuring comfortable operation.
- ❯ Mass cable 2 m with terminal 300A (DX50).
- ❯ 2,5 m cable with 200A electrode holder (DX50).
- ❯ Power cord 2 m with 230V plug.
- ❯ Power socket 230V on the rear panel.
- ❯ Gas connection – connector for technical hose 8 mm.
- ❯ Additional roll for wire feeder – Fe 0,8-1,0 V mm.
- ❯ Welding disc and brush – Essential accessories for finishing welds.
- ❯ Wire feeder placed inside the device, supporting spools up to 5 kg.
⚙ Technical specification:
- Product code: 103 133
- Device type: MICRO MIG 235 DUAL PULSE
- Power supply voltage: 230 V
- Idle current voltage: 70 V
- Welding current adjustment range: 20-220 A
-
Efficiency (40°C, EN 60974-1):
❯ MIG/MAG: 220A at 60%, 180A at 100%
❯ MMA: 220A at 60%, 180A at 100%
❯ TIG LIFT: 220A at 60%, 180A at 100%
- Electrode diameter: 1,6-4 mm
- Protection class: IP21
- Dimensions: 48,5 x 24 x 40 cm
- Weight: 12,5 kg
PROTECTION AGAINST OVERHEATING
The IGBT module is protected from overheating by a protective installation that turns off the welding circuit of the device. After a few minutes, the welding machine is cooled to a temperature allowing it to be switched on again.
WORK CYCLE
The work cycle is based on a 10-minute period. The 60% duty cycle means that a 4-minute break is required after 6 minutes of operation of the device. The 100% duty cycle means that the device can work continuously, without interruptions.
MMA
A method in which a wrapped electrode is used, consisting of a metal core covered with a sheath. The device allows welding with all types of electrodes, e.g. alkaline, cellulose, rutile or acidic.
MIG PULSE
Advanced form of welding, which uses the best of the forms of transfer of molten electrode material to the welded object. Unlike short circuits, impulse welding does not produce splashes or threaten with cold “infiltration”.
By cooling the spray arc process, the pulsed MIG is able to extend the welding range, and a smaller heat input does not cause a problem with burning thin materials. MIG PULSE is one of the best welding processes for a wide range of metal applications and types.
FLASH DOUBLE PULSE
The MIG/MAG method with double pulse allows you to adjust the current pulsation (pulse balance) and adjust the wire feed speed. Thanks to this, we improve the appearance of the weld. When welding with the MIG/MAG double pulse method, current pulses occur in two ranges.
REGULATION OF INDUCTANCE
It allows you to optimize arch characteristics depending on the thickness of the welded element and the welding method and conditions. The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and soldering galvanized elements.
2T/4T
2T - Pressing the welding torch button will cause the gas to pre-flow, then the arc to glow and start welding. When the button is released, the arc will be extinguished and the gas will flow out.
4T - Pressing and releasing the welding torch button will cause the gas to pre-flow, then the arc to glow and start welding. After pressing and releasing the button again, the arc will be extinguished and the gas will flow out.
TIG DC LIFT
In the TIG method, the electric arc is ignitioned in an inert gas (argon) shield between the welded element and the non-melting electrode, made of pure tungsten or tungsten with additives. .
SOLDERING
After selecting the type of CuSi wire, the device enables soldering, mainly used in the automotive industry to connect galvanized sheets.
SPOT WELDING SPOT
Time welding function, used to attach details, thanks to which an equal length of welding welds can be obtained.
S2T/S4T
S2T - two-tact special - after pressing the button, the gas will flow out at the time set by the user and the welding arc will glow. The arc voltage at the start will be increased and will drop to the value of the main welding current at the set time.
After releasing the button, the current will drop to the final current value. Then the arc will expire and shielding gas will flow out at the set time.
S4T - four-point special - after pressing and releasing the button, the gas will flow out at the time set by the user and the welding arc will glow. The arc voltage at the start will be increased and will drop to the value of the main welding current at the set time.
After pressing and releasing the button again, the current will drop to the value of the final current. Then the arc will expire and shielding gas will flow out at the set time.
EURODISCONNECTION
Standard welding torch connection that allows you to connect various types of torches (e.g. prepared for welding Aluminum or Soldering by replacing the Teflon cartridge and current tip).

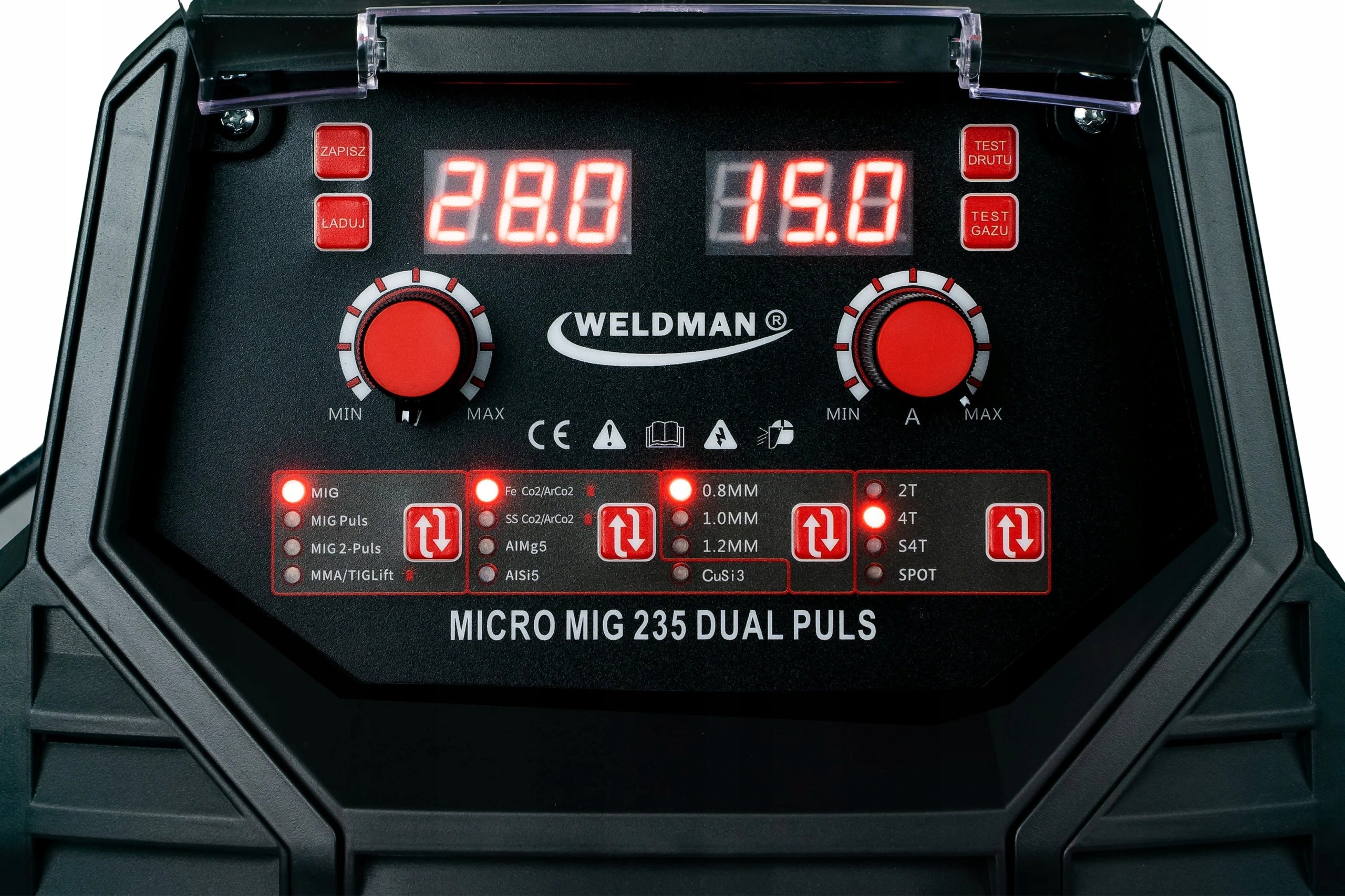

Easy-to-use control panel enables precise and smooth adjustment of parameters. The digital display indicates the actual current during welding.
COOLING
The device has a cooling system fan which definitely increases its efficiency
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Power consumption | 7.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 12.5 kg |
| Parametry | Welding range | 20–220 A |
| Parametry | Height | 400 mm |
| Parametry | Length | 485 mm |
| Parametry | Width | 240 mm |
| Parametry | Length of ground cable | 2 cm |
| Parametry | Welding cable length | 3 cm |
| Parametry | Product weight with unit packaging | 13 kg |
| Parametry | Manufacturer code | 103 133 |
| Parametry | EAN (GTIN) | 5902701751906 |
| Parametry | Packaging status | original |
| Parametry | Model | 103 133 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle |
