Trumpai apie prekę
Prekė: Pusiau automatinis suvirinimo aparatas MIG/MAG, MMA, TIG Trafilux 25-200 A 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Trafilux
- Modelis: TRAFIMIG 220 DUAL PULS
- Ilgis: 460 mm
- Plotis: 220 mm
- Aukštis: 375 mm
Manufacturer: TRAFILUX ║ Welding methods: MIG/MAG, MMA, TIG Lift ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
- Welding with current 200A in 60%
- Welding by MIG/MAG, MMA, TIG Lift method
- IGBT inverter technology
- Welding programs INOX, AlSi, AlMg, CuSi3, Black steel
- Welding with single and double pulse
- Synergic welding to select settings for the welded material
- Ability to manually adjust settings welder

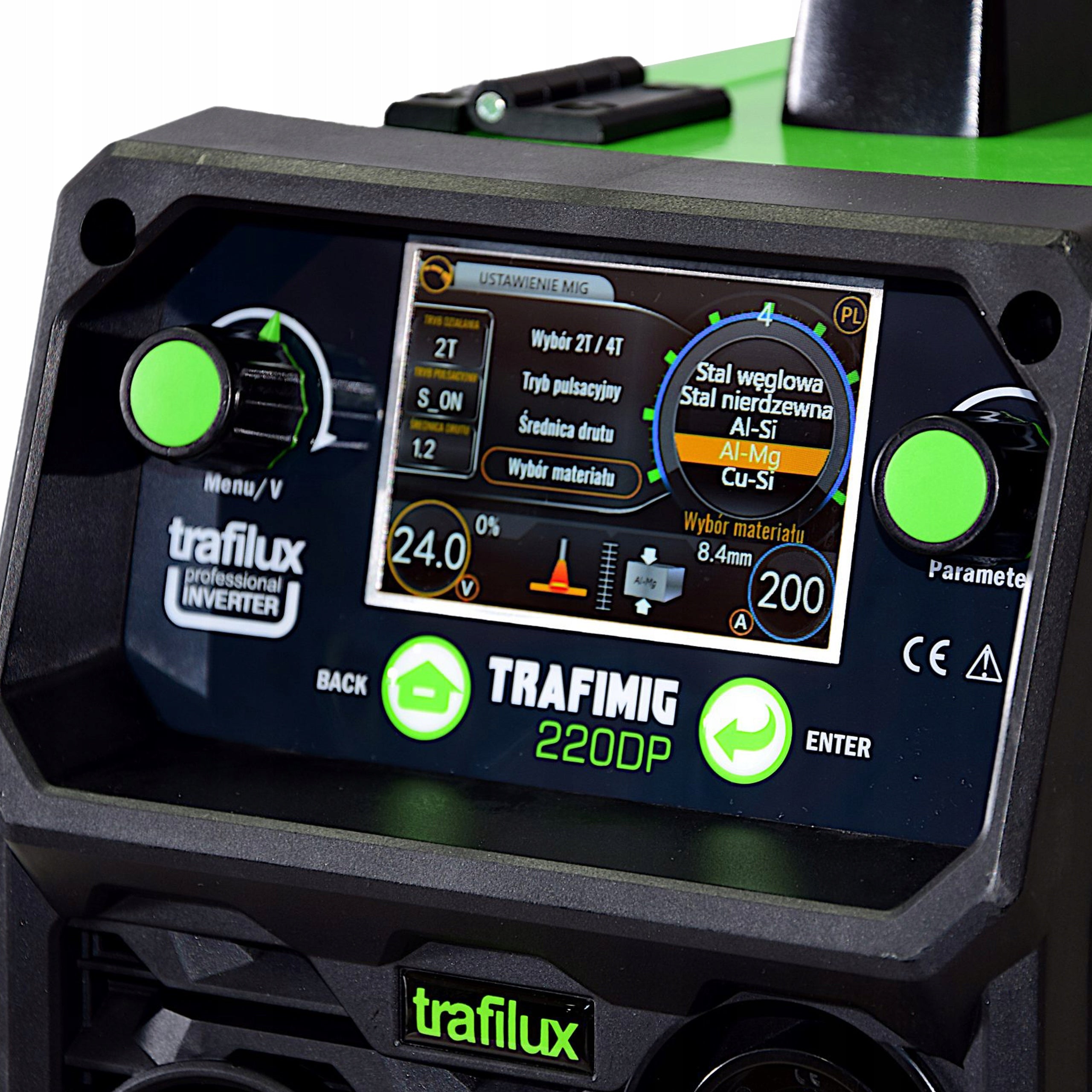

- Menu in 4 languages
- Simple operation of the device
- HOT START function to help you get started with MMA welding
- ARC FORCE function - stable electric arc
- Welding in double and four bars 2T/4T
- Double and four bar welding with Hot Start S2T/S4T
- Built-in 18 memory channels for saving settings
- 2-roller feeder supporting spool up to 5kg
- Adjustable Inductance - allows for Lutowelding
- Convenient handle

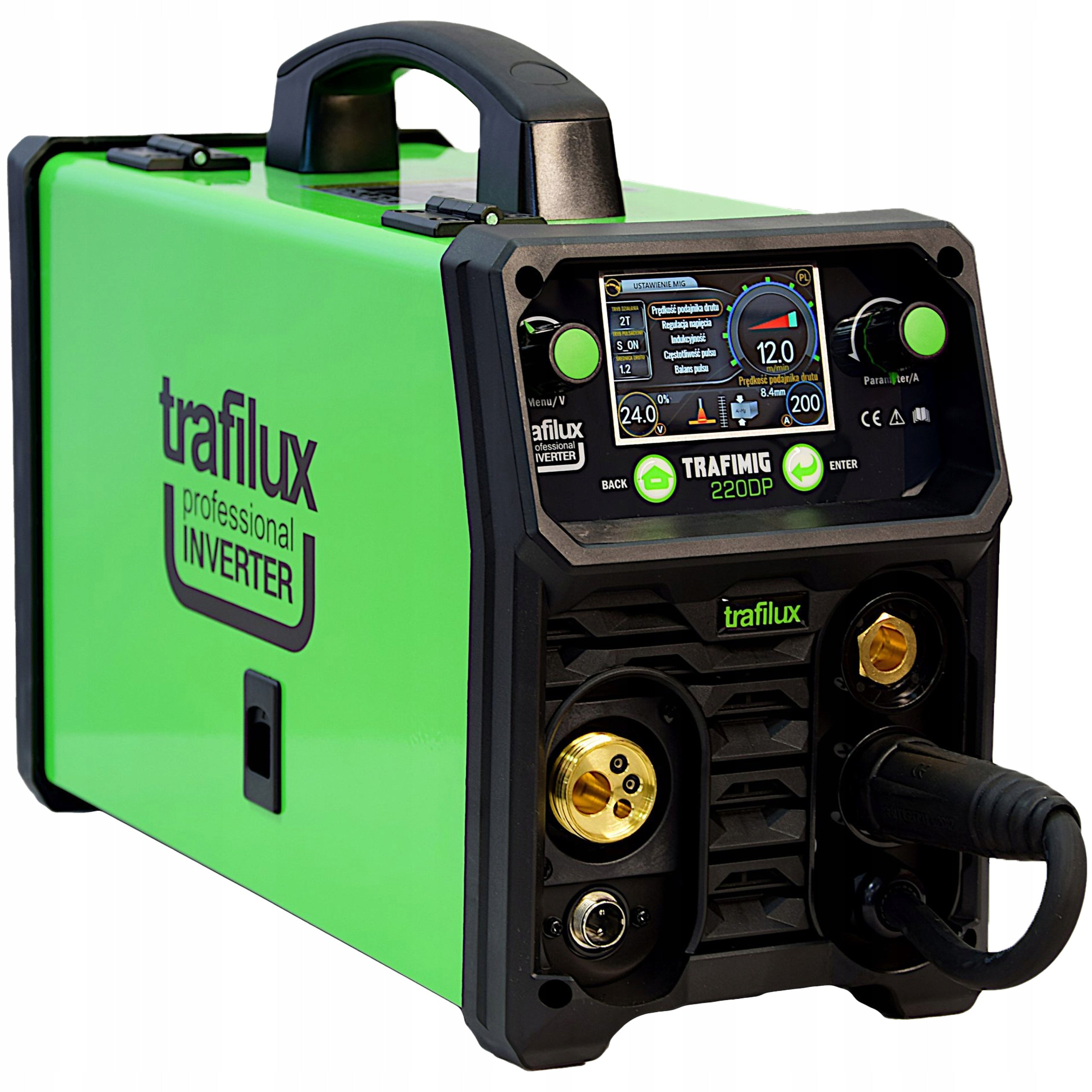

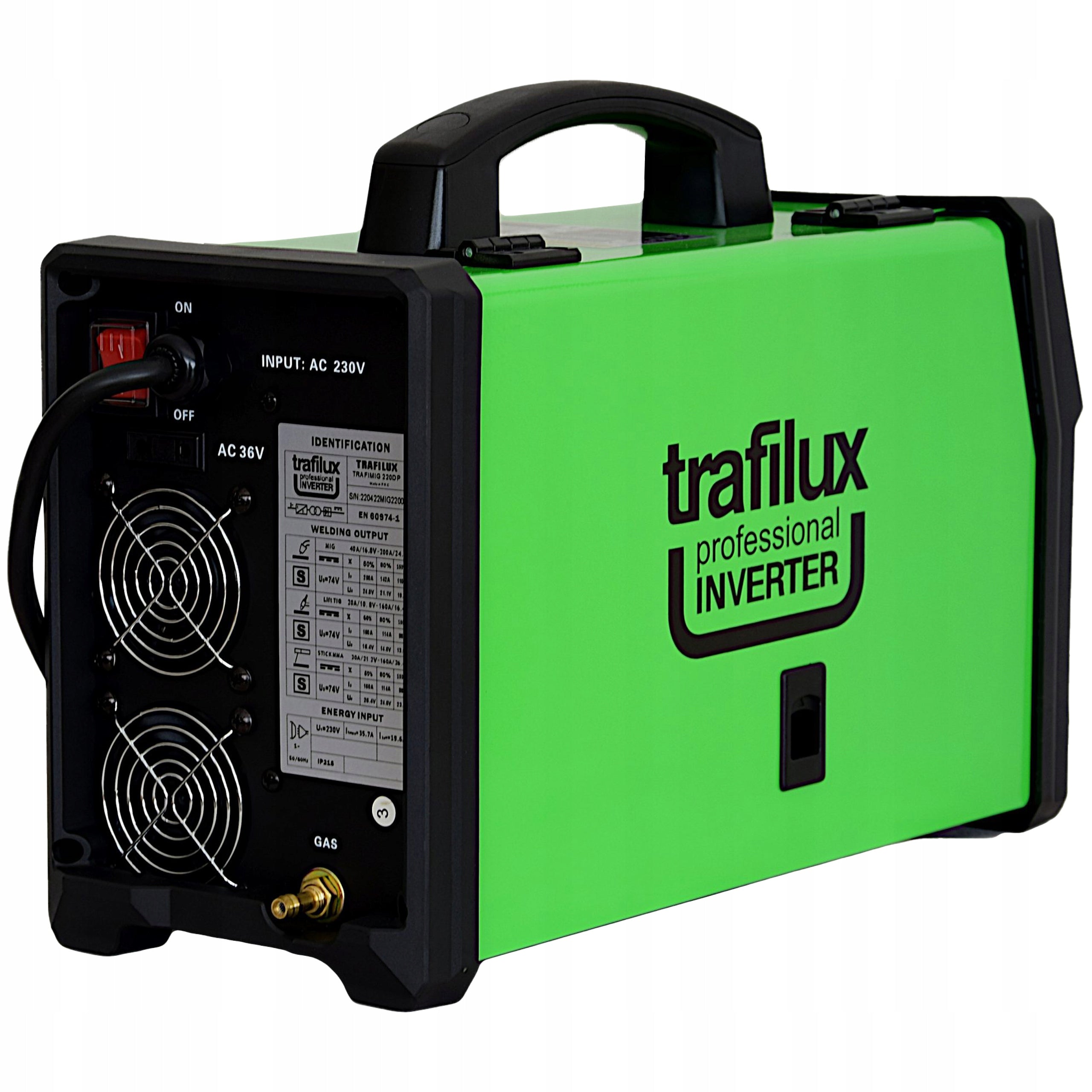

The TRAFILUX TRAFIMIG 220 welding machine is a professional inverter semi-automatic welding machine designed to work in workshop conditions giving the possibility of welding light structures. The device is characterized by compact size and low weight of 8kg. Extensive functionality of the device allows you to work in MIG/MAG, MMA, TIG lift modes. The design advantage of the device are transistors made in IGBT technology. A characteristic feature of this type of transistors is lower power consumption, less electromagnetic interference, with greater efficiency and a stronger and more stable welding arc.
Synergistic semi-automatic machine with the possibility of double pulsation in the MIG/MAG method, thanks to which the quality of the weld does not differ from the weld obtained in the TIG method. The device also has an extensive two-bar and four-bar mode and the possibility of SPOT spot welding and lutowelding CuSi3
The welder can also work in the MMA method – giving the ability to adjust the current value, arc dynamics ARC FORCE, HOT Start. The device allows you to save operating parameters thanks to the built-in 18 channel memory.
SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.
PULSE - pulsed welding, not only allows for better quality welds, but also allows for welding in various positions and welding very thin elements. Reducing the linear energy of the arc, and thus reducing overheating or burnout of welded materials.
DUAL PULSE - Double pulse current welding gives you the ability to adjust the pulsation of the current used to connect the material, as well as the rate of wire feeding. This allows you to improve the appearance and profile of the weld.
IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability of the power source.
REG. INDUCTANCE - controls the width and depth of melting and reduces the amount of chipping. Allowing less heat to be introduced into the welding site, the sheet does not deform and the protective zinc layer is not damaged, useful in soldering.
2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process takes place at the second press, it is a more convenient solution for longer welds.
S2T/S4T - two-bar and four-bar operation mode with hot start, useful when welding materials that require preheating.
SPOT - spot welding by MIG/MAG method. The function is mainly used for joining sheet metal "on the tab" or pre-connecting the structure.
TIG LIFT - possibility of TIG LIFT touch welding. Arch ignition is carried out by lightly rubbing the non-melting electrode against the welded material.
MEMORY SETTINGS - memory channels to save your own programs.
ARC FORCE - allows you to adjust the dynamics of the welding arc. Reducing the value of the function gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. When setting the largest value for the ARC FORCE function, it is possible to "press the electrode into the lake of molten metal and burn the material through.
HOT START - this is a temporary increase in welding current to facilitate the ignition of the electric arc and the preheating of the welded material.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number phase: 1ph200
- Frequency: 50Hz
TECHNICAL PARAMETERS
- MIG welding current: 25 - 200A
- MMA welding current: 30 - 200A
- TIG welding current: 20 - 200A
- Work cycle: 60%
- Feeder type: 2-Roller
- Wire diameters: 0.8/1.0/1.2mm
- Performance: 85%
ADDITIONAL FUNCTIONS
- Single and double PULS: Yes
- Synergy: Yes
- 2T/4T/ and S2T/S4T mode: Yes
- SPOT spot welding: Yes
- Lutowelding: Yes
- AUTO mode for beginners: Yes
- Expert mode with parameter correction: Yes
PHYSICAL PARAMETERS
- Security class: IP21
- Dimensions: 460 × 220 × 375mm
- Weight: 8,2kg
- Welding machine TRAFILUX TRAFIMIG 220
- Welding torch MIG/MAG Type MB24 - 3m
- Teflon cartridge for aluminium
- Steel Wire Cartridge
- 0,8-1,0mm V Steel Feeder Rollers
- Aluminium feeder rollers 1,0-1,2mm U
- 36V Heater Socket
- Electrode holder
- Bulk Holder
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Trafilux |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 8.2 kg |
| Parametry | Welding range | 25–200 A |
| Parametry | Height | 375 mm |
| Parametry | Length | 460 mm |
| Parametry | Width | 220 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 10 kg |
| Parametry | Manufacturer code | TRAFILUX TRAFIMIG 220 |
| Parametry | EAN (GTIN) | 5904044980371 |
| Parametry | Packaging status | original |
| Parametry | Model | TRAFIMIG 220 DUAL PULS |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
