Pusiau automatinis suvirinimo aparatas MIG/MAG, MMA, TIG Torros 200A M2004, 2 dalių komplektas

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG/MAG, MMA, TIG Torros 200A M2004, 2 dalių komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Torros
• Modelis: M2004-2
• Ilgis: 520 mm
• Plotis: 290 mm
• Aukštis: 460 mm

MIGOMAT WELDING MACHINE TORROS MIG 200 PULSE M2004, SYNERGISTIC CONTROL

Set: MIGOMAT + WIRE + SPRAY + NOZZLE + TIPS + MANUAL

Manufacturer: TORROS Ξ Modes: MIG/MAG (GAS/NO GAS) - MMA - TIG LIFT Ξ Functions: PULS - SYNERGY Ξ Current: 40 - 200A Ξ Power supply: 230V ± 15% Ξ

The Migomat Torros MIG200 Pulse M2004 welding machine is a professional inverter device designed for welding steel, stainless steel, aluminum and other metals.

➔ Each Torros device undergoes a mandatory test in the workshop before it goes on sale.

➔ Torros is one of the few brands on the market that always gives only the true parameters of welding equipment.

✅ 3 welding modes: (1) MIG/MAG with and without gas, (2) MMA and (3) TIG

✅ additional Pulse mode (for thin metal welding)

✅ synergic control (allows you to select the program / other parameters selects semi-automatic) and manual (after disabling synergy)

✅ induction regulation in the range from -50 to +50%

✅ 26/4T modes

✅ connection of VDR function in MMA mode

✅ possibility to adjust Amps and Volts in synergy mode (possibility of using steel wire of different diameters and welding thick and thin metals)

✅ The ability to adjust the pulsing frequency and pulse current length in Pulse mode range from -30 to +30% from the values proposed by the device

Technical data:

• Manufacturer: Torros
• Modes: MIG/MAG (GAS/NO GAS), MMA, TIG LIFT
• Power supply: 230 V ± 15% / 50/60 Hz
• Effective current consumption, A: MIG – 19,6 / TIG – 14,7/ MMA – 22,8
• Effective power consumption, kVA: MIG – 3,4 / TIG – 2,5 / MMA – 4,3
• MIG welding current adjustment range, A: 40 A / 16 V – 200 A / 24 V
• MMA welding current adjustment range, A: 30 A / 21,2 V – 200 A / 28 V
• TIG welding current adjustment range, A: 10 A / 10,4 V – 200 A / 18 V
• Voltage without load, V: 65
• Electrode wire feed speed range, m/min: 2 ÷ 15
• Feeder type: metal, 2R
• Induction adjustment range, %: -50 ÷ +50
• Pulse function adjustment range, %: -30 ÷ +30
• Pulse (peak) peak current adjustment range, %: -30 ÷ +30
• PostGas gas flow, s: 1
• Average MMA electrodes: 1,6-4 mm
• Efficiency, Imax duty cycle (20°C), %: 60
• Efficiency, Imax duty cycle (40°C), %: 30
• Housing protection degree: IP21S
• Isolation class: F
• Weight: 15,6 kg
• Dimensions: 460 mm x 220 mm x 375 mm

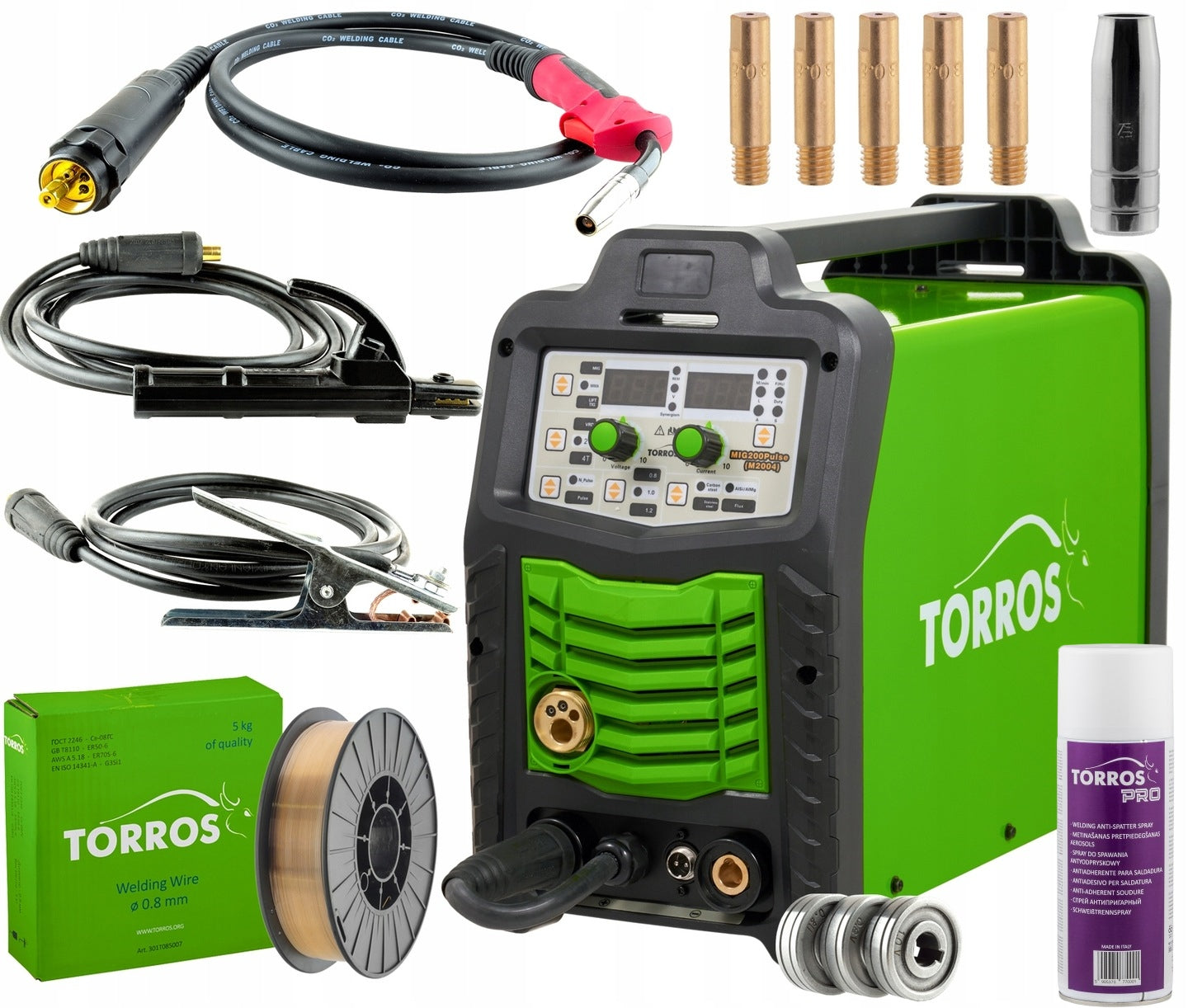

Included:

• Welder migomat Torros MIG200 Pulse M2004
• MIG/MAG holder 3 m
• Mass clamp with copper cable 3 m
• MMA handle with copper cable 3 m
• Replacement Steel / Aluminum Wire Feeder Rollers (2-Pack) )
• Steel Wire Spool 0, 8mm 5kg
• Current terminals (5 pcs,)
• Gas nozzle
• Anti-chipping spray Torros PRO (300 ml / 400 g)
• User manual

Migomat Torros MIG200 Pulse (M2004) is a professional inverter device suitable for welding steel, stainless steel, aluminum and other metals.

The semi-automatic machine has 3 welding modes: MIG/MAG with and without gas, MMA and TIG Lift. In addition, this model has Puls mode and synergic control.

Pulse mode allows you to weld thin metal without introducing a large amount of heat, both provides better melting, no chipping, the weld is nicer and more durable.

Synergistic control allows you to choose the type of welding wire and diameter. Other parameters of semi-automatic welding are selected by itself.

The advantage of this model is the ability to adjust Amps and Volts in synergy mode. Also the ability to go to adjust the wire feed speed.

In Pulse mode, the pulsing frequency and pulse current length are adjustable from -30 to +30 percent from those recommended by the migomat.

Induction regulation from -50% to +50%. 2T/4T modes. Connection of VRD function in MMA mode.

Migomat has the ability to disable synergy mode and work in manual control mode. This gives you the ability to set any meanings of welding parameters independently of others.

➡ Control panel – advantages:

➔ The controls are very simple and convenient.

➔ Two displays of welding current parameters.

➔ Buttons and adjuster are precise.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Torros
Parametry	Power consumption	7.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	19.5 kg
Parametry	Welding range	40–200 A
Parametry	Height	460 mm
Parametry	Length	520 mm
Parametry	Width	290 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	19.5 kg
Parametry	Manufacturer code	M2004-2
Parametry	EAN (GTIN)	5905370772876
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle
