Pusiau automatinis suvirinimo aparatas MIG/MAG, MMA, TIG Powermat 15-160 A 230 V

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG/MAG, MMA, TIG Powermat 15-160 A 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-IMGTS-160LP
• Ilgis: 350 mm
• Plotis: 170 mm
• Aukštis: 300 mm

Model: PM-IMGTS-160LP

The Powermat semi-automatic welding machine with IGBT technology ensures a stable arc, energy savings and high quality welds. Equipped with LCD panel, synergistic mode, wire feeder and support FCAW, MMA, TIG methods, enables precise welding of steel and aluminum. HOT START, ANTI STICK, ARC FORCE functions as well as efficient cooling and lightweight design guarantee comfort, mobility and reliability.

🟠 TECHNICAL DATA

• Power supply: 230 V / 50 Hz
• FCAW power consumption: 5.7 kVA
• TIG power consumption: 4.2 kVA
• MMA power consumption: 6.8 kVA
• Welding methods: FCAW FLUX / MMA / LIFT-TIG
• FCAW welding current range: 30 - 160 [A]
• MMA welding current range: 20 - 160 [A]
• TIG welding current range: 15 - 160 [A]
• Welding current duty cycle 100%: (FCAW / TIG LIFT - 163A)
• Welding current duty cycle 60%: (FCAW - 123.2 A)
• Welding current duty cycle 100%: (MMA - 163 A)
• Welding current duty cycle 60%: (MMA - 123.2 A)
• Supported wire diameters: 0.8 / 0.9 [mm] - self-shielding
• Supported electrode diameters: 1.6 mm - 4 mm
• FCAW welding voltage: 15.5 - 22 [V]
• MMA welding voltage: 20.8 - 26.4 [V]
• TIG welding voltage: 10.6 - 16.4 [V]
• Operating modes: Synergic
• Supported wire spools: max. up to 1 kg
• Insulation class: F
• Protection degree: IP21
• Dimensions: 39x27x35 [cm] (L / W / H)
• Net weight: 7 kg

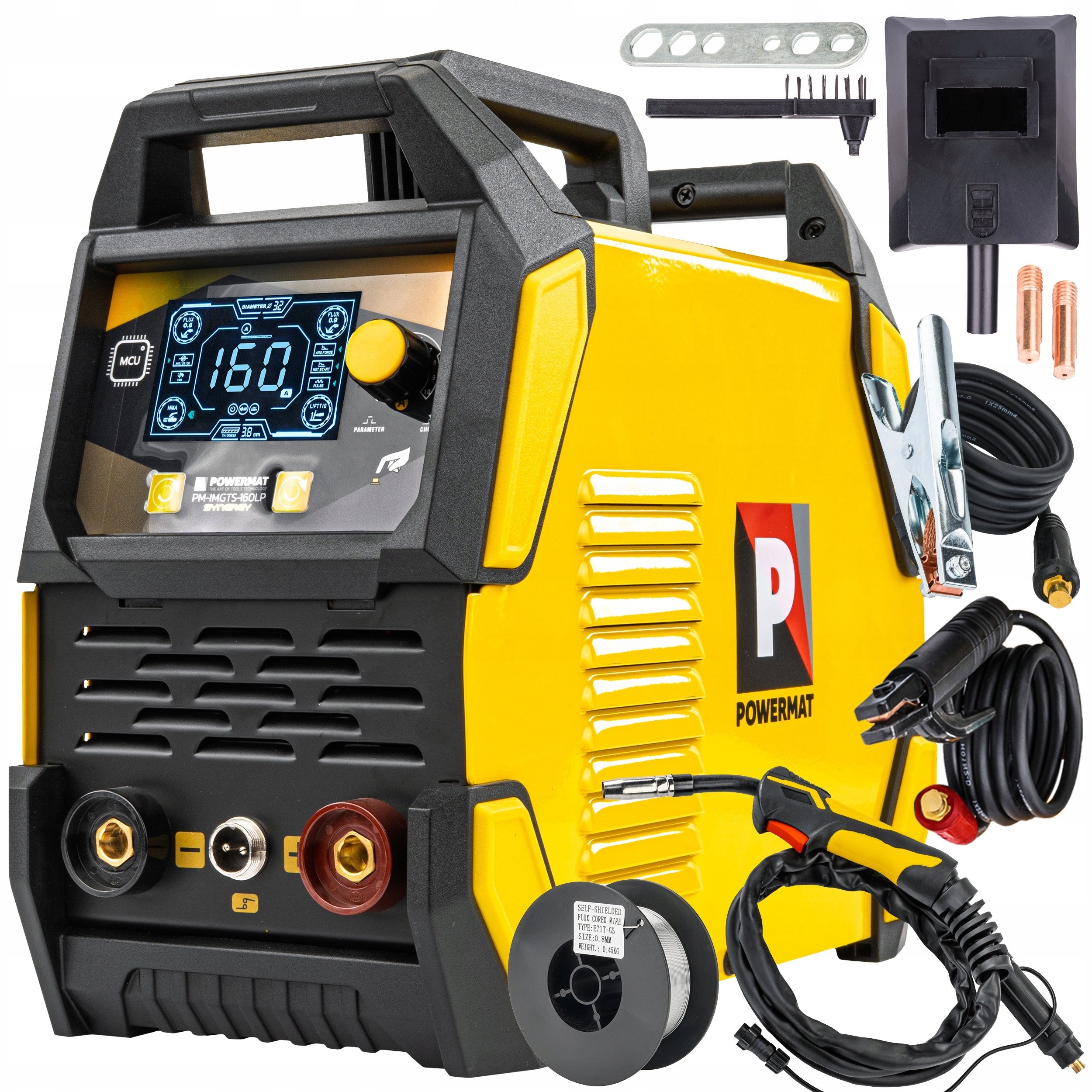

🟠 CONTENTS OF THE SET

• mass handle (-): 200 cm
• MMA electrode holder (+): 208 cm
• welding torch (for wire): 290 cm
• roll (double-sided) supporting wire: 0,8 mm and 0,9 mm; type U
• welding mask
• brush with hammer
• self-shielding wire (flux) type E71T-GS 0,8 mm - 0,45 kg
• instruction manual in Polish
• universal key

🔸 IGBT TECHNOLOGY

The Powermat semi-automatic welding machine uses modern IGBT transistors that provide a stable arc, high energy efficiency and resistance to interference. This makes the device lighter, more economical and reliable in operation.

🔸 INTUITIVE AND MODERN CONTROL PANEL

The device is equipped with a clear modern LCD display and an ergonomic adjustment knob, which allows quick and precise selection of parameters. Operation is intuitive, which increases comfort and efficiency of work.

🔸 SYNERGISTIC MODE

The synergistic welding function automatically selects optimal operating parameters, which significantly facilitates the achievement of high-quality welds. It works particularly well when welding stainless steel and aluminum.

🔸 BUILT-IN SUPPORT FUNCTIONS

The device has HOT START, ANTI STICK and ARC FORCE functions. HOT START facilitates arc ignition, ANTI STICK prevents electrode sticking, and ARC FORCE stabilizes the arc and improves weld quality.

🔸 EFFICIENT COOLING SYSTEM

Massive 3-inch turbo fan and thermal sensor effectively protect the device from overheating. This allows for longer and more intense work without the risk of damage.

🔸 METHODS OF WELDING

The model supports FCAW, MMA and TIG welding methods for versatility in application. It allows you to work with a variety of materials and thicknesses.

🔸 WIRE FEEDING SYSTEM

The two-cone feeder ensures precise wire feeding, eliminating the risk of it slipping. Thanks to this, welding is more smooth and the quality of welds remains at a high level.

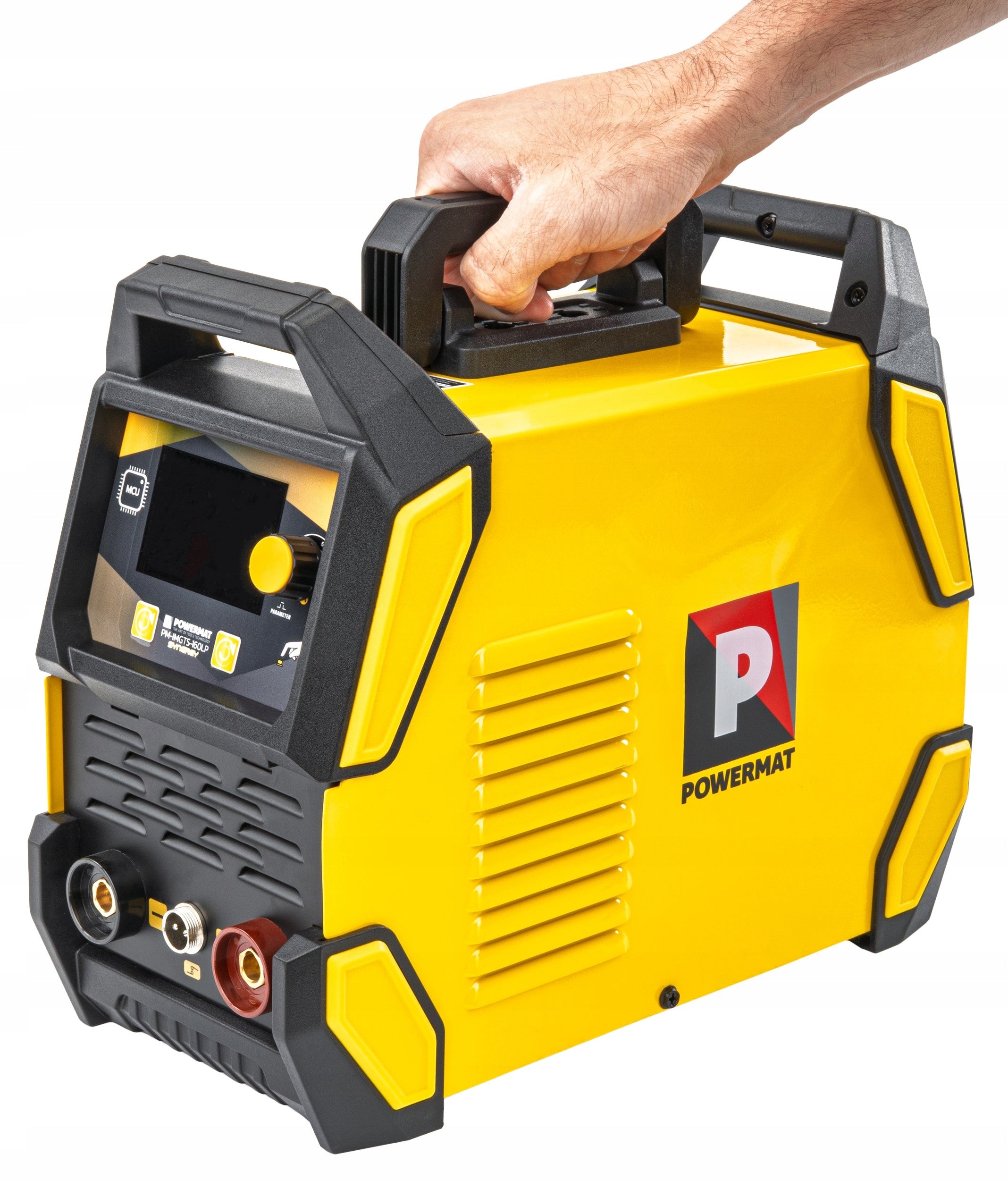

🔸 MOBILITY AND ERGONOMICS

The lightweight design and comfortable grip make it easy to transport and store your device. It is an ideal solution for both professionals and home users.

🟠 WHAT IS AN INVERTER MIGOMAT?

The POWERMAT welding semi-automatt has a very wide range of use. It enables efficient welding of various types of material groups in a wide range of material thicknesses. The IGBT transistors used have a beneficial effect on lower electricity consumption, greater resistance to interference and voltage drops, and good arc characteristics.

The control panel is now even easier to operate, and the operator has quick access to all functions. This has a positive effect on ergonomics and work efficiency in the plant.

The device has a synergic welding function, thanks to which it is possible to obtain the highest quality weld when welding any weldable materials - especially those made of stainless steel and aluminum.

The electronics of the device are based on IGBT transistors combining the advantages of two types of transistors, the ease of control of field transistors and high breakdown voltage and the switching speed of bipolar transistors. The welding current is very stable, which guarantees a perfect weld. Thanks to IGBT technology, the device is lighter and more energy-efficient.

The model is a semi-automatic welding machine, whose design is based on high-performance IGBT transistors. It is equipped with a clear LCD display indicating the current welding current set by knobs. It is equipped with a cooling fan, electronic systems and other components, as well as a thermal sensor to protect the device from overheating.

🟠 PERFORMANCE AND CAPABILITIES

◾ High efficiency and efficient cooling

Thanks to the use of IGBT transistor technology, the efficiency of the device is up to 60%.

Fully automatic wire feed.

◾ BUILT-IN FUNCTIONS TO FACILITATE WORK

• HOT START (automatic), popularly known as hot start, allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.
• ANTI STICK (automatic) cuts off/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.
• ARC FORCE (automatic) stabilizes the arc regardless of its length. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

🟠 SYNERGY TECHNOLOGY

◼ Additional comfort and advantages are provided by:

• Synergic mode - a function that allows you to set automatic parameter selection
• No need for shielding gases - convenient when using self-shielding wires

🟠 LATEST GENERATION IGBT PICKUPS

◾ The distinguishing feature of this welding machine from competing machines are the latest generation of IGBT transducers, which ensure low weight of the device and high reliability.

◾ The high-end IGBT transistors used in the converter allow to achieve a smooth weld and significantly reduce the amount of chipping.

🟠 WELDING CAPABILITIES

◾ MIG/MAG WELDING

MIG/MAG welding is one of the most widely used welding processes. But what exactly is behind it? It all depends on the choice of matching shielding gases and binders, up to the properties of different types of welding arcs.

MIG/MAG welding is also known as arc welding of metals.

◾ Where is this welding method used?

MIG/MAG welding processes can be used extremely universally. They are used, among others, in the metalworking industry, in the construction of steel structures and tanks, shipbuilding and in the automotive industry. MIG/MAG processes allow welding of elements from different materials, with different thicknesses and geometries. MIG welding is particularly suitable for non-ferrous metals: aluminium, magnesium, copper and titanium. The MAG method is mainly used for welding non-alloy, low-alloy and high-alloy steels.

◾ Advantages of MIG/MAG welding:

• high melting efficiency,
• lack of slag,
• easy ignition of the welding arc,
• good suitability for mechanized and automated welding,
• high welding speed with good weld quality,
• good suitability for use in forced and difficult positions,
• low cost of binders.

◾ MMA WELDING

Arc welding with a wrapped electrode is also called the MMA (Manual Arc Welding) method and it is the oldest and most universal method of arc welding.

In the MMA method, a wrapped electrode is used, which consists of a metal core covered with a compressed sheath. An electric arc is produced between the end of the electrode and the welded material. The arc glow is contact by touching the end of the electrode to the welded material. The electrode melts and drops of molten metal electrodes are transferred through the arc to a liquid lake of welded metal forming a weld after cooling. The welder pushes the electrode as it melts into the welded object to maintain a constant-length arc and at the same time moves its melting end along the welding line. The melting sheath of the electrode emits gases that protect the liquid metal from the influence of the atmosphere and then solidifies and forms a slag on the surface of the lake, which protects the solidifying metal of the weld from the influence of the environment. After moving the electrode away from the welded object, the electric arc stops and the welding process is interrupted. After laying one stitch, the slag should be mechanically removed.

The main difference from other welding methods is that in the MMA method the electrode is shortened. In the TIG and MIG/MAG method, the length of the electrode remains unchanged at all times and the distance between the handle and the welded element is constant at all times. In the MMA method, in order to maintain a constant distance between the electrode and the welding lake, the electrode holder must be moved towards the welded element at all times, which means that the welder's skills play a special role.

◾ TIG LIFT WELDING

TIG welding is a method that allows to obtain the highest quality welds. The welding arc glows between a high temperature resistant, non-melting tungsten electrode and a welded element. The inert gas from which the method is named produces an anaerobic atmosphere and prevents the chemical reactions of the liquid welding lake. As a result, smooth, even and non-porous welds are created. The binder is supplied manually or from a wire feeder.

TIG welding is possible for all weldable metals. The largest range of applications are stainless steels and non-ferrous metals, such as aluminium, copper and brass. TIG is primarily used to make the weld ridge layer, because the welds are clean and pore-free, and thus tolerate dynamic loads well.

🟠 DIMENSIONS OF WIRES (HANDLES)

🟠 POWERMAT - QUALITY | INNOVATION | RELIABILITY

Following technological progress and cooperation with innovative factories invested in modern solutions for the future needs of the 21st century, we present the POWERMAT brand. Discover innovation, design and reliability in one – choose POWERMAT as your partner in technological exploration for the future!

⚙ RELIABILITY OF POLISH QUALITY:

Invest in confidence by choosing a product from a Polish manufacturer!

💰 BEST VALUE FOR MONEY:

By choosing POWERMAT, you are investing wisely! Our tool offers the highest quality without overpaying. It is an ideal choice for any customer who values high quality, but also wants to save.

👷 ♂ IDEAL DESIGN FOR PROFESSIONALS AND HOBBYISTS:

Advanced Design forProfessionals and Hobbyists: Whether you are a professional with high demands or a hobbyist who values reliability – our migomat will certainly meet your expectations. It is precisely designed to meet a variety of needs.

🔧 FULL WARRANTY AND POST-WARRANTY SERVICE:

By choosing POWERMAT, you will gain access to the comprehensive service, which will take care of your needs at every stage. We guarantee support when needed, providing you with peace of mind and confidence.

🛠 EASY ACCESS TO PARTS AND COMPONENTS:

With POWERMAT, maintenance and repairs become easy and convenient. We guarantee instant access to all parts and components, eliminating unnecessary delays. With us your tool will always be ready for action.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Power consumption	6.8 kVA
Parametry	Supply voltage (V)	230
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	4.7 kg
Parametry	Welding range	15–160 A
Parametry	Height	300 mm
Parametry	Length	350 mm
Parametry	Width	170 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	290 cm
Parametry	Product weight with unit packaging	7.9 kg
Parametry	Manufacturer code	PM-IMGTS-160LP
Parametry	EAN (GTIN)	5904067449503
Parametry	Model	PM-IMGTS-160LP
Parametry	Welding methods	MIG/MAG,MMA,TIG
