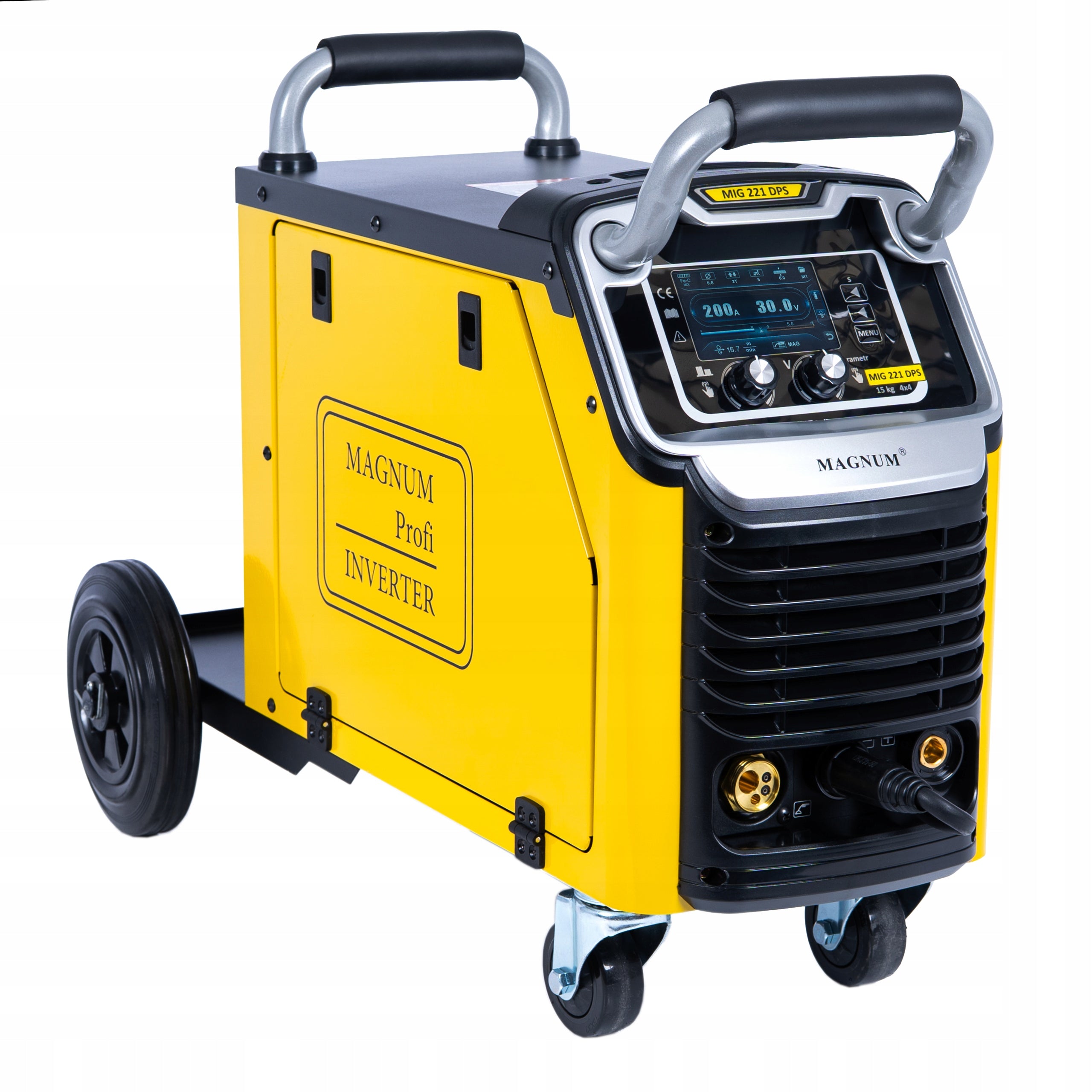

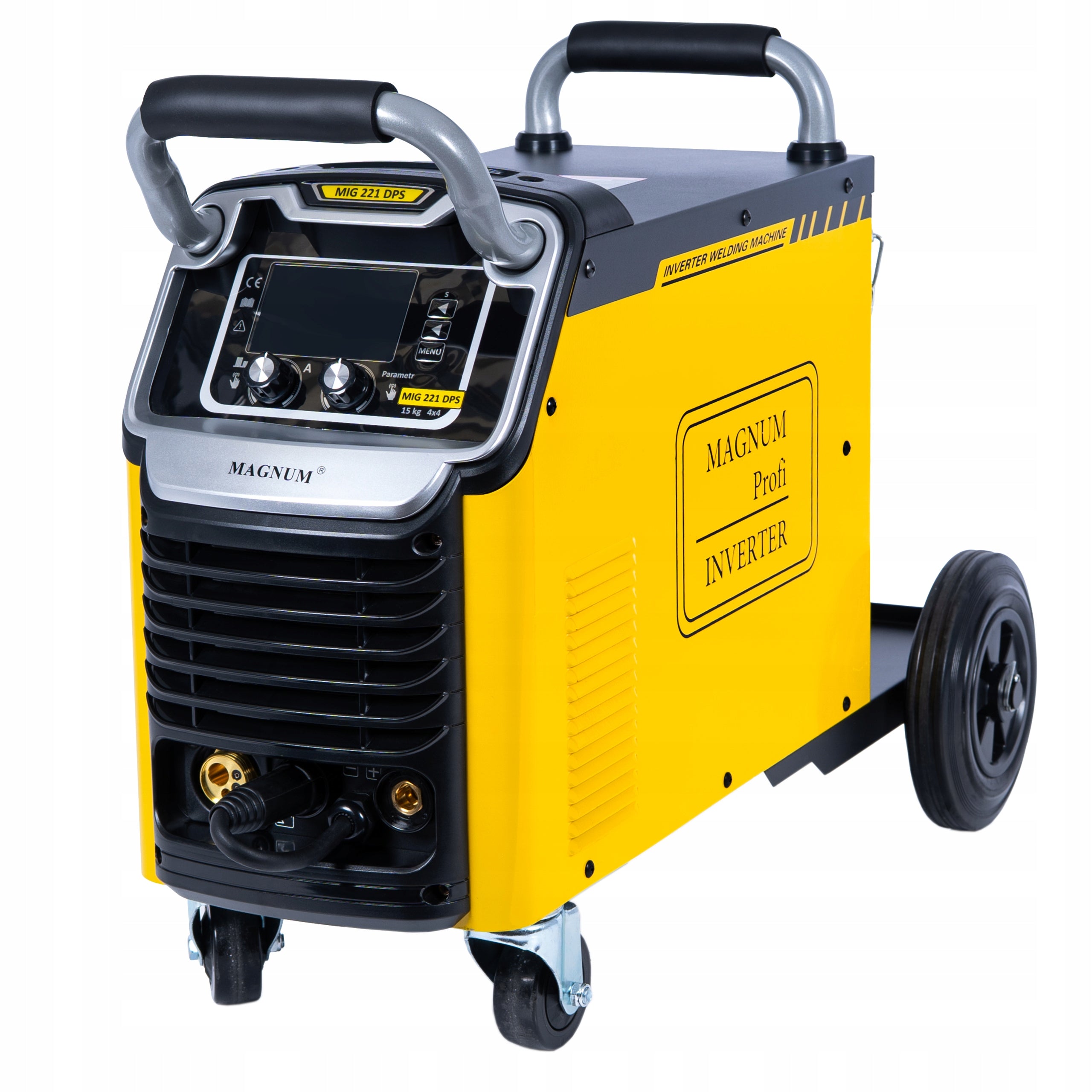

Pusiau automatinis suvirinimo aparatas MIG 221 DUAL PULSE SYNERGY 4x4 15kg 200A/60% MAGNUM

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MIG 221 DUAL PULSE SYNERGY 4x4 15kg 200A/60% MAGNUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 221 DPS15

TECHNICAL PARAMETERS

• Power supply: 230 [V] / 50 [Hz}
• Security required: 20 [A] class C
• Welding current: 40 - 200 [A]
• Welding voltage: 14 - 26 [V]
• Idle voltage: 72 [V]
• Wire diameter: 0,6 - 1,2 [mm]
• Spool size: up to 15kg
• Efficiency: 60 [%]
• Housing protection class: IP21S
• Weight: 18 [kg]

MAGNUM MIG 221 DPS 4X4 combines the precision of pulse technology, the convenience of automatic settings and the reliability of an industrial device.

Choose equipment that will keep up with your ambitions and meet the toughest tasks!

MAGNUM MIG 221 DPS 4X4 in a version with a large spool 15 kg is the answer to the needs of professionals who expect more: greater efficiency, greater flexibility and greater control over each stage of welding. Designed for demanding industrial and manufacturing jobs, this compact yet extremely efficient equipment opens up new possibilities for precise and repeatable work.

Why is MAGNUM MIG 221 DPS 4X4 the best choice?

✅ Uncompromising versatility

MIG/MAG, MMA PULS, TIG LIFT and point welding in one device. Regardless of the material and thickness of the weld – you always have the right technique at hand.

✅ Precision at the master level

Dual pulse, balance, frequency and pulsation amplitude adjustment allow you to perfectly adjust the arc to the type of work.

✅ Welding faster and easier with SYNERGY

Built-in synergistic programs and the choice of material, wire diameter and element thickness allow you to achieve perfect settings automatically – less time for adjustment, more time for effective work.

✅ Process stability thanks to the four-roll feeder

The powerful four-roller mechanism ensures precise, smooth wire feeding, even when operating in harsh manufacturing environments.

✅ Created for long, intensive work

Thanks to the increased spool capacity (up to 15 kg), you can work longer without wire replacement interruptions – an ideal solution for serial production and large projects.

Key features:

➡ MIG/MAG welding, MMA PULS, TIG LIFT, spot welding

➡ Synergistic mode and programmable memory (10 channels)

➡ Single and double pulse for maximum weld control

➡ Full parameter adjustment: voltage, wire speed, inductance, gas outflow time, balance and pulsation frequency

➡ 2T/4T functions for continuous or manual operation comfort

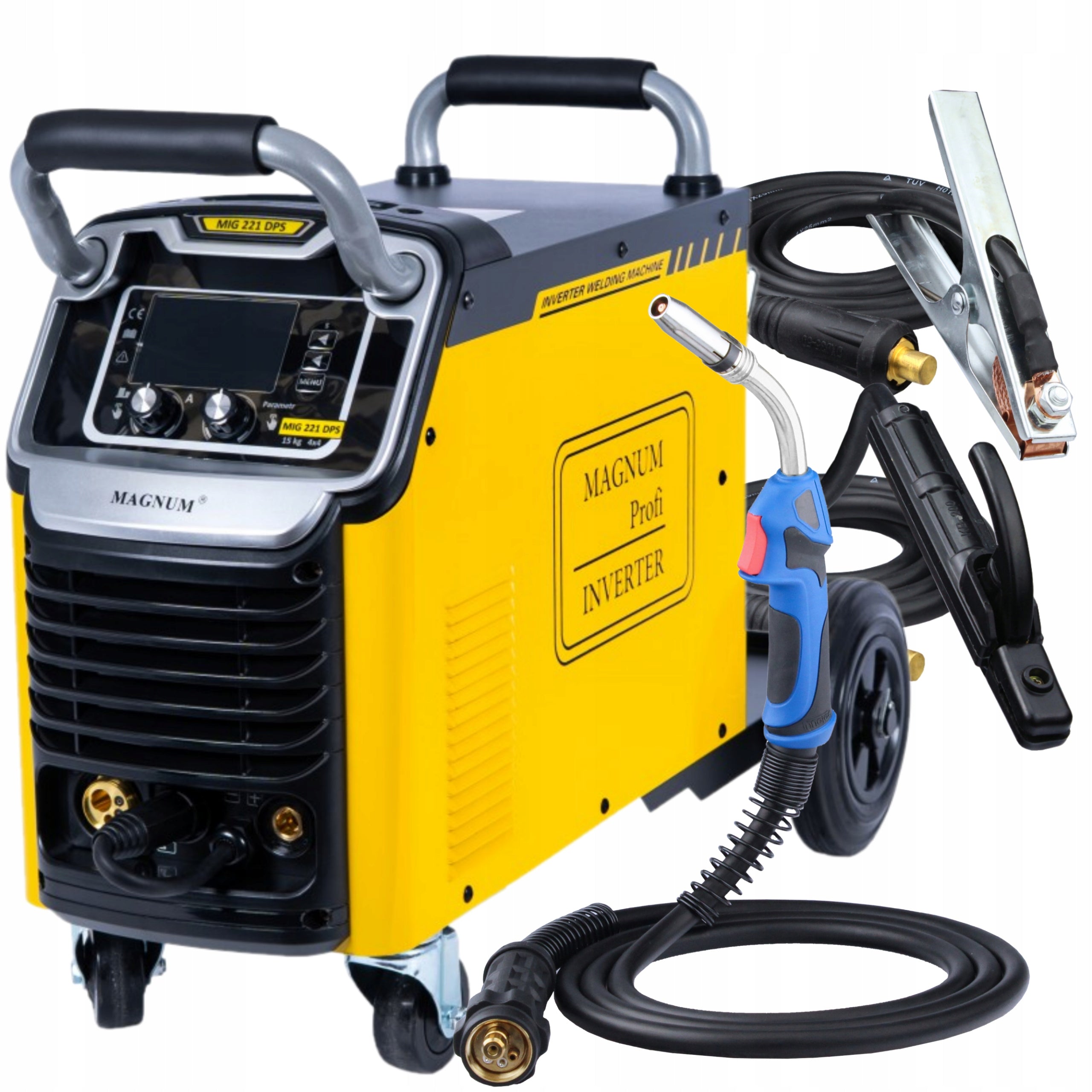

DELIVERY INCLUDES

• Semi-automatic welding machine
• Welding cable MB24 3m
• Electrode Cable DX50 2m
• DX50 2m Mass Cable
• Set of wire feeder rollers
• Warranty card
• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	18 kg
Parametry	Welding range	20–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	22 kg
Parametry	Manufacturer code	U MI 221 DPS15
Parametry	EAN (GTIN)	5905323121577
Parametry	Model	221 DPS15
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle,LCD display
