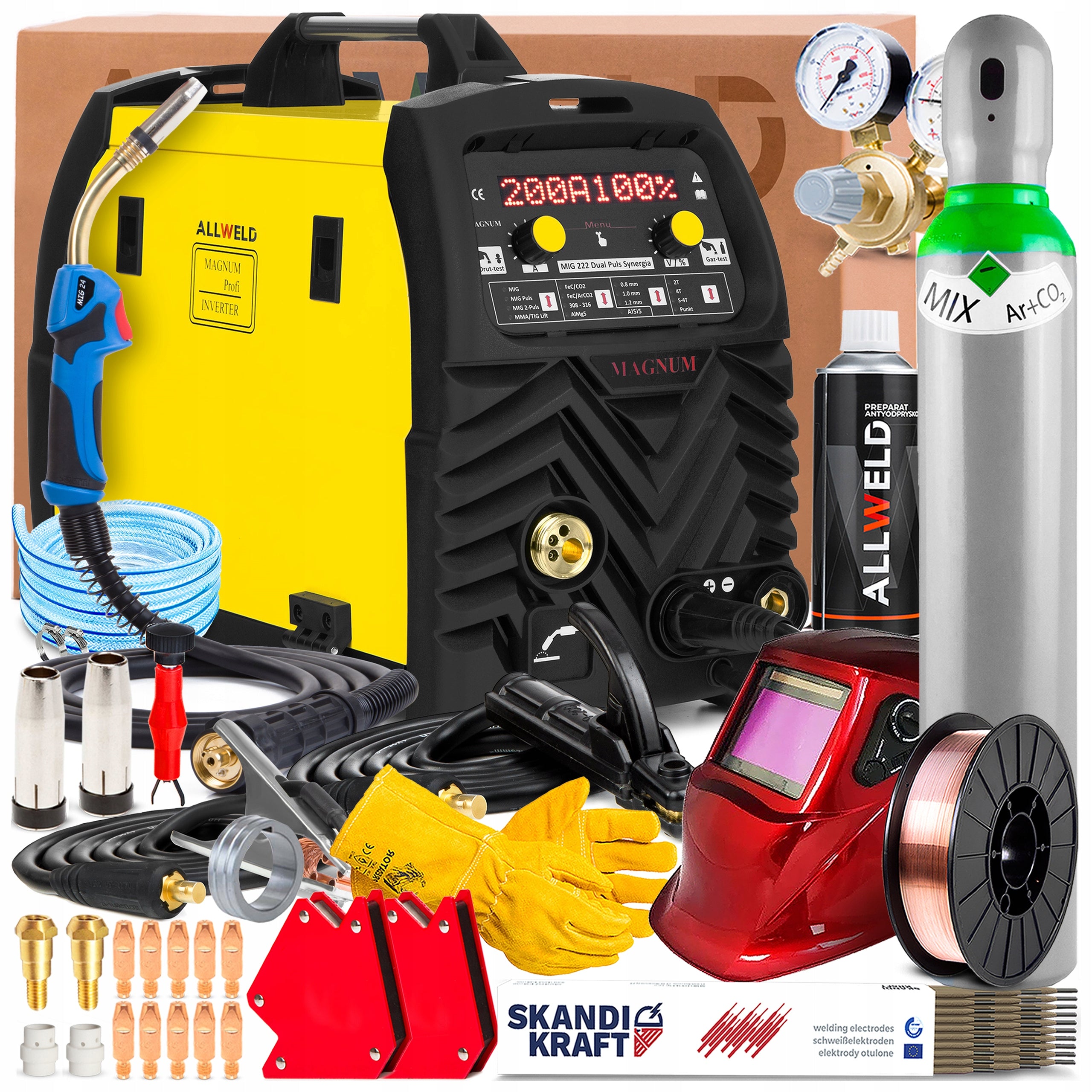

Pusiau automatinis suvirinimo aparatas MAGNUM MIG 222 Dual Pulse Synergy 230V 200A TIG Lift Spot Flux

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG 222 Dual Pulse Synergy 230V 200A TIG Lift Spot Flux. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 222 DUAL PULS SYNERGIA
• Ilgis: 500 mm
• Plotis: 240 mm
• Aukštis: 400 mm

• Welding methods: MIG/MAG, MMA, TIG LIFT, PULSE/DUAL PULSE, SYNERGY, SOLDERING, SPOT WELDING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• For welding: stainless steel, low carbon, low alloy, high alloy and aluminium
• SYNERGY - automatic selection of parameters
• High-quality LED display
• Smooth adjustment of welding parameters, inductance
• 36 memory channels - setting memory
• MCU microcontroller (integrated microprocessor system)
• Professional, 2-roll wire feeder
• Modes and functions: 2T/4T, S2T/S4T, HOT START, ARC FORCE, VRD, BURN BACK
• Euroconnector
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again, which is more convenient for longer welds,

• S2T/S4T - regulation of current and time rise/fall (time adjustment only in S2T mode),

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• PULS - allows welding of very thin elements, reducing the linear energy of the arc and the risk of overheating or burning materials; the obtained welds are of better quality,

• FLUX - arc welding with powder wire, without the use of a gas cylinder; the wire is filled with flux or a chemical substance generating protective gases,

• HOT START - a temporary increase in welding current during arc ignition, prevents "sticking the electrode" and makes it easier to start welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• BURN BACK - does not allow the electrode wire to be melted to the current tip,

• EUROCONNECTOR - allows the interchangeable use of various types of handles,

• IGBT - bipolar transistors increase the efficiency and reliability of the device and ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 20A “C”
• Welding current: MIG/MAG: 50 - 200A | MMA: 20 - 200A
• MIG/MAG welding voltage: 16.5 - 24V
• Idle voltage: 64V
• Wire diameter: 0.8 / 1.0 / 1.2 mm
• Degree of protection: IP23S
• Dimensions: 52 x 42 x 22 cm
• Weight: 12kg

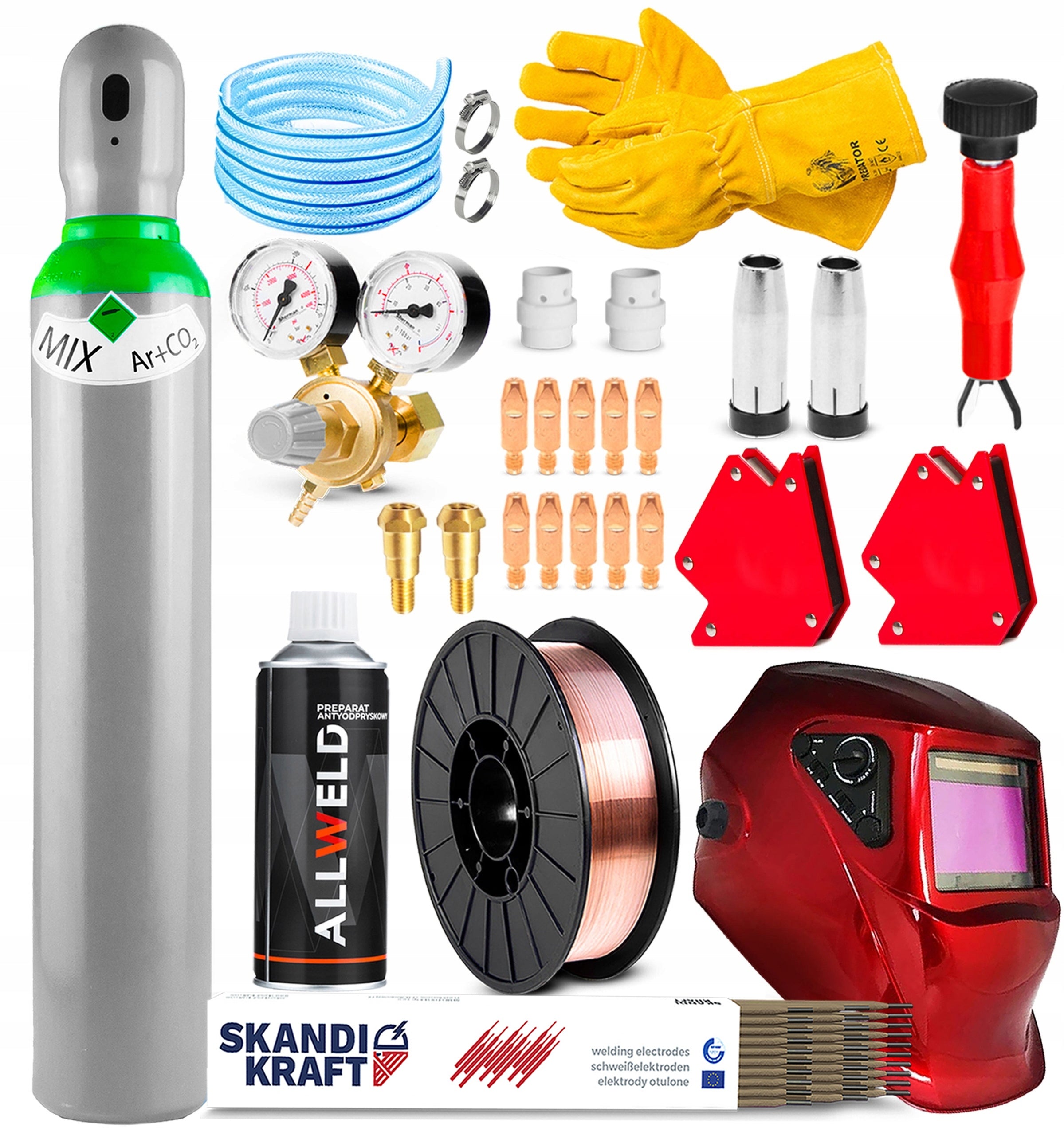

INCLUDED IN THE SET:

• Self-tinting visor MAGNUM TURBO TRUE COLOR - safe mask with enlarged field of view 100 x 60mm, 4 sensors, reaction time 1/30000 s,
• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

THE SET INCLUDES:

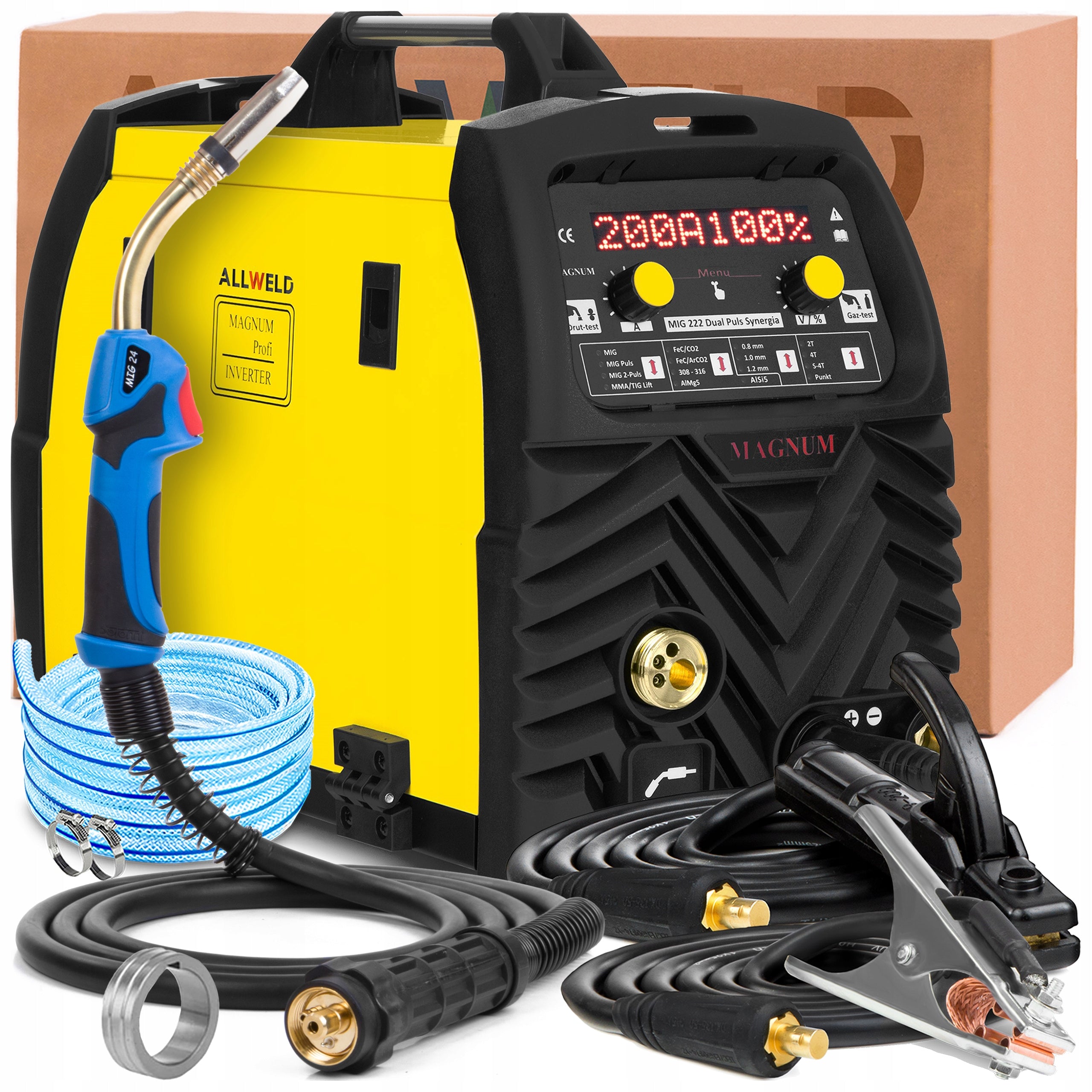

• Welding machine MAGNUM MIG 222 DUAL PULS SYNERGY,
• Welding torch MIG/MAG type MB 24 - 3m,
• mass handle - 2m,
• electrode handle - 2m,
• Roll feeder for steel wire 0,8/1,0 mm - 1pcs ,
• Roll feeder for aluminium wire 1,0/1,2 mm - 1pcs ,
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Self-tinting visor Magnum TURBO TRUE COLOR,
• Botla with Argon/CO2 gas mixture,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
