Trumpai apie prekę

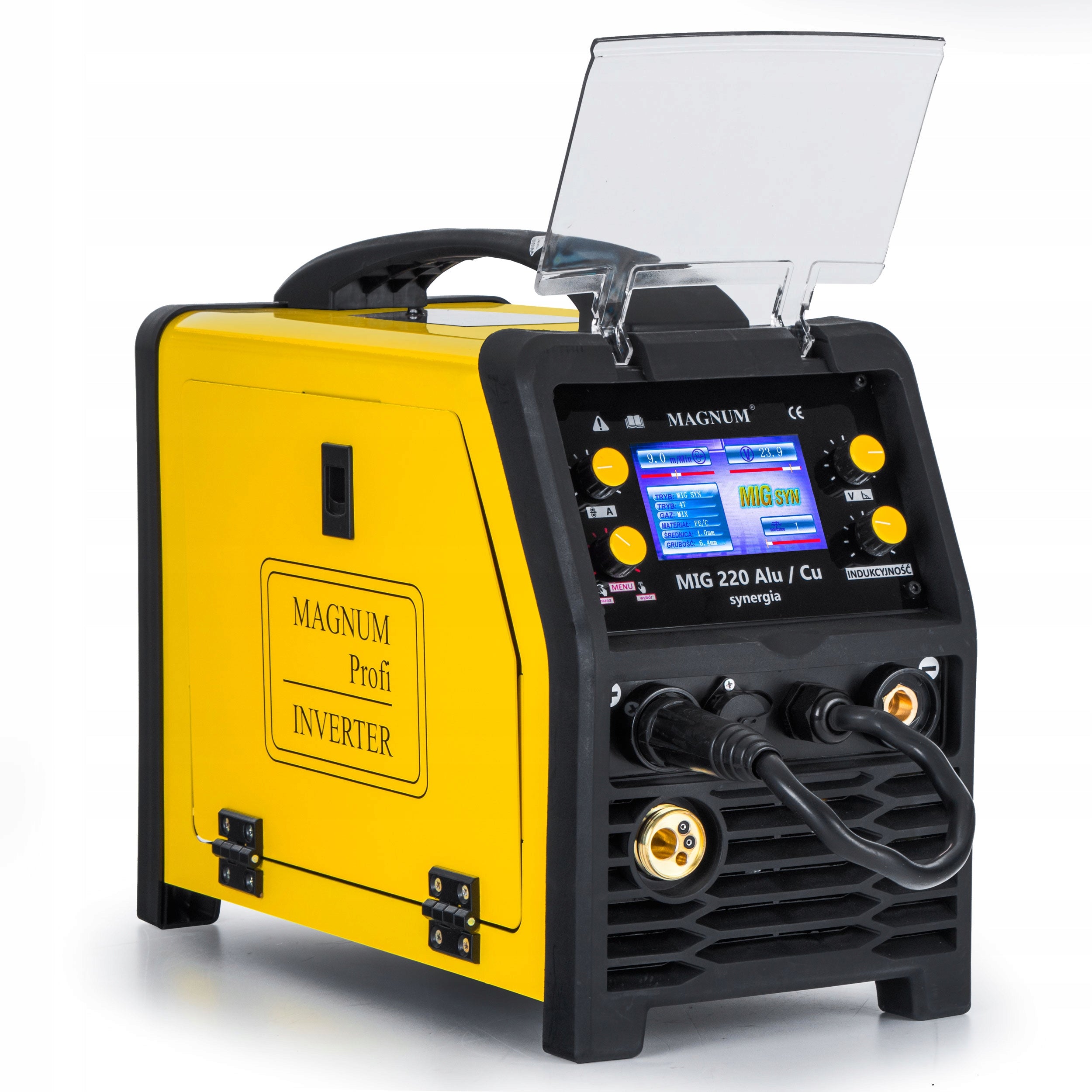

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG 220 ALU/CU SYNERGY MMA TIG 230V 200A ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: MAGNUM MIG 220
- Ilgis: 430 mm
- Plotis: 210 mm
- Aukštis: 360 mm
ADAPTED TO WELDING ALUMINUM ! WELDING MACHINE WITH GRAPHIC SELECTION OF MATERIAL THICKNESS !
Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, TIG DC, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
- Built-in synergistic programs for welding aluminium, soldering, black steel, stainless steel
- manual settings mode
- 3in1 welder: MIG / MAG, MMA, TIG DC
- Welding without gas - FLUX
- Excellent quality color LCD display
- Synergy in MMA mode
- Option to choose type of electrode
- ARC FORCE function
- Adjustable inductance - less chipping
- Soldering CUSI3
- 2T/4T mode
- LCD display with excellent contrast
- Possibility to connect the SPOOL GUN holder
- Ideal welding machine for flashing workshops - possibility of welding galvanized sheets
- Smooth adjustment of welding parameters
- Robust and proven, PROFESSIONAL METAL feeder 2R
- Euroconnector
- Latest production in IGBT technology
- BURN BACK function
BELOW A FULL DESCRIPTION OF THE LATEST GENERATION OF LCD DISPLAY, WHICH HAS A GRAPHICAL SELECTION OF THE THICKNESS OF THE WELDED MATERIAL
MAGNUM MIG 220 ALU/CU Synergy has synergy mode and manual setting option. Another feature is the possibility of connecting the SPOOL GUN holder. An additional advantage of the semi-automatic Magnum brand is the readable COLOR LCD display. The equipment finds application in welding works in locksmith workshops, repair workshops, automotive industry, factories. The dedicated welding machine is professionals, amateurs and enthusiasts of welding, requiring meeting the highest standards for welding equipment. Very high efficiency, which translates directly into lower energy consumption , and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.
DESCRIPTION OF DISPLAY AND FUNCTION LCD MAGNUM MIG 220 ALU/CU SYNERGY
- Selection screen method welding
- Screen tips for connecting welding wires in MIG MAG mode
- Welded material selection screen
- Curtain gas selection screen
- Wire Diameter Selection Screen
- Operating mode selection screen: 2T/4T
- Selection of the thickness of the welded material - using the knob we set the thickness of the welded material
- Summary of our choices
SYNERGISTIC PROGRAMMES:
- FE - Plain steel
- SS - Stainless and acid-resistant steel
- AlMg5 - Aluminium and its alloys
- FCAW - self-shielding wire welding without gas
- CuSi - Galvanized sheet welding
- CuAl - Aluminum sheet welding
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph
- Frequency: 50Hz
- Power protection: 20A
TECHNICAL PARAMETERS
- MIG/MAG welding current: 40 ÷ 200A
- Welding current TIG: 10 ÷ 200A
- Welding current MMA: 10 ÷ 170A
- Idle voltage: 60 V
- Efficiency: 60% (for temp. 40°C)
- Feeder: 2R
- Spool diameters with wire: to 200mm
- Max. Spool size: 5kg
- Wire diameter: 0,6/0.8/0,9/1.0/1.2 mm
ADDITIONAL FUNCTIONS
- SYNERGY function: YES
- MMA function: YES
- ARC FORCE function: YES
- 2T/4T function: YES
- SOLDERING function: YES
- TIG LIFT function: YES
- Welding without gas: YES
PHYSICAL PARAMETERS
- Housing protection: IP21S
- Cooling: fan
- Dimensions: 430x210x315mm
- Weight: 10,4kg
REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.
LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.
BURN BACK - does not allow the electrode wire to be melted to the current tip, due to the momentary extension of the wire after the welding process.
SPOOL GUN - welding torch with built-in wire feeder. It is used mainly in car workshops and in welding thin sheets, it is perfect for hard-to-reach places and at heights. A spool with welding wire is placed in the handle of the handle.
EUROCONNECTOR - allowing the interchangeable use of various types of handles.
FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

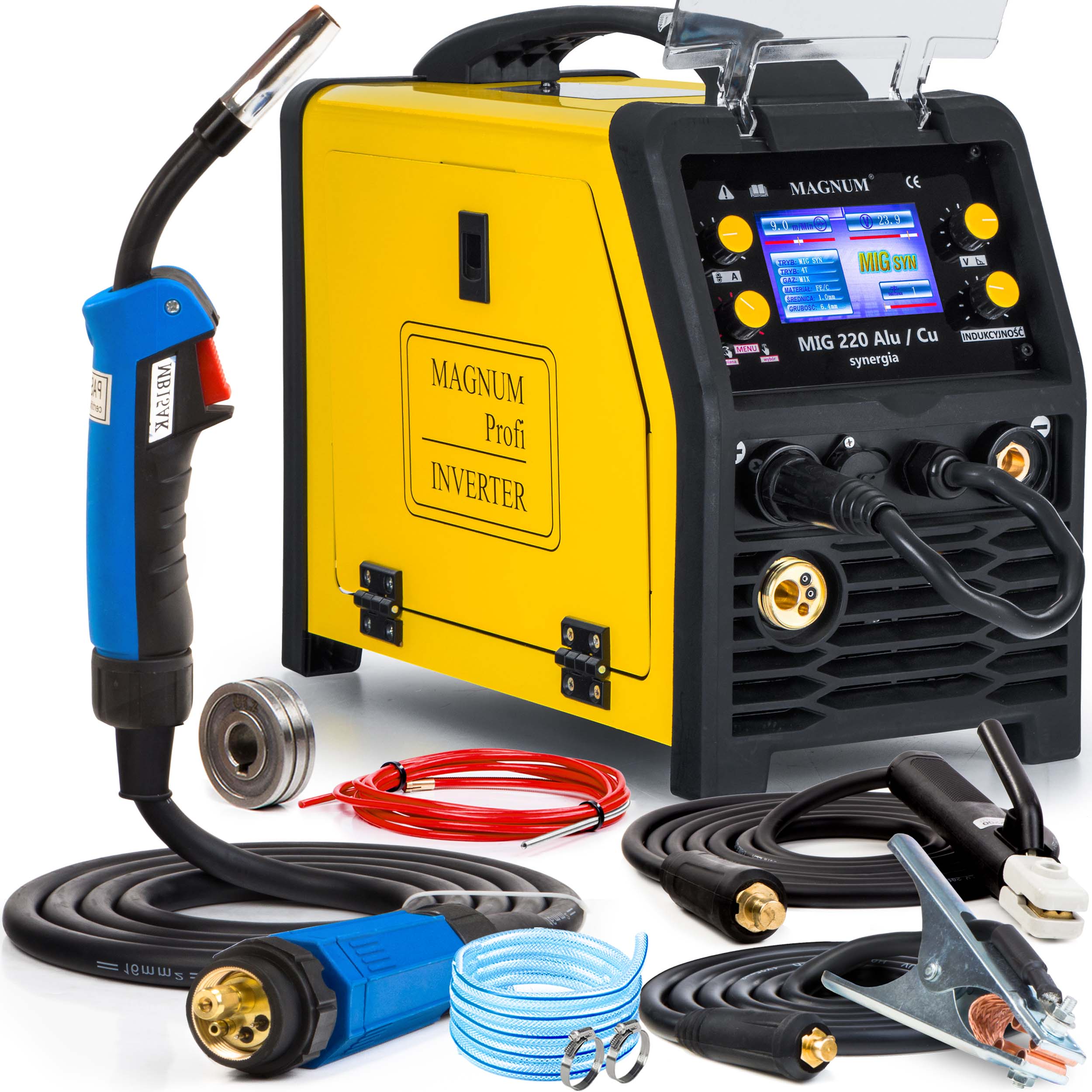

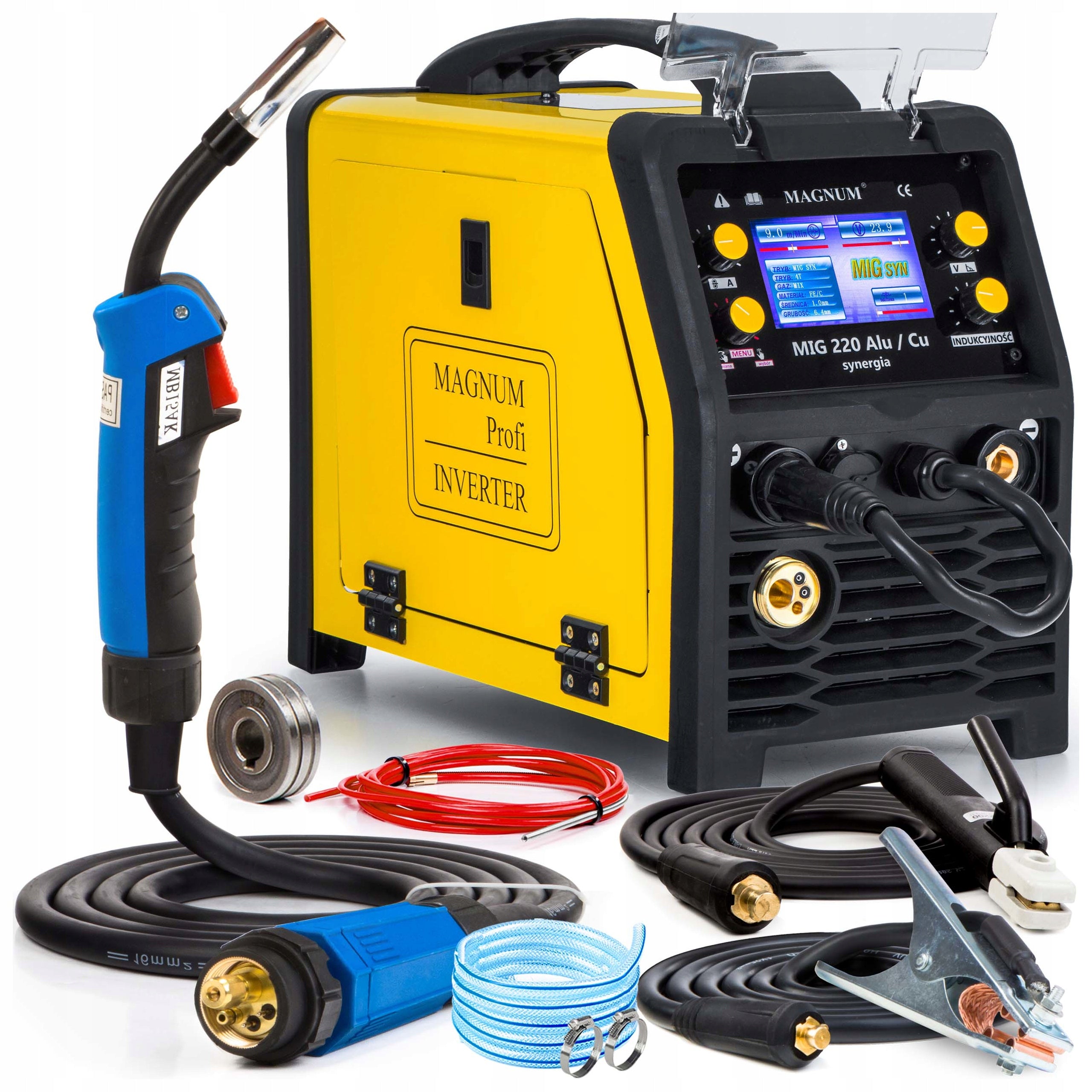

THE SET INCLUDES:
- Welding machine MAGNUM MIG 220 ALU/CU SYNERGY
- Welding torch MIG/MAG type MB15 - 3m
- Electrode holder - 2m
- Bulk holder - 2m
- User manual in Polish
WELDING ACCESSORIES
- Steel spiral insert for handle - 1 pcs
- Steel wire roller 0,8/1,0 - 1 pcs
- Aluminium wire roller 0,8/1,0 - 1 pcs
- Clamp ties - 2 pcs
- Gas connection hose - 1 pcs
Information - One of the rollers mounted in the device
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Power consumption | 6.4 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 10.4 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 360 mm |
| Parametry | Length | 430 mm |
| Parametry | Width | 210 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 12 kg |
| Parametry | Manufacturer code | U MI 220AL CU |
| Parametry | EAN (GTIN) | 5905323101036 |
| Parametry | Packaging status | original |
| Parametry | Model | MAGNUM MIG 220 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
