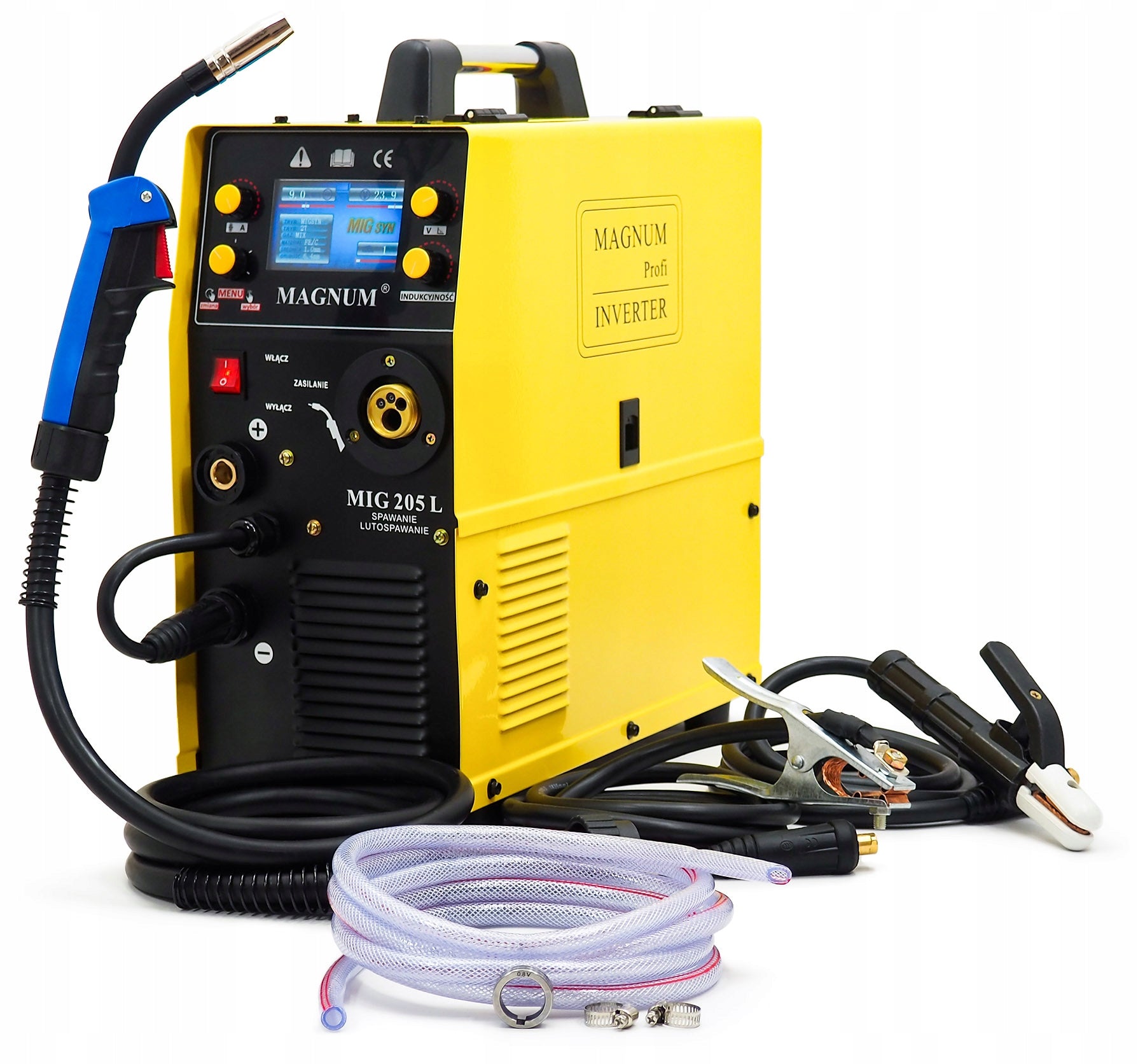

Pusiau automatinis suvirinimo aparatas Magnum MIG 205L MIG/MAG/MMA su lituokliu

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Magnum MIG 205L MIG/MAG/MMA su lituokliu. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Magnum Mig 205 L
• Ilgis: 540 mm
• Plotis: 360 mm
• Aukštis: 560 mm

Welding methods: MIG, MMA | Power supply: 230V | Maximum current: 200 A | LCD display | SYNERGY | ALUMINUM | SOLDERING |

The MAGNUM MIG 205 L welding machine is a professional semi-automatic welding machine designed for welding steel low carbon, low alloy (MAG), alloy steel (MIG), aluminium and its alloys and for lutowelding!!! It also has the ability to weld with wrapped electrodes (rutile, alkaline, acidic - MMA), as well as self-shielded wires ("gas-free" welding). This device is used in heavy production (industrial) conditions as well as in repair workshops.

MAGNUM MIG 205 L has the possibility of lutowelding. It is an intermediate metal joining process between hard soldering and welding. The connection is obtained only by melting a special binder-solder (a binder based on copper SG-CuSi3, SG-CuSn6), without melting the joined metals, while the process technique and method of preparing the edges of the joined objects are similar to that of welding.

Currently, it is very common to use zinc galvanized sheets. In the welding process, evaporating zinc is the cause of the porosity of the welds, because high temperatures formed in this area destroy the protective layer, and the combined elements lose their corrosion resistance. Mechanical removal of zinc before welding, as well as re-application from places where evaporation occurred is a very expensive process. On the other hand, replenishing cavities with "zinc spray" preparations does not sufficiently protect the structure against corrosion. In addition, with welding blach galvanized there is a very large emission of zinc vapors harmful to the health of welders. All these problems avoid is using the lutowelding technology using the MIG/MAG method.

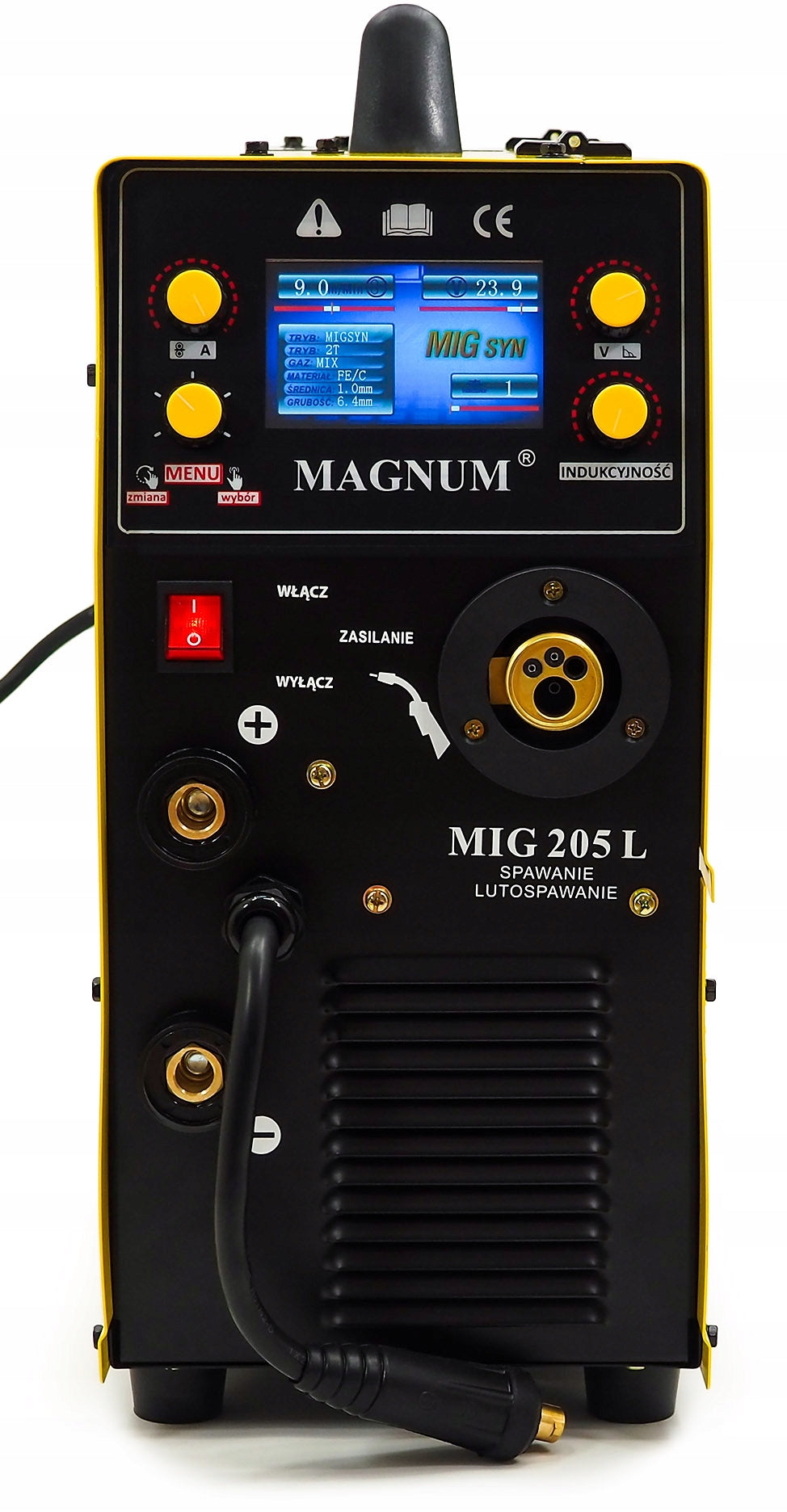

• Display LCD.
• Knob and button in one. It is used to select method welding and other available parameters.
• regulation knob inductance for MIG-MAG method.
• Welding current voltage adjustment knob for the MIG-MAG method.
• For MMA method - regulation of Arc force function.
• Adjustment knob speed feed wire/ welding current

SYNERGY - function facilitating welding by automatically adjusting the parameters to the welded material. To start welding, you only need to choose the type of material, the type of shielding gas and the thickness of the wire and the welding machine will select the other parameters (arch voltage, wire feed speed). Then the welder must operate only one knob - the arc power.

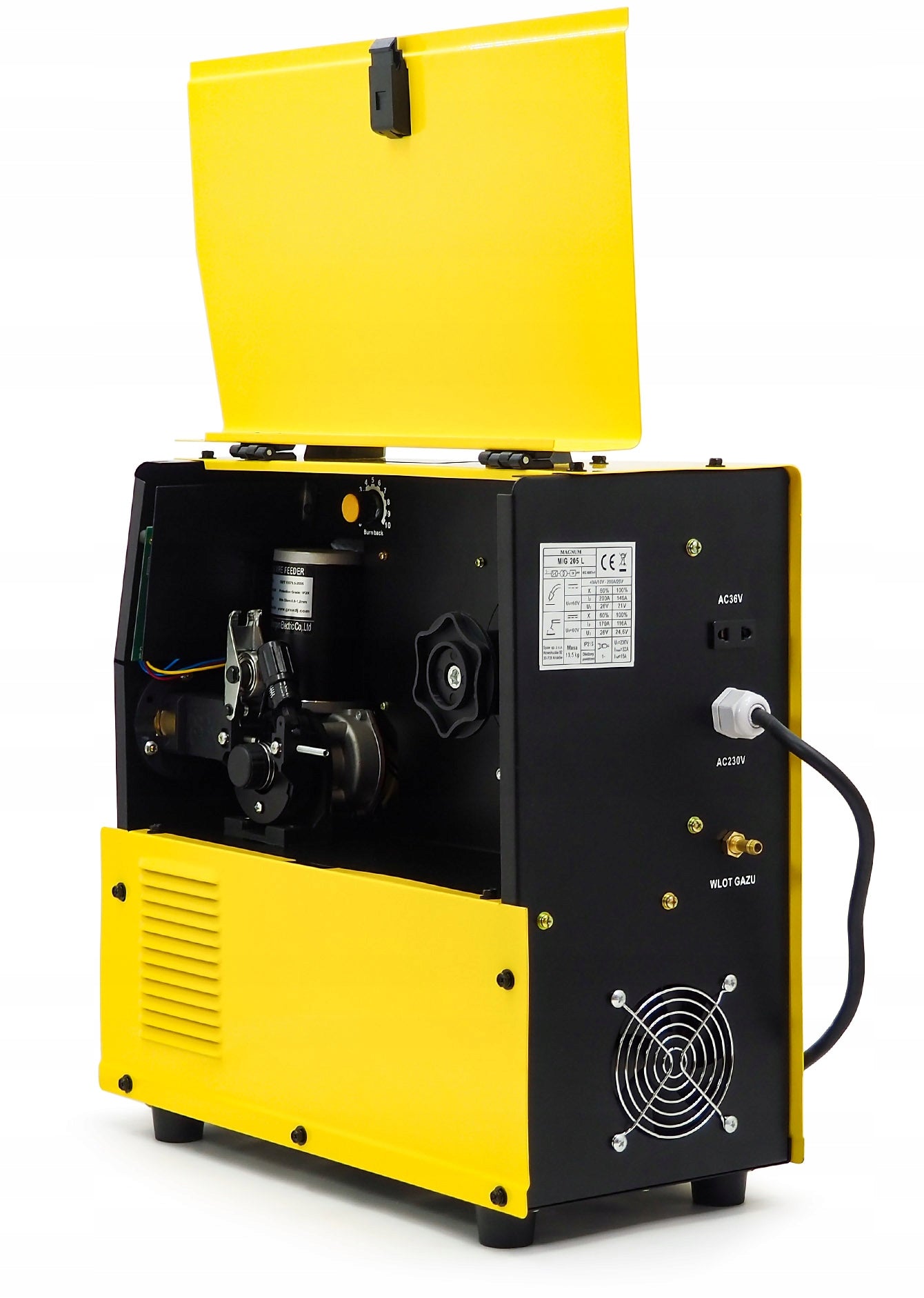

The MIG 205 L is designed for power supply from the 230 V, 50 Hz mains. MIG 205 L has a professional feeder wire, a socket "euro connector", which allows the use of different types of welding torches and exit to the gas heater. This device is equipped with an overload system protection thermal, preventing excessive overheating.

• Power supply: AC 230 [V] / 50 [Hz]
• Max. power consumption: 5,2 kVA
• Security required: 20A
• MIG/MAG welding current: 40 - 200A
• MMA welding current: 50 - 180 A
• Efficiency: 60 %
• Wire spool weight: max. 5 kg
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Welding "without gas": YES
• Housing protection class: IP23
• Weight: 9 kg
