Pusiau automatinis suvirinimo aparatas MAGNUM MIG 200W, MIG/TIG/MMA

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG 200W, MIG/TIG/MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 200W MMA
• Ilgis: 660 mm
• Plotis: 320 mm
• Aukštis: 400 mm

The Magnum MIG 200W IGBT welder is an inverter semi-automatic welding machine designed for welding using the following method:

• MIG - arc welding in the shield of inert gases (ARGON, HEL)
• MAG - arc welding in the shield of active gases (CO2, MIX)
• TIG LIFT - welding with a non-consumable electrode in an inert gas shield
• MMA - welding with a coated electrode
• FLUX / FCAW - welding with self-shielding wire.
• BRAZING of galvanized sheets

The MAGNUM MIG 200W IGBT welder is used for welding:

✔ low alloy steels

✔ low carbon steel

✔ alloy steels

✔ aluminum and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops, factories, etc.

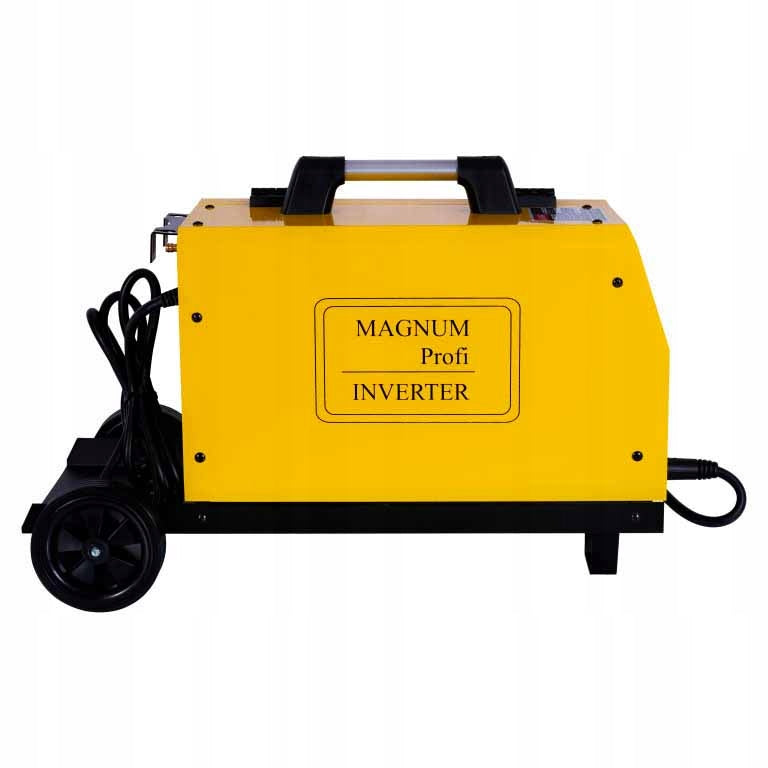

The welder is equipped with an active chassis, which means that the device can have a chassis with wheels and a foot, or you can use the welder without a mobile chassis and place it on, for example, a shelf. a large welding trolley, which makes it even more universal.

⭐ BRAZING - the device enables brazing, mainly used in the automotive industry to connect galvanized sheets without burning the zinc layer.

⭐ INDUCTION - optimizes the characteristics of the arc depending on the thickness of the material being welded. This function is useful when MIG / MAG welding thin elements - it prevents their burnout (the thinner the element, the inductance should be higher). Inductance affects the shape of the weld, its width, depth of penetration and the amount of spatter

⭐ EURO CONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

➡ Welding takes place in an inert, active or mixed gas shield, and with reverse polarity without gas (using a self-shielding wire - FLUX).

➡ The device is equipped with overload protection , which increases its reliability.

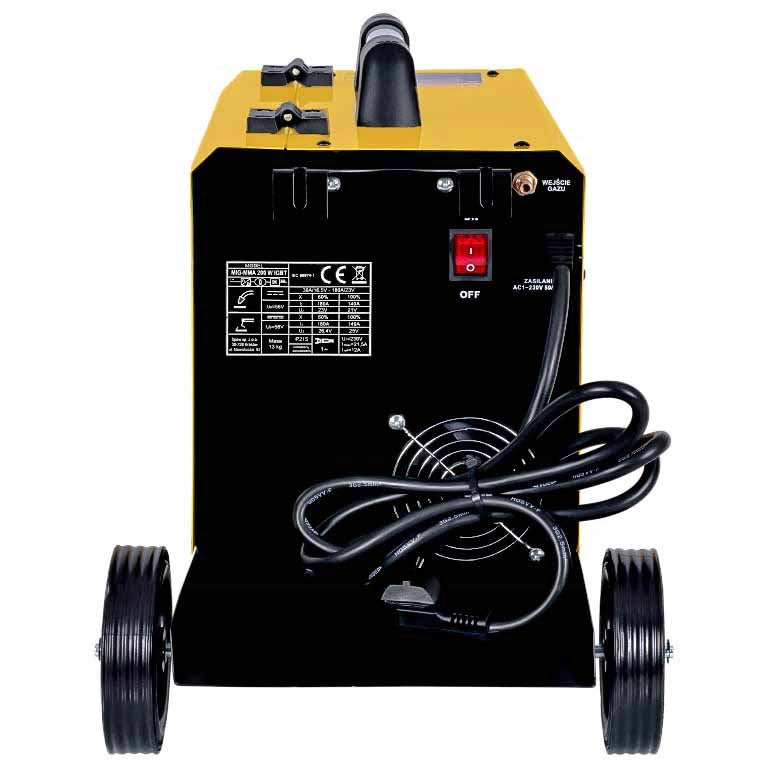

❄ The device has a fan cooling system , which significantly increases its efficiency.

☀ VERSATILITY OF THE DEVICE ☀

The MAGNUM Migomat is a device with a wide range of applications, designed as an inverter power source for welding with a MIG/MAG gas-shielded fusible wire or FCAW self-shielding wire (after changing the polarity), welding with the MMA lagging electrode, as well as with the TIG Lift method

✔ MIG/MAG welding

Gas-shielded arc welding is one of the most widely used processes for the production of welded structures. The semi-automatic welding process consists in fusing the edges of the welded object and the material of the consumable electrode with the heat of an electric arc glowing between the electrode in the form of a solid wire and the welded detail, in an inert or active gas shield.

✔ MMA welding

in the MMA method, a coated electrode is used, consisting of a metal core covered with a coating. An electric arc is generated between the end of the electrode and the material to be welded. The arc is ignited by touching the tip of the electrode to the workpiece.

✔ TIG DC welding

In the TIG (Tungsten Inert Gas) method, the electric arc is ignited in a shield of inert gas (argon), between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives. In the TIG DC Lift mode, the arc is ignited when the electrode contacts the workpiece. In TIG DC mode, the current is constant.

❗❗ You can weld with the TIG method after connecting an additional handle, available at our auctions ❗❗

✔ Welding with FCAW self-shielding wire

Thanks to the polarity reversal function, it is possible to weld without shielding gas with FCAW self-shielding wire. The wire is intended for general production works, also in field conditions, and for welding structures that are not subject to impact resistance requirements. DC(-) welding current.

Self-shielding cored wire fi 0.8mm / 1kg E71T-GS is intended for welding ordinary and high-strength carbon steels not exceeding 510 MPa .

It is used in prefabrication, construction, production of tanks, agricultural equipment , etc. Used both in the production and repair of devices.

SELF SHIELD WIRE IS AVAILABLE SEPARATELY AT OUR AUCTIONS AND IN OTHER SETS

MAGNUM MIG 200W has functions that facilitate the MMA welding process with a coated electrode:

✅ ARC FORCE : facilitates the transfer of a drop of molten electrode to the welded material, preventing the extinction of the arc when the electrode drop comes into contact with the weld pool

✅ HOT START : makes it easier to ignite the electrode by providing more welding current with each arc ignition.

✅ ANTI STICK : short-circuit - automatically turns off the welding voltage if the electrode sticks to the material being welded, which makes it easier to tear it off and prevents accidental formation of the welding arc.

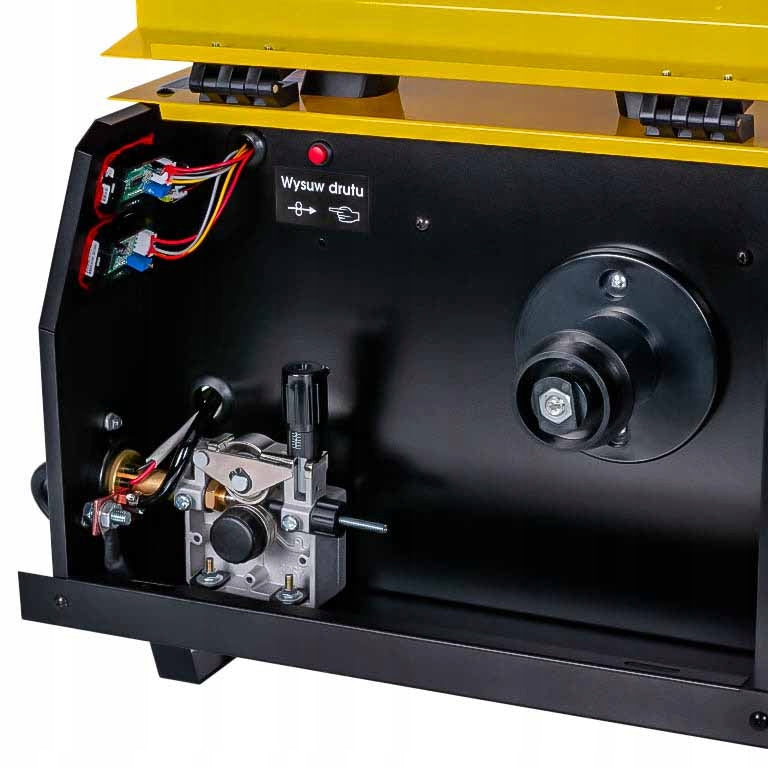

EFFICIENT WORK WITH A PROFESSIONAL WIRE FEEDER

The welder has been equipped with a professional wire feeder, which guarantees the stability and continuity of operation of the device.

The 2-roller feeder enables precise advancement of the welding wire , excluding its slippage.

The feeder has a quick wire change knob as well as a wire feeding roller.

HANDLE WITH EURO CONNECTOR

The welder has a EURO socket for the MIG welding cable. The socket allows you to quickly change the handle in the same standard and, most importantly, it allows you to change the polarity for welding with FLUX self-shielding wire.

The warranty service is carried out in the door-to-door system without transport costs on the part of the user.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

Inductance adjustment allows you to optimize the arc characteristics depending on the thickness of the welded element and the welding method and conditions.

The function is useful during MIG/MAG welding of thin elements, preventing their burn-through and braze welding of galvanized elements.

The thinner the MIG/MAG welded element, the higher the inductance should be (soft arc - less penetration), for thick elements the opposite (hard arc - greater penetration).

The standard neutral inductance setting is in the middle of the scale.

Changing the inductance value also reduces the amount of welding spatter during welding in the CO2 shield.

The optimal setting of the inductance value depends on several factors and may differ from the standard recommendations, it should be selected during welding tests by manipulating the potentiometer knob.

THANKS TO THE ADJUSTMENT OF INDUCTION, THE WELDING MACHINE IS SUITABLE FOR BRAZING

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

MEETING CUSTOMERS, BASED ON OUR MANY YEARS OF EXPERIENCE, WE CREATE PROFESSIONAL KITS FOR YOU, THANKS TO WHICH WE SUPPLY EQUIPMENT READY FOR USE IMMEDIATELY AFTER CONNECTING TO POWER.

⌚ SAVE YOUR TIME ⌚

BUY IN A SET AND WE DO THE REST!

JOIN THE BEST - START YOUR WELDING ADVENTURE WITH US!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

⭐ WORK IN THE INDUSTRY - thanks to the high quality of workmanship and multifunctionality, the device can be used in professional and industrial works.

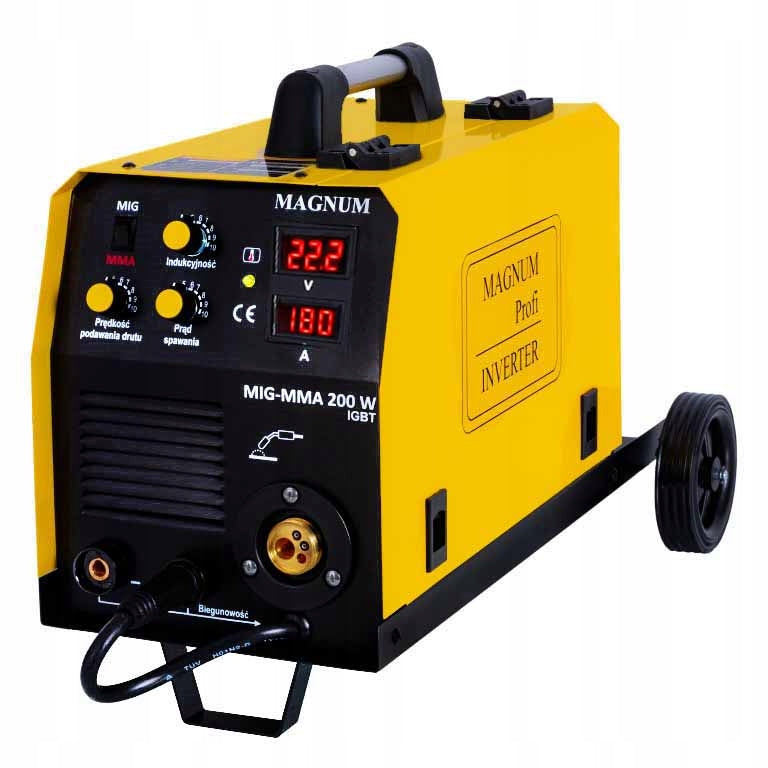

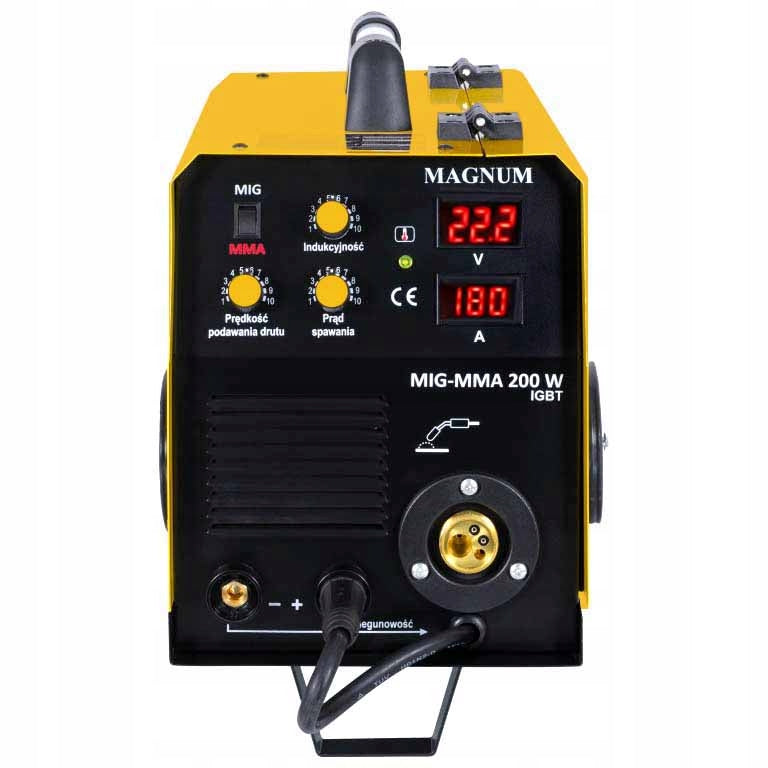

⭐ EASE OF USE - the welder is equipped with an easy-to-use control panel and LCD display, so it can be used even by amateurs.

⭐ IGBT INVERTER TECHNOLOGY - is a modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation of welding equipment .

✔ REPAIR WORKSHOPS

✔ LOCKWORKS

✔ FACTORY

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY COUNTS!

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

PHYSICAL PARAMETERS

• Wire spool size: 0.45 - 5 kg
• Housing protection degree: IP 21S
• Device weight: 13 kg
• Overall dimensions: 520x230x300 mm
• Dimensions with chassis: 660x320x400mm

TECHNICAL PARAMETERS

• Open-circuit voltage: 56V
• MIG/MAG welding current: 30 - 180 [A]
• MMA welding current range : 30-180A
• Maximum electrode diameter: 4mm
• Wire diameter: 0.6 / 0.8 / 1.0
• Output voltage : 16.5-23V
• Inductance adjustment: Yes
• Welding without gas: Yes
• Wire Feeder: 2 ROLL
• max. spool size: 5kg
• Cooling: gas

POWER PARAMETERS

• Mains protection: 20A
• Rated supply voltage: 230 V 50/60 [Hz]

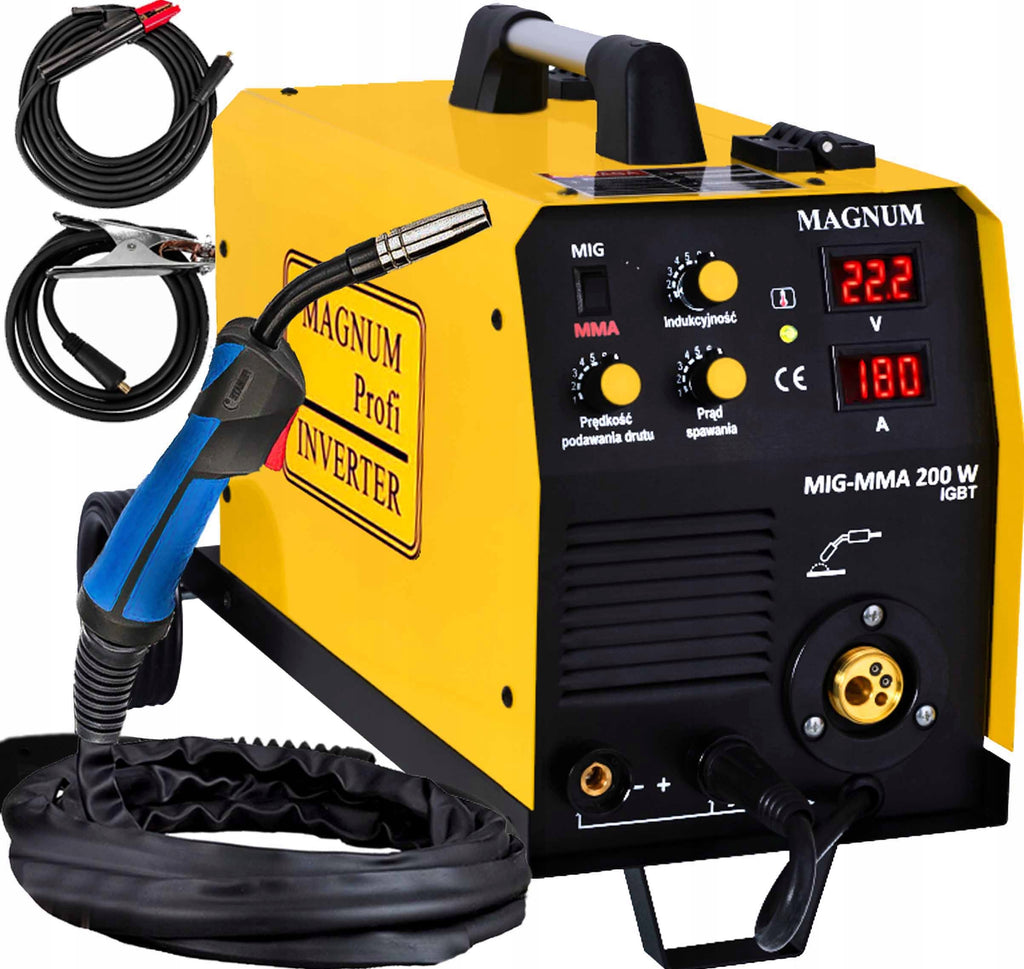

BY BUYING FROM US YOU WILL RECEIVE:

• MAGNUM MIG200W IGBT welder,
• MB15 EURO welding torch, 3 meters long,
• mass cable - 2m,
• MMA electrode cable - 2m,
• gas hose,
• Hose clamps - 2 pcs . ,
• User manual,
• warranty card .

Set 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	13 kg
Parametry	Welding range	30–180 A
Parametry	Height	400 mm
Parametry	Length	660 mm
Parametry	Width	320 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	U MI 200W MMA
Parametry	EAN (GTIN)	5904624016315
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle,LCD display
