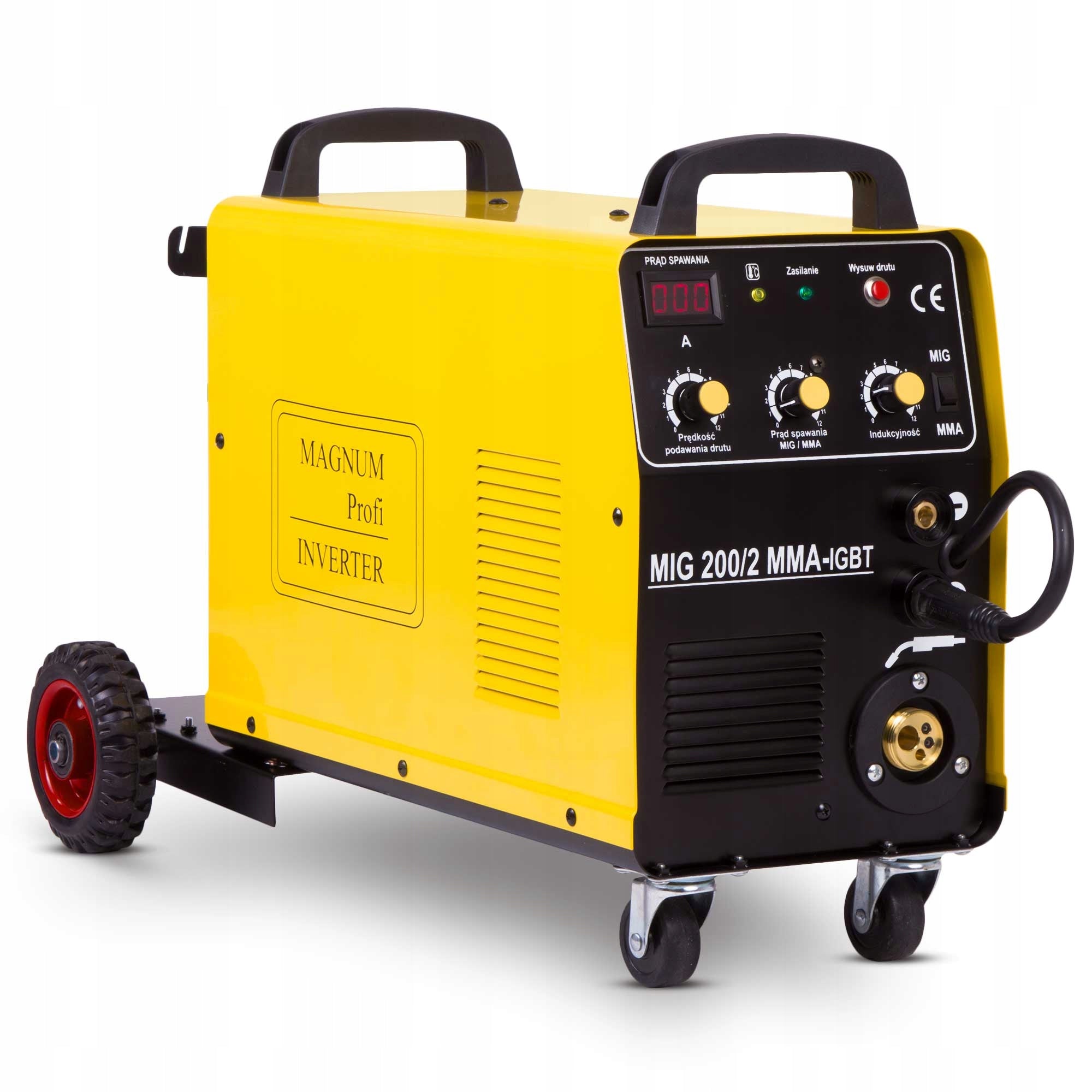

Pusiau automatinis suvirinimo aparatas MAGNUM MIG 200/2 MMA 230V 400V 200A su lydymo srautu, Euro jungtis

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas MAGNUM MIG 200/2 MMA 230V 400V 200A su lydymo srautu, Euro jungtis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 200/2 MMA-IGBT
• Ilgis: 656 mm
• Plotis: 230 mm
• Aukštis: 401 mm

• Welding methods: MIG/MAG, MMA, SOLDERING, FLUX
• Power supply: 230V/400V
• Operating cycle 60% at maximum welding current 200A
• Welding: any type of steel, aluminum, nickel, copper and their alloys
• Max. thickness of welded material: 10mm
• Regulation of inductance, current and wire feed speed
• Professional, 2-roll wire feeder
• Durable chassis with space for cylinder
• Euro connector
• Cooling with fan
• Overload switch
• Clean, aesthetic welds
• Made in IGBT technology

SMOOTH ADJUSTMENT OF PARAMETERS

Adjusting the inductance, current and speed of wire feeding allows for precise adjustment of the welding process to the specifics of the material. Inductance adjustment ensures the stability of the welding arc, minimizing the risk of overheating of the material. Current adjustment allows you to control the intensity of the arc, while adjustable wire feed speed controls the amount of material supplied.

✔ FEATURES AND ADVANTAGES:

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various connections,

• EUROCONNECTOR - allows the interchangeable use of various types of handles,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power Supply: 230V/400V 50Hz (1ph/2ph)
• Network security: 20A/16A
• MIG/MAG welding current: 30 - 200A | MMA: 30 - 180A
• Max. power consumption: 6.2kW
• MIG/MAG welding current voltage: 16.5 - 23V
• Idle voltage: 57V
• Wire diameter: 0.6 / 0.8 / 1.0 mm
• Spool with wire: up to 200mm; up to 5kg
• Degree of protection: IP21S
• Dimensions: 65.5 x 23 x 40 cm
• Weight: 14kg

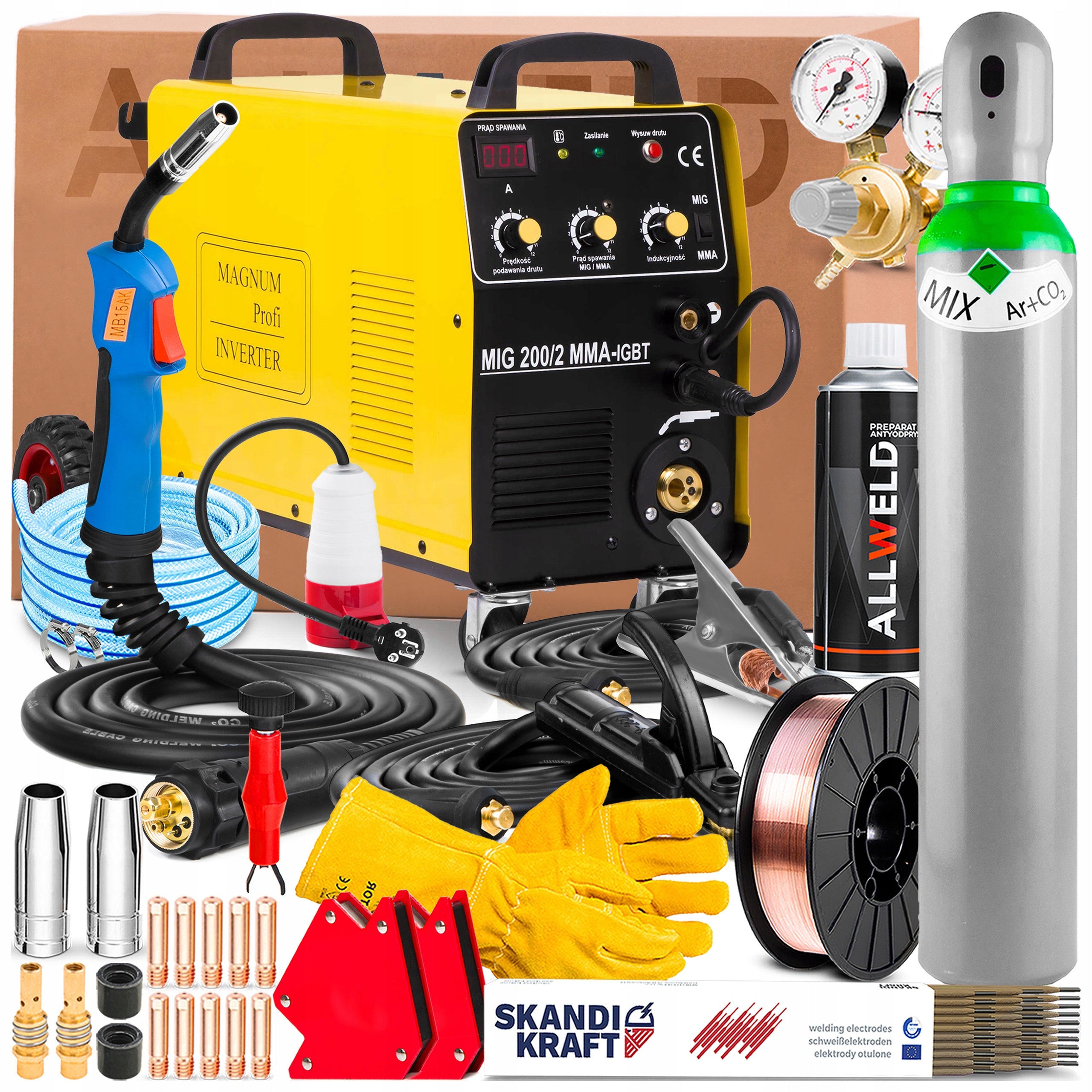

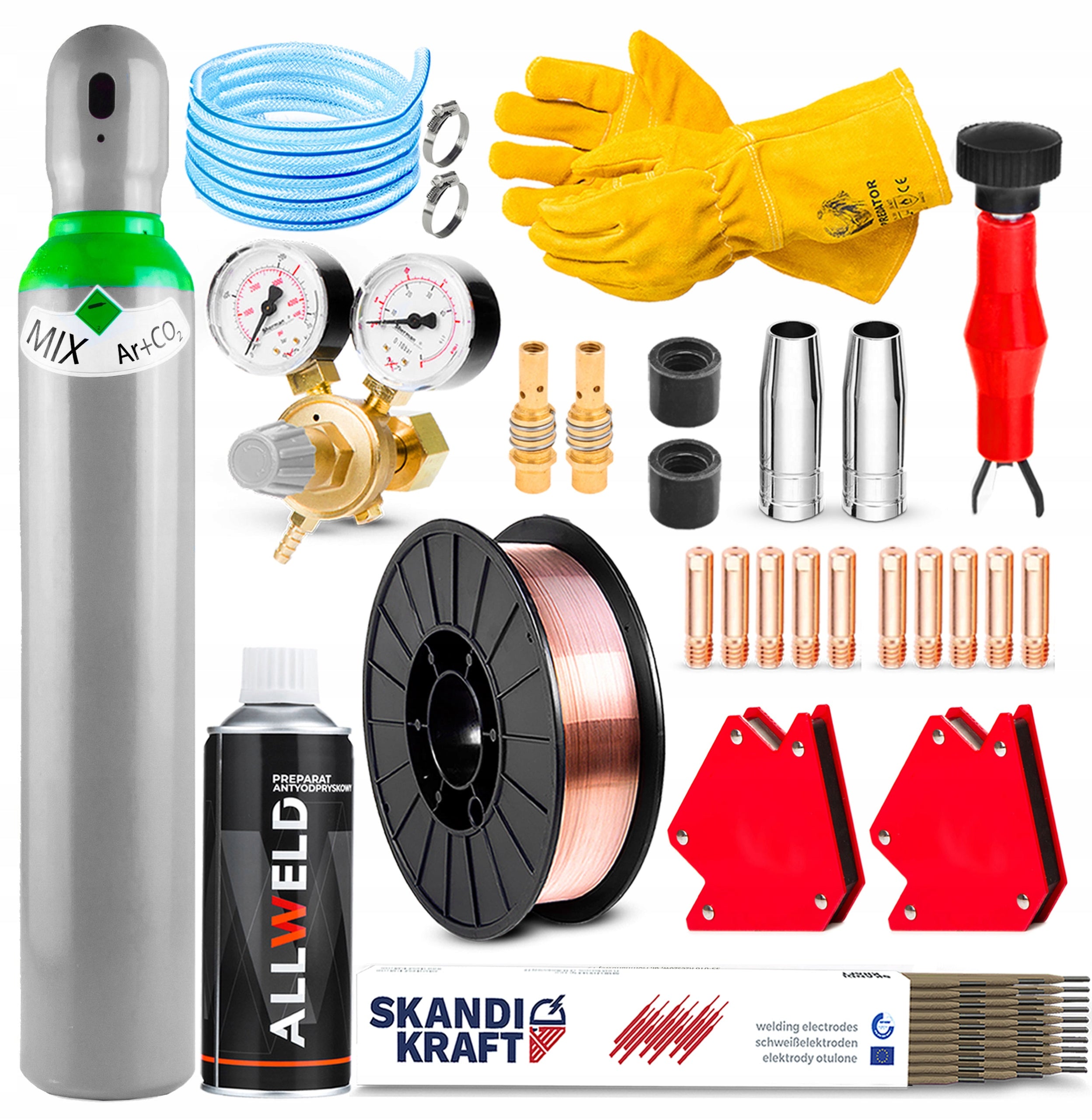

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

THE SET INCLUDES:

• Welding machine Magnum MIG 200/2 MMA KN,
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle - 2m,
• electrode holder - 2m,
• Adapter from 400V to 230V,
• User manual and warranty card.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
