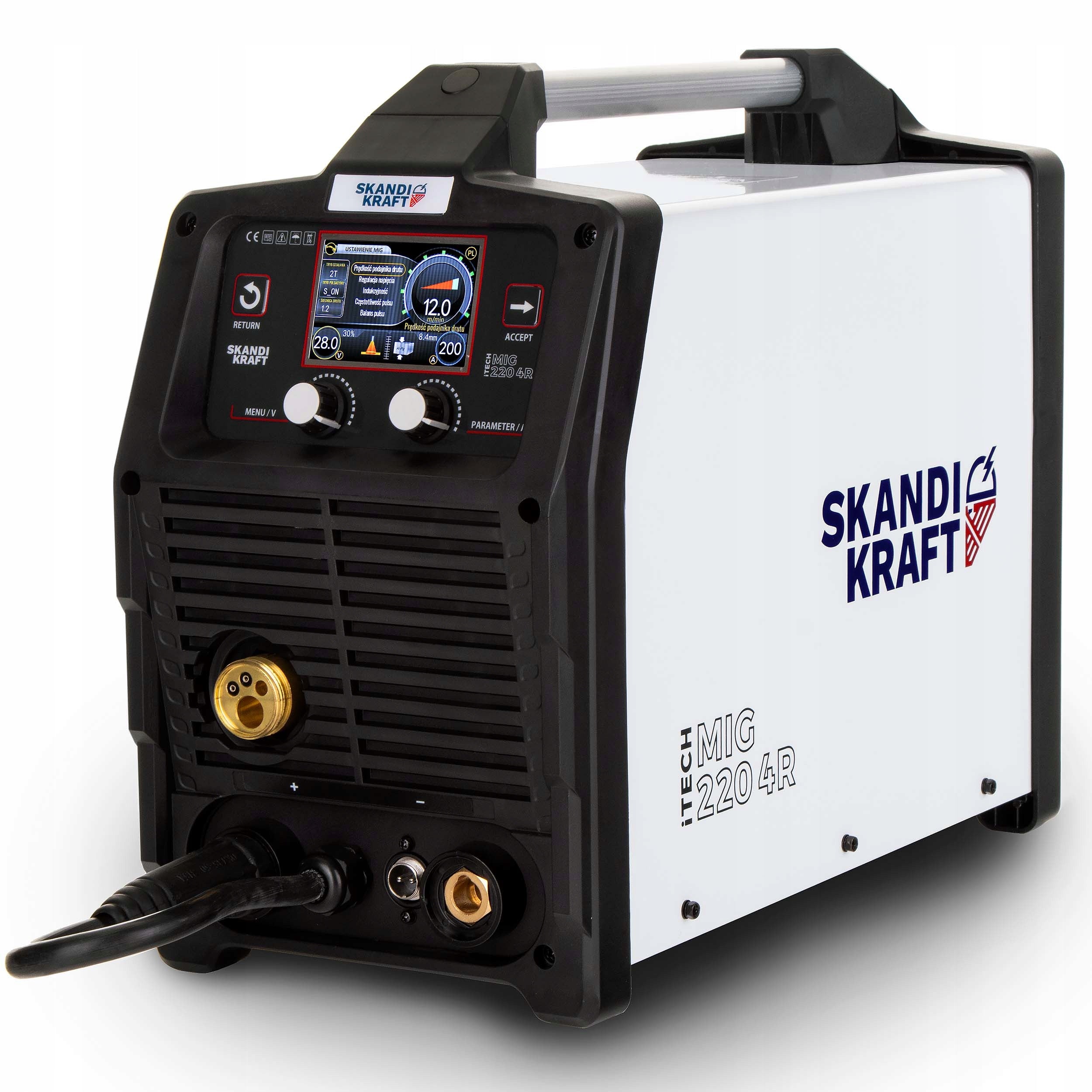

Pusiau automatinis suvirinimo aparatas iTECH MIG 220 4R 200A SKANDI KRAFT

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas iTECH MIG 220 4R 200A SKANDI KRAFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: SKANDI KRAFT
• Modelis: iTECH MIG 220 4R
• Ilgis: 480 mm
• Plotis: 210 mm
• Aukštis: 380 mm

BRAND: SKANDI KRAFT | TYPE: MIG/MAG, MMA, TIG LIFT | WELDING CURRENT: 200 A | POWER: 230 V

TECHNICAL DATA:

• Power supply: 230 V 50 Hz
• Pulse/Dual pulse: Yes
• Synergy: Yes
• Spool gun: Yes
• Lutowelding: Yes
• Spool kg: 5 (D200)
• Wire feeder: 4 ROLLS
• 2T/4T: YES
• SETTING MEMORY: YES
• WIRE DIAMETER [mm]: 0.8-1.2
• FAN STOP: YES
• MAX. WELDING CURRENT [A]: 200
• RANGE OF REGULATION OF WELDING CURRENT MIG MAG [A]: 40-200
• Average parameter min. current [A]: 19
• MIG DUTY CYCLE: for 40°C 60% [200 A] 100% [155 A]
• RANGE OF REGULATION OF WELDING CURRENT TIG DC [A]: 10-200
• TIG WORKING CYCLE: for 40°C 60% [200 A] 100% [155 A]
• RANGE OF WELDING CURRENT REGULATION MMA [A]: 30-200
• MMA DUTY CYCLE: for 40°C 60% [200 A] 100% [155 A]
• HOT START FUNCTION - MMA: YES
• ARCH FORCE FUNCTION - MMA: YES
• ANTI STICK FUNCTION - MMA: YES
• VRD FUNCTION: YES
• IDLE VOLTAGE [V]: 68
• NETWORK SECURITY [A]: 20A
• WEIGHT OF THE DEVICE [kg]: 14.8
• DIMENSIONS [mm]: 480x210x380
• POWER CABLE LENGTH [cm]: 300
• DEGREE OF PROTECTION: IP21S
• COOLING: Fan
• SPOT/S2T/S4T: Yes

SKANDI KRAFT MIG 220 4R is the only mobile and portable four-roll welding machine. Thanks to the construction of the feeder, the smoothness of wire feed is much better and the possibility of mounting 5-meter handles. From other four-roller welding machines, it is distinguished by its small size and portability. Welding machine with LCD display and pulse and double pulse function. It will work well when working at heights, on a lift in the workshop or in places where the standard 4-meter handle will be too short. Perfect for more advanced garage and workshop work. The MIG 220 4R also has a spool gun connector that will allow you to connect the handle to an external wire feeder.

• Welder with 4 roller wire feeder, thanks to which the wire is fed smoothly and uniformly depending on the needs
• Possibility of mounting a longer MIG handle (5-meter)

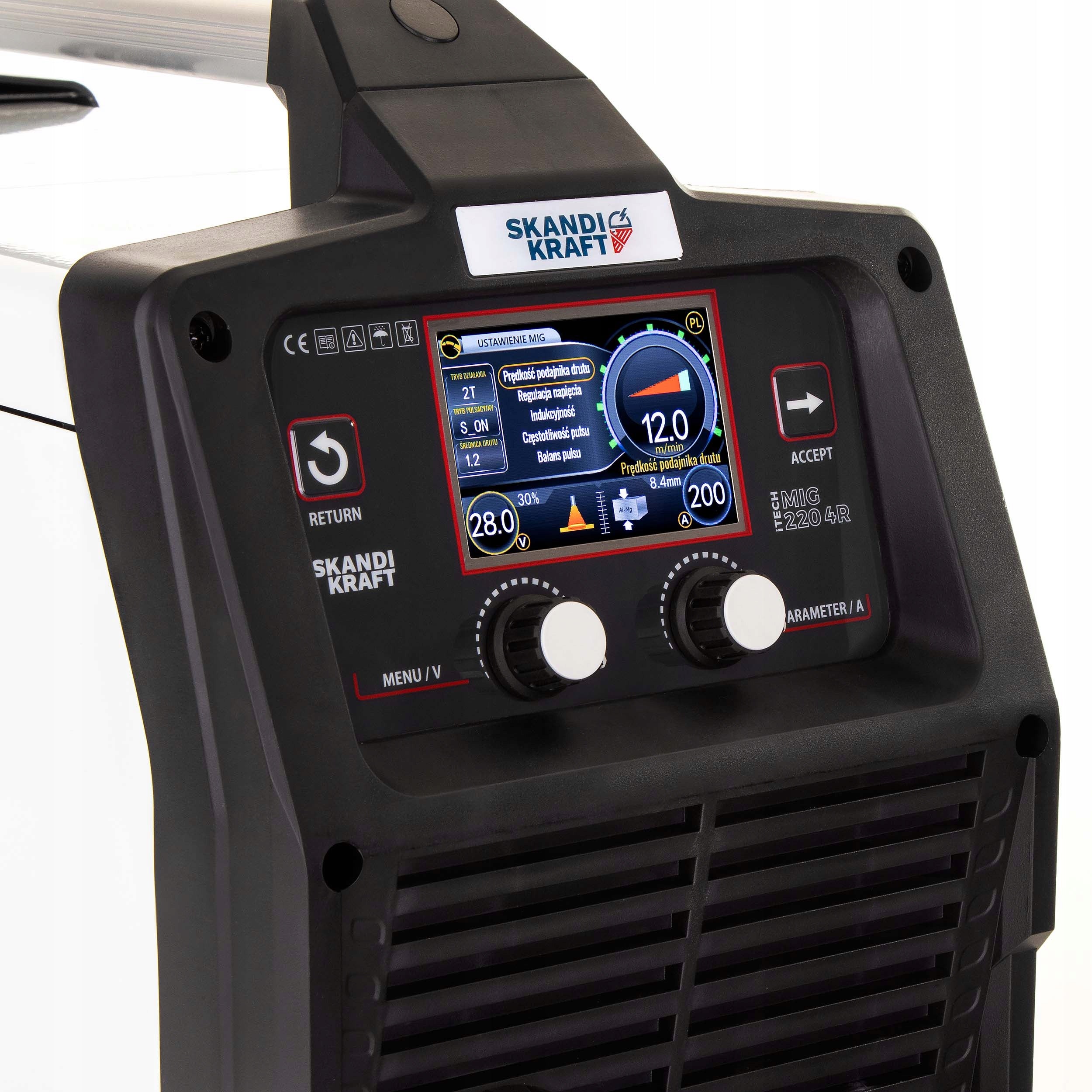

• Welder with LCD display, for welding with 3 methods MIG/MAG, TIG LIFT, MMA
• Welding with pulse and double pulse, enabling the production of a durable, quality and nice weld. It is possible to adjust the frequency in a double pulse
• Automatic welding in MIG/MAG method - after setting the type and thickness of the wire and the thickness of the welded material, the welding machine automatically selects the amperage and voltage
• Suggesting the type and thickness of the electrode to be used for TIG LIFT and MMA welding depending on the thickness of the material
• The possibility of connecting the SPOOL GUN handle, which ensures that the wire is fed without interruptions from the external feeder
• FAN STOP function - the system that turns off the fan at rest of the welding machine, the welding machine is quiet, even when it is turned on to the current, its sound does not interfere with operation
• The welding machine itself adjusts the wire feed speed depending on the welding current
• Display available with 4 languages to choose from
• High operating cycles of the device thanks to the transistor construction IGBT
• Possibility of welding with self-shielding wire (FLUX)
• Efficient cooling with fan
• It has a gas heater connector (36 V), to which you connect the reducer to the heater or the heater itself and heat the gas to a positive temperature.
• Quick coupler for quick connection of the hose from the reducer
• Safe handle transport for convenient transport of welding machine
• 18 memory channels

Professional 4 Roll Wire Feeder

Professional 4 roller feeder ensures smooth wire feeding. It easily copes with long handles and large wire spools.

Welding machine supports D200 wire spools

• PULSE function- enables pulsed welding for a more durable and robust weld. It is perfect for welding materials such as aluminum, inox, copper and nickel.
• FLUX function - the possibility of welding without gas using self-shielding wire.
• TIG Lift function - with a dedicated handle, the device can be used for TIG short-circuit welding
• Eurozconnector - allowing the interchangeable use of various types of handles.
• Intuitive control - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• IGBT transistorsThe device uses modern IGBT transistors, which provide a minimum of electromagnetic interference and low power losses in basic systems. The use of IGBT transistors provides an increase in the efficiency and reliability of the power source, reducing the total weight of the welding machine.
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Lightweight and very compact, it can be easily transported both inside and outside buildings. Thanks to the modular base for the cylinder, we gain a fully mobile set.
• The device is equipped with overload protection, which increases its reliability
• Maximum spool with wire: D200 2/5 kg.
• The device has a fan cooling system which significantly increases its efficiency
• For MIG-MAG welding, the wire feed speed can be adjusted
• Protection against overload.

FAN STOP FUNCTION

The welder is equipped with an adaptive fan with FAN STOP function, which turns off at rest of the device, ensuring quiet operation. The efficient cooling system protects the welding machine from overheating, allowing for longer operation without interruptions. Thanks to the use of modern IGBT transistors, the device is characterized by high efficiency and reliability.

MMA FUNCTIONS FOR EASY WELDING PROCESS

Arc Force - adjustment of the welding arc, this function allows you to reduce or increase the depth of the melt

VRD - voltage reduction, turning off the power supply after welding as soon as possible, helps to maintain safety.

Anti Stick - easier detachment of the electrode if it is glued

TIG LIFT FUNCTIONS

Welder powered by 230V using a thick power cable with a length and cross-section of 3G x 2,5 [mm2]

Maximum welding current 200 A

simple wire change mechanism in the welding machine

• FLUX - welding without gas, shielding wire
• Ability to adjust the welding current, after setting it, the welding machine suggests the thickness of the sheet metal
• Hot Start - facilitates the start of welding, by temporarily increasing the welding current at its beginning

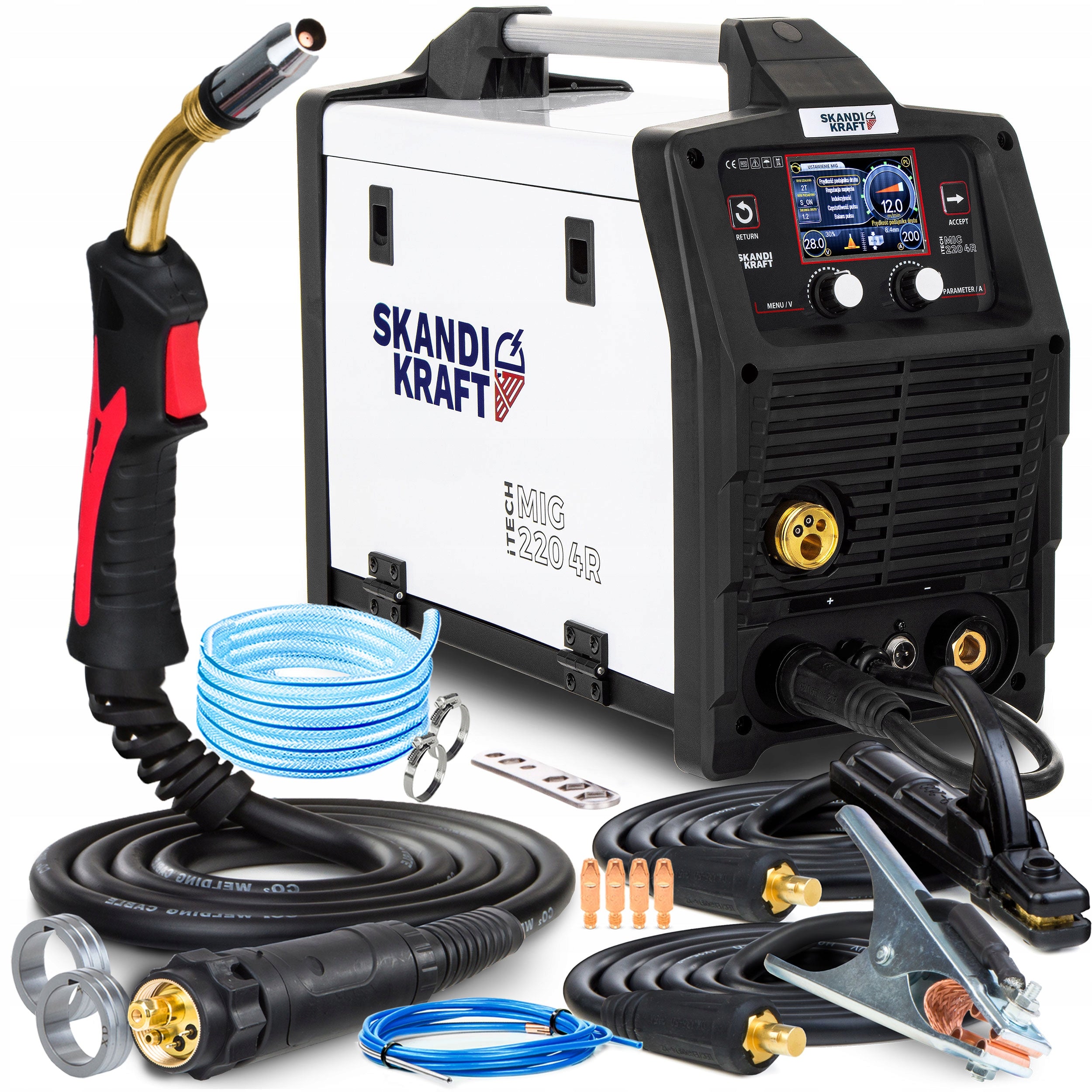

• Welder SKANDI KRAFT iTECH MIG 220 4R
• Handle for MIG MB welding 24 4 meters with Teflon-graphite cartridge black
• Additional cartridge steel blue 4 meters for MB 24 handle, for wire welding with a diameter of 0.6 -1.0 [mm]
• Power cable with a length of 3 meters, cross section 3G x 2,5 [mm2]
• Mass holder fully copper 3 meters, cross section 25 [mm2]
• Electrode holder copper plated 3 meters, cross section 25 [mm2]
• Wire rolls: for steel 1x 0.8-1.0 V, for aluminium 1x 1.0-1.2 U, wire feeder rollers size 22/10/30 [mm]
• Elements for mounting the gas cylinder : 2 x band for mounting the gas reducer; 2 m gas hose; instructions; key; Allen key
• Current terminals MB25 (1x 0.8 ; 1x1.0; 1x1.0 ALU ; 1x1.2 ALU)
• Warranty card
• Operating instructions
