Trumpai apie prekę

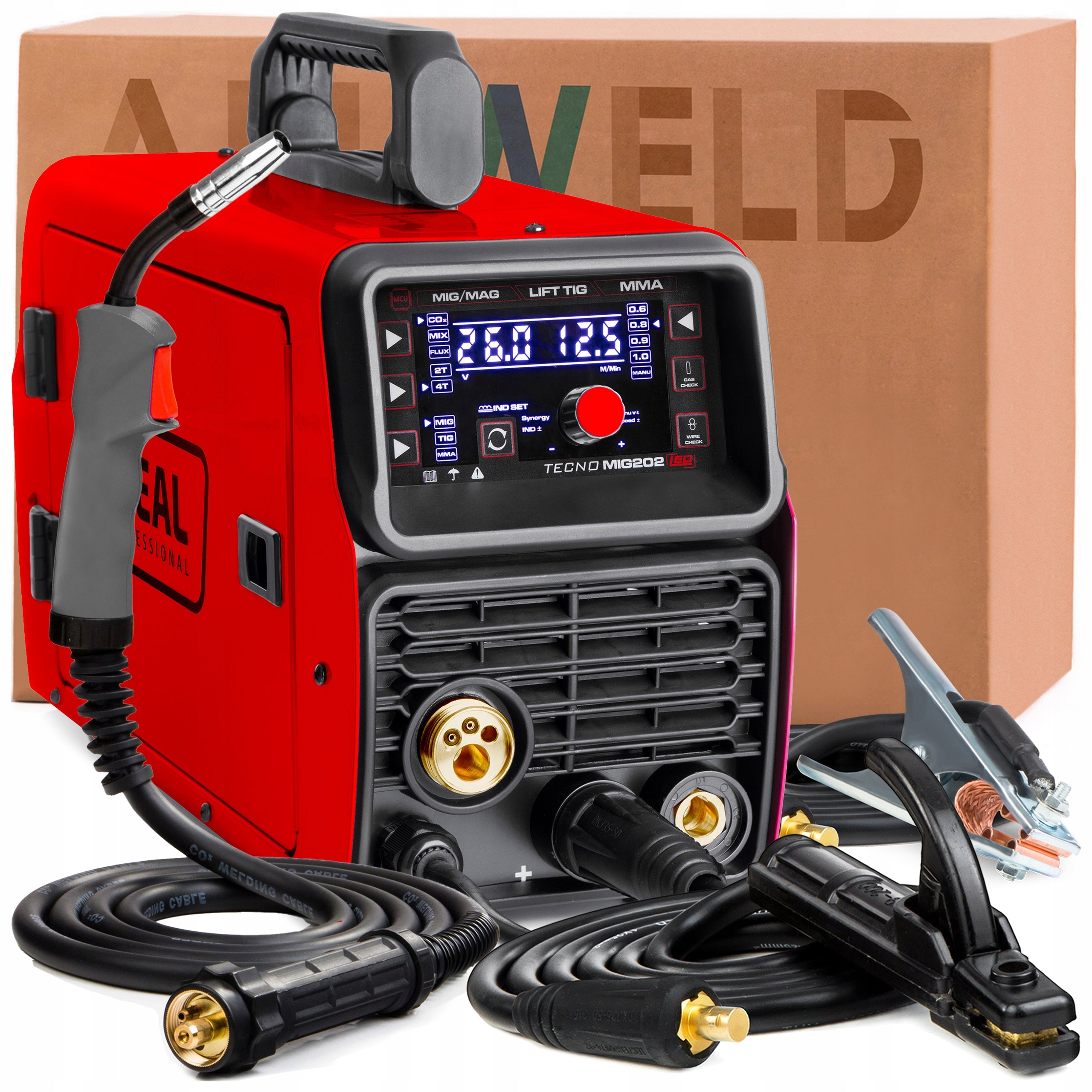

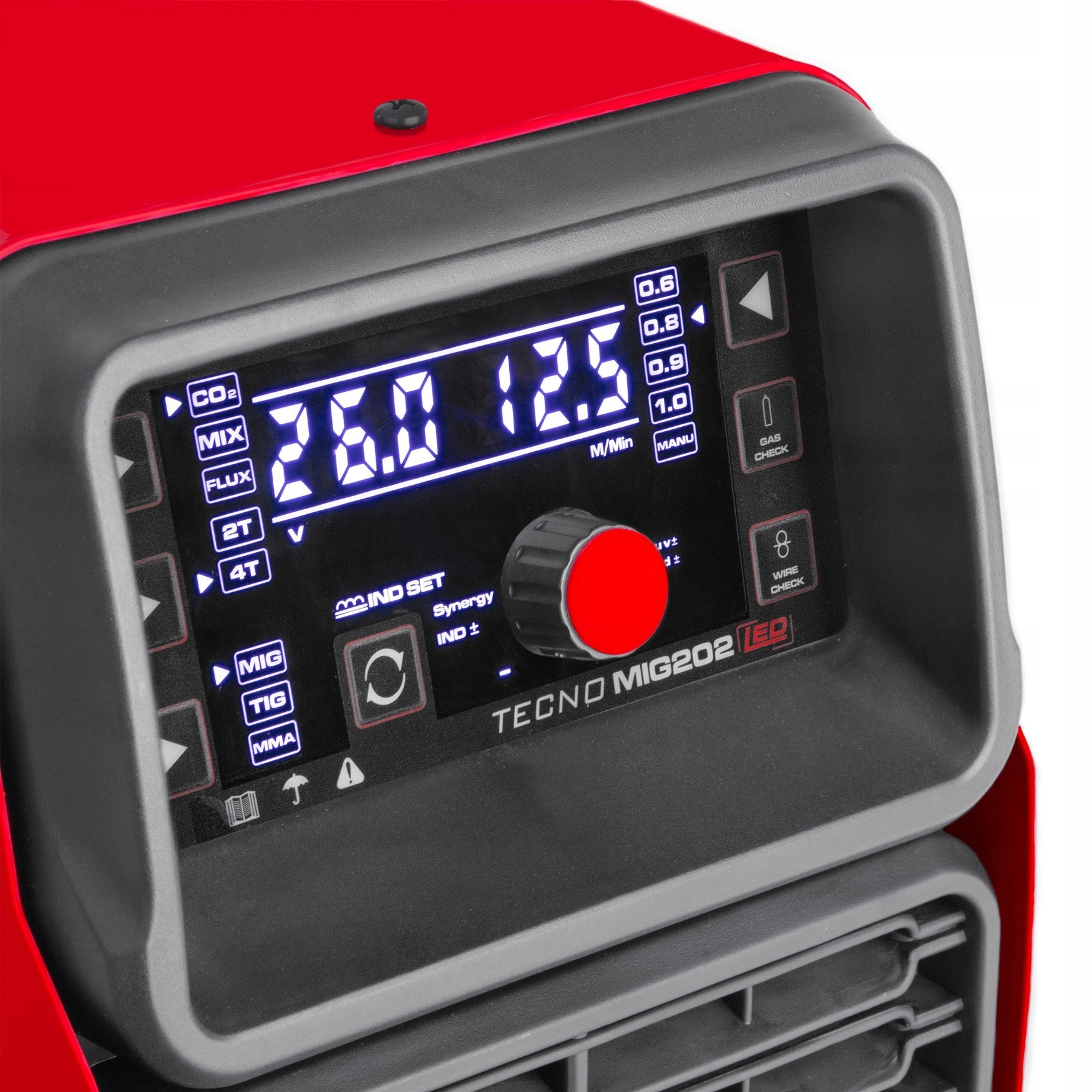

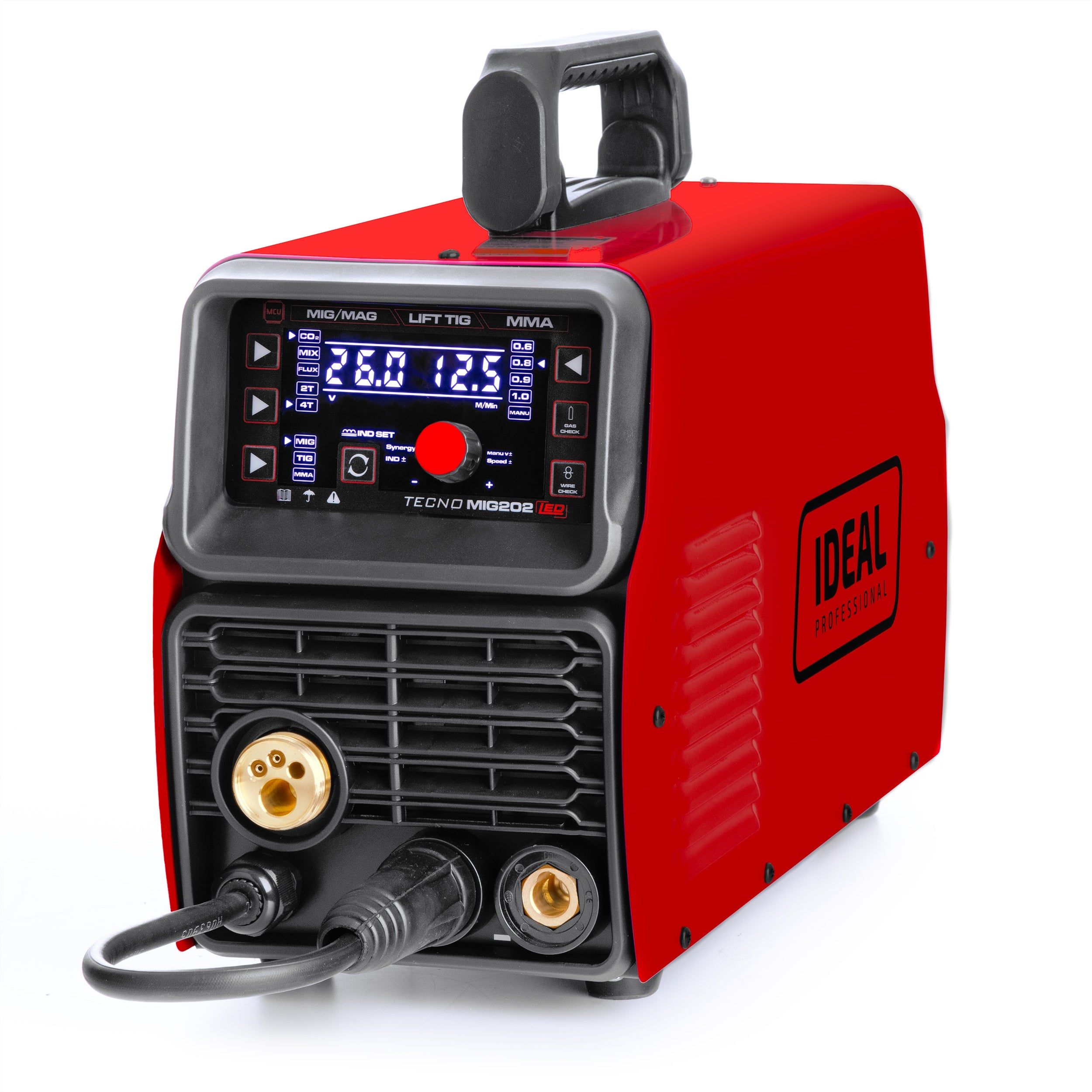

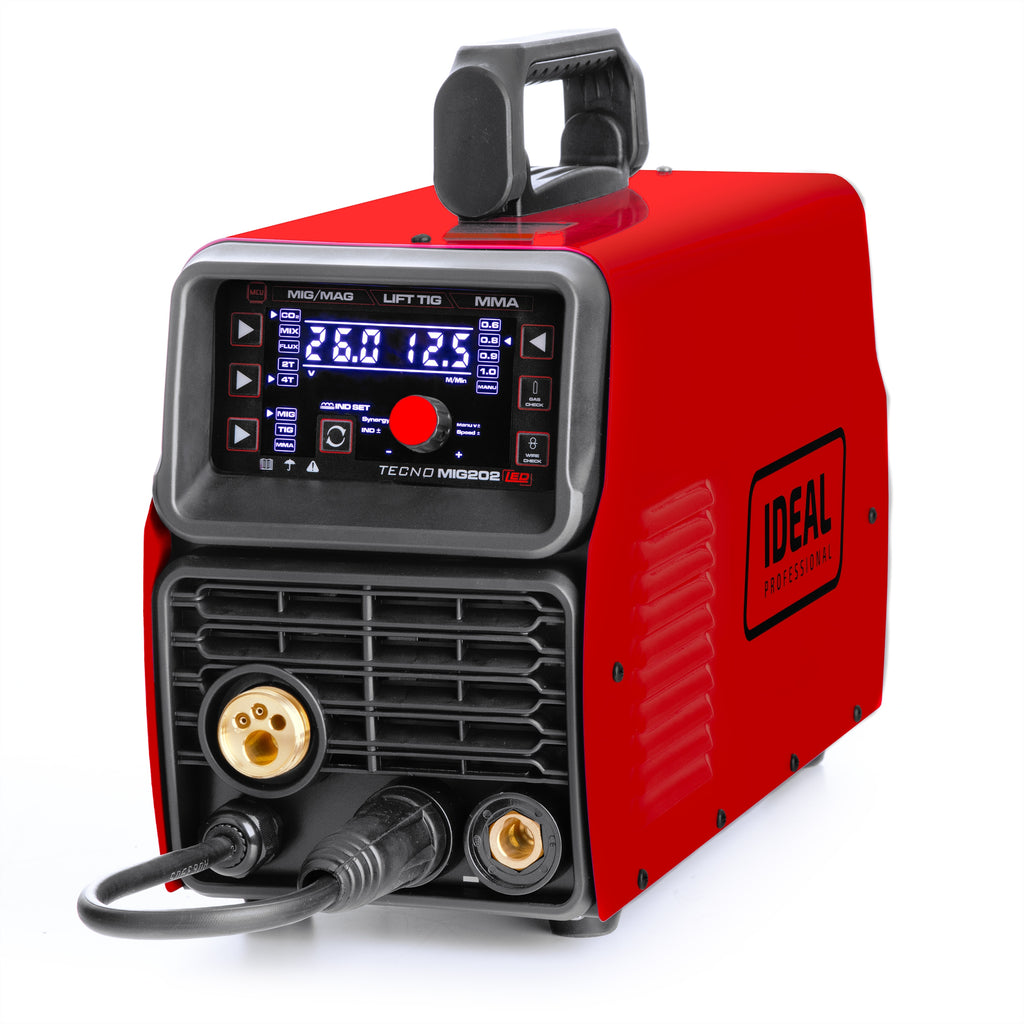

Prekė: Pusiau automatinis suvirinimo aparatas IDEAL TECNO MIG 202 TIG LIFT 230V 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TECNO MIG 202
- Ilgis: 456 mm
- Plotis: 171 mm
- Aukštis: 301 mm
- Welding methods: MIG/MAG, MMA, TIG LIFT, SYNERGY, SOLDERING, FLUX
- Power supply: 230V
- Operating cycle 60% at maximum welding current 200A
- SYNERGY - automatic selection of parameters
- For welding: stainless steel, carbon, low alloy and aluminium
- Inductance regulation, LUTOWELDING CuSi3
- Professional metal 2-roll wire feeder
- Modes and functions: 2T/4T, VRD
- Euroconnector
- Overload switch
- Cooling with fan
- Clean, aesthetic welds
- Made in IGBT technology
WELDING WITHOUT INTERFERENCE AND ELECTRODE DAMAGE
The TIG LIFT method is an innovative solution that allows the arc to glow by rubbing the non-melting electrode against the material. Prevents the electrode from sticking and protects its tip from damage. In particular, it works in places where high-frequency current could disrupt electronics. With its precision and reliability, TIG LIFT offers high-quality welds, making it an ideal choice for demanding applications.
✔ FEATURES AND ADVANTAGES:
- INDUCTION ADJUSTMENT - introduces less heat, which prevents sheet metal deformation and damage to the zinc layer,
- LUTOSPELING - a method that uses less energy. For joining thin galvanized sheets, stainless steels, and various connections,
- 2 TAKT - welding begins after pressing and ends after releasing the button,
- 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again, which is more convenient for longer welds,
- FLUX - arc welding with powder wire, without the use of gas cylinders. The wire is filled with flux or a chemical that generates protective gases,
- VRD - reduces the voltage on the electrode to a safe level after welding,
- IGBT - bipolar transistors increase the efficiency and reliability of the device and ensure lower power consumption.
⚙ TECHNICAL SPECIFICATION:
- Power Supply: 230V 50Hz (1ph)
- Network security: 25A "C"
- Power: 6,5 kW
- Current taken from the network: 34A
- Power at work 100%: 150A
- Welding current: MIG: 50 - 200A | MMA: 10 - 160A | TIG: 10 - 200A
- Idle voltage: 74V
- Diameter of aluminium/self-shielded wire/soldering wire: 0,8 – 1,0 mm
- Diameter of steel/stainless steel wire: 0,6 - 1,0 mm
- Diameter of welding electrode: 1,6 - 4,0 mm
- Degree of protection: IP21S
- Dimensions: 45,5 x 17 x 30 cm
- Weight: 10kg
THE SET INCLUDES:
- IDEAL TECNOMIG 202 SYNERGIC welder,
- Welding torch MIG/MAG type MB 15 - 3m,
- mass handle - 2,5m,
- electrode holder - 2,5m
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 6.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 10 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 301 mm |
| Parametry | Length | 456 mm |
| Parametry | Width | 171 mm |
| Parametry | Length of ground cable | 250 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 15 kg |
| Parametry | Manufacturer code | TMIG202LED MAPR2-15 |
| Parametry | EAN (GTIN) | 5907195564193 |
| Parametry | Model | TECNO MIG 202 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,LCD display |
