Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 201 SYNERGY MIG/TIG/MMA

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 201 SYNERGY MIG/TIG/MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 201 SYNERGIC LED
• Ilgis: 800 mm
• Plotis: 280 mm
• Aukštis: 540 mm

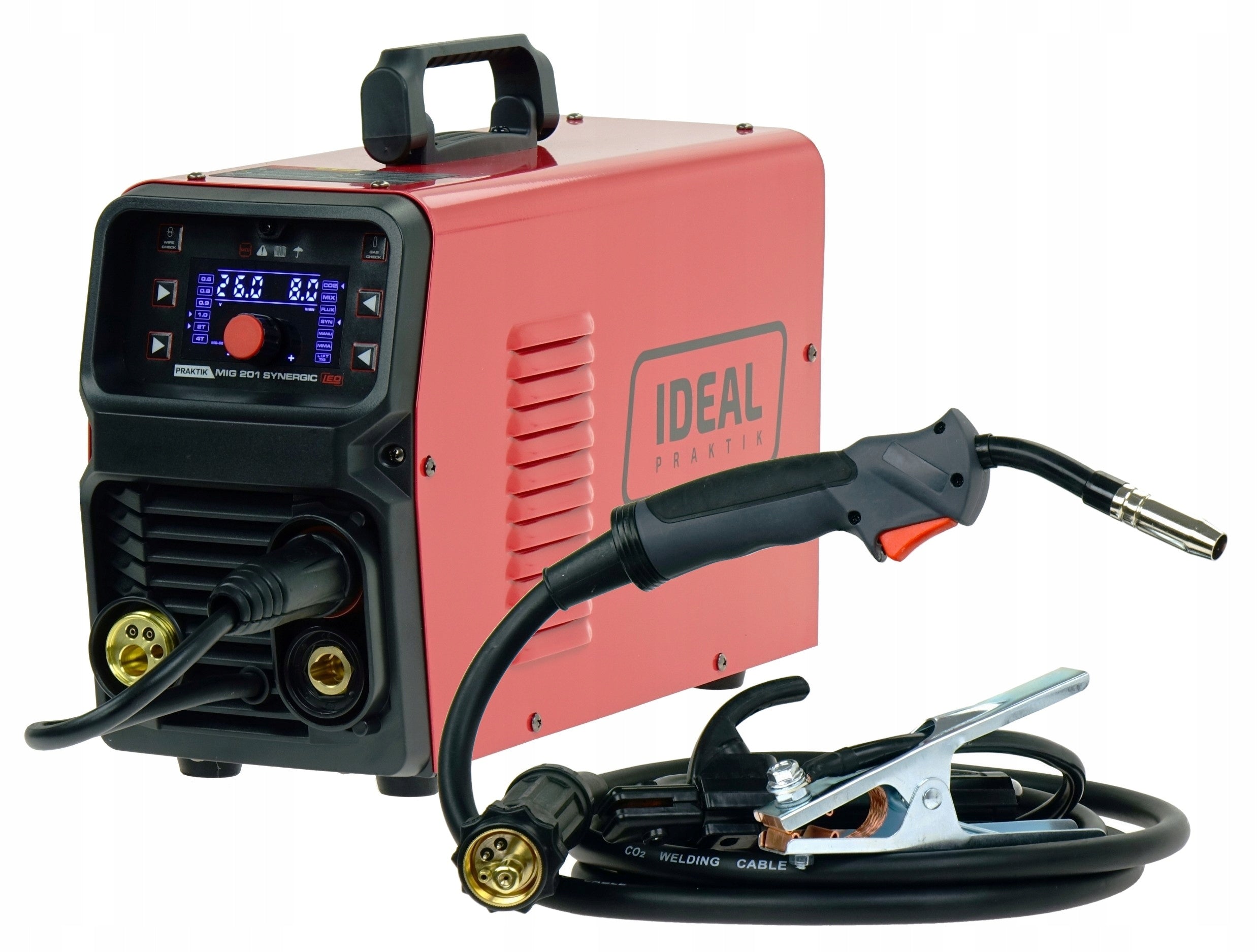

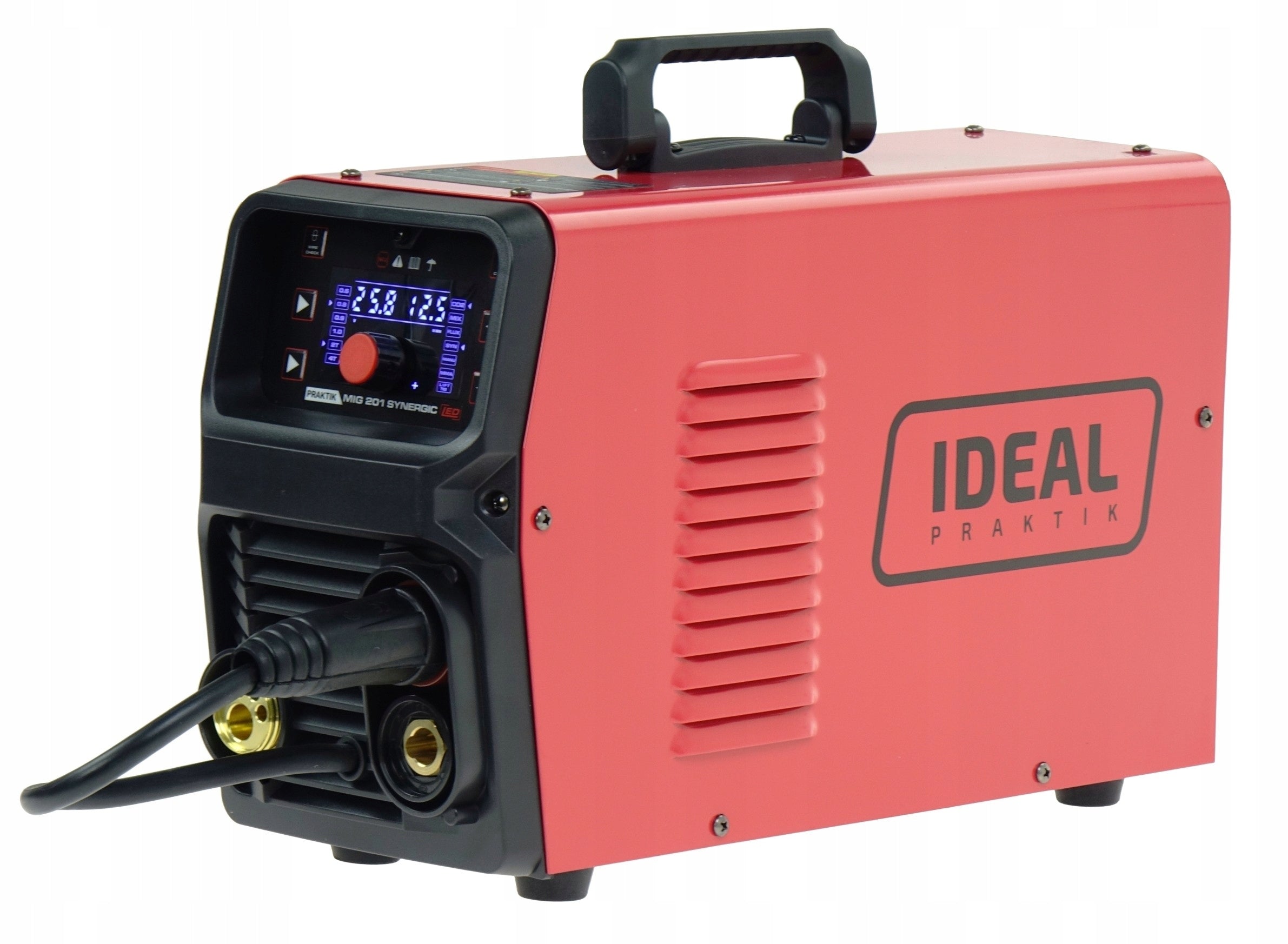

MIGOMAT Semi-automatic welder IDEAL PRAKTIK MIG 201 SYNERGY MIG/TIG/MMA

IDEAL

PRAKTIK MIG 201 SYNERGIC LED is a synergistic inverter semi-automatic welding machine designed for MIG/MAG, TIG LIFT, FLUX and MMA arc welding. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

PRAKTIK MIG 201 SYNERGIC LED is used for welding carbon steels. Welding is carried out in the shield of active gas or mixture, and with reverse polarity without gas.

With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T (button lock for long welds)

The easy-to-read LED display allows you to adjust the device accurately, even in very strong lighting.

The device is equipped with inductance regulation.

Both with the MIG method we have the possibility of selecting the button function in the handle between work in 2-bar, 4-bar (button lock for long welds)

✅ EURO 15/3M welding torch

✅ Welder 3in1: MIG-MAG, MMA, TIG LIFT DC

✅ WELDING CURRENT 50-200 A

✅ Reel support 1/2/5kg

✅ Low weight ONLY 9,5KG and mobility of the device

✅ Weldable without gas

✅ TIG DC LIFT welding capability

✅ synergistic programme

✅Possibility of manual settings

✅ Wire extension button

✅ Gas flow check button

✅ Welding without gas - FLUX

✅ Inductance regulation less chipping

✅ Easy and smooth adjustment of welding parameters

✅ Easy to read LCD panel

✅ Function 2T and 4T

✅ ARC FORCE function

✅ Hot START function

✅ Solid feeder

Options are available:

• CO2 – welding of carbon steels, low and high alloy steels, in carbon dioxide shield
• MIX – welding of carbon steels, low and high alloy steels, in a mixture of argon and carbon dioxide
• FLUX – self-shielding wire, without the need for additional shielding gas
• LIFT TIG – non-melting electrode
• MMA – wrapped electrode
• MANU – manual MIG/MAG mode
• SYN – synergistic MIG/MAG mode

Display of the selected welding method:

• LIFT TIG – non-melting electrode
• MMA – wrapped electrode
• MANUAL MIG– manual mode
• SNY MIG (Synergic) – synergistic mode

• HOT START – easier glowing of the wrapped electrode, increased current value during glowing.

• ARC FORCE – function stabilizing the welding arc, also reduces the number of chippings

• VRD – VRD (voltage reduction device) function reduces the idle voltage on the electrode to a safe value; enables operation in an environment with increased humidity.

Button mode selection (MIG/MAG only):

• 2T – mode of pressing and holding the button during welding, after release there is a break in welding

• 4T – press mode, without having to hold the trigger during operation, interruption of operation occurs after pressing againOverload protection.

⏩ IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

⏩ Inductance regulation - allowing less heat to be introduced into the welding site.

✅ ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

✅ HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.

✅ VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

⏩ Synergy - is a function of MIG/MAG welding machines, which allows for automatic selection of welding parameters, we choose the type of welded material, wire diameters, shielding gas and welding current or material thickness and the device will automatically select the appropriate welding parameters from these settings we can make slight adjustments

⏩ Manual Settings - Possibility of manual setting of wire feed ora welding voltage.

⏩ 2T/4T - when the start button is pressed, the welding process takes place after releasing the button, the welding process is stopped - when the button is pressed and released for the first time, the welding process takes place at the second press, it is a more convenient solution for longer welds.

⏩ FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a gas-producing substance during welding.

⏩ TIG LIFT To do this, switch to TIG position. Connect the current plug of the TIG welding torch to the “minus” socket (marked with the symbol “-”) and the mass holder to the “plus” socket (marked with the symbol “+‘”). Then plug the gas and control plugs into the appropriate sockets. Place the non-melting electrode in the TIG handle body. The mass wire clamp closes the circuit and should be pinned relatively close but collision-free distance from the welding area (in case of greater or too close distance, it is possible to accidentally detach the clamp! ). Then connect the power plug to the single-phase power supply network (230V, 50Hz) and turn on the welding machine with the ON/OFF button. After the steps are taken, the device is ready to work.

⏩ EUROCONNECTOR

Standard welding torch connection that allows you to connect various types of handles and quickly replace

⏩ Professional wire feeder

Professional 2R feeder - reliable and precise wire feeding, thanks to the use of a professional feeder - ensures smooth wire feeding to the handle and stable welding parameters.

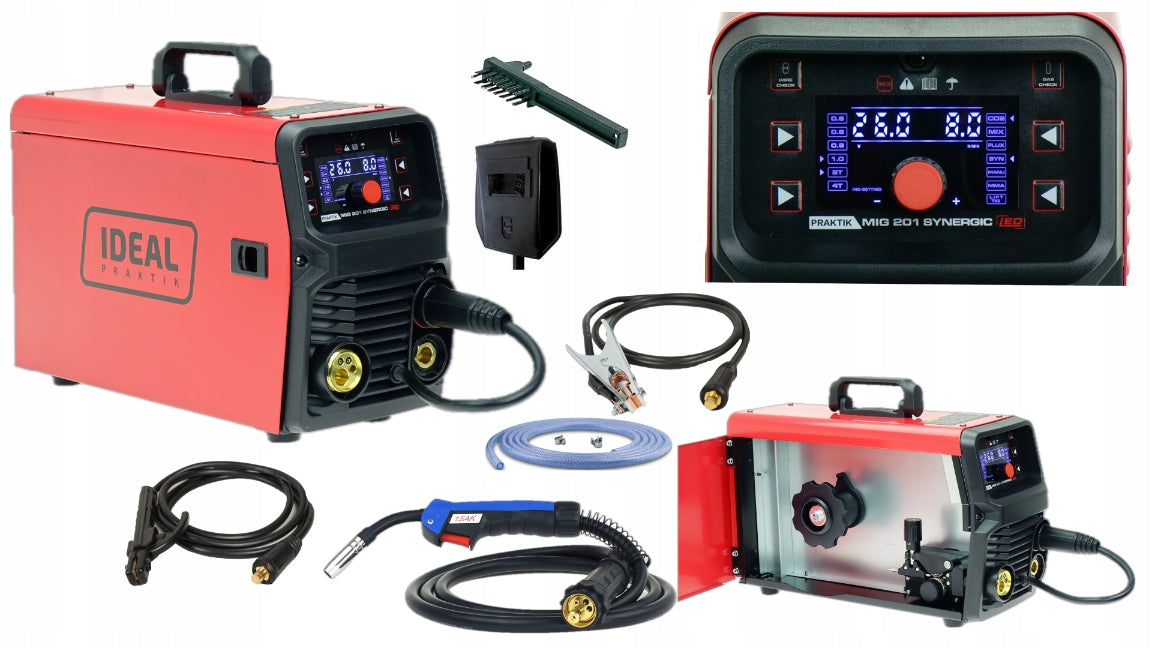

Delivery includes a device with a professional welding torch

• MIG 15 with a length of 3 meters
• electrode cable with a length of 1,5 meters
• mass cable with a length of 1,5 meters
• 0,8-1,0 wire feed rollers for steel
• consumables of the welding torch
• brush hammer
• 8 mm hose connector for connecting a gas pipe

• Power supply network protection: C16 A
• Rated supply voltage: 230 V; 50Hz (1ph)
• Power: 6,6 kW
• Idle Voltage: 50 V
• Current at work 100%: 77 A MIG/TIG // 62 A MMA
• Current at 60% operation: 200 A MIG/TIG // 160 A MMA
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Welding electrode diameter: 1,6 - 4,0 mm
• Welding current adjustment range: 50 - 200 A MIG/MAG // 10 - 200 A TIG // 10 - 160 A MMA
• Wire spool size: D200 (5kg)
• Degree of protection: IP21S
• Weight of the device / set: 10 / 12 kg
• Overall dimensions L x W x H: 420x155x270 mm
• Package Dimensions L x W x H: 490x270x310 mm

IDEAL

Ideal is a leader in the welding equipment sales industry, offering a wide range of high-quality equipment designed for professionals and welding enthusiasts. Thanks to cooperation with renowned manufacturers, the company provides innovative technological solutions that are characterized by reliability, efficiency and safety. The offer includes m.in. MIG/MAG, TIG welding machines, electrodes, accessories and consumables.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	6.6 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	26.5 kg
Parametry	Welding range	50–200 A
Parametry	Height	540 mm
Parametry	Length	800 mm
Parametry	Width	280 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	12 kg
Parametry	Manufacturer code	PMIG201LED
Parametry	EAN (GTIN)	5903991109910
Parametry	Packaging status	original
Parametry	Model	PRAKTIK MIG 201 SYNERGIC LED
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
