Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 200 IGBT MAG MMA FLUX 230V 200A

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 200 IGBT MAG MMA FLUX 230V 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PMIG200V2 MAPR-14-T
• Ilgis: 600 mm
• Plotis: 200 mm
• Aukštis: 350 mm

ENHANCED, LATEST VERSION OF THE PROVEN IDEAL MODEL

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

• It enables welding using the MIG-MAG method of carbon steels, stainless steels.
• Recommended for use in flashing plants and workshops
• Regulation of INDUCTANCE
• SOLDERING function
• Proven and recognized manufacturer on the market
• Single-phase power supply 230V.
• It has a variable polarity.
• Maximum spool with wire: 5 kg.
• Smooth regulation of welding wire feed speed.
• Smooth regulation of welding current and voltage.
• Fan cooling increases the efficiency of the device.

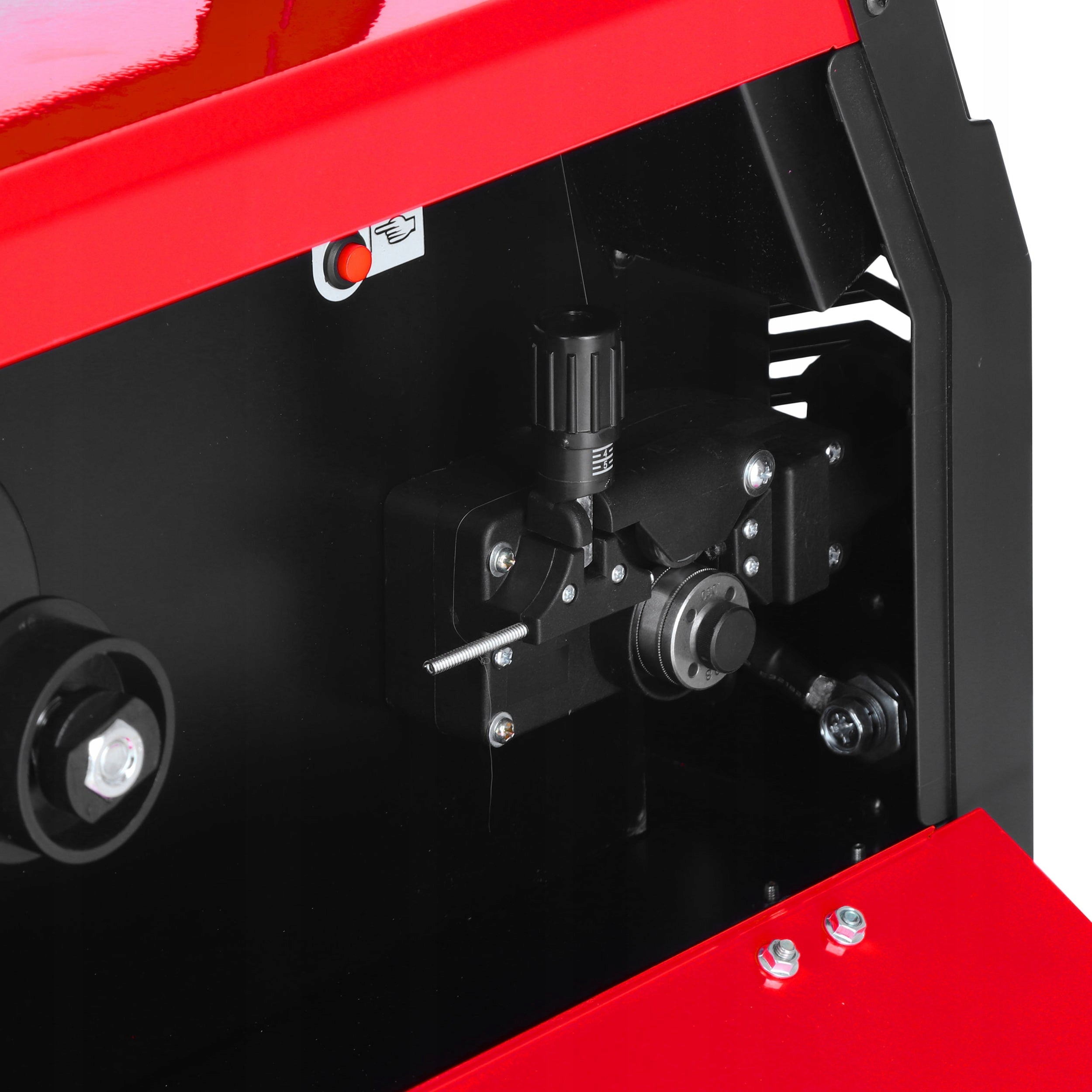

• Professional wire feeder: 2-roll, ensures stable feeding of the binder.
• Overload protection with signalling on the front panel.

The Ideal Praktik MIG 200 IGBT inverter welder is a piece of equipment that can be used in body shops and in the household. The equipment is an ideal solution for those who are looking for a good migomate with transport wheels. In addition, the welding machine has functions such as: FLUX, SOLDERING, OVERLOAD SWITCH and ADJUSTABLE INDUCTANCE.

• Rated supply voltage: 230 V; 50Hz (1ph)
• Current taken from the network: 20 A
• Welding current adjustment range: 30-200 A
• Power at work: 60% 180 A
• Steel wire diameter: 0,6 - 0,8 mm
• Stainless steel wire diameter: 0,6 - 0,8 mm
• Diameter of self-shielding wire: 0,8 - 0,9 mm
• Idle voltage: 56 V
• Power: 5,2 kW
• Degree of protection: IP 21S
• Weight: 14,7 kg

INDUCTANCE ADJUSTMENT - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

LUTOSPELING - a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much smaller. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, i.a. acid-resistant steel of ordinary quality steel or copper with steel.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. The wire itself is filled with flux or a chemical that produces protective gases during welding.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

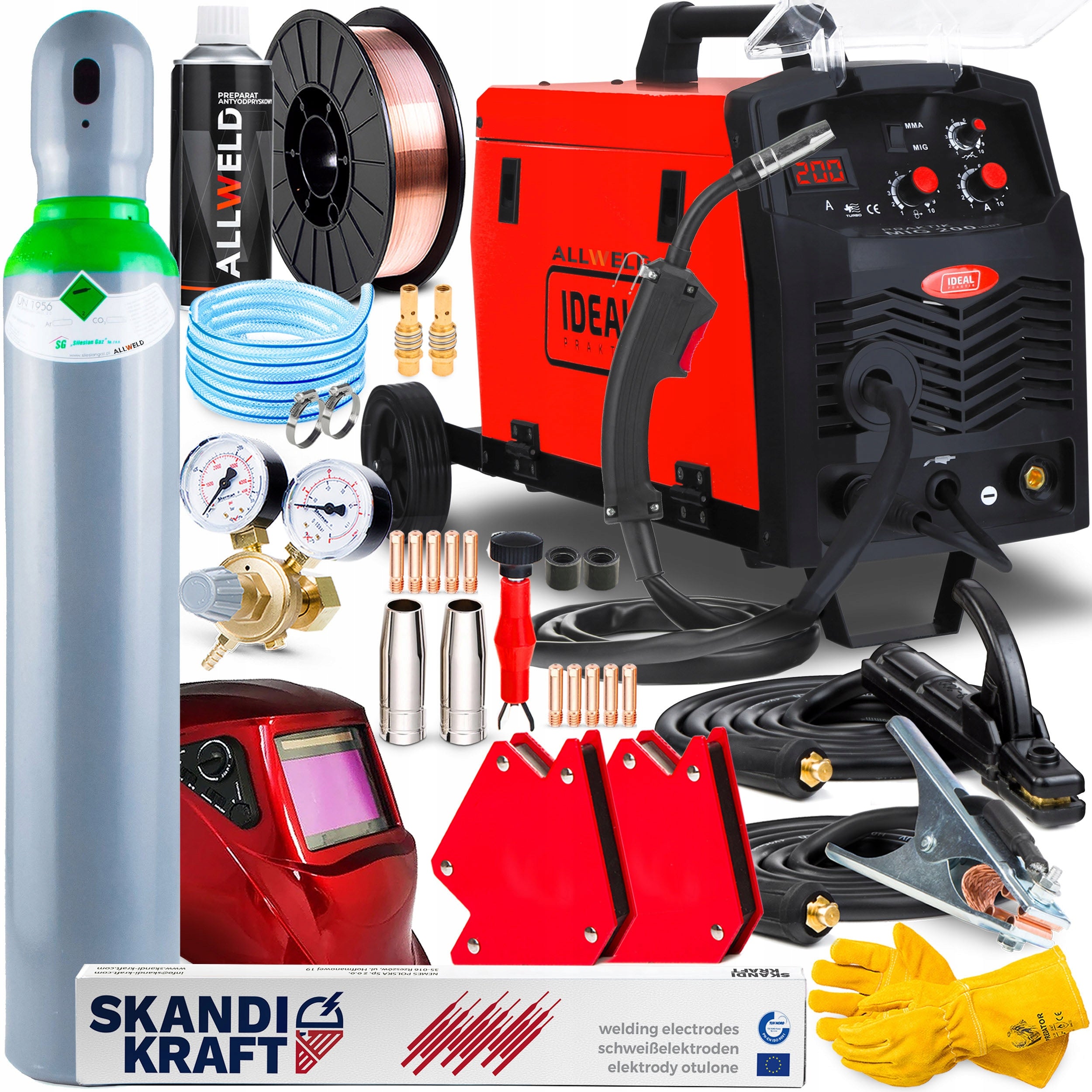

BY BUYING FROM US YOU GAIN

• Welding machine IDEAL PRAKTIK MIG 200 IGBT
• Fixed welding torch MB14 - 2,2m
• Bulk cable - 1,5 m
• User manual in Polish

Buying in a set - YOU SAVE MONEY

• Factory new reusable cylinder with Ar (82%) / CO2 (18%) mixture with a capacity of 8l. The cylinders have 10-year-old legalizations and can be filled at any point with technical gases.
• Self-tinting visor MAGNUM TURBO TRUE COLOR - a safe mask with an enlarged field of view of 100 x 60mm, 4 sensors and a reaction time of 1/30000 s, for full eye protection.
• Gas hose - for connecting the reducer to the welding machine.
• Reducer with two pressure gauges - precise reducer with adjustment. Our model has a pressure gauge to control the pressure in the cylinder and a second to the amount of gas flowing out.
• Anti-chipping preparation - protects the nozzle and metal against welding chipping.
• Welding wire SG2 5kg - precision winding
• Clamp ties - 2 pcs.
• Gloves welding - 1 pair
• Scraper for gas nozzles
• Set of MIG/MAG handle consumable parts (nozzles, connectors, tips, insulators)
• Angles magnetic 11kg - 2 pcs.
• Electrodes SKANDI KRAFT 1kg - 1 pack

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-0,8
Parametry	Device weight	14.7 kg
Parametry	Welding range	30–200 A
Parametry	Height	350 mm
Parametry	Length	600 mm
Parametry	Width	200 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	220 cm
Parametry	Product weight with unit packaging	20 kg
Parametry	Manufacturer code	PMIG200V2 MAPR-14-T
Parametry	EAN (GTIN)	5905214997175
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,infinitely adjustable welding current,LCD display
