Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 200 230V 200A plienui

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas IDEAL PRAKTIK MIG 200 230V 200A plienui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 200 IGBT
• Ilgis: 471 mm
• Plotis: 225 mm
• Aukštis: 336 mm

• Welding methods: MIG/MAG, MMA, SOLDERING, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• For welding: carbon steel, stainless
• Regulation of inductance
• Smooth adjustment of welding parameters and wire feed speed
• Durable chassis with space for cylinder
• Professional, 2-roll wire feeder
• Overload switch
• Cooling with fan
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION REGULATION - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• LUTOSPELING - a method that uses less energy; for joining thin galvanized sheets, stainless steels, and various types of joints,

• FLUX - arc welding with powder wire without the use of a gas cylinder; self-shielding wire is filled with flux or a chemical substance generating protective gases,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power Supply: 230V 50Hz (1ph)
• Network security: 16A "C"
• MIG/MAG welding current: 30 - 200A
• Power at work 60%: MIG/MAG: 200A | MMA: 180A
• Power at work 100%: MIG/MAG, MMA: 130A
• Power: 5,2kW
• Power consumption in idle state: 45W
• Idle voltage: 43V
• Steel wire diameter: 0,6 - 0,8mm
• Self-shielded wire diameter: 0,8 - 0,9mm
• Spool with wire: up to 200mm; up to 5kg
• Protection rating: IP21S H
• Dimensions: 47 x 22,5 x 33,5 cm
• Weight: 14,7kg

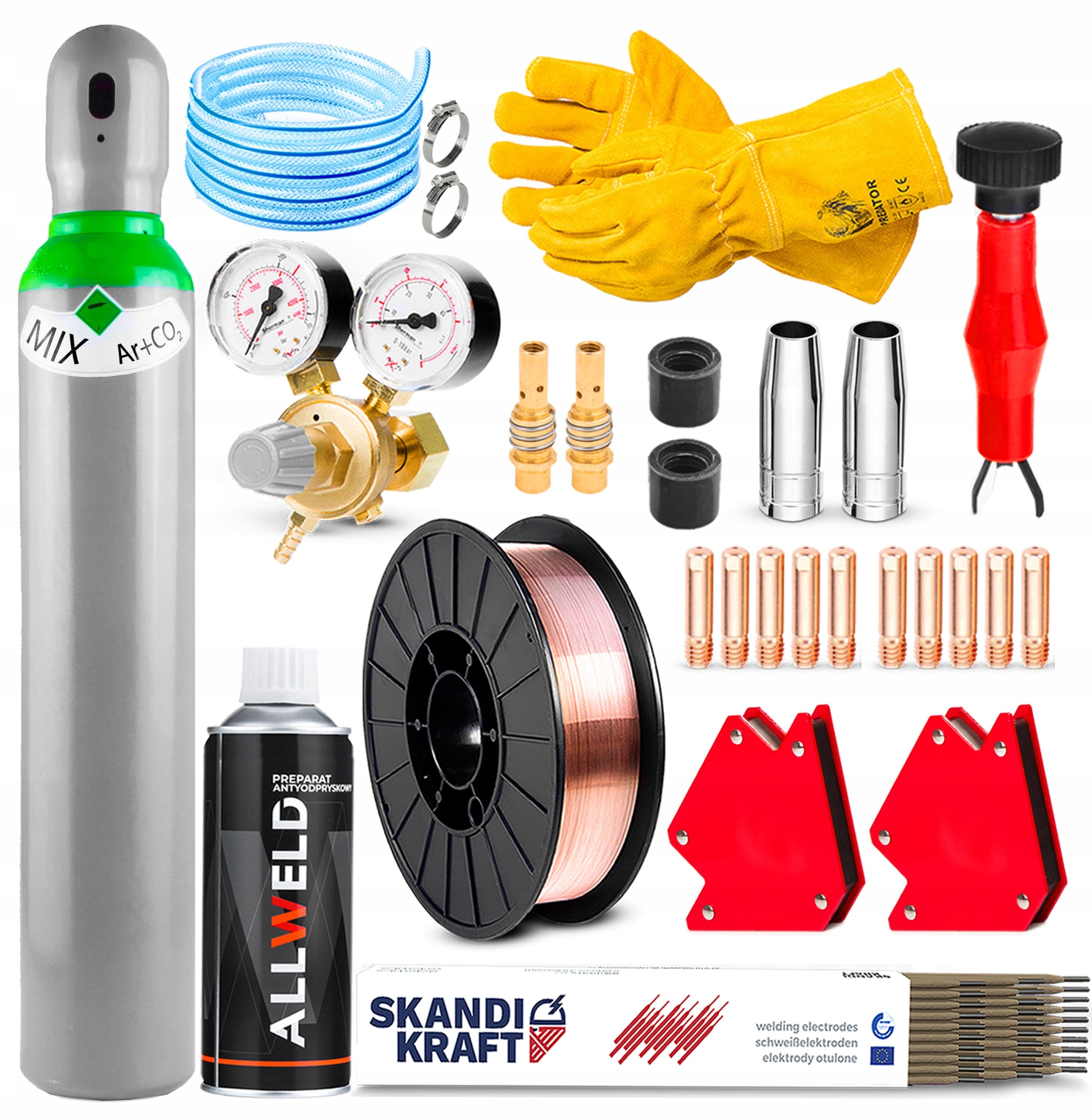

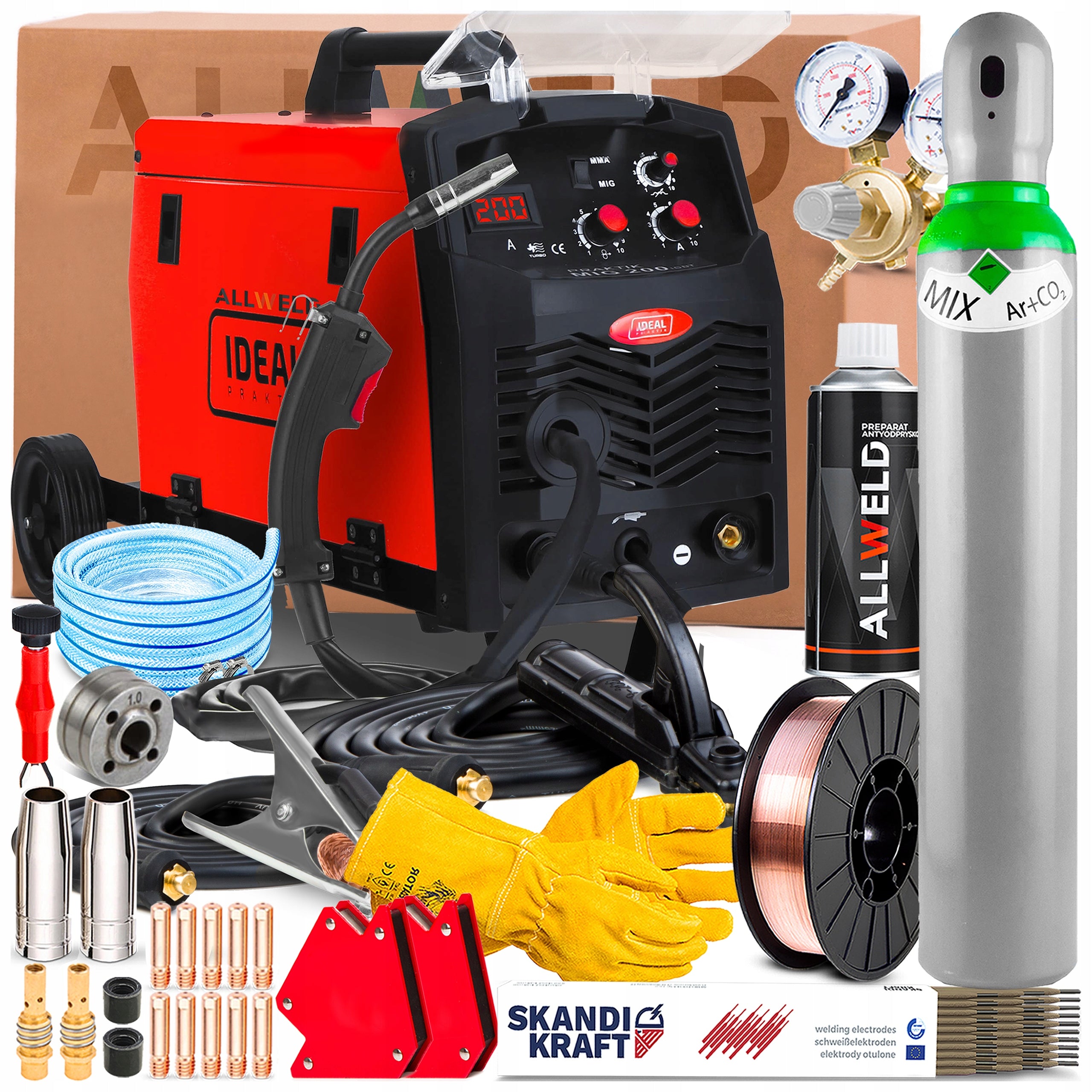

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

THE SET INCLUDES:

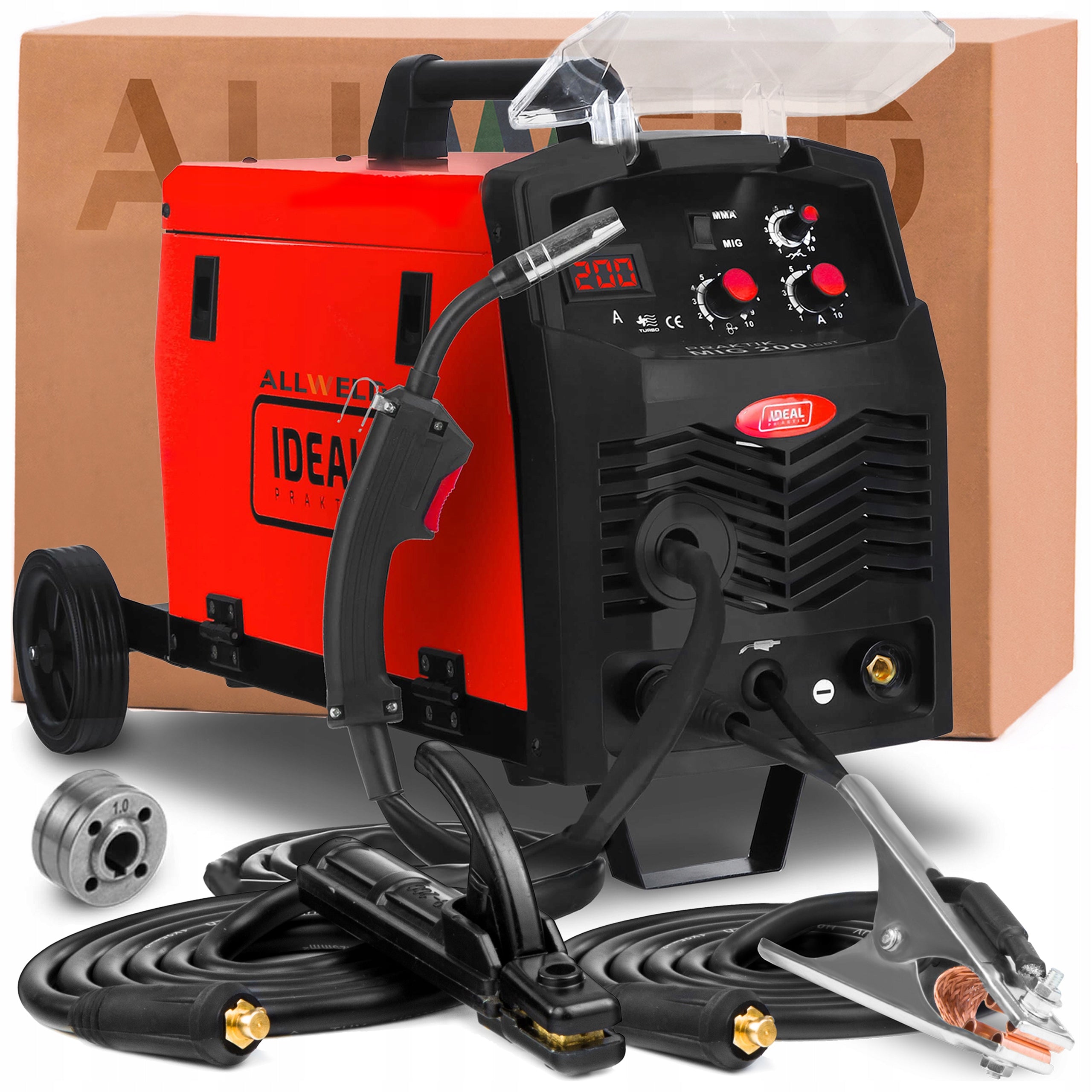

• Welding machine IDEAL PRAKTIK MIG 200 IGBT,
• Welding torch MIG/MAG type MB 14 permanently mounted - 2,2 m,
• mass handle - 1,5 m,
• electrode handle,
• Wire feeder roll (installed in the device),
• User manual in Polish.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
