Trumpai apie prekę

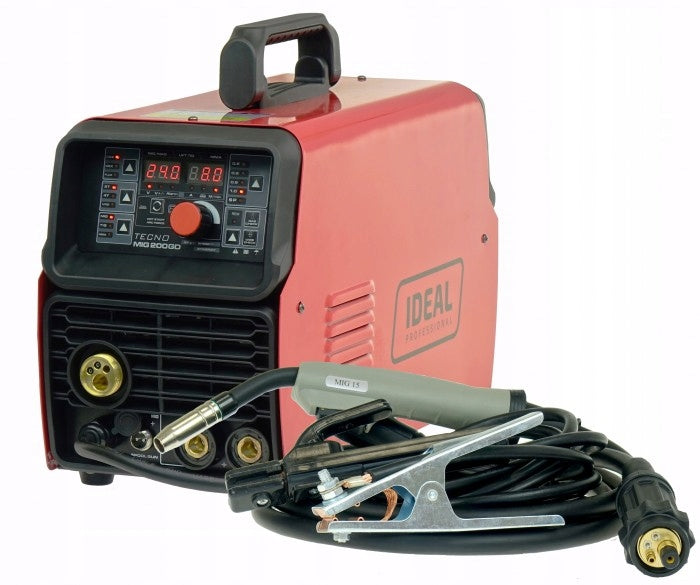

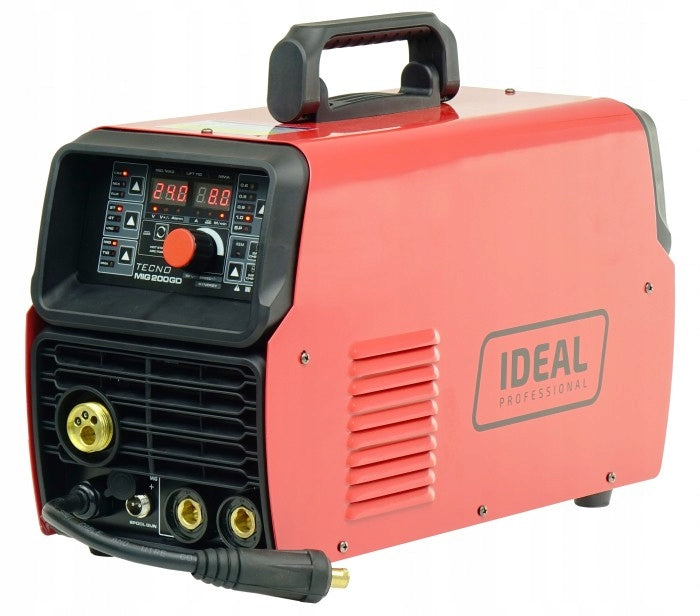

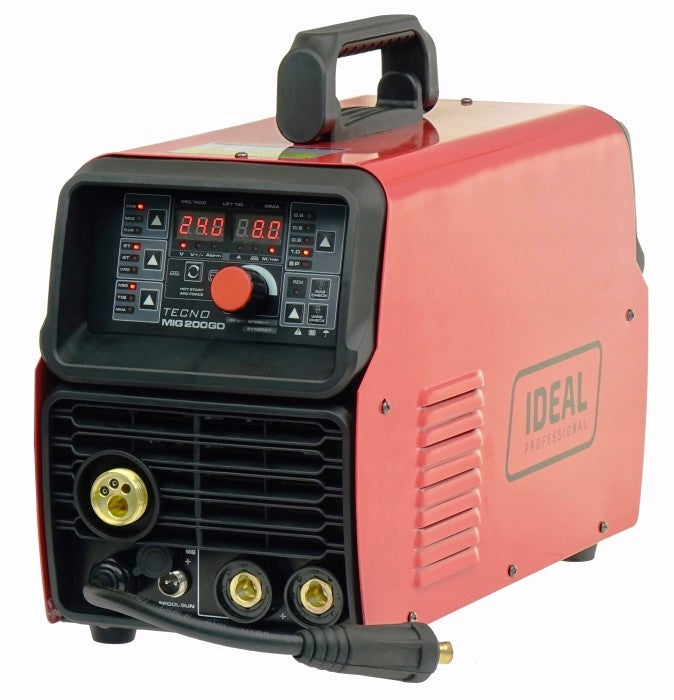

Prekė: Pusiau automatinis suvirinimo aparatas Ideal MIG 200GD, MIG/MAG, MMA, TIG, 25-250 A, 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TMIG20GD
- Ilgis: 460 mm
- Plotis: 225 mm
- Aukštis: 300 mm
TECNO MIG 200GD MIG/TIG/MMA SYNERGIC VRD ALU is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.
TECNO MIG 200GD is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.
With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T (button lock for long welds)
With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides over-the-counter safety when working in humid environments.
Physical parameters
The device has a fan cooling system which significantly increases its efficiency.
The device is equipped with overload protection, which increases its reliability.
Power supply parameters
Single-phase power supply.
The device is equipped with a power plug.
Equipment
The delivery includes a device with a MIG 15 welding torch with a length of 3 meters, a mass cable with a length of 2,5 meters and an electrode cable with a length of 2,5 meters.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 7.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 13 kg |
| Parametry | Welding range | 25–250 A |
| Parametry | Height | 300 mm |
| Parametry | Length | 460 mm |
| Parametry | Width | 225 mm |
| Parametry | Length of ground cable | 250 cm |
| Parametry | Welding cable length | 250 cm |
| Parametry | Manufacturer code | TMIG20GD |
| Parametry | EAN (GTIN) | 5903991101945 |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
