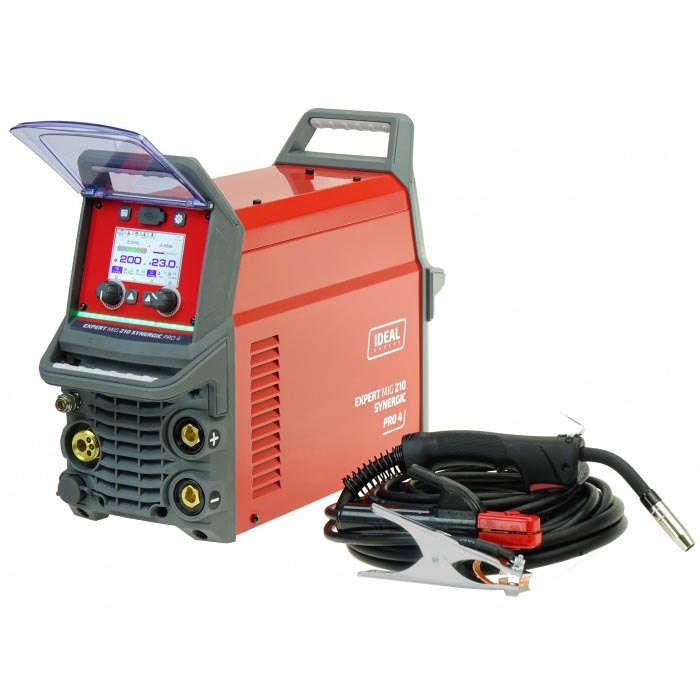

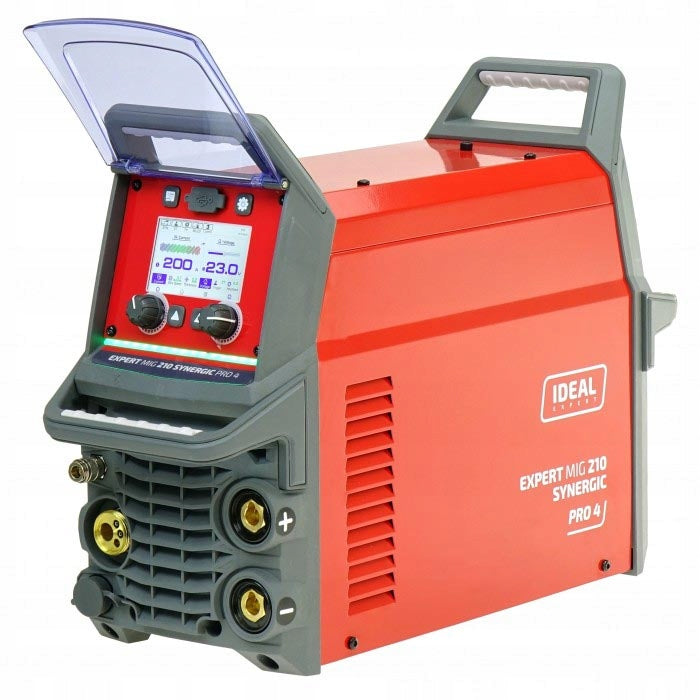

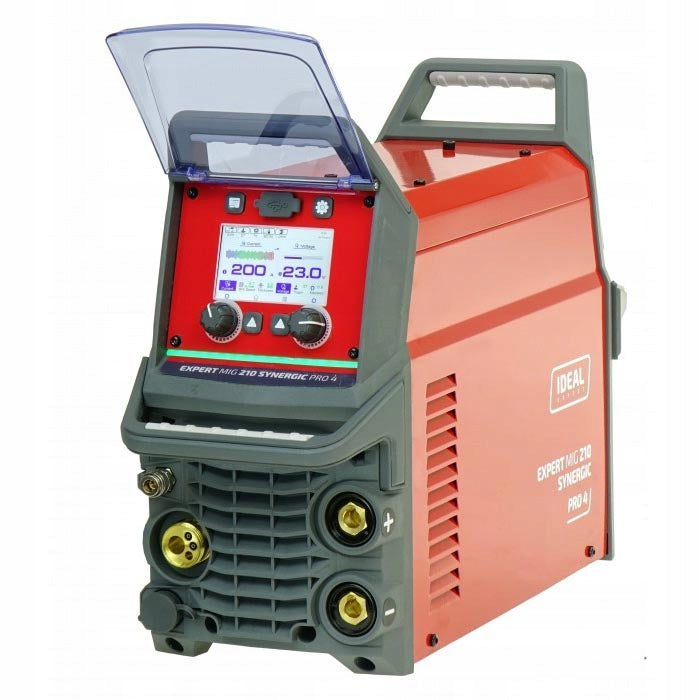

Pusiau automatinis suvirinimo aparatas Ideal EXMIG210 EXPERT MIG 210 SYNERGIC Pro4

Trumpai apie prekę

Prekė: Pusiau automatinis suvirinimo aparatas Ideal EXMIG210 EXPERT MIG 210 SYNERGIC Pro4. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXMIG210
• Ilgis: 570 mm
• Plotis: 205 mm
• Aukštis: 410 mm

Product Code: EXMIG210

Brand: Ideal

Ideal EXPERT MIG 210 SYNERGIC Pro4 LCD welding machine is a modern, multifunctional inverter device designed for MIG/MAG, FLUX, MMA and TIG LIFT welding.

Thanks to synergistic control and a 4-inch LCD display, the operation of the device is extremely simple – just set the type and thickness of the material, and the welding machine will automatically select the optimal welding parameters.

The equipment will work well in locksmith workshops, automotive workshops and during assembly and maintenance works. It enables welding of carbon steels, stainless steels, aluminum and soldering of galvanized sheets.

Functions and operating modes:

• Synergistic adjustment of welding parameters (MIG SYN) and manual mode (MIG MAN).
• Spot welding (SPOT), 2-bar, 4-bar, S2-bar, S4-bar.
• Gas regulation before and after welding, wire access, wire burning, voltage correction, inductance.
• JOB function – write and read settings.
• MMA welding with HOT START, ARC FORCE functions.
• TIG LIFT welding with current setting, current drop, gas outflow, 2T/4T mode.
• SMART (automatic) or NORMAL (continuous) cooling.
• Overload protection, overvoltage protection and undervoltage protection.
• Possibility of working with a generator (+/- 15%).

Technical data:

• Network security: C25
• Power supply voltage: 230V; 50-60Hz (1ph)
• Power: 7,4 kW
• Idle voltage: 70 V
• Maximum current: 200 A
• Current at work 100%: 127A (MIG/MAG) / 127A (MMA/TIG)
• Power at 60% operation: 200A (MIG/MAG) / 200A (MMA/TIG)
• Welding current adjustment range: 20-200A (MIG/MAG) / 10-200A (MMA/TIG)
• Diameter of MMA electrode: 1,6 – 5,0 mm
• Steel wire diameter: 0,6 – 1,0 mm
• Diameter of stainless steel wire: 0,8 – 1,0 mm
• Aluminum wire diameter: 0,9 – 1,0 mm
• Diameter of powder wire: 0,8 – 1,0 mm
• Diameter of self-shielding wire: 0,8 – 1,0 mm
• Diameter of solder wire: 0,8 – 0,9 mm
• Spool size: D200 (2 kg and 5 kg)
• Degree of protection: IP21S
• Weight of the device: 14 kg
• Set weight: 19 kg
• Dimensions: 500 x 210 x 410 mm

Equipment:

• MIG 15 welding torch
• MMA Electrode Cable
• Bulk cable
• Gas hose with quick coupler

The Ideal EXPERT MIG 210 SYNERGIC Pro4 LCD welder is a versatile, professional device for demanding users.

Thanks to synergy, extensive functions and a modern LCD panel, it enables precise welding of various materials, guaranteeing high quality of welds and comfort of work.

An excellent choice for car workshops, locksmiths and home welding work.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	14 kg
Parametry	Welding range	20–200 A
Parametry	Height	410 mm
Parametry	Length	570 mm
Parametry	Width	205 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	EXMIG210
Parametry	EAN (GTIN)	5903991109392
Parametry	Model	EXMIG210
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
