Pusiau automatinis MIG/MAG suvirinimo aparatas MMA Weldman 20-200 A 230 V

Trumpai apie prekę

Prekė: Pusiau automatinis MIG/MAG suvirinimo aparatas MMA Weldman 20-200 A 230 V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: MICRO MIG 200
• Ilgis: 680 mm
• Plotis: 320 mm
• Aukštis: 480 mm

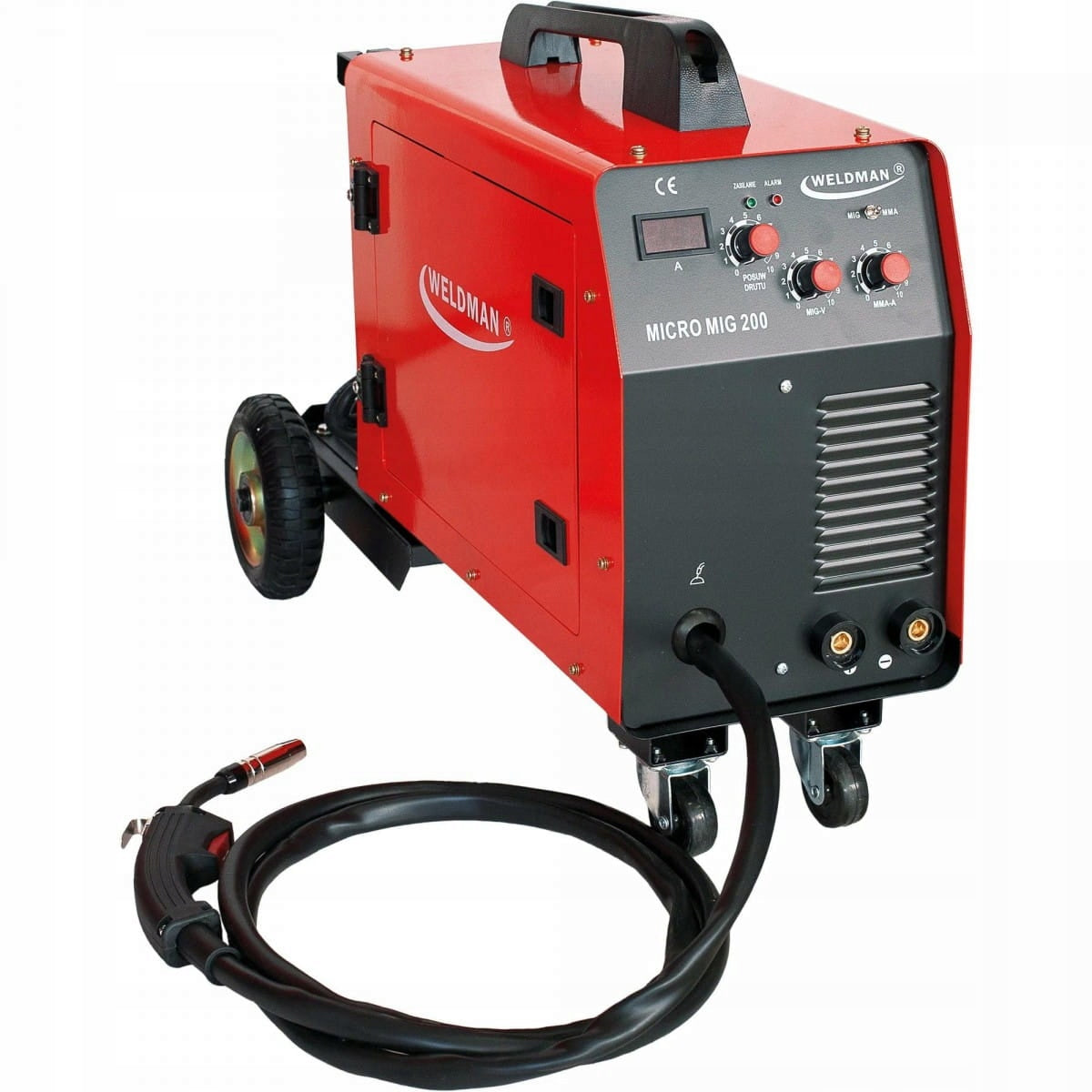

Semi-automatic welding machine MICRO MIG 200 MMA WELDMAN

WELDMAN

Micro Mig 200 welder is one of the most efficient and solidly made products. These devices of the MICRO MIG 200 series are made on the basis of IGBT inverter technology. As a result, the Micro Mig 200 semi-automatic welding machine has the best features of various transistors. The device uses general protections such as protection against excessive voltage, excessive current, overheating of the device, etc.

Micro Mig 200 welding machine is designed for MIG/MAG, FLUX, MMA welding of carbon steels, stainless steels, alloy steels, cast iron and aluminum. In addition, it has a wire feeder placed inside, which allows you to attach a spool up to 5kg.

Next to the wire feeder there are sockets for changing the polarity of the handles, which must be replaced in the case of welding without a gas shield (FLUX).

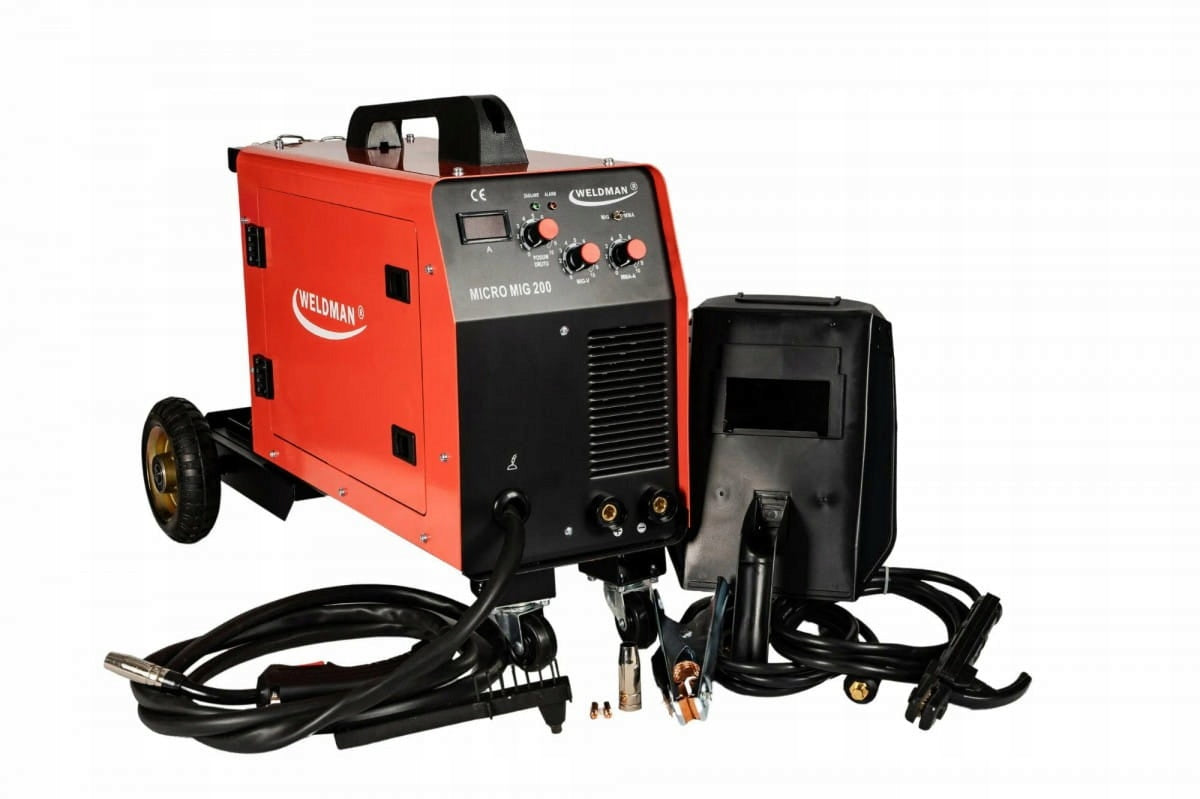

Standard equipment has:

– welding torch fixed MB 15 3m

– mass cable 2 m with mass clamp 300A (DX25)

– 2,5 m cable with electrode holder 200A (DX25)

– 2 m power cord with plug

– transport wheels

– welding mask

– welding brush

Technical data:

Supply voltage [V] 230 Idle current voltage [V] 56 Welding current adjustment range [A] 20-200 Efficiency max at 40°C

EN 60974-1

170A@60%

130A@100%

Electrode diameter [mm] 1,6-4 Protection class [IP] 21 Dimensions [cm] 68x32x48 Weight [kg] 19

MICRO MIG 200 MMA

Specifications
