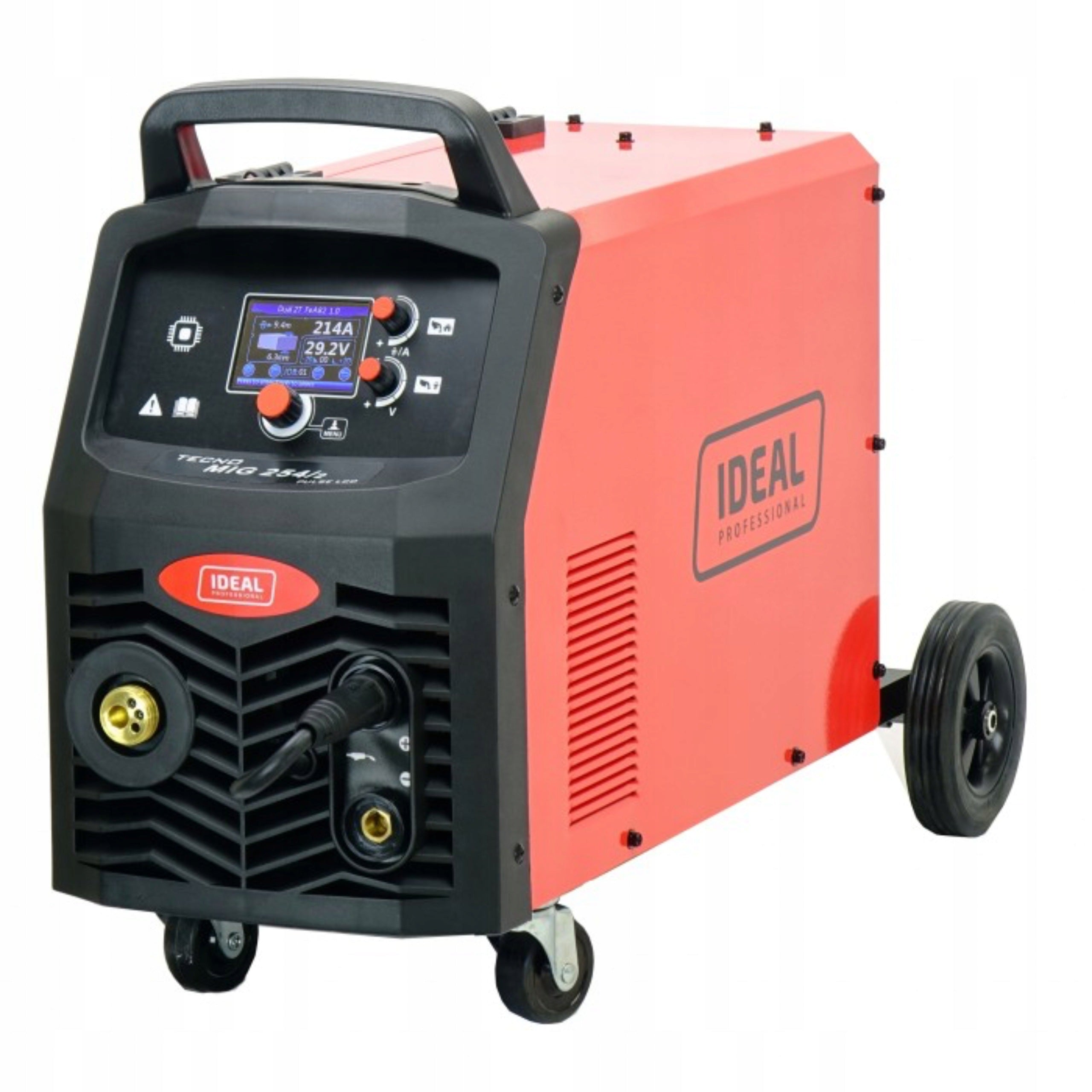

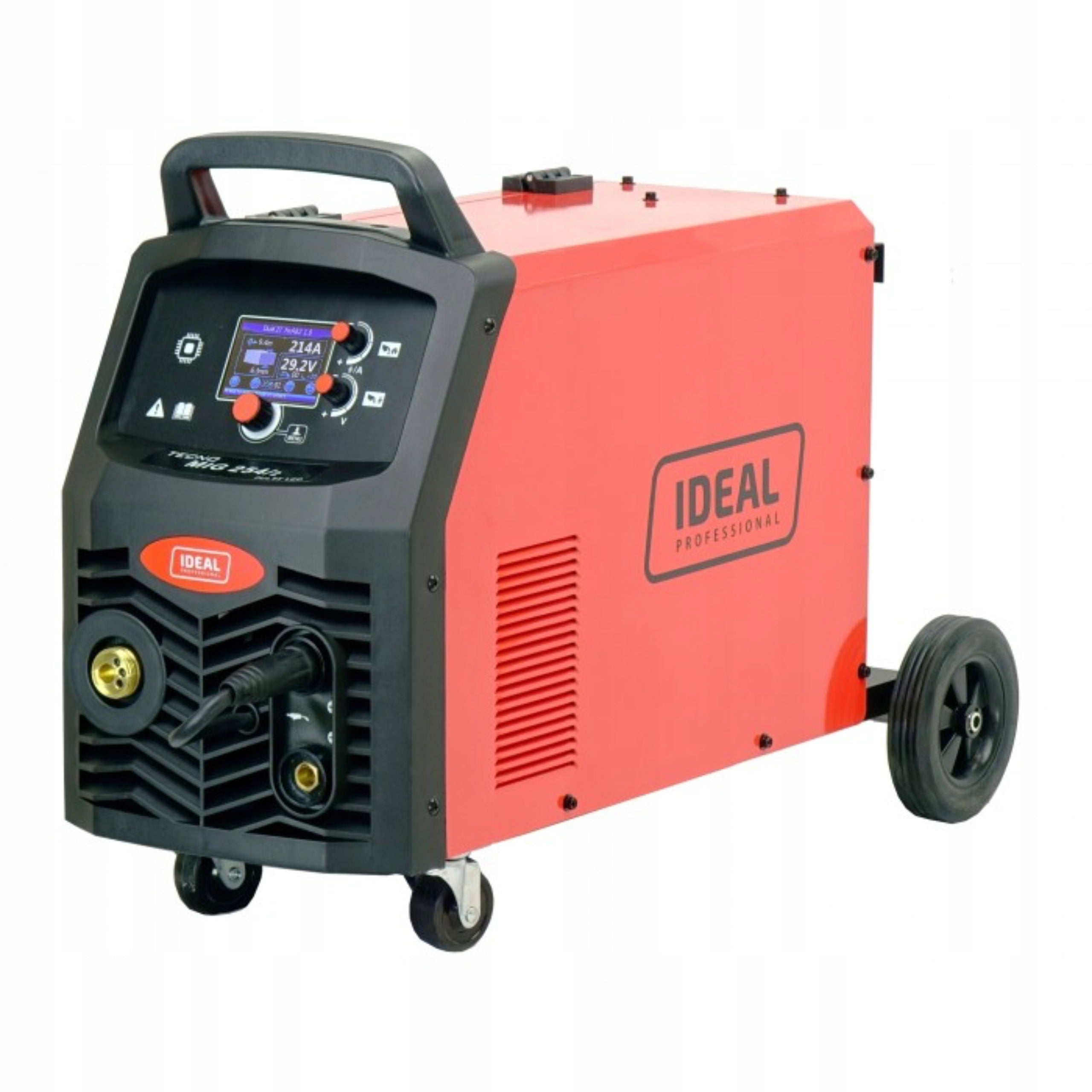

Prekė: Pusautomačis IDEAL TECNO MIG 254/2 PULSE 230/400V LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TECNO MIG 254/2 PULSE
- Ilgis: 800 mm
- Plotis: 280 mm
- Aukštis: 540 mm
UNIVERSAL MIG/MAG 250A WITH DUAL-VOLTAGE, PULSE AND DUAL PULSE
- DUAL VOLTAGE (230V / 400V) dual-voltage power supply – full flexibility of work both in the field and in a professional workshop
- Double Pulse – excellent quality and visual effect of "shell" on aluminum and stainless steel without chipping
- Maximum welding current 250 A – high efficiency adapted to various welding tasks
- Professional 4-roll feeder (4R) – guarantee smooth and stable feeding of any type of wire
POWER FLEXIBILITY AND INDUSTRIAL CAPABILITIES
IDEAL TECNO MIG 254/2 PULSE LCD is a unique semi-automatic welding machine designed for versatility. The unique ability to switch power between 230 V (1ph) and 400 V (3ph) makes the device ideal for both service trips and stationary production stations.
The device is designed for professional connection of aluminium and its alloys, stainless steel, acid-resistant steel, carbon steel and for soldering galvanized sheets (CuSi3).
KEY ADVANTAGES OF THE TECNO MIG 254/2
- DUAL-VOLTAGE POWER SUPPLY (230V / 400V) – a welding hybrid that adapts to the available electrical network without losing key welding functions.
- DOUBLE PULSE – precisely dispenses the input heat, minimizing the risk of deformation of the material and allowing to obtain a weld aesthete similar to the TIG method.
- SYNERGISTIC CONTROL WITH LCD SCREEN – a clear display allows quick selection of welding parameters based on the type of material, wire diameter and shielding gas.
- PROFESSIONAL WIRE FEEDER 4R – 4-roll drive system prevents wire slipping, which is essential for soft aluminum wires and longer welding handles.
- MULTIPROCESSIVITY 3in1 – in addition to advanced MIG/MAG, it allows you to work with TIG Lift and MMA (wrapped electrode).
TECHNICAL DATA
- Power Supply: Dual Voltage 230 V (1ph) / 400 V (3ph) 50 Hz
- Maximum MIG/MAG welding current: 250 A
- Maximum TIG/MMA current: 250 A
- Working cycle: 60% – 250 A
- Display: Graphic / Digital LCD screen
- Pulse welding: Yes (Single Pulse & Double Pulse)
- Wire feeder: Professional 4-roll (4R)
- Spool with wire: D200 (5 kg) / D300 (15 kg)
- Wire diameters: 0.8 - 1.2 mm (steel, stainless steel, aluminium, CuSi)
- Ignition of the arc (TIG): LIFT
- Protection class: IP 23
- Technology: IGBT Inverter

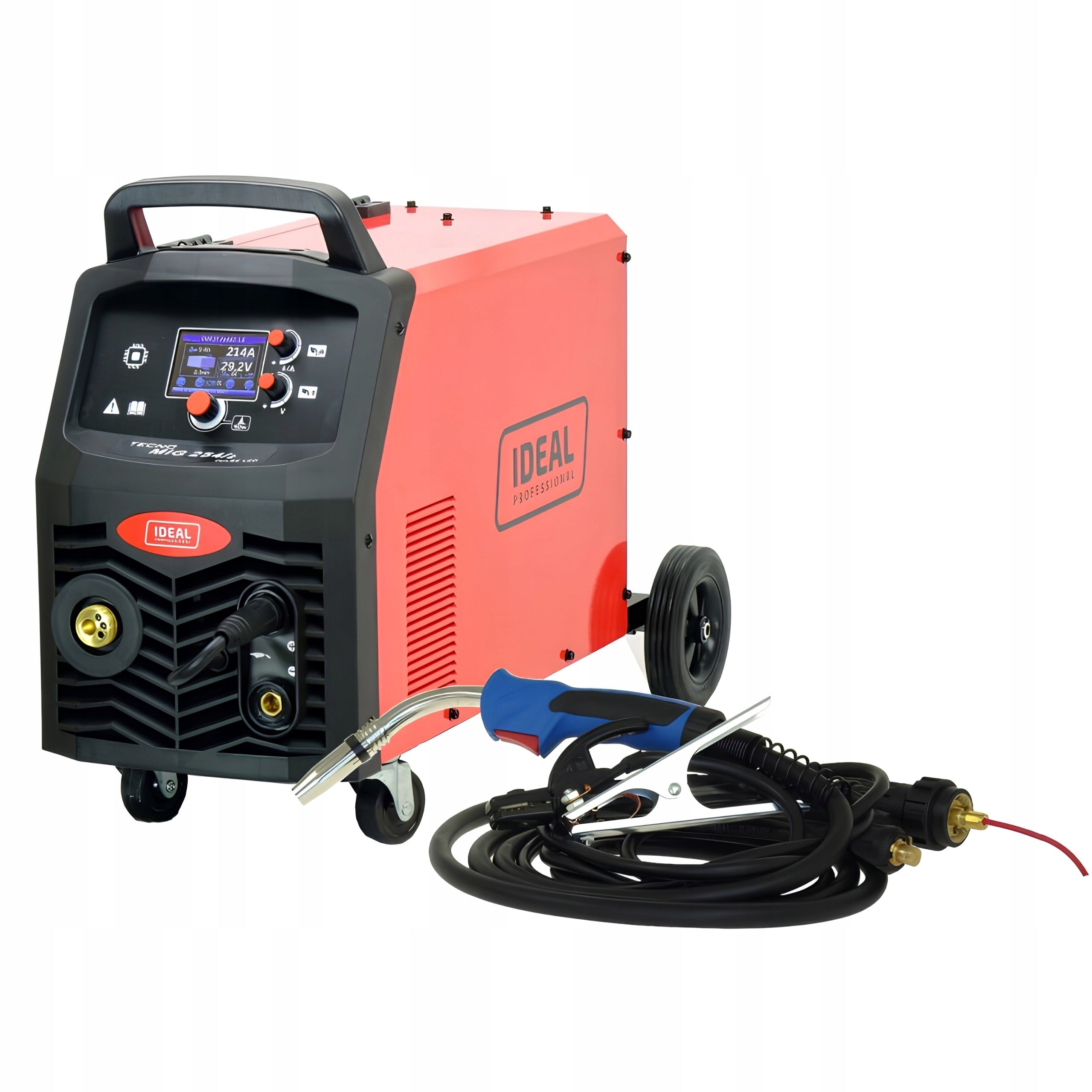

COMPOSITION OF THE SET
- Semi-automatic welding machine IDEAL TECNO MIG 254/2 PULSE LCD
- MIG/MAG welding torch with EURO connector
- Bulk cable with strong buckle clamp
- Electrode cable (for MMA method)
- Feeder roller set (for steel and aluminium)
- Gas hose with bands
- Instruction manual in Polish
- Guarantee card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 5.6 kVA |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 26.5 kg |
| Parametry | Welding range | 17–250 A |
| Parametry | Height | 540 mm |
| Parametry | Length | 800 mm |
| Parametry | Width | 280 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 28 kg |
| Parametry | Manufacturer code | TMIG254PLCD |
| Parametry | EAN (GTIN) | 5903991109965 |
| Parametry | Model | TECNO MIG 254/2 PULSE |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Supply voltage (V) | 230,400 |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current,EURO handle,LCD display |
