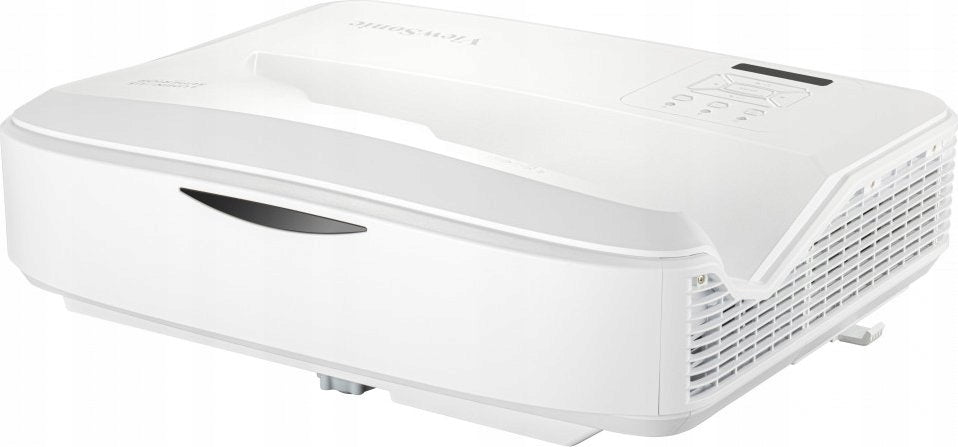

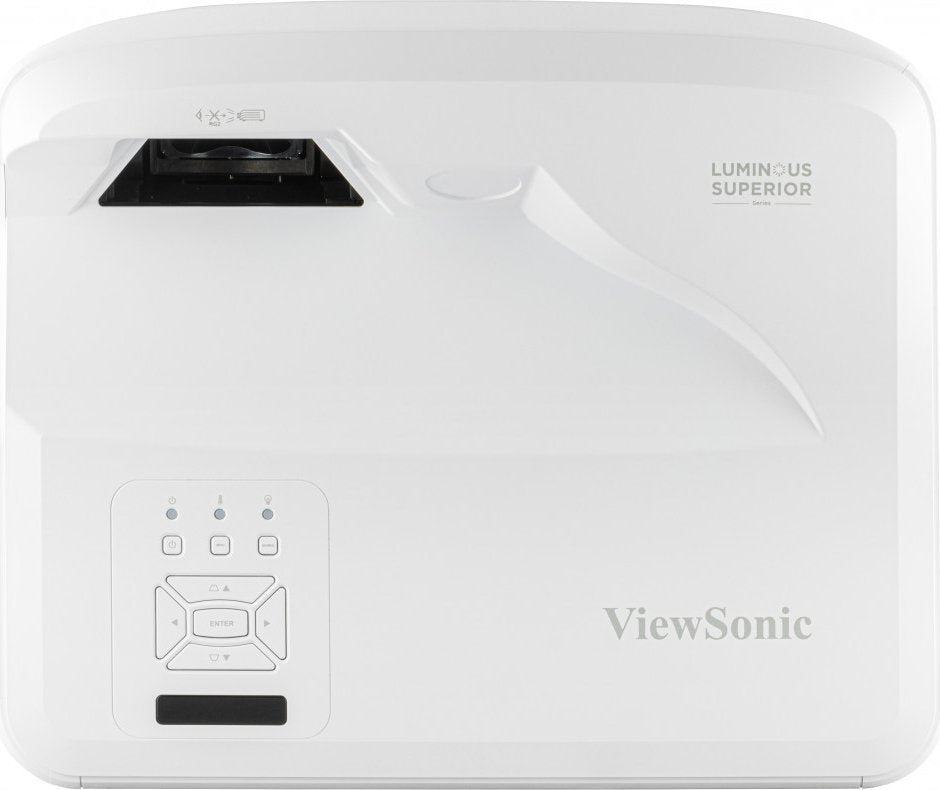

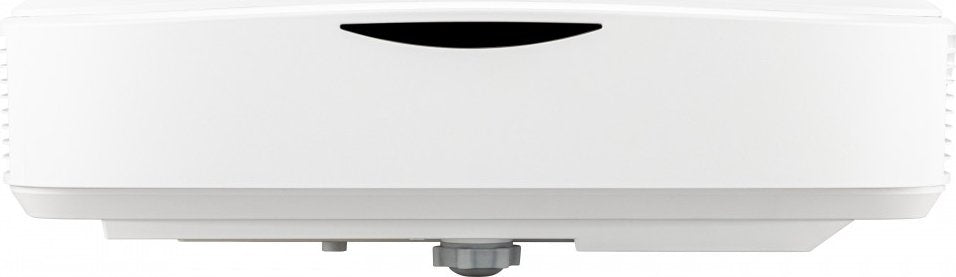

Projektorius ViewSonic LS832WU

Trumpai apie prekę

Prekė: Projektorius ViewSonic LS832WU. Kategorija: Įrenginiai.

• Gamintojas: ViewSonic
• Modelis: LS832WU
• Spalva: white

WUXGA laser installation projector with 5000 lumens ANSI brightness and ultra-short throw

• 0,25 ultra-short throw for space-saving installation
• Second generation phosphor laser technology with a lifespan of up to 30 000 hours
• 5000 ANSI lumens offering bright images in any environment
• Screen up to 170 inches and lower cost per inch
• Keystone H/V and 4 corner adjustment for increased installation flexibility
• Comprehensive LAN control for efficient device management

The LS832WU is part of ViewSonic’s Luminous Superior series, a high-brightness, lampless line of projectors designed for both commercial and educational spaces. This advanced WUXGA laser projector with 5000 ANSI lumens brightness and ultra-short throw is the perfect solution for digital signage in public and commercial applications such as museums, storefronts, shopping malls and airports. The ultra-short throw factor of 0,25 on the LS832WU allows the 100-inch screen to be displayed from a distance of just 28 cm, and the screen size can be further expanded to 170 inches for a lower cost per inch compared to other types of commercial displays. Thanks to the second generation Laser Phosphor technology, it provides constant high brightness for up to 30 000 hours. With H/V trapezoid correction and 4 corner image adjustment, the LS832WU also offers flexible installation options. It includes comprehensive LAN control and enables centralized management of multiple devices. It is compatible with Crestron, AMX, Extron and PJ Link AV control systems.

No shadows, no blinding lights

The LS832WU projector is designed to provide installation flexibility even in confined spaces. With an ultra-short throw ratio of 0,25, this projector enables image projection on a 100-inch screen from a distance of just 28 cm, offering immersive visual effects without casting shadows or blinding light in all commercial and public applications.

0,25 Ultra-short throw

Ultra Large Screen with Lower Cost Per Inch

This easy-to-install projector allows you to display images up to 170 inches, offering a lower cost per inch compared to other types of commercial displays.

Up to 170”

Bright, durable, environmentally friendly

The LS832WU uses phosphor laser 2 technology. generation, offering a lifespan of up to 30 000 hours, increased brightness, better heat resistance and instant on/off in a more compact format. The projector's environmentally friendly, lampless design eliminates toxic mercury bulbs and the hassle of frequent lamp replacements, ensuring consistent image quality for extended commercial applications.

Phosphorus laser technology 2. generation

Bright images in all lighting conditions

The LS832WU’s 5000 ANSI lumens brightness and 3 000 000:1 contrast ratio guarantee bright and vivid images in all lighting conditions, even in ambient lighting, making this projector ideal for digital display applications in public and commercial spaces such as museums, airports and shopping malls.

5000 lumens ANSI

Get perfectly shaped images effortlessly

Vertical and horizontal trapezoidal distortion correction and four-corner adjustment functions eliminate curves or distorted images, ensuring a perfectly proportioned image every time.

H/V trapezoid correction and 4 corner adjustment

Easy and cost-effective installation

The LS832WU is 41% lighter and 47% smaller than its predecessor, which significantly reduces transportation costs and makes installation easier.

Lower weight and compact size

Central device management

The LS832WU is compatible with Crestron, AMX, PJ Link and Extron systems, allowing for centralized device management and thus providing greater operational efficiency.

Comprehensive LAN control

24/7 non-stop work

With its advanced cooling design, the projector allows you to work 24 hours a day, 7 days a week without compromising on quality or performance, making it ideal for applications that require continuous projection.

Increased dust resistance

Maintain crystal clear image quality and longevity of the product with an advanced IP5X-sealed design that prevents dust from entering and affecting internal components.

Showcase the best with vibrant colors

Make an impression on any audience with the unique ViewSonic color technology and enrich your presentation with a realistic color experience.

Seamless display from external devices

Prevent display formatting issues with two HDMI 2.0b/HDCP 2.2 ports and support for 4K UHD and HDR/HLG content from external devices. Enjoy total peace of mind knowing that your content will be displayed without errors.

Dual HDMI 2.0b

A simpler way to update projector software

Avoid visits to the service center by easily updating the software using a USB cable connection to your laptop.

HDMI Wireless Dongle

The built-in USB 5V/1,5A output in the LS832WU enables convenient power supply to the HDMI wireless adapter, eliminating the need for separate power supplies when streaming multimedia content.

• Specification

  Projection system: 0.67" WUXGA

  Native resolution: 1920x1200

  Brightness: 5000 (ANSI Lumens)

  Brightness (Center Lumens):6000

  Contrast ratio: 3000000:1

  Display Color: 1.07 Billion Colors

  Light source type:Laser Phosphor

  Light Source Life (hours) with Normal Mode: 20000

  Light Source Life (hours) with SuperEco Mode:30000

  Lens: F=2.44, f=3.70mm

  Projection offset: 133%±3%

  Projection ratio:0.253

  Optical magnification: Fixed

  Digital magnification: 0.8x-2.0x

  Image size:80"- 170"

  Throwing distance: 0.17-0.66m

  (100"@0.28m)

  Trapezoidal correction: H:+/-10° , V:+/-10°

  Sound (normal mode): 34dB

  Audible Noise (Eco): 28dB

  Input signal delay:33.2ms

  Support resolution: VGA(640 x 480) to 4K(3840 x 2160)

  Compatibility with HDTV: 480i,480p, 576i, 576p, 720p, 1080i, 1080p, 2160p

  Horizontal frequency:15K- 91KHz

  Vertical scanning frequency: 24- 85Hz

• Input

  Computer input (shared with component): 1

  HDMI: 2

  (HDMI 2.0/ HDCP 1.4/2.2)

  Audio input (3,5 mm): 1

  Microphone input: 1

• Output

  Monitor output: 1

  Audio-out (3.5mm): 1

  Speaker: 10W x1

  USB type A (power supply): 1 (5V/1.5A)

• Control

  RS232 (DB 9-pin male): 1

  RJ45 (LAN control): 1

  USB type B (support): 1

• Other

  Power supply voltage: 100-240V+/- 10%, 50/60Hz

  (AC in)

  Power consumption: Normal: 328W

  Standby:< 0.5W

  Working Temperature: 5~40℃

  Carton: Brown

  Net Weight: 5.8kg

  Gross Weight:8.1kg

  Dimensions (S x G x W) with adjustable foot: 382x318x132mm

  Packing Dimensions: 518x420x313mm

  Menu language:English, German, French, Italian, Spanish, Portuguese,Polish, Dutch, Swedish, Norwegian, Finnish, Greek, T Chinese,S Chinese, Japanese, Korean, Russian, Hungarian Czech,Arabic, Thai, Turkish, Farsi, Vietnam, Indonesian, Romania,Slovakian (27 language)

  User Guide Language:English, S-Chinese, T-Chinese, Indonesian, Finish, French,German, Italian, Japanese, Korean, Polish, Portuguese,Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai,Vietnamese, total 20 languages

• Standard Accessory

  Power cable: 1

  Remote control: 1

  QSG: Yes

  Warranty Card: Yes (CN Only)

• Optional accessories

  Wall/Ceiling Mount: PJ-WMK-304

  PJ-WMK-007

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	ViewSonic
Parametry	Model	LS832WU
Parametry	Product weight with unit packaging	8.1 kg
Parametry	Product width	38.2 cm
Parametry	Product height	132 cm
Parametry	Product depth	31.8 cm
Parametry	Product weight	5.8 kg
Parametry	Color	white
Parametry	Display technology	DLP
Parametry	Lamp lifetime in normal mode	20000 h
Parametry	Lamp life in power saving mode	30000 h
Parametry	Operating volume	28 dB
Parametry	Power consumption	328 W
Parametry	Functions	distortion correction
Parametry	Built-in speakers	yes
Parametry	ANSI brightness	5000 lm
Parametry	Basic resolution (px)	1920 x 1200
Parametry	Contrast (x:1)	3000000
Parametry	EAN (GTIN)	766907021912
Parametry	Manufacturer code	LS832WU
Parametry	Packaging status	original
