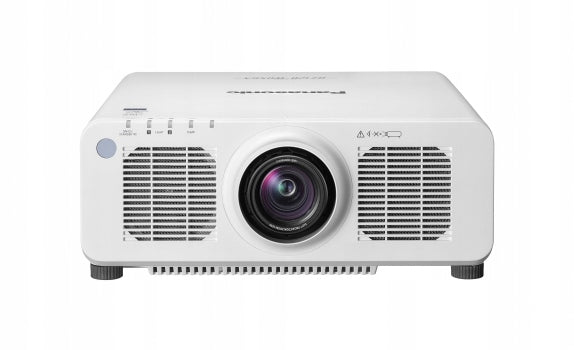

Projektorius Panasonic PT-RZ120LWE su ekrano laikikliu ir HDMI kabeliu

Trumpai apie prekę

Prekė: Projektorius Panasonic PT-RZ120LWE su ekrano laikikliu ir HDMI kabeliu. Kategorija: Įrenginiai.

• Gamintojas: Panasonic
• Modelis: PT-RZ120LWE
• Spalva: white

The auction concerns the original product as in the title: Poland Distribution / 100% New PLUS additionally DISCOUNT CARD FOR PURCHASES ON OUR ALLEGRO for all AV equipment that we offer at other auctions. us at auctions of the models of equipment you are looking for - we will send you a quick link to the appropriate auction with the best price in PL!!!

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Designer PANASONIC PT-RZ120LW / PT-RZ120LWEJ (without lens / white)

+ VALUABLE FREE (RANDOM: BRANDED HANDLE AND/OR PROFESSIONAL AV CABLE AND/OR SODEXO VOUCHER FOR SHOPPING / ETC. - THERE ARE ALSO AUCTIONS WITHOUT ADDITIVES )

Designed for intensive use and long-term clarity in education, museums, exhibitions and digital signage

Main features:

• Laser light source, 1-chip DLP processor, brightness 12 600 lm (center)/ 12 000 lm (ANSI), WUXGA resolution
• High brightness and excellent image quality thanks to laser light source
• No maintenance required for up to 20 000 hours thanks to dust-resistant optical block and long-life laser mechanism
• Contrast ratio 10 000:1
• 4K input available (HDMI/DIGITAL LINK)

Recommended applications:

Rental and staging

Education

Digital signage

Museum

High-quality images and long-term reliability

• Combines 1-chip DLP™ with SOLID SHINE Laser technology for accurate and realistic images at 12 000 lm
• Dynamic light control for 10 000:1:1 contrast
• Accurate white balance and color reproduction in any projection mode
• High image quality maintained for a very long time
• Detail Clarity Processor 3 explains and enhances the smallest details
• Daylight View 3 optimizes sharpness and vivid images in bright environments
• Consistently stable and reliable performance
• Dust-resistant projector design with hermetic optical block
• Dual-band laser optical motor with double phosphor discs provides reliable operation 24 hours a day, 7 days a week
• Up to 20 000 hours continuous maintenance-free operation * 2
• Efficient cooling system for stable operation at ambient temperature up to 45°C (113°F)*3
• Fast switching of the backup input prevents the screen from blanking during projection
• Versatile system adaptability and flexible installation
• Compact housing and free 360 degree installation (vertical and horizontal)
• DIGITAL LINK / HDMI® transmission of uncompressed 4K signal
• Built-in geometric correction for projection on specially shaped screens
• Supports Geometry Manager Pro and optional upgrade kit (ET-UK20)
• Set for automatic change of screen settings (ET-CUK10)

Reliable Reinforced Solid Shine Laser Projector

Compact Solid Shine laser projector with 12000 lumens brightness, designed for intensive use and long-lasting brightness in the education, museum and exhibition sectors and Digital Signage applications. Maintenance-free operation for up to 20 000 hours, Digital Link connectivity, 10 000:1 contrast ratio, flexible installation in the 360° range

High-quality images

The PT-RZ120 projector combines incredible Solid Shine laser technology with a 1-chip DLP processor for vivid, precise and immersive images. The projector is distinguished by high brightness of 12000 lm, WUXGA resolution and contrast ratio of 10 000:1. In addition, Daylight View 3 optimizes images to be sharp and vibrant even in very bright light.

Long-term reliability

The projector provides excellent white balance and color reproduction in any projection mode, and also maintains high image quality for a very long time. The Detail Clarity 3 processor image processing circuit sharpens and improves even the smallest details of the image. The dust-resistant housing with sealed optical block also reduces maintenance requirements and extends the life of the projector.

Consistently reliable performance

Up to 20 000 hours of round-the-clock work without the need for conversation. The optical mechanism with two drives and two phosphor wheels ensures reliable operation around the clock, preventing the light source from failing, while the quick switch system to a backup input signal helps minimize screen blanking during projection. An efficient cooling system is responsible for stable operation at temperatures up to 45°C.

Flexible system capabilities

The PT-RZ120 is compatible with optional lenses to fit all Panasonic projectors with a 1-chip DLP processor, so it can be used in both small and large rooms. The direct power off feature allows you to disconnect the projector from the electrical network. The device also supports Geometry Manager Pro software.

Universal installation

The flexible installation option of the RZ120 allows it to be used in auditoriums and conference rooms of any surface. Geometry correction allows the image to be displayed on a curved or specially contoured screen, and the compact housing and the ability to freely set in the 360° range mean that the projector can be installed and operate at any angle.

Specification:

Model PT-RZ120/RZ120L

AC 100 – 240 V, 50/60 Hz

Power consumption TBD

DLP™ chip 17.0 mm (0.67 in) diagonal (16:10 aspect ratio)

DLP™ chip x 1, DLP™ projection system

Panel size

Display method

Pixels 2,304,000 (1920 x 1200) pixels

Lens PT-RZ120: Powered zoom (throw ratio 1.7–2.4:1), powered focus F 1.7–1.9, f 25.6–35.7 mm

PT-RZ120L: Optional powered zoom/focus lenses

Light source Laser diodes laser Class 1 (Class 3R for US models)

Screen size (diagonal) 1.27–15.24 m (50–600 in), 1.27–5.08 m (50–200 in) with ET-DLE055, 2.54–8.89 m (100–350 in) with ET-DLE030, 16:10 aspect ratio

Center-to-corner uniformity*1 90 %

Brightness*1 12,000 lm

Contrast*1 10,000:1 (Full On/Full Off, Dynamic Contrast Mode: ON)

Resolution 1920 x 1200 pixels

Optical

axis shift*2

Vertical (from center of screen) +50 %, -16 % (+40%, -16% with ET-DLE060) (powered)

Horizontal (from center of screen) +30 %, -10 % (+19%, -10% with ET-DLE060 / +28 %, -10 % with ET-DLE085) (powered)

Keystone correction range Vertical: ±40˚ (±16˚ with ET-DLE060, ±22˚ with ET-DLE085/DLE055, +5˚ with ET-DLE030),

Horizontal: ±15˚ (±10˚ with ET-DLE060) (cannot be operated with ET-DLE030)

Keystone correction range

with optional Upgrade Kit ET-UK20

Vertical: ±45˚ (±16˚ with ET-DLE060, ±40˚ with ET-DLE150/DLE250 / supplied lens, ±22˚ with ET-DLE085/DLE055),

Horizontal: ±40˚ (±10˚ with ET-DLE060, ±15˚ with ET-DLE085/DLE055),

Up to a total of ±55˚ during simultaneous horizontal and vertical correction.

Installation Ceiling/floor, front/rear, free 360-degree installation

Terminals SDI IN BNC x 1: 3G/HD/SD-SDI input

HDMI IN HDMI 19-pin x 1 (Deep Color, compatible with HDCP)

DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)

RGB 1 IN RGB x 1 (BNC x 5): RGB/YPBPR/YCBCR/YC/VIDEO

RGB 2 IN D-sub HD 15-pin (female) x 1: RGB/YPBPR/YCBCR

SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)

SERIAL OUT D-sub 9-pin (male) x 1 for link control

REMOTE 1 IN M3 x 1 for wired remote control

REMOTE 1 OUT M3 x 1 for link control (for wired remote control)

REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)

LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)

DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK connection, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color

Operation noise*1 TBD

Cabinet materials Molded plastic

Dimensions (W x H x D) PT-RZ120: 498 x 200*3

x 581 mm (19 19/32˝ x 7 7/8˝ *3

x 22 7/8˝ ) (with supplied lens)

PT-RZ120L: 498 x 200*3

x 538 mm (19 19/32˝ x 7 7/8˝*3

x 21 3/16˝ ) (without lens)

Weight*4 TBD

Operating environment Operating temperature: 0 – 45 °C (32 – 113 °F)*5

, operating humidity: 10 to 80 % (no condensation)

Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro

Fixed-Focus Lens

ET-DLE030

Zoom Lens

ET-DLE085 / ET-DLE150 /

ET-DLE250 / ET-DLE350 /

ET-DLE450 / ET-DLE055 /

ET-DLE060

Geometry Manager Pro Software

Upgrade Kit

ET-UK20

Auto Screen Adjustment Upgrade Kit

ET-CUK10

Early Warning Software

ET-SWA100 Series

DIGITAL LINK Switcher

ET-YFB200G

Digital Interface Box

ET-YFB100G

Ceiling Mount Bracket

ET-PKD130H (6-axis, for high ceiling)

ET-PKD120H (for high ceiling)

ET-PKD120S (for low ceiling)

Projector Mount Bracket

ET-PKD130B

Note: PT-RZ120L offers the same performance as PT-RZ120, but comes without a lens.

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Optical axis shift is not supported on the ET-DLE055, and the optical axis is fixed with the ET-DLE030.

*3 With legs at shortest position. *4 Average value. May depending on the actual unit. *5 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30 ˚C (86 ˚F) or higher, the light output may be

reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 ˚C (77 ˚F) or higher, the light output may be reduced to protect the projector.
