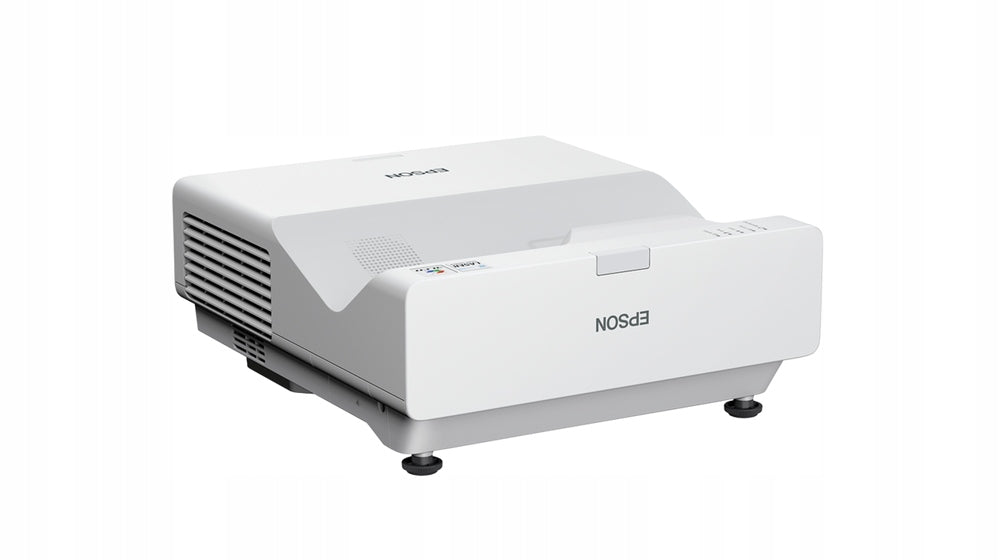

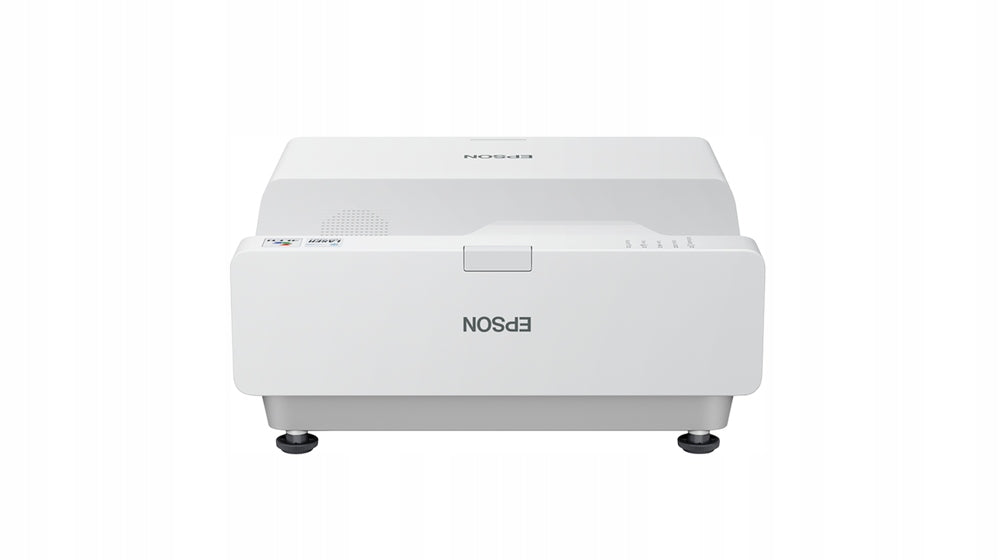

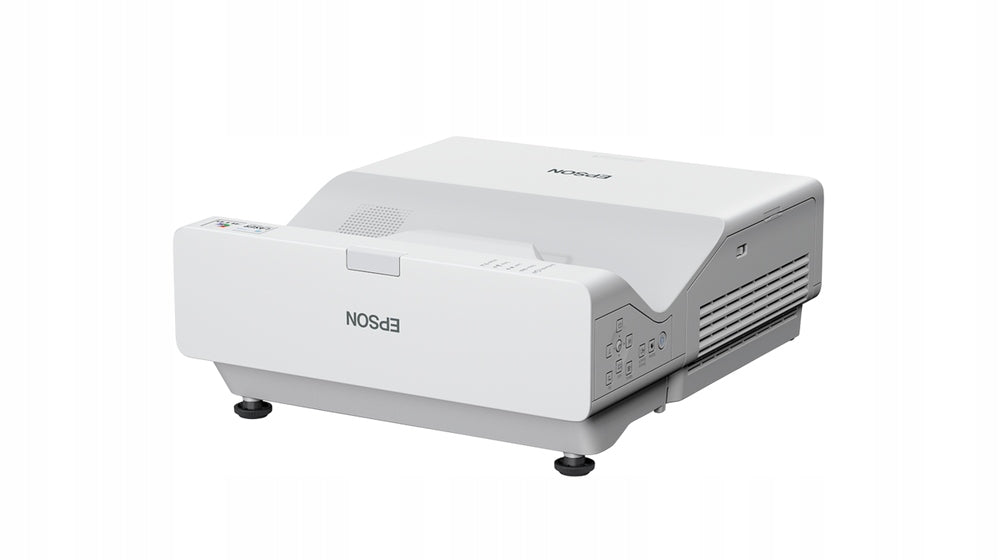

Projektorius Epson EB-770F

Trumpai apie prekę

Prekė: Projektorius Epson EB-770F. Kategorija: Įrenginiai.

• Gamintojas: Epson
• Modelis: EB-770F
• Spalva: white

Flexible UST Laser Projector

An affordable projector with up to 150 inches of display allows you to increase engagement and facilitate communication, increasing productivity in any environment.

• 49 – 150” UST Full HD Projector
• CLO laser with 4100 lumens brightness
• Wireless connectivity
• Edge blending with multi-image projection

This bright, clear, compact and accessible display provides unlimited possibilities for immersive presentations regardless of the size of the classroom or conference room.The bright image of the EB-770F projector with a resolution of 1080p with the ability to scale up to 150 inches is clearly visible from all angles and from a long distance,and also allows you to easily share content and stream directly from multiple devices for optimal collaboration.

The ultra-short throw lens of the EB-770F allows for secure, discreet positioning near the screen, giving the presenter the freedom to operate without casting a shadow. 3LCD technology and a brightness of 4100 lumens CLO make the image bright and clear up to 150 inches and it can be seen perfectly from any angle and from a long distance. Immersive user-friendly environment.

With the ability to scale between 49 and 150 inches, you can optimize the screen size for any room with a single product at no additional cost. The EB-770F supports multi-image projection and edge blending (combining projection), making it an affordable, hassle-free and energy-efficient large format projection solution with a resolution of 3780x1080.

Versatile wireless and wired connection options such as Miracast™ screen mirroring allow you to seamlessly share content from multiple devices.However, after connecting the optional Epson visualizer, documents can be displayed,3D presentations or objects with incredible detail,to be visible to the whole room.Unlike flat screen monitors, it does not require the use of a heavy glass panel prone to breakage,on which there are blind spots and reflections at a certain angle. In addition, presenters are not affected by direct blue light radiation harmful to vision. Combined with a hygienic, antibacterial whiteboard, teachers can make annotations to presentations using dry erase pens or simply use a whiteboard with the projector turned off to save energy.

Key features

• Scalable Full HD image 49 – 150” UST projector for interference-free viewing (shadows/reflections)
• Bright and energy-efficient laserBrightness 4100 lm CLO and 3LCD technology provide brighter colors with a power consumption of only 205 W
• Seamless connectivity optionsAutomatic on, wired/wireless projection with USB 2 A output for smart modules
• Easy operation and durable designVirtually maintenance-free device with 5 years or 12 000 hours warranty
• Visualizer compatibilityCreate and record a live immersive lesson or presentation

Technique

Projection system

3LCD Technology, Liquid Crystal RGB Shutter

LCD panel

0.62 inch with C2 Fine


Colour light intensity

4.100 lumen- 2.800 lumen (economy mode) according to IDMS15.4

White light intensity

4.100 lumen - 2.800 lumen (economy mode) In accordance with ISO 21118:2020

Resolution

1080p

High Definition

Full HD

Image aspect ratio

16:9

Contrast ratio

Over 2,500,000 : 1

Light source

Laser

Light source

20.000 Hours Durability High, 30.000 Hours Durability Eco

Image correction

Manual operation (or "Operating Manual") vertically: ± 3 °, Manual operation (or "Operating Manual") horizontally ± 3 °

Video processing

10 Bit

2D Vertical Refresh Rate

192 Hz - 240 Hz

Color reproduction

up to 1,07 billion colours

Optical system

Projection ratio

0,25 - 0,35:1

Zoom

Digital, Factor: 1 - 1.35

Lens

Optical

Projection size

60 inches - 150 inches

The aperture value of the projection lens

1,6

Focal distance

3,7 mm

Focus

Manually

Shift

5 : 1

Connectors

Connections

USB 2.0-A (2x), RS-232C, Ethernet Interface (100 Base-TX / 10 Base-T), IEEE 802.11a/b/g/n/ac Wireless LAN (WiFi 5), VGA Input (2x), VGA Output, HDMI Input (3x), Composite Signal Input, Miracast, Output Plug Socket, Input Plug Socket (3x), USB 2.0 Type B (Service Only), Wi-Fi Direct, Microphone Input

Connection to a smartphone

Ad-hoc / Infrastruktura

Network protocol

HTTPS, IPv4, IPv6, SNMP, ESC/ VP.net , PJLink

Advanced features

Security

Kensington Lock, Control Panel Lock, Padlock, Security Cable Hole, Wireless LAN Module Lock, Wireless LAN Security, Password Protection

Functions

21:9 aspect ratio support, A/V mute, Arch correction function,Automatic switching on, Automatic image source search,Built-in speaker, CEC compliant, User logo with the possibility of personalization,Digital Zoom, On/Off Direct,Compatible with document scanner, Edge Blending (projection combination),Email notification, Display, Horizontal and vertical image geometry correction,Image Offset, JPEG Browser, Long Life Light Source,Network Projection, OSD Copy Function, Without Computer,Point correction, Power on button, Quick Corner, Scheduling function,Mirror Screen Reflection, Screen Split Function, Widescreen (16:6), Network control, Online remote control function, Wireless LAN connection possible, iProjection app

Color Modes

Whiteboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector control

via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Finding, Control4 Simple Device Discovery Protocol

General information

Power consumption

197 W - On mode power consumption (Normal)

263 W (Peak), 199 W (Eco), 0.5 W (Energy saving standby)

Heat dissipation

895 BTU/hour (max)

Supply voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product Dimensions

356 x 395 x 133 mm (Width x Depth x Height)

Product weight

5,9 kg

Noise level

Normal mode: 37 dB (A) - Economy mode: 27 dB (A)

Temperature

Storage -10°C - 60°C

Humidity of air

Work 20% - 80%, Storage 10% - 90%

If the projector is mounted on a ceiling or wall in a place exposed to oil smoke,evaporated oils or chemicals, or in place,in which soap bubbles and smoke are produced during events,and where aromatic oils are often roasted,some parts of our products may become susceptible to material degradation over time,This can result in the projector breaking the mount and falling off the ceiling.

Attached Software

Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Options

Air filter, Ceiling mount, Connection and control box, External speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN module, Wireless transmitter - ELPWT01

Loudspeakers

16 IN

Contents of the set

Power cable, Remote control with batteries

Type of room / application

Conference room, Home office, Conference room/class, Visual advertising/retail, Tourist attractions

setting

Ceiling Mount, Desk Projectors, Table Mount, Wall Mount

Color

White
