Programuotojas TOPDON RLINK X3 J2534 GM, Ford, Chrysler

Trumpai apie prekę

Prekė: Programuotojas TOPDON RLINK X3 J2534 GM, Ford, Chrysler. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: CN

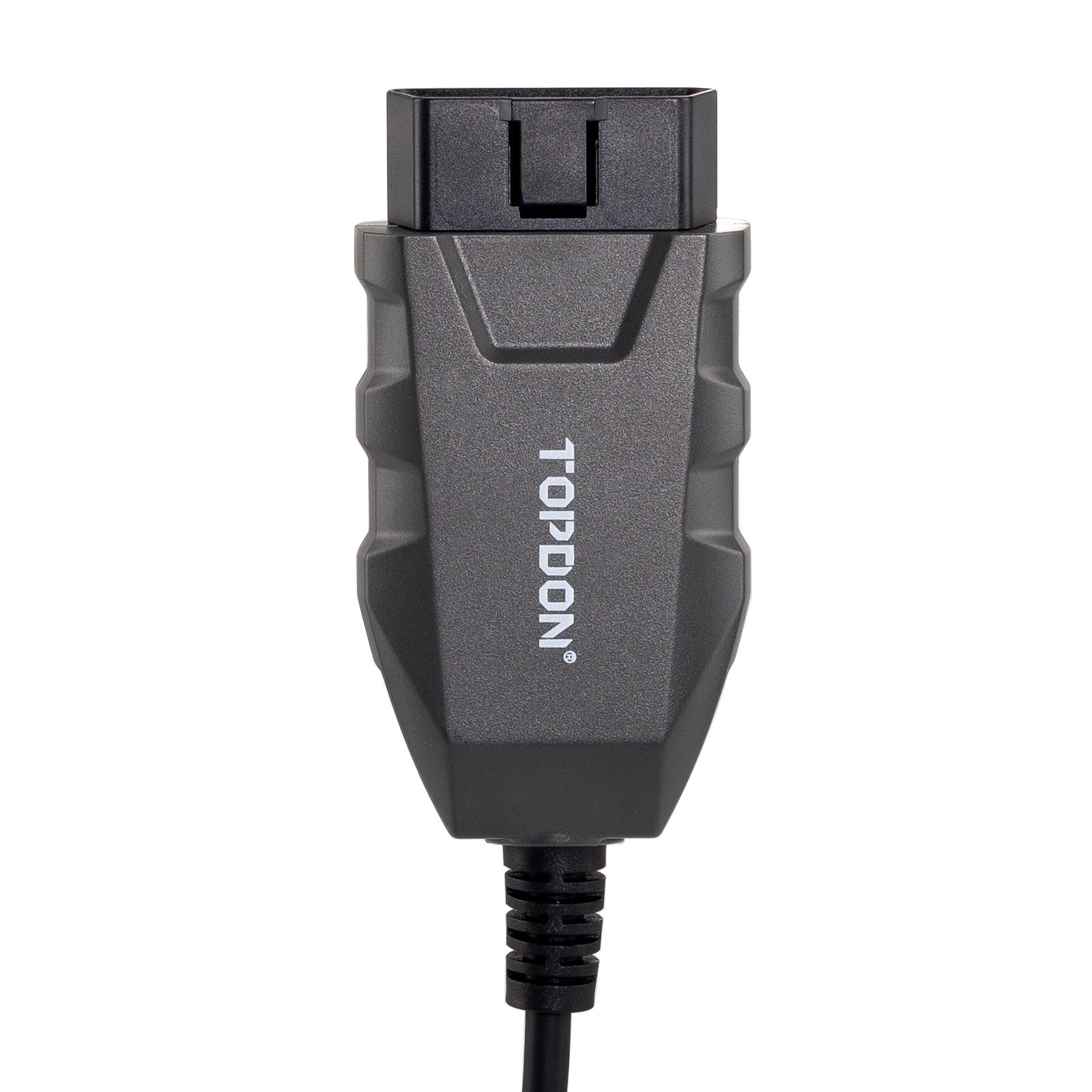

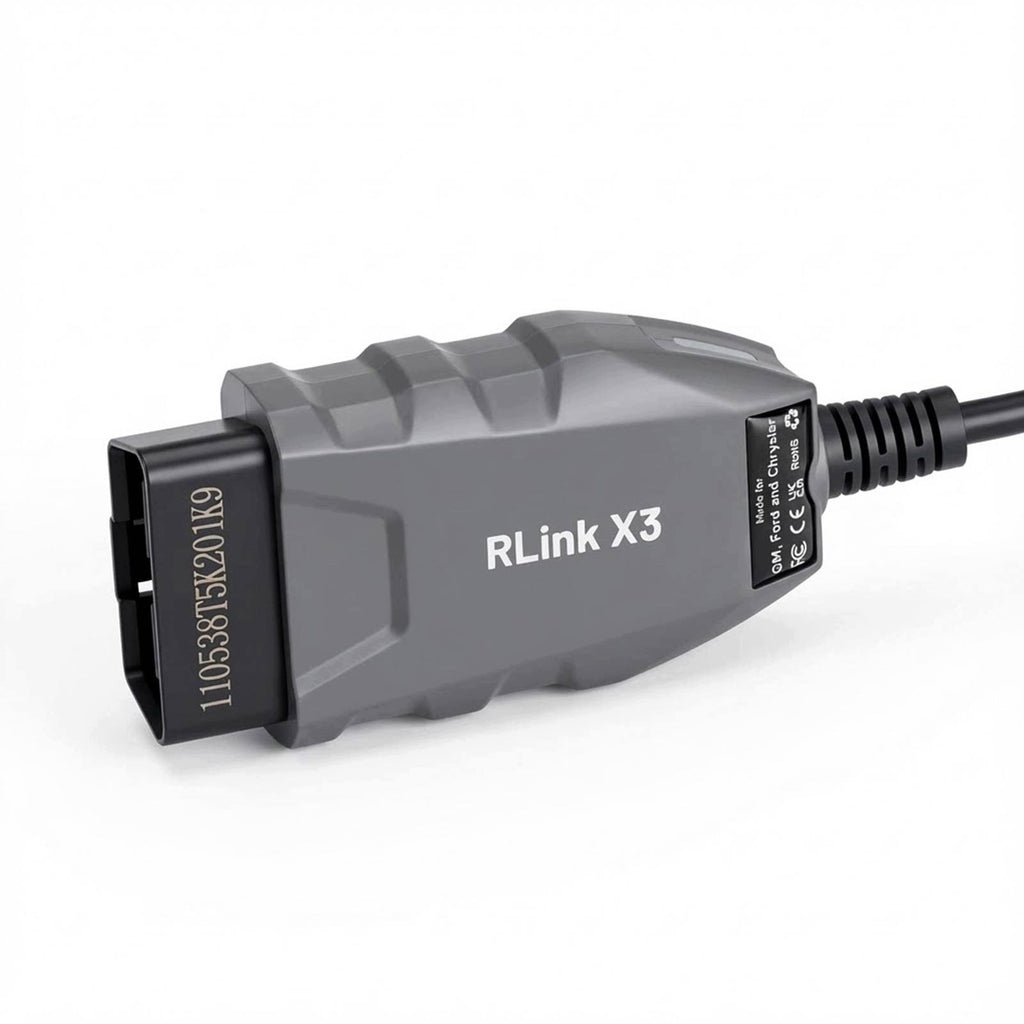

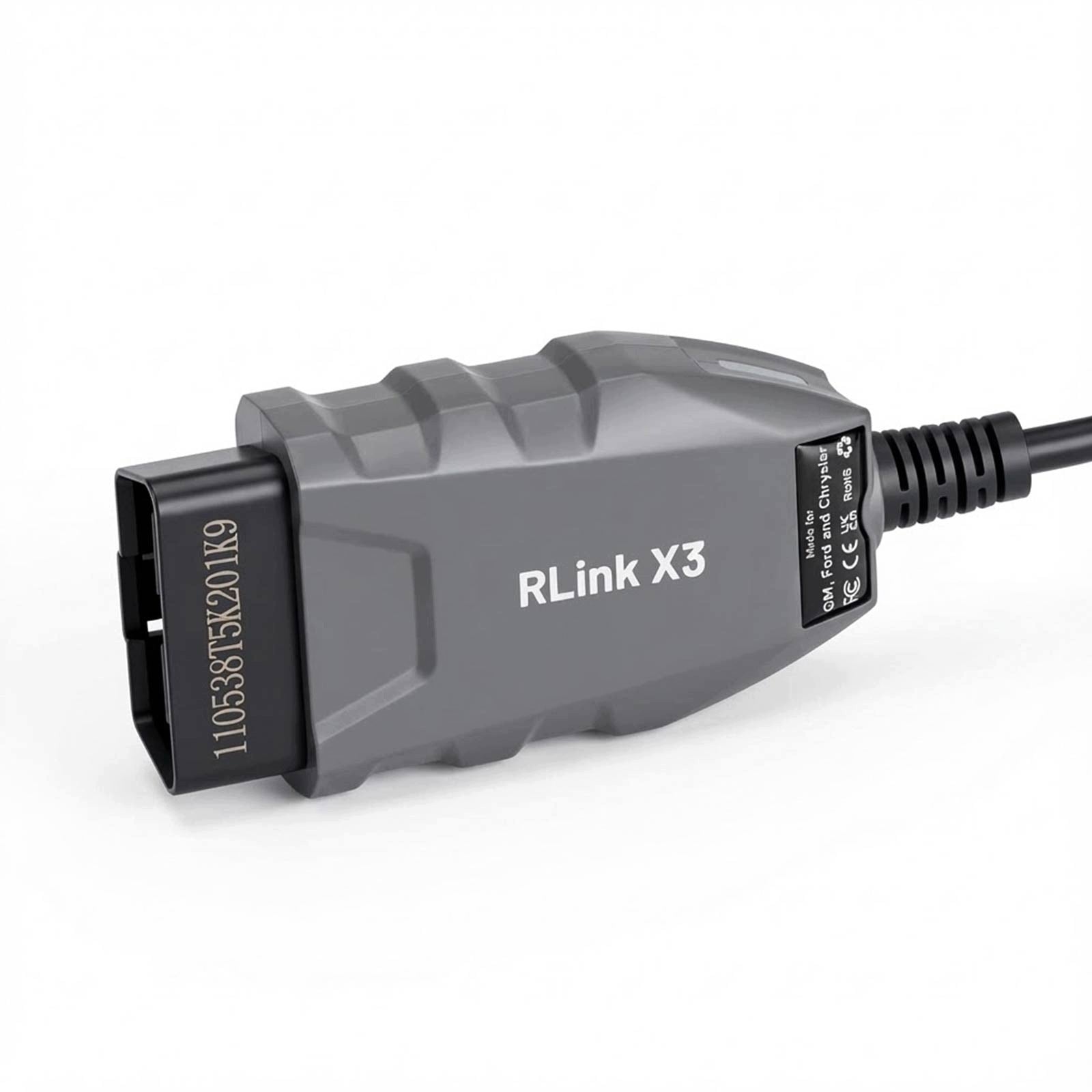

TOPDON RLINK X3 J2534 through programmer for GM, Ford and Chrysler

TOPDON RLink X3 is a 3-in-1 VCI (Vehicle Communication Interface) communication interface developed specifically for automotive manufacturers (OEMs) for the US market. It serves three major U.S. automakers (Ford, GM, and Chrysler), as well as their sub-brands and models. RLink X3 is compatible with OEM software for GM (TLC/GDS2, Tech2Win, SPS), Ford (FJDS, FDRS, FORScan) and Chrysler (WiTECH 2.0) manufacturers.

Like the RLink J2534, the RLink X3 is compatible with the RLink platform. Once registered and linked, users can access links to purchase OEM software, view programming cases and answers to frequently asked questions, and stay up to date with new products, promotional events, and special offers.

Note: OEM software is not included and requires additional purchase.

Product features available when used with OEM software

1. Vehicle Range: Supports models from 1996 to 2025 (actual range of service depends on OEM software).

2. Diagnostic functions: allows you to read/delete error codes, read data stream, conduct active tests, generate detection reports, etc.

3. Special Features: Full support for special features provided by OEM software – the same as at the dealer.

4. Frozen data: Enables real-time analysis of the causes of errors and playback of failure scenarios to avoid misdiagnosis.

5. Online Programming: Supports online coding and programming functions.

6. Additional OEM software features: such as access to repair instructions, error code analysis, and more.

The most important features of the product:

It supports simultaneous access to 4 CAN GM channels and is compatible with GM CAN-FD, HS-CAN, LS-CAN, UDS, J1850-VPW, SW-CAN, ALDL, GM-UART, KW81 and KW82 protocols. In combination with OE software, it allows access to dozens of additional ECU controllers and thousands of manufacturer-specific error codes and parameters. It also supports

Online programming and unique special features.

Optimized for maximum throughput, it delivers at least twice as many data samples per second compared to other solutions. This means smoother and more stable operation of diagnostic software during fault diagnosis and data stream analysis, with the possibility of simultaneous display of multiple parameters (fast data transmission).

It has unique safety features that protect the device connected to the power supply, even in high voltage vehicles such as trucks with a 24V installation, preventing its damage. Additionally, all RLink X3 drivers and firmware are available with lifetime free updates.

It supports simultaneous access to the CAN bus for FJDS, FDRS and Forscan, enabling advanced features that “ELM327” adapters cannot achieve.

Excellent connectivity effectively prevents data corruption and packet loss.

Two-color control:

Red light (connection indicator): illuminates with continuous light when the device is connected to the vehicle DLC connector, and flashes when there is a fault.

Green light (communication indicator): flashes during diagnostics.

Product advantages:

1. Industry-leading price-performance ratio: far ahead of OEMs and other integrated circuits they manufacture.

2. Multi-brand compatibility: One device supports multiple versions of OEM software simultaneously. E.g. The RLink X3 is compatible with more than 8 OE software versions from three major car manufacturers – Ford, GM and Chrysler.

3. Backed by more than 10 000 tests in real vehicles, this solution guarantees secure data transfer and industry-leading stability, far exceeding lesser-known competitors.

Product Specifications:

ARM Cortex-M4F 32-bit

FLASH MEMORY 512 KB, SHRAM 192 KB

Operating Voltage: 9~18V

USB cable length: 1,8 m

Operating temperature: -10 ℃ ~ 60 ℃ (14°F to 122°F)

Storage temperature: -20 ℃ ~ 70 ℃ (-4°F to 158°F)

Dimensions: 92 * 48 * 24 mm (3,62 * 1,89 * 0,95 inches)

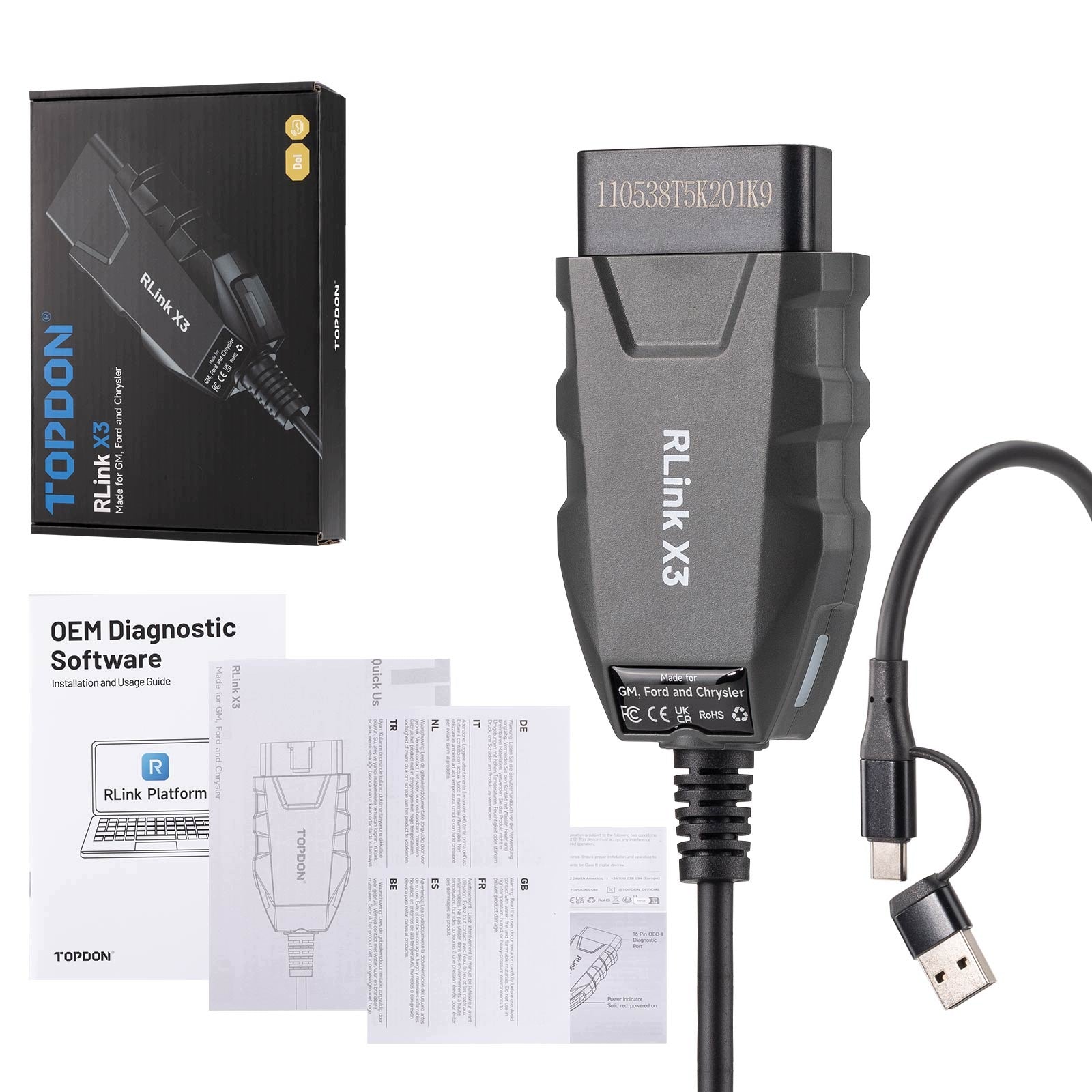

Package includes:

1 pc. x RLink X3 adapter cable

1 pc. x Quick Start Guide

1 pc. x Warranty card

1 pc. x Instructions for use

1 pc. x Safety warning label
