Presas PROXXON MICRO PRESS MP 120

Trumpai apie prekę

Prekė: Presas PROXXON MICRO PRESS MP 120. Kategorija: Frezavimo staklės.

• Gamintojas: Proxxon
• Modelis: 27200

CATALOG NUMBER: 27200

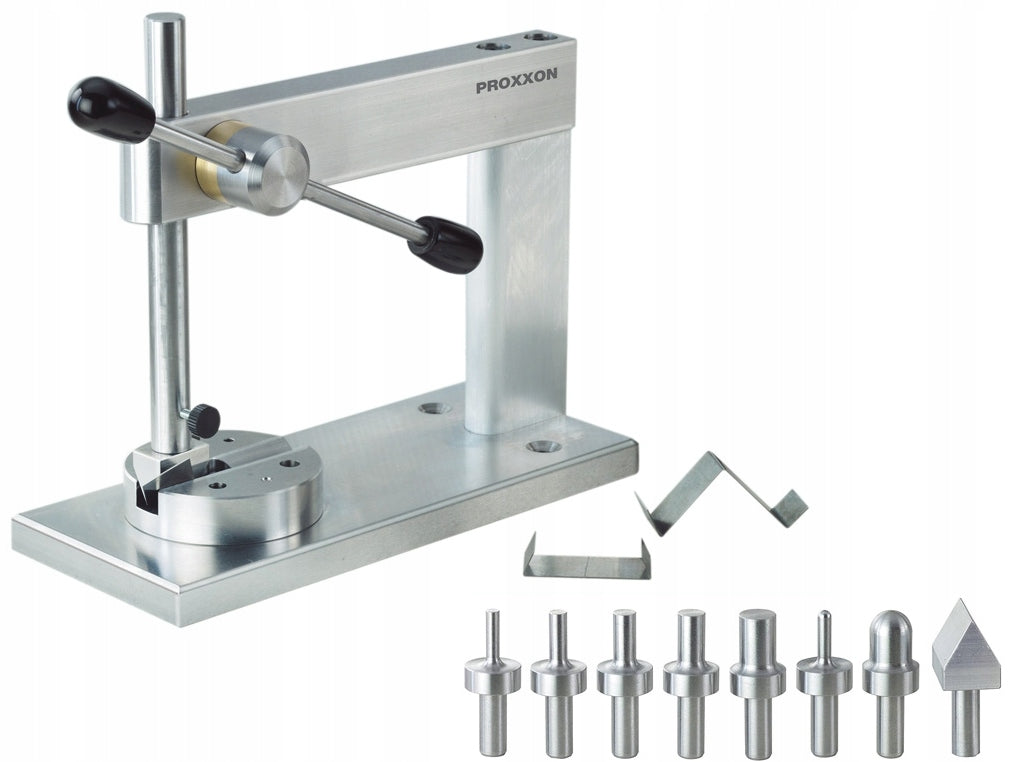

Precision tool for precision machining and for modelers: pressing, squeezing, riveting, shaping, edge processing, bending wires and sheets. Stamping, stamping and crimping parts from materials that are easy to form.

• 5 cylindrical punching tips (reinforced) inserted into the gear bar and fixed with a knurl screw: Ø 3 – 4 – 5 – 6 and 8mm.
• 2 semicircular tips Ø 3 and Ø 9mm and a triangular tip (equilateral triangle) for bending sheet metal.
• The resistance element is an easy-to-adjust rotary plate with holes to fit all ww. tools for making holes.
• Pressure force about 1 000N (100kg).
• Max. gear shaft stroke after mounting the 65mm tip, above the 50mm rotary plate.
• Solid steel arm with 120mm stroke.
• Steel ground top with dimensions of 80 x 190mm, with a thickness of 8mm in the middle.
• With two holes for fixing, e.g. to the tabletop.
• Weight about 2 800g.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Proxxon
Parametry	Milling machine type	other
Parametry	Power supply	mains
Parametry	Maximum no-load speed	0 RPM
Parametry	Manufacturer code	27200
Parametry	EAN (GTIN)	4006274272002
Parametry	Batteries included	no
