Po vandeniu veikiantis dronas Geneinno T1-pro, 4K UHD kamera, 150 m gylis

Trumpai apie prekę

Prekė: Po vandeniu veikiantis dronas Geneinno T1-pro, 4K UHD kamera, 150 m gylis. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: T1-Pro

Manufacturer: Geneinno

Product code: T1-Pro-150M

Specification:

• Manufacturer: Geneinno
• Model: T1-Pro-150M

• Weight: 5kg
• Dimensions: 380 * 348 * 168 mm
• Maximum depth: 150m
• Operating temperature range: -10℃ ~ 50℃
• Maximum cruising speed: 2 m/s
• Maximum climb/fall speed: 1,5 m/s
• Flow resistance: 4kn 2m/s
• Battery capacity: 9000mAh/97.2Wh
• Maximum diving time: 4 hours
• Charging time: 3 hours
• Maximum angle of inclination: +60°
• Extension interface: Yes
• Degrees of freedom: Forward/backward, ascending/falling, left/right turn, tilting, tilting - 5 DOF

• CMOS: 6,17 mm x 4,55 mm SONY CMOS
• IRIS: F2.5
• FOV (FIELD OF VIEW): 160°
• Shutter speed: 1/30S
• Photo size: 4000*3000 12M
• Photo format: JPEG/RAW/DNG
• Video resolution: 4K: 4000*3000 30fps
• FHD: 1920*1080 60fps
• Live streaming resolution: 480/720/1080P
• Maximum video transmission speed: 2 Mbps (live) 12 Mbps (video)
• Video format: MP4 (MPEG-4 H264/H265)
• Memory: 128G
• Recording time: 4~8 hours
• Protection of the lens against vibrations: EIS Anti-Shake

• Lumens: 2*1500 LM
• Angle of light beam: 60°
• Temperature: 4500K

• Cable diameter: 4,5 mm
• Cable working strength: 220 lbs
• Link length: Standard 200 m

• Live broadcast: Yes
• Operating systems: IOS 9.0 +

• IMU: 6-axis gyroscope and accelerometer + 3-axis compass
• Depth sensor Precision: +/- 0.05m
• Temperature sensor precision: +/- 0.5℃
• Tilt/tilt sensor precision: +/- 1°
• Precision of the deviation sensor: +/- 1.5°

• Weight: 0.45kg
• Dimensions: 109 x 99 x 53 mm
• Battery capacity: 3200mAh/34.56Wh
• Maximum operating time: >10 h
• Water resistance: IP57
• WIFI frequency: 5GHz+2.4GHz
• Maximum WIFI distance: 50m
• Charging time: 3 hours

Included:

• Geneinno T1-PRO drone
• Reel with cable and winder
• Wireless Transmitter
• Dive filters
• User manual
• Controller
• Charger
• Ballast modules
• Hard case
• User manual

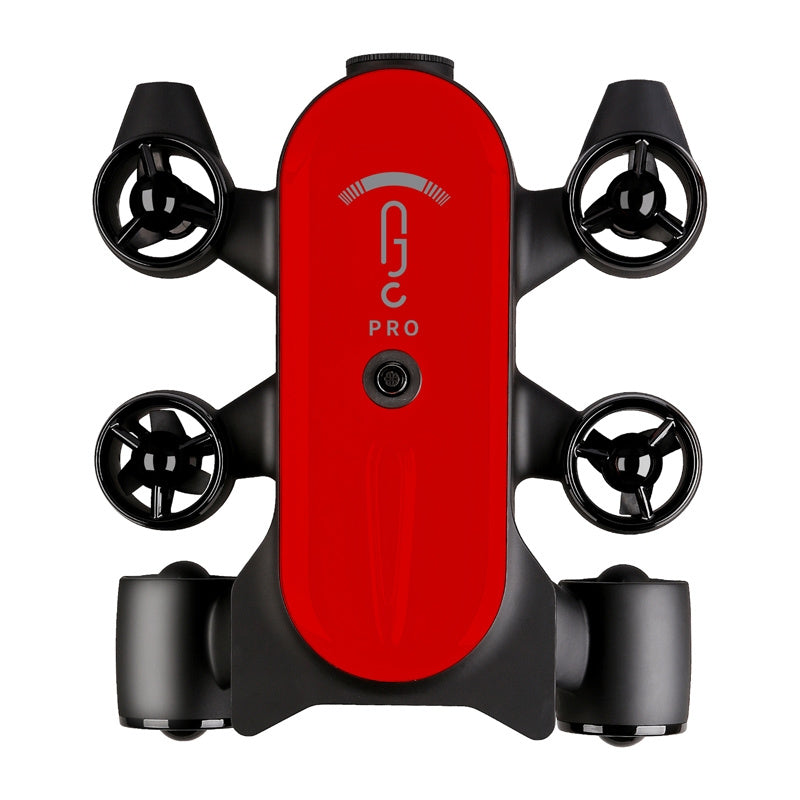

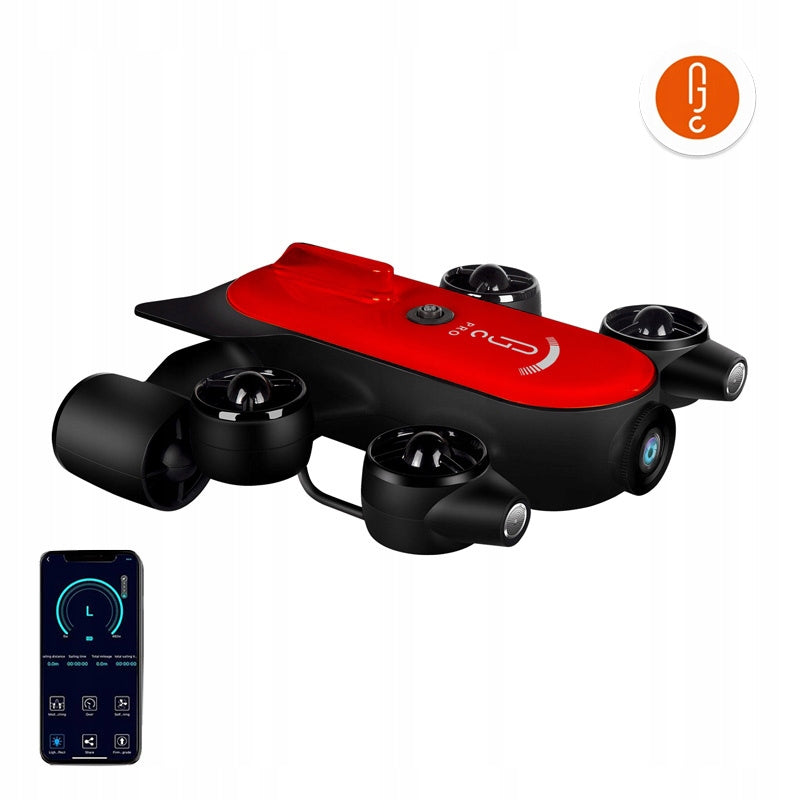

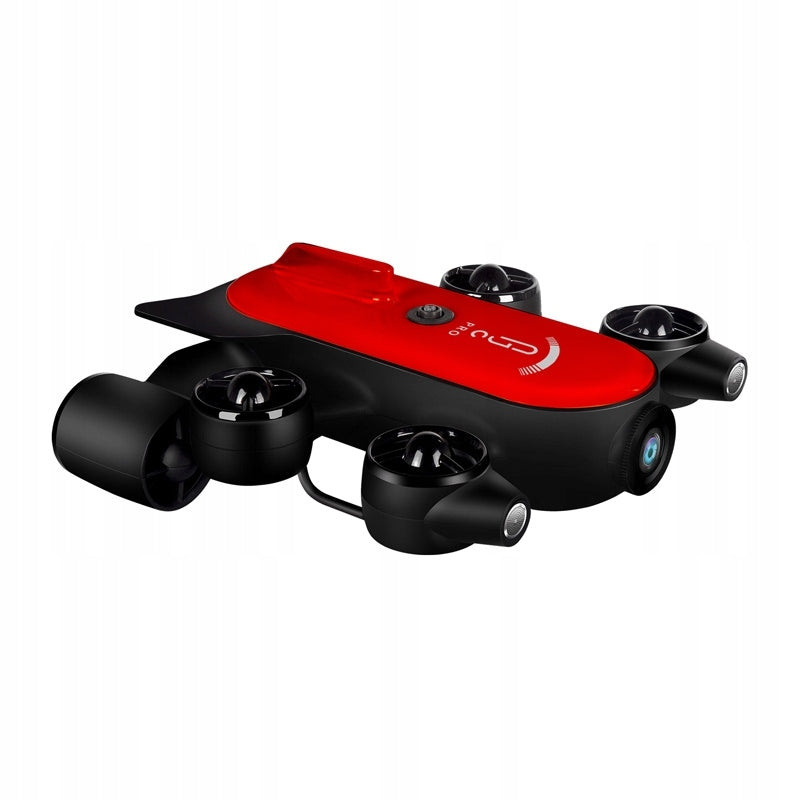

Geneinno T1-Pro 150m 4K UHD Underwater Drone

The Geneinno T1-Pro is a versatile underwater drone designed for professional and research tasks. Thanks to the possibility of diving to a depth of up to 150 meters and durable construction, the device is ideal for inspection of hulls, wrecks, aquaculture monitoring or seabed exploration. The unique azimuth control system ensures stability and precision manoeuvring even in strong currents with speeds of up to 4 knots. Note: The gripper shown in some photos is not included.

High-quality 4K image and precise photos

The drone is equipped with a 4K camera based on a 1/2.3” SONY CMOS sensor, which captures video at a resolution of 4000 x 3000 pixels at 30 frames per second and photos in 12 MP quality. The wide-angle lens with a 160° field of view and EIS Anti-Shake technology guarantee stable, clear shots, even in difficult underwater conditions. T1-Pro supports JPEG, RAW, and DNG formats, enabling advanced photo editing when missions are complete.

Advanced sensors and versatility of applications

The Geneinno T1-Pro is equipped with IMU sensors with a 6-axis gyroscope, accelerometer and 3-axis compass that provide precise control in 6 degrees of freedom. The depth sensor operates with an accuracy of ±0,05 m and the temperature sensor with a precision of ±0,5°C.

Long working time and durable battery

With a powerful 9000 mAh battery, the Geneinno T1-Pro offers up to 4 hours of continuous use. The battery charge time is only 3 hours.

Smart lighting and durable cable

The drone is equipped with two LED headlights with a power of 1500 lumens each. The beam angle is 60° and the color temperature is 4500K, which ensures natural color reproduction underwater. The cable with a diameter of 4,5 mm, withstanding a load of up to 100 kg, allows safe exploration up to 200 meters.

Intuitive operation and live streaming

The Geneinno T1-Pro can be controlled with a dedicated 2.4 GHz controller that allows you to view the image on your smartphone or tablet in real time in Full HD 1080p. With the Geneinno App, the user can track the exact route of the drone and receive notifications about its status. Built-in 5GHz and 2.4GHz Wi-Fi provides a stable connection at a distance of up to 50 meters, and the wireless relay allows you to work for more than 10 hours.
