Trumpai apie prekę
Prekė: Pneumatinis sniego žmogaus keltuvas 4000 kg mėlynas 400 mm. Kategorija: Pneumatiniai keltuvai.
- Gamintojas: no brand
- Modelis: M18070

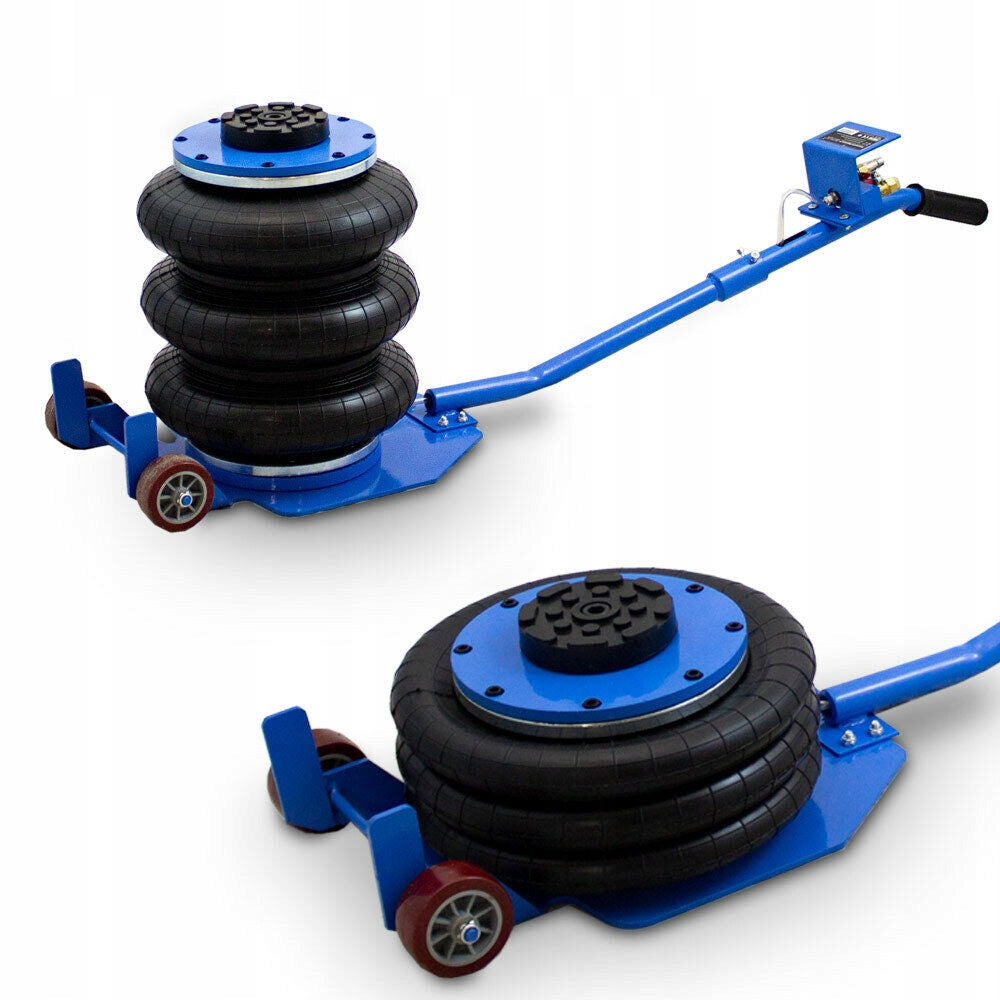

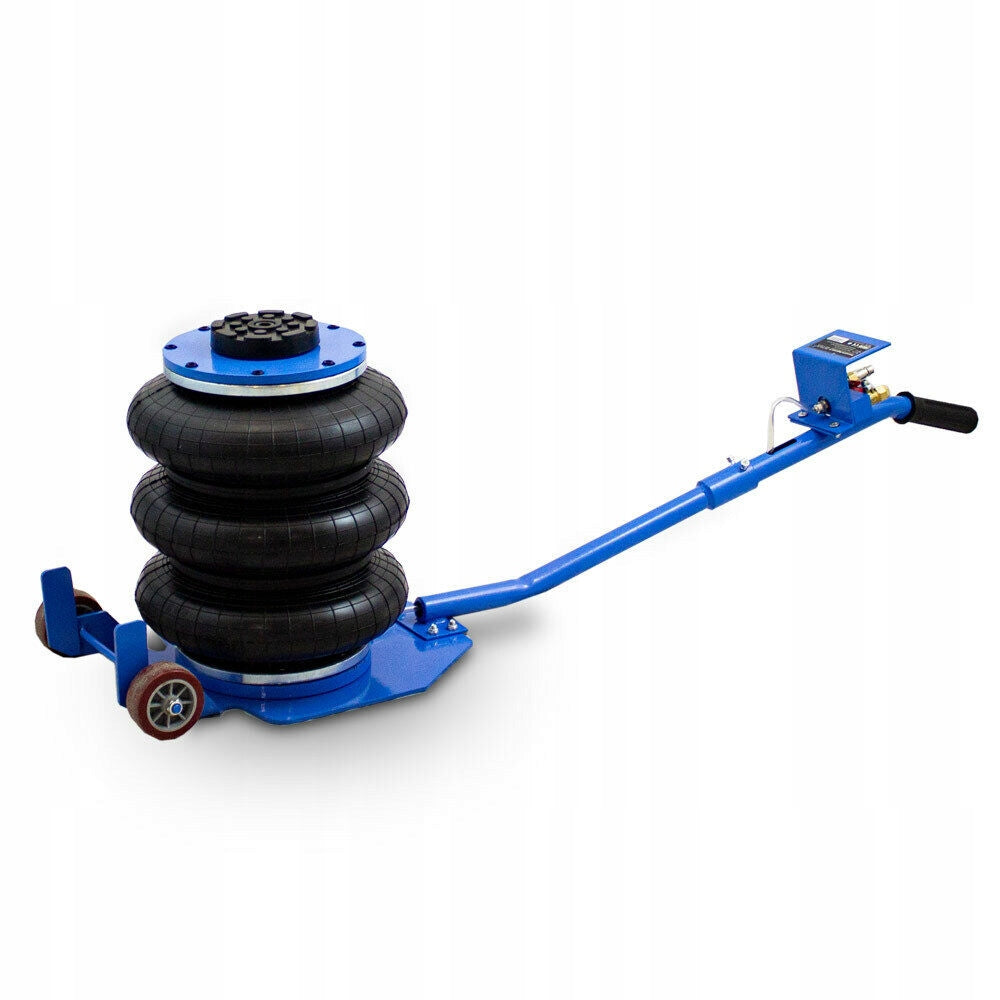

The "snowman" type pneumatic jack is a practical and efficient tool designed for quickly lifting vehicles. Thanks to the use of three air bags and a solid construction, it allows for safe and stable lifting of a car using compressed air.
➡️Very wide working range 130-430 mm - allows work with both low passenger cars and higher vehicles. The widest range in the budget up to 300 zł!
➡️Lifting capacity up to 3.5 tons - allows safe lifting of passenger cars, SUVs, and light commercial vehicles.
➡️Fast pneumatic lifting - using compressed air allows you to lift a vehicle in seconds without much physical effort.
➡️3-segment air bag - the three-bag design ensures stable, even lifting and greater durability of the device.
➡️Transport wheels - facilitate quick movement of the jack in the workshop or garage.
➡️Large air bag diameter 270 mm - a wide support surface increases vehicle stability during lifting.
✳ Set includes:
- 1x Pneumatic lift 3,5T
- 1x Set of screws
- 1x Guide handle
- 1x Pneumatic controller
- 1x User Manual
✳ Wide lifting range - from 13cm up to 43cm!
The lift offers a lifting range from 130 mm to 430 mm, which allows for comfortable work with different types of vehicles. The low initial height allows the lift to be inserted under cars with low clearance, such as passenger cars or sports cars.
After maximum unfolding of the cushions, the lift reaches a height of 430 mm, which provides adequate space for service work, such as wheel replacement, suspension repair or chassis inspections.
✳ Specification
- Lift type: pneumatic (cushion/snowman)
- Leverage: 3,5 t
- Minimum lifting height: 130 mm
- Maximum lifting height: 430 mm
- Cushion diameter: 270 mm
- Working pressure: 0,6 - 1 MPa
- Operating temperature range: from -35°C to 50°C
- Air inlet: 1/4"
- Number of pillows: 3
- Control: air valve in the handle
- Power supply: compressed air from compressor
- Construction: steel frame with transport wheels

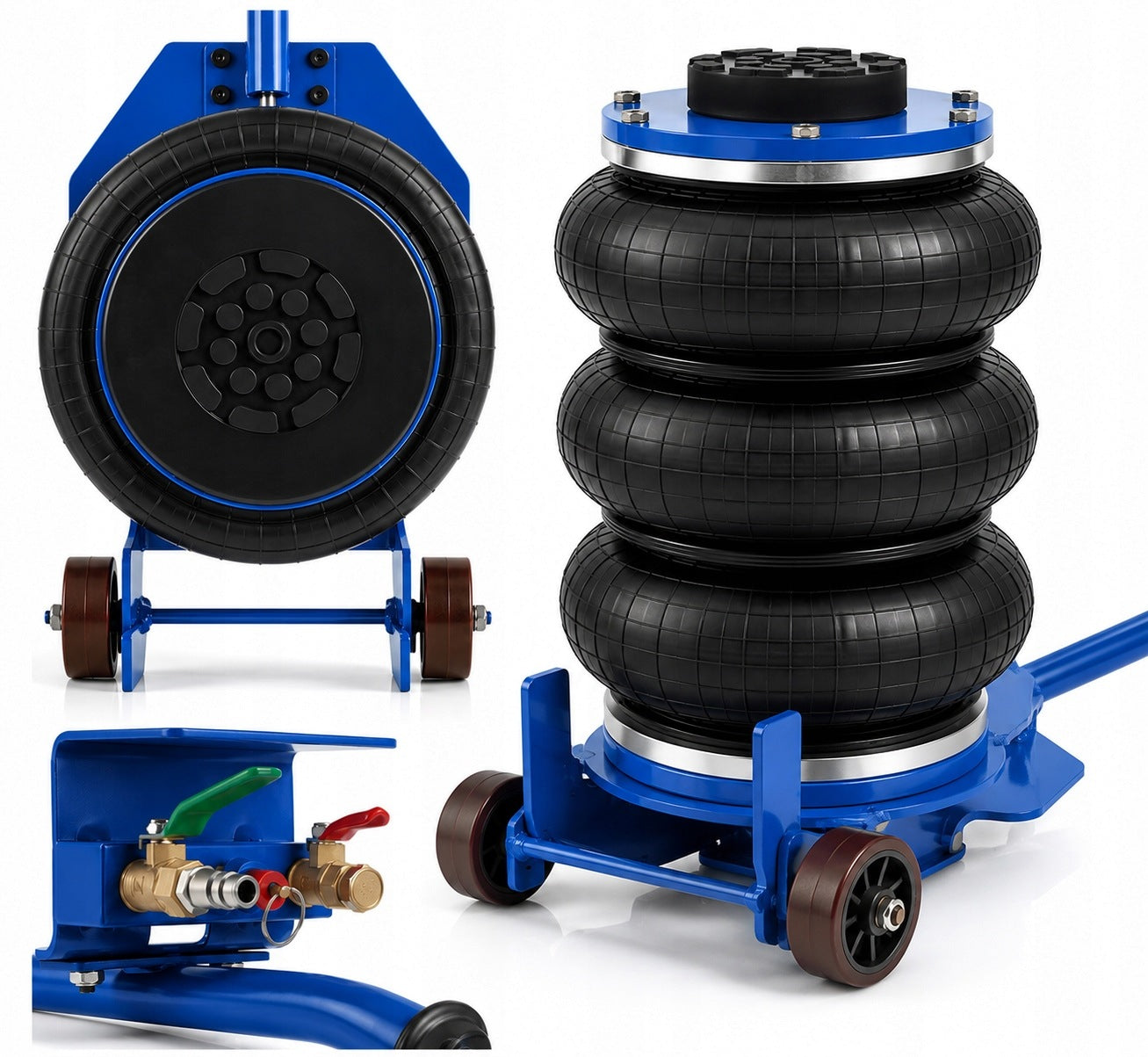

✳ Pneumatic mechanism
The lift is equipped with pneumatic valves, which allow easy control of the compressed air supply to the cushions. Thanks to them, the user can easily control the process of lifting and lowering the vehicle.
Valves allow for quick filling of airbags, which translates into dynamic lifting of the car. At the same time, they allow gradual release of air, thanks to which leaving the vehicle is smooth and safe.
The lift can be easily connected to a compressor with a maximum pressure of up to 10 Bar, which ensures wide compatibility with most workshop compressors.
- Green valve (power supply) - is responsible for bringing compressed air to the cushions, thanks to which the lift lifts the vehicle.
- Red (drain) valve - allows air to be released from the cushions, which causes the lift to leave.
- Safety valve - protects the device from too high pressure.
✳ Lifting capacity up to 3,5 t
The pneumatic lift offers a maximum lifting capacity of up to 3,5 tons, which allows for safe lifting of most passenger cars, SUVs and light commercial vehicles. With its sturdy construction and durable airbags, this device ensures a stable and even lift for your vehicle.
✳ Wide cushion 270 mm
The lift is equipped with a wide cushion with a diameter of 270 mm, which provides a large contact area with the vehicle chassis. Thanks to this, the lifting is more stable and the pressure is distributed evenly, which increases safety during operation.
The large diameter of the cushion minimizes the risk of the lift shifting and improves control when lifting the vehicle. Additionally, the rubber surface protects the chassis components from damage and prevents the support point from slipping.
✳ Transport wheels and the possibility of vertical positioning
The lift is equipped with practical transport wheels, which greatly facilitate its movement in the workplace. Thanks to them, you can quickly and conveniently move the device to the desired place without having to lift the entire lift.
The lift is designed in such a way that it can be positioned vertically, which makes it much easier to store. This takes up less space in the garage, workshop or trunk of the car.
✳ Application
The pneumatic lift with a lifting capacity of up to 3,5 t is designed for lifting a wide range of vehicles, making it suitable for both the workshop and the home garage.
Suitable for:
- passenger cars - sedans, hatchbacks, station wagons
- SUVs and crossovers
- vans and minivans
- light commercial vehicles (e.g. buses)
- off-road vehicles
- fleet and company vehicles
Thanks to the low initial height of 130 mm, the lift can also be inserted under cars with lower suspension, and the maximum height of 430 mm provides convenient access to the chassis during wheel changes, suspension repairs or service work.
✳ Working with mare
The pneumatic lift is perfect in combination with workshop supports (so-called bubbles). After lifting the vehicle, it can be safely positioned on the supports, which provides stable support during service work.
This solution increases safety and comfort, especially during longer repairs, replacement of suspension components or work on the chassis. The lift allows you to quickly lift the car, and the mare keeps the vehicle in a stable position throughout the repairs.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 6 kg |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | M18070 |
| Parametry | EAN (GTIN) | 4250394552104 |
| Parametry | Lifting capacity | 3500 kg |
| Parametry | Minimum lifting height | 130 mm |
| Parametry | Maximum lifting height | 430 mm |
