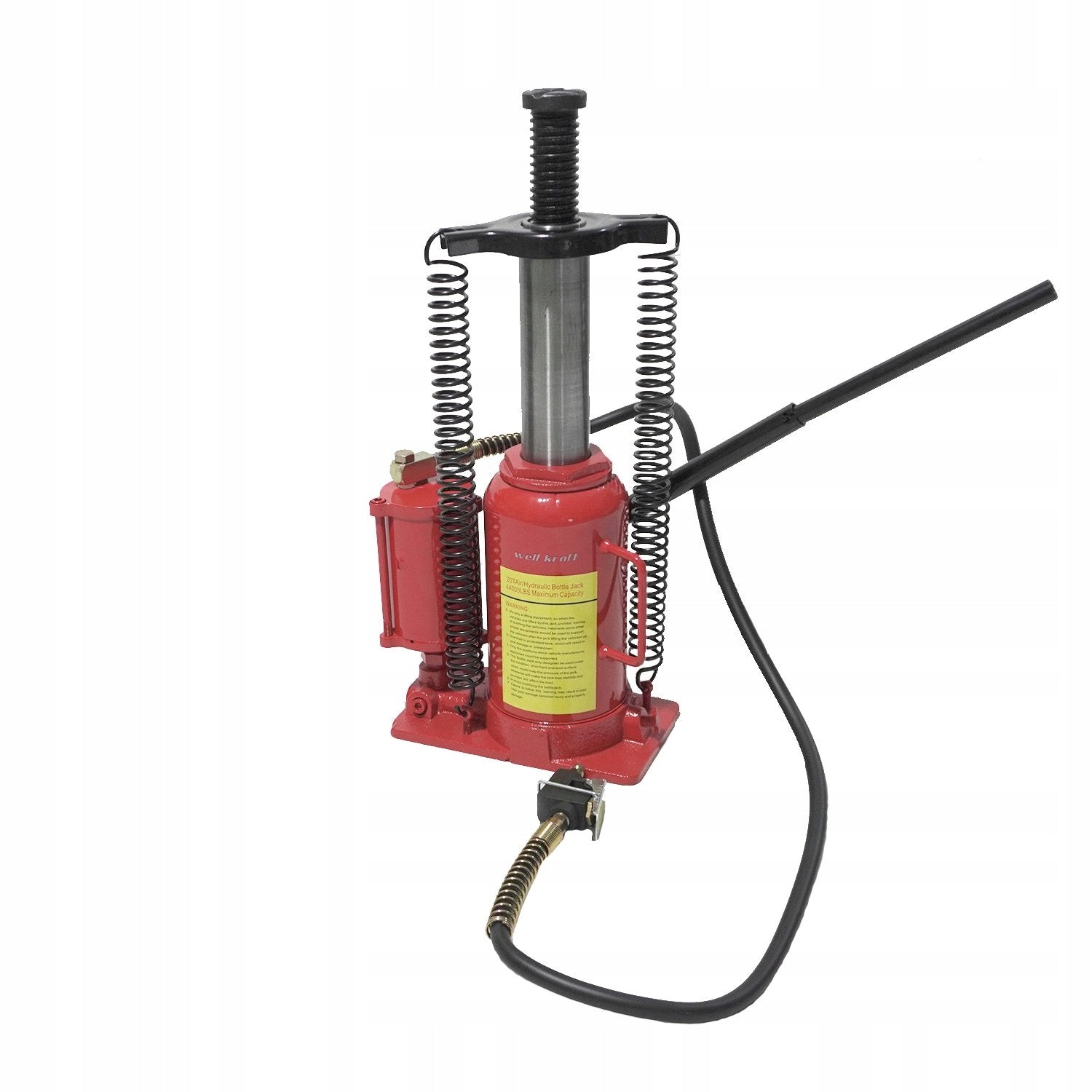

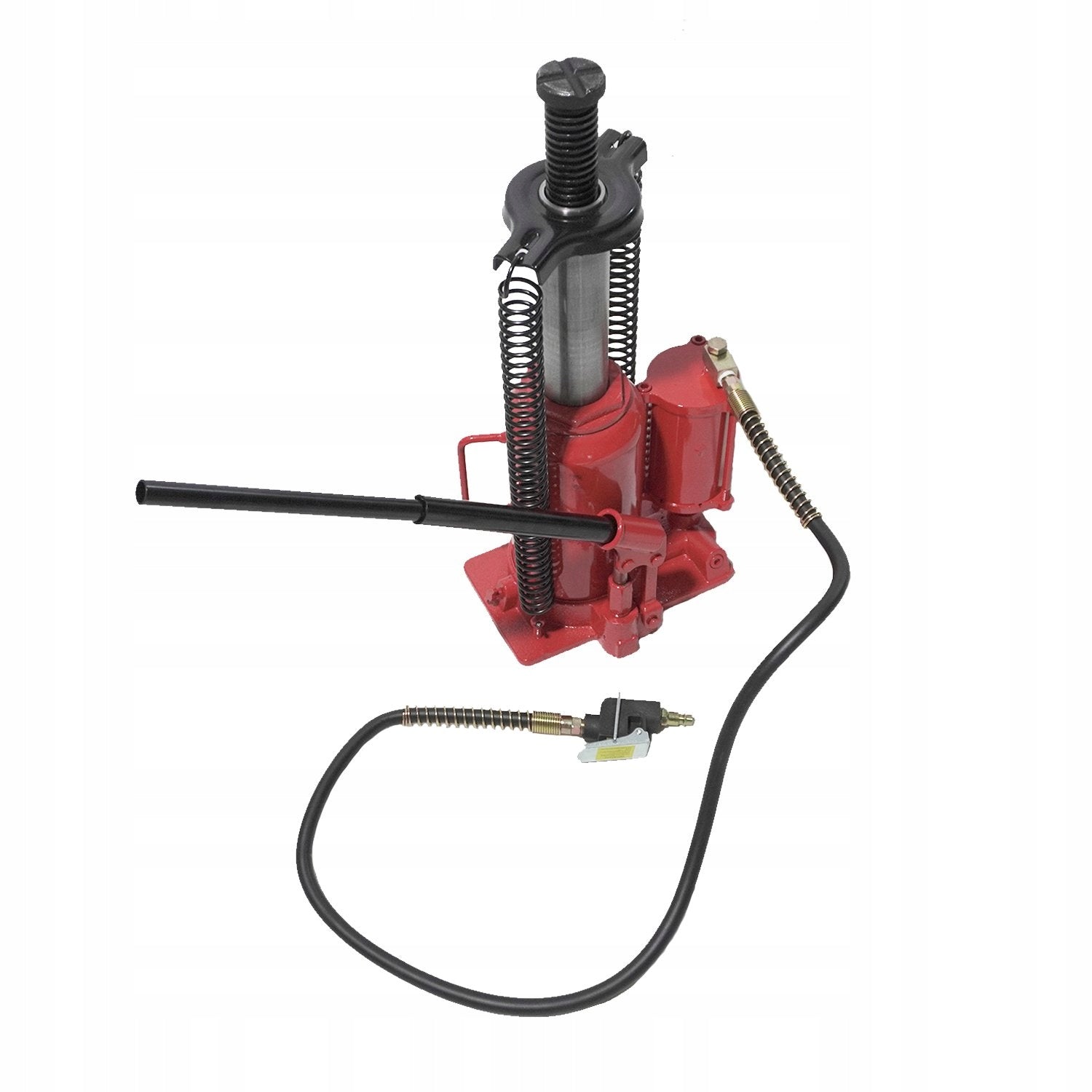

Pneumatinis-hidraulinis butelinis keltuvas 20T Well Kraft HW ABT20

Trumpai apie prekę

Prekė: Pneumatinis-hidraulinis butelinis keltuvas 20T Well Kraft HW ABT20. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Well Kraft
• Modelis: 007518

Single-beam lift 20t HW ABT20 is designed for various types of assembly and construction work, it will be useful wherever you need to lift a load. Suitable for lifting cars and other heavy loads weighing up to 20 tons.

Thanks to its high efficiency, it does not require much effort from the operator, unlike the mechanical type of lift. This model provides excellent lifting capacity with relatively small dimensions.

The single bar lift has a simple design and works on the principle of connected vessels. When operating the hand lever with a pump, the liquid is under pressure in the working cylinder, the pressure increases, and the piston with the load rises. In this way, up to 80 percent of the effort used is converted into useful work. Smooth lifting of loads is also ensured by the incompressible properties of the lubricant.

The lift features a sturdy metal construction and a chrome-plated shank (piston) for reliability and long life. The lift is equipped with a convenient and durable filling handle for maximum comfort. The rod bracket has a ribbed surface for better load grip and preventing it from slipping

• Important! The bottle lift should only be stored and transported in an upright position, otherwise oil leakage may occur.
• It is strictly forbidden to lift a load weighing more than specified in the specification.
• Please note that the lift is intended only for lifting and lowering the vehicle, not for holding it. After lifting the car, a special stand should be placed under it so that the lift is not loaded.
• It is recommended to fill the lift with heather oil or industrial oil I20, which should be replaced every 6 months.

• Article: 007518
• Bearing capacity, kg: 20000
• Lifting height, mm: 455.0000
• Length of stroke of the rod, mm: 150
• min. height, mm: 245
• Screw insert stroke, mm: 60
• Total height of product, mm: 245.0000
• Total width of product, mm: 144.0000
• Total product length, mm: 150.0000
• Weight, kg: 10.6000

Specifications
