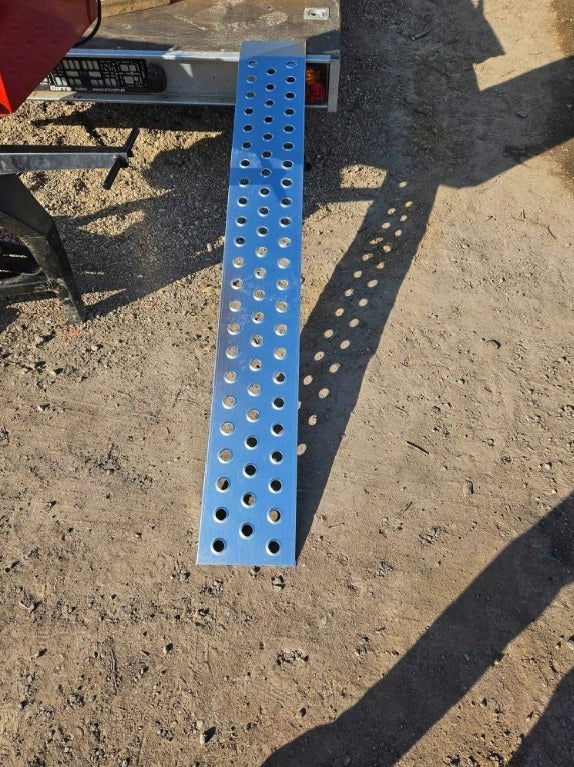

Plieninės rampos 198 cm

Trumpai apie prekę

Prekė: Plieninės rampos 198 cm. Kategorija: Rampos.

• Gamintojas: DK
• Modelis: 1980210

ATTENTION!! The price is for one piece.

Our inruns are made of galvanized steel with a thickness of 2mm - thicker material, and thus more durable and stronger than most competitive auctions.

Specially designed round stamping with a diameter of 28.8 mm. and their arrangement significantly increase rigidity and guarantee very good grip.

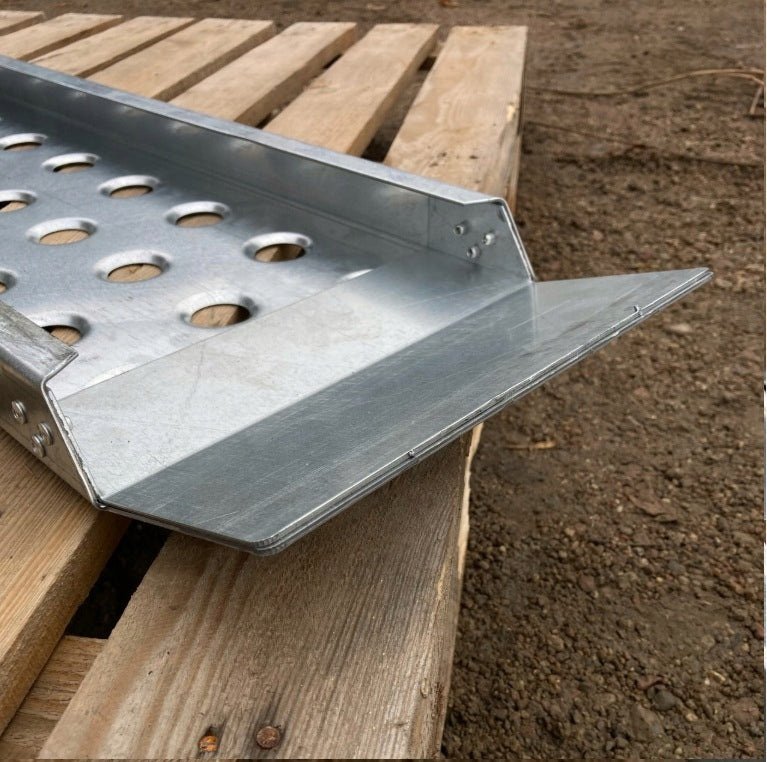

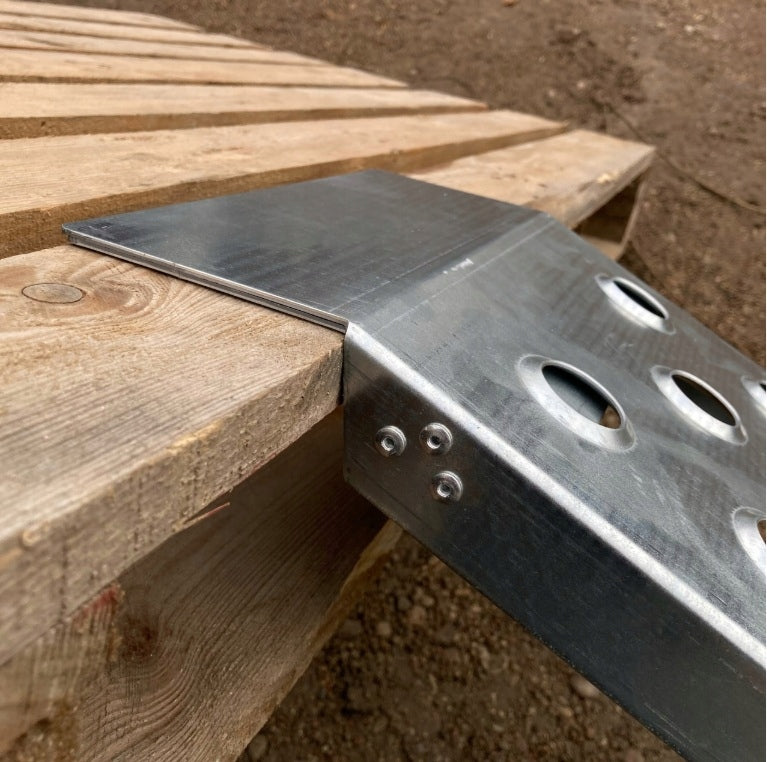

Raids with a length of 198 cm, a width of 21 cm and a height of 4,5 cm are finished with a 10 cm protrusion, which is reinforced from the bottom with an additional 2mm sheet. Thanks to the bends and reinforcements made, the strength of one inrun is 360 kg (2 inruns 720 kg)

Technical data:

- Overall dimensions 198 (including 10cm protrusion)x21x4,5 cm

- Load capacity of 720 kg

- 2mm galvanized sheet material.

- weight of one overrun 9.3 kg

The last two photos show an incoming tractor weighing more than 800 kg after raids from another auction, namely 200 cm.

Invasions at our other auctions with lengths over 160cm have an additional sheet metal installed and each of them will allow you to enter with such heavy equipment.

We make custom-made ramps of various lengths, widths and different payloads, from different thicknesses of steel and aluminum sheets. Inruns with much higher strength are strengthened by welding the profile and transverse ribs. We can also make bends for individual orders.

Welcome to purchase.

Specifications
