Plazminis pjovimo aparatas Sherman CUTTER 90, 3x400V

Trumpai apie prekę

Prekė: Plazminis pjovimo aparatas Sherman CUTTER 90, 3x400V. Kategorija: Plazminiai pjovimo aparatai.

• Gamintojas: Sherman
• Modelis: SINW-CUTTER90
• Ilgis: 635 mm
• Plotis: 455 mm
• Aukštis: 515 mm

SHERMAN PLASMA CUTTER 90

Brand: Sherman | Power supply: 400V | Cutting current: 85A | Efficiency: 60% | Max. cutting thickness: 30mm |

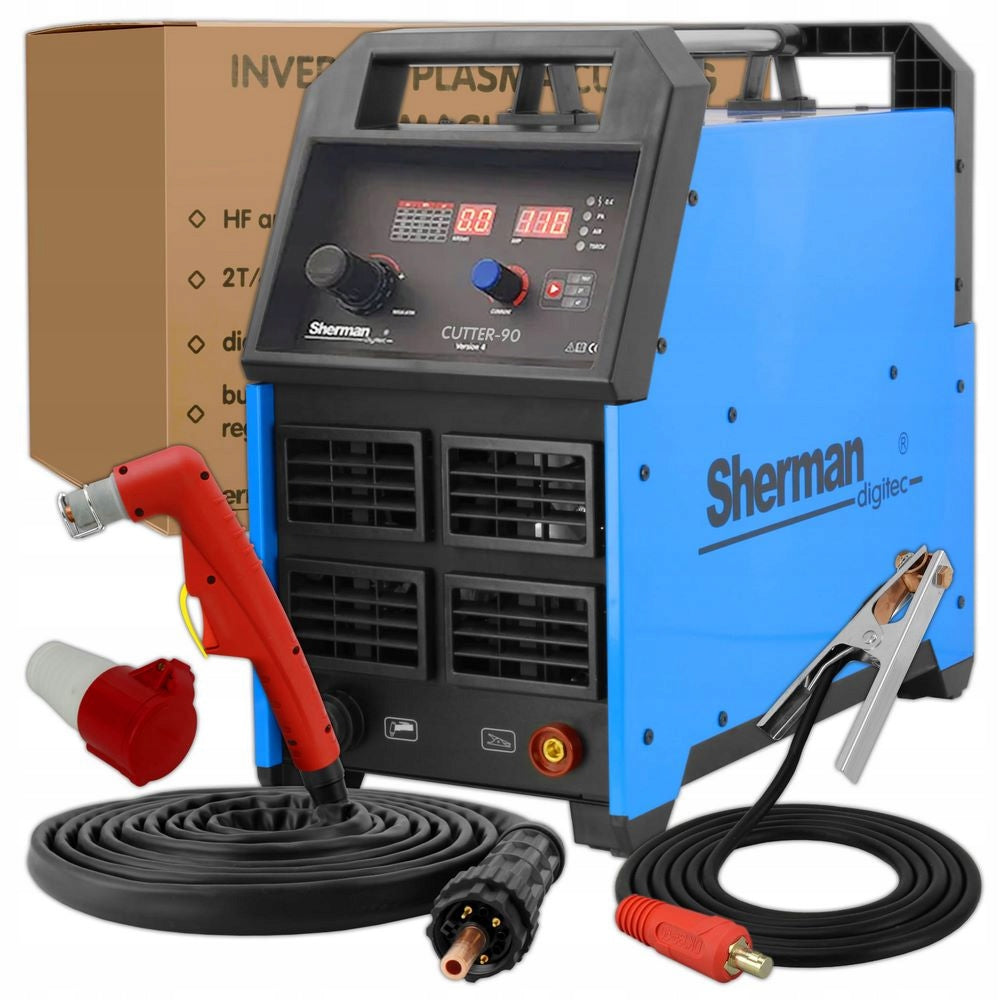

STANDARD EQUIPMENT

• Sherman Plasma cutter CUTTER 90

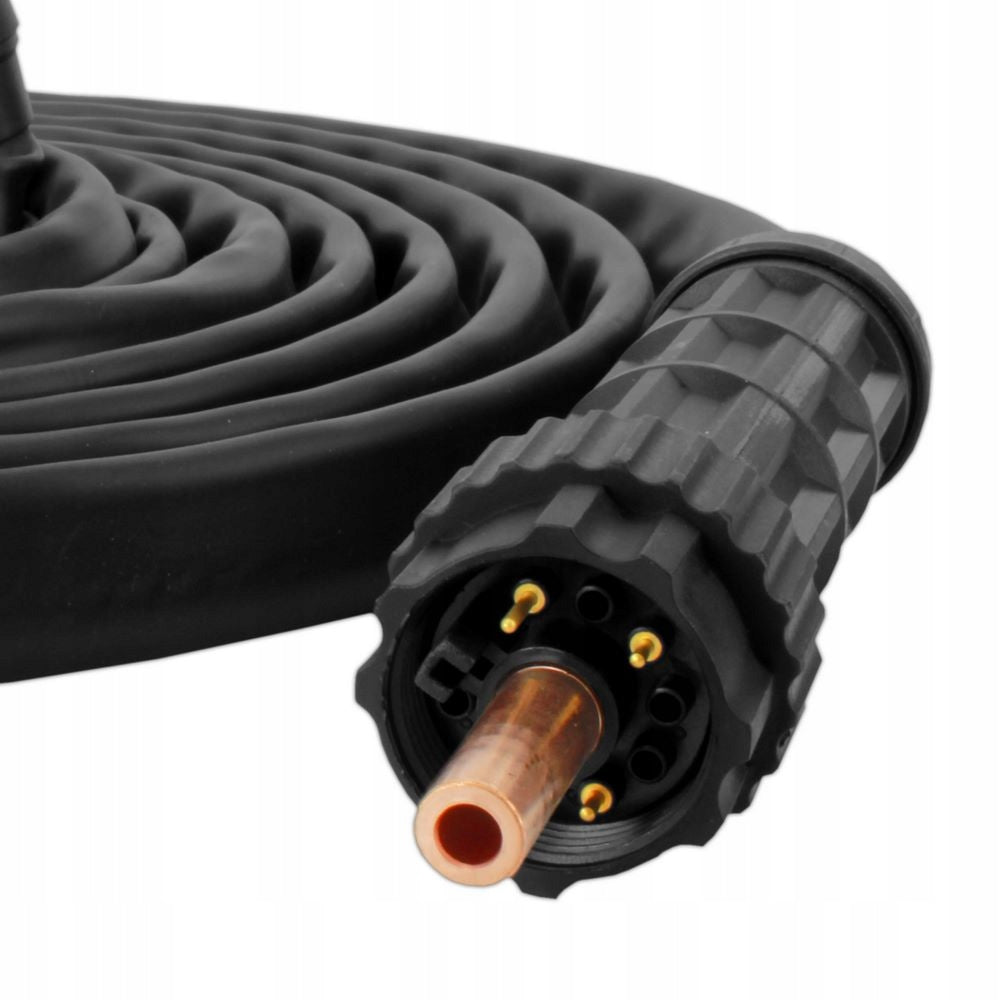

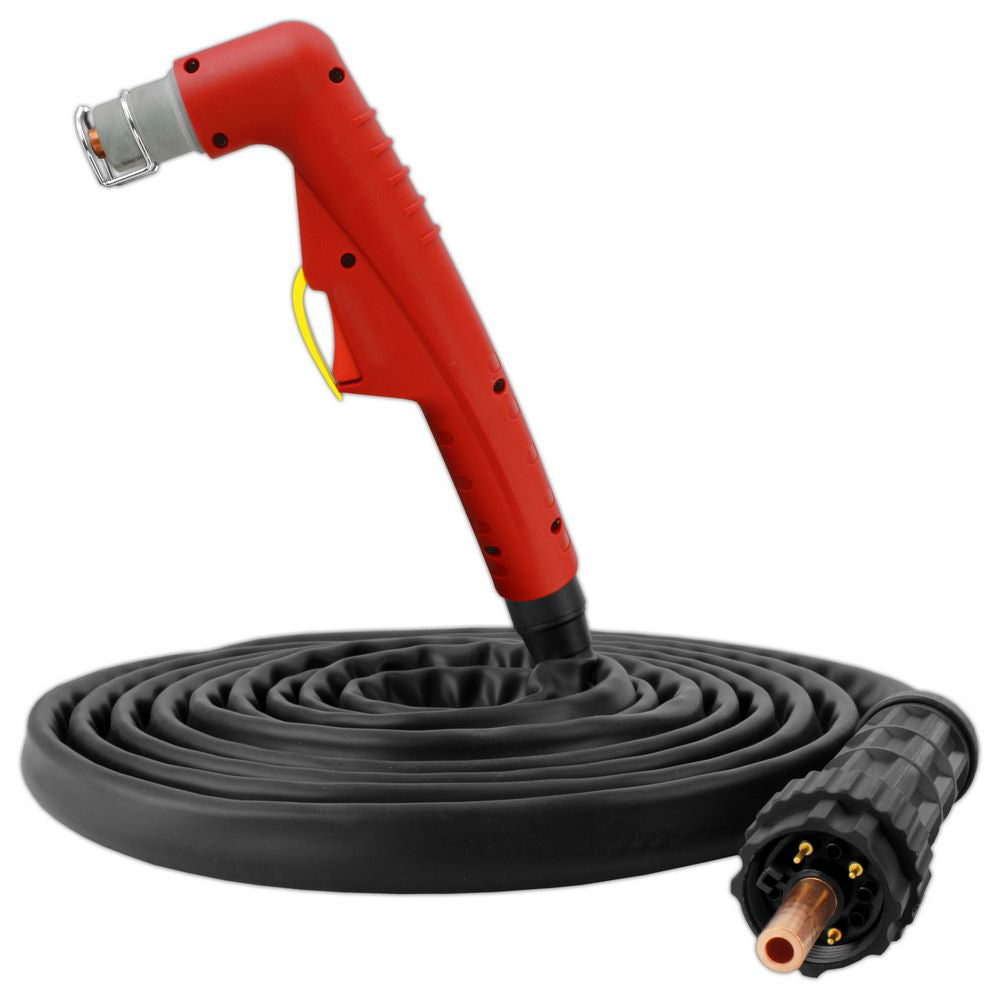

• Plasma cutting handle A-81/6m
• Mass cable
• Operating instructions
• Packaging

Other accessories needed for full operation of the cutter, such as:

• Vogelmann Electrode A-81
• Vogelmann Nozzle 1,1mm A-81
• Vogelmann Swirling ring A-81
• Vogelmann Protective sleeve A-81

You can find us at other auctions.

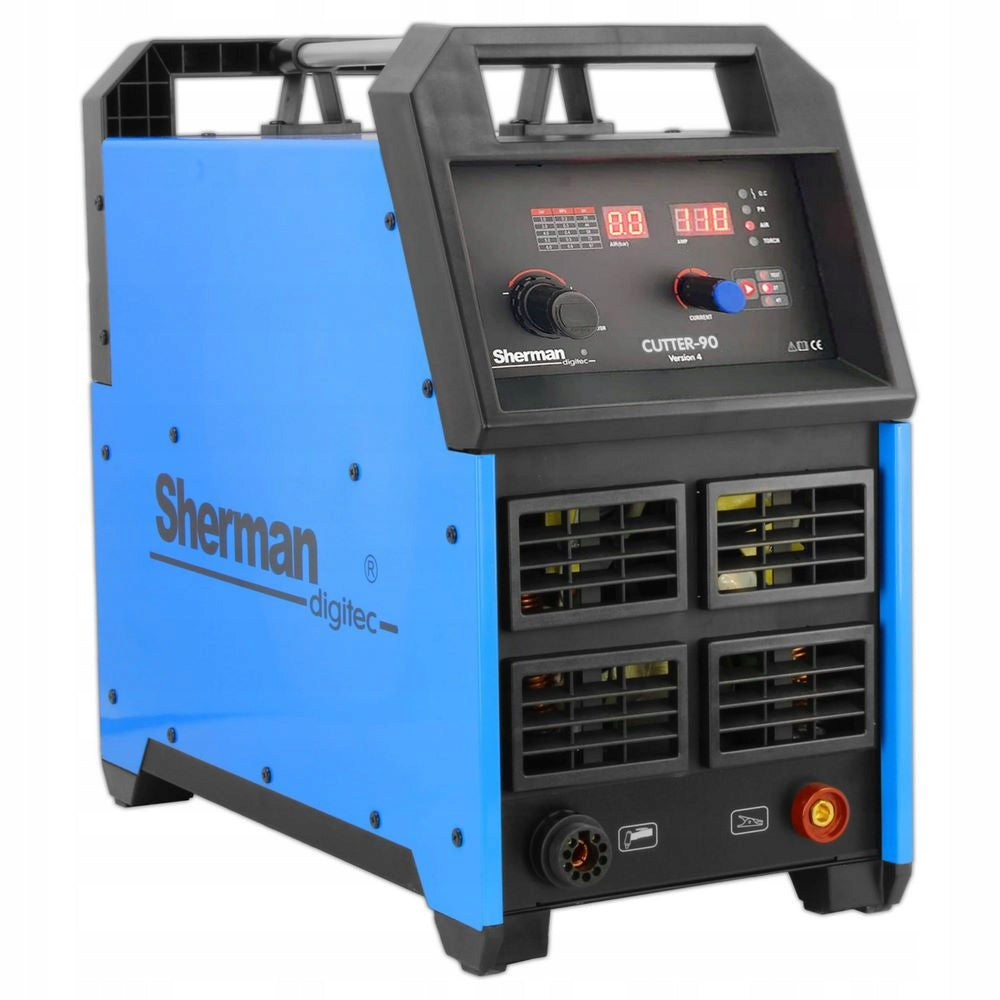

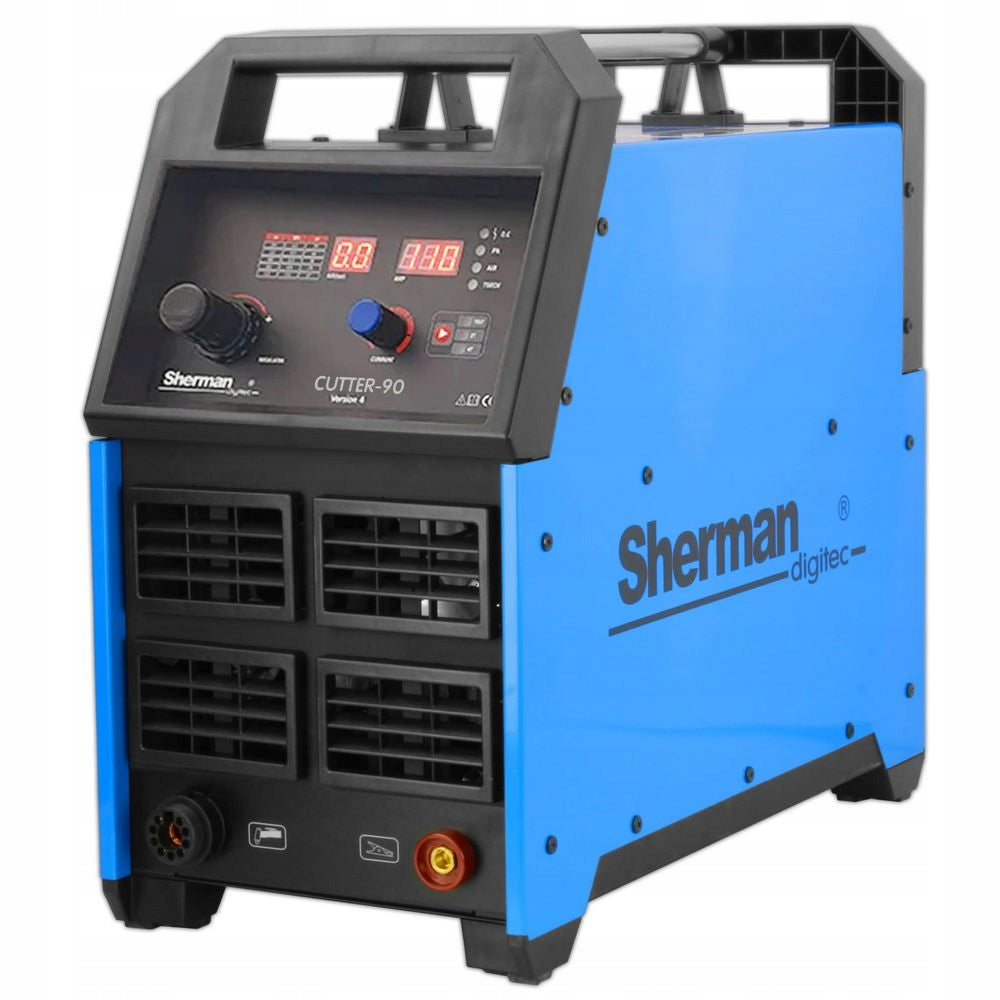

CUTTER 90

It belongs to a new series of devices made in the IGBT 200kHz technology for air plasma cutting of sheet metal and steel, aluminum and copper elements.

The equipment is recommended mainly for professionals in plants with high use of cutting processes.

It is used in closed or covered rooms, not exposed to direct atmospheric influences.

The device has a 6m handle with HF pilot arc ionization and a built-in air preparation unit with a reducer and pressure gauge for adjusting and controlling air pressure from the control panel.

The cutter is equipped with a 2T/4T switch and a TEST function for checking and cleaning of the air installation.

TECHNICAL DATA:

• Catalog number: SINW-CUTTER90
• Power supply voltage [V]: AC 3x400 50Hz
• Execution technology: IGBT
• Cutting current [A]: 85
• Working cycle [%]: 60
• Max. cutting thickness [mm]: 30
• Max. power consumption [A]: 18,7
• Max. power consumption [kVA]: 7,5
• Method of brewing: HF
• Mass [kg]: 29
• Dimensions (D x SZ x W) [mm]: 635 x 455 x 515
• Functions: HF, 2T/4T, Pilot Arch, TEST
• Recommended compressor capacity [m3/min]: 0,25

IGBT TECHNOLOGY

Technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

PROTECTION AGAINST OVERHEATING

The power source is equipped with a thermal, automatic overload switch. When the temperature of the cutter is too high, protection will disconnect the cutting current and the overheating diode will light up. After the temperature drops, the circuit breaker will automatically reset.

MAXIMUM CUTTING THICKNESS 30mm

The value of the maximum cutting thickness was determined under optimal cutting conditions of ordinary quality carbon steel. In order to select the right device, it is recommended to perform technological tests in real working conditions and on an example sample of material.

ARC GLOW HF

Built-in contactless initiation arch pilot system without high frequency. It provides excellent quality cutting, with extended service life of consumable parts.

WORK CYCLE

The work cycle is based on a 10-minute period. Working cycle 60% means that after 6 minutes of operation of the device, a 4-minute break is required. 100% duty cycle means that the device can work continuously, without interruptions

OPERATING MODE 2T

To start cutting, press the micro switch, which starts the plasma arc. Release of the micro switch will stop the cutting process.

OPERATING MODE 4T

To start cutting, press and release the micro switch. Stopping of the cutting process will occur after pressing and release of the micro switch again.

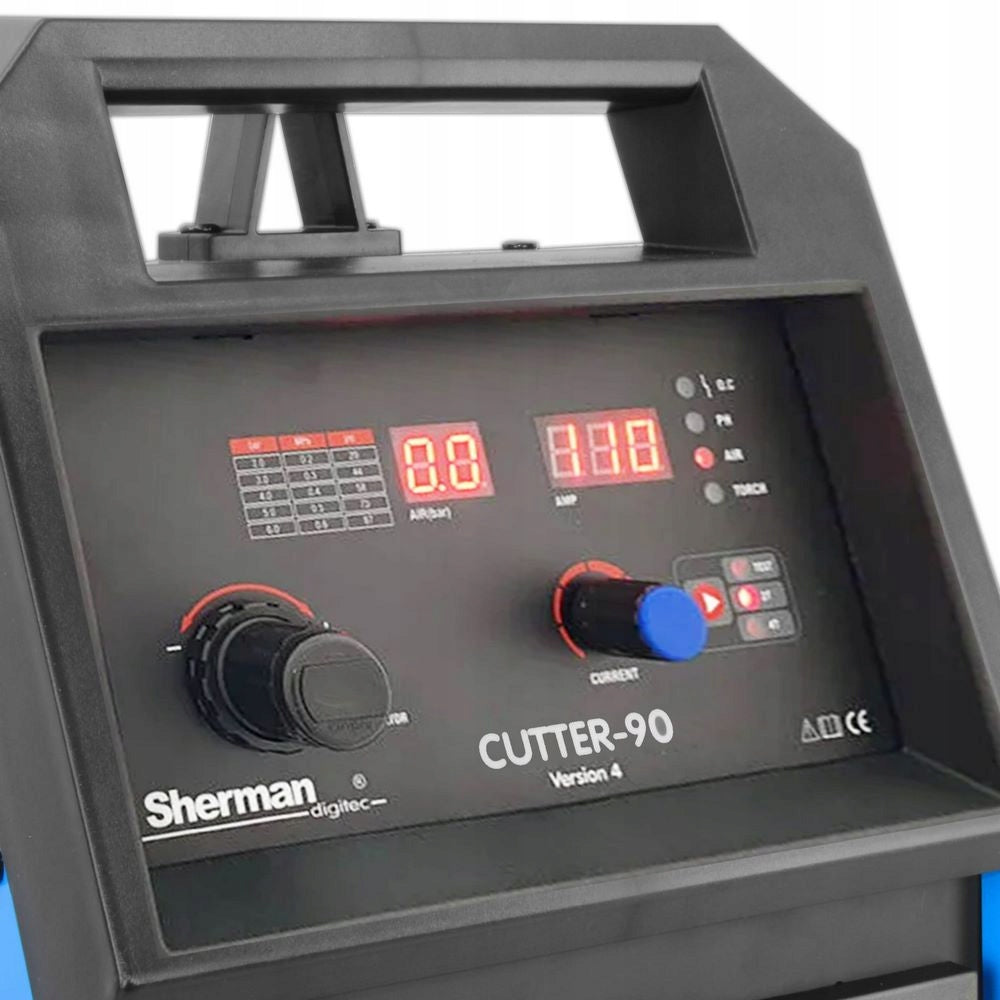

INTUITIVE DISPLAY

The panel of the device with LCD display is fully user-friendly and provides clear current indications.

EASY TRANSPORT

Small dimensions and light design make it easy to take the devices anywhere in the workplace.

STRONG AND ROBUST CONSTRUCTION

The housing of the device is made of durable composites, resistant to all kinds of mechanical damage.

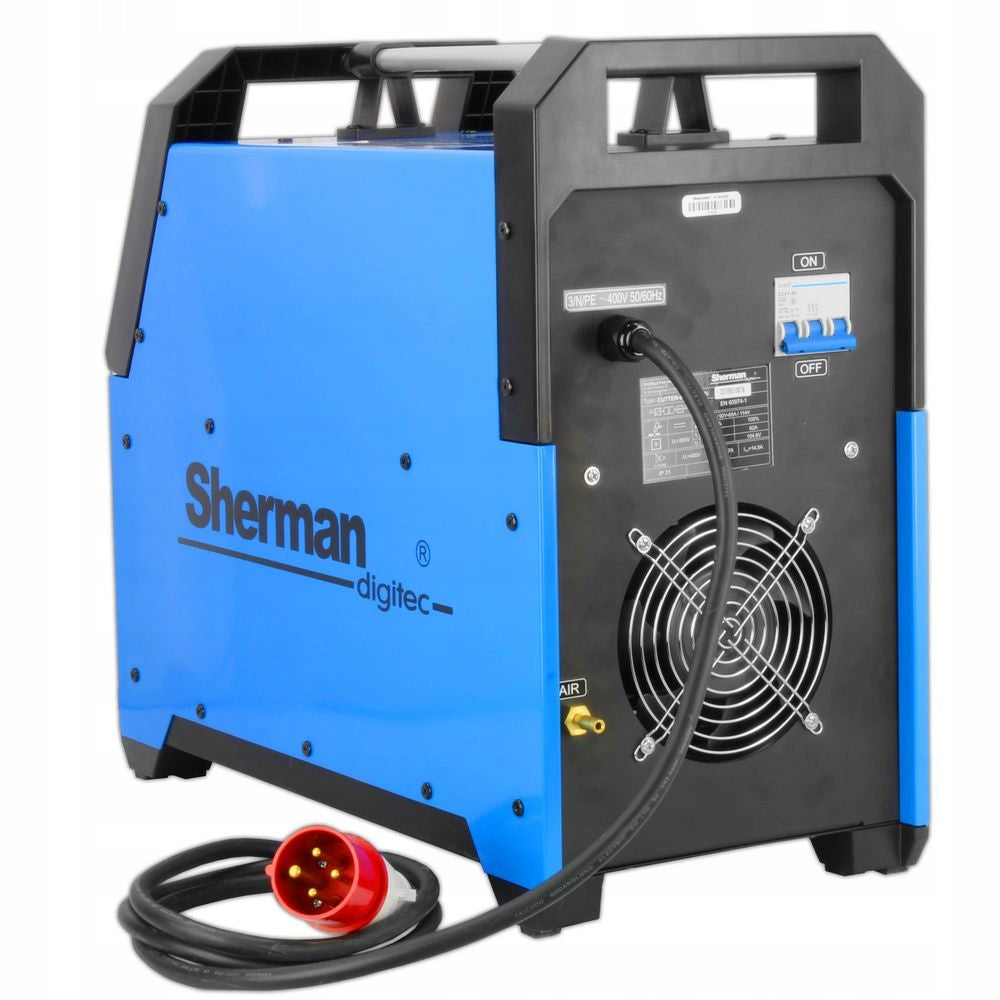

COOLING

The device has a cooling system fan which definitely increases its efficiency
