Trumpai apie prekę
Prekė: Plazminis pjoviklis MAGNUM AIR PLASMA 45 HF 230V IGBT AG-60. Kategorija: Plazminiai pjovimo aparatai.
- Gamintojas: Magnum
- Modelis: U P AIR 45 HF

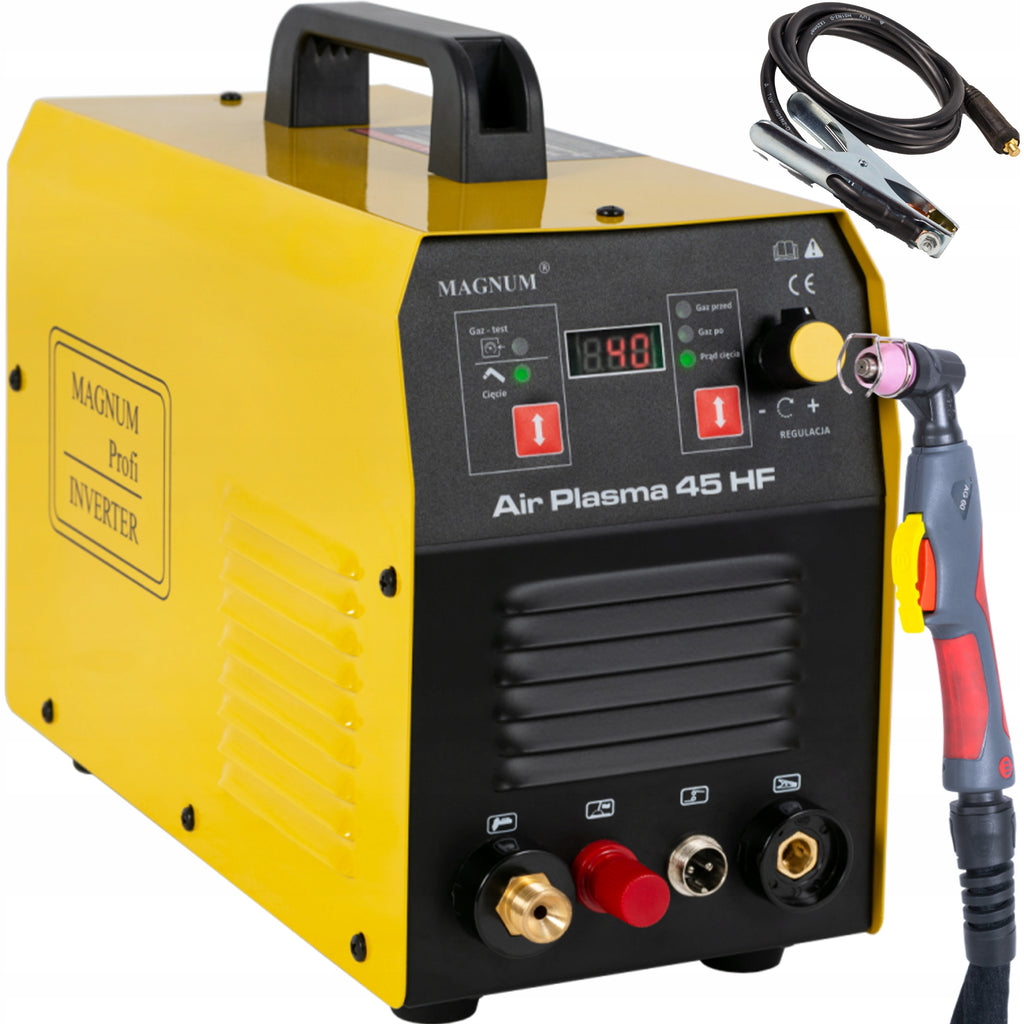

🔥AIR PLASMA 45 HF cutter

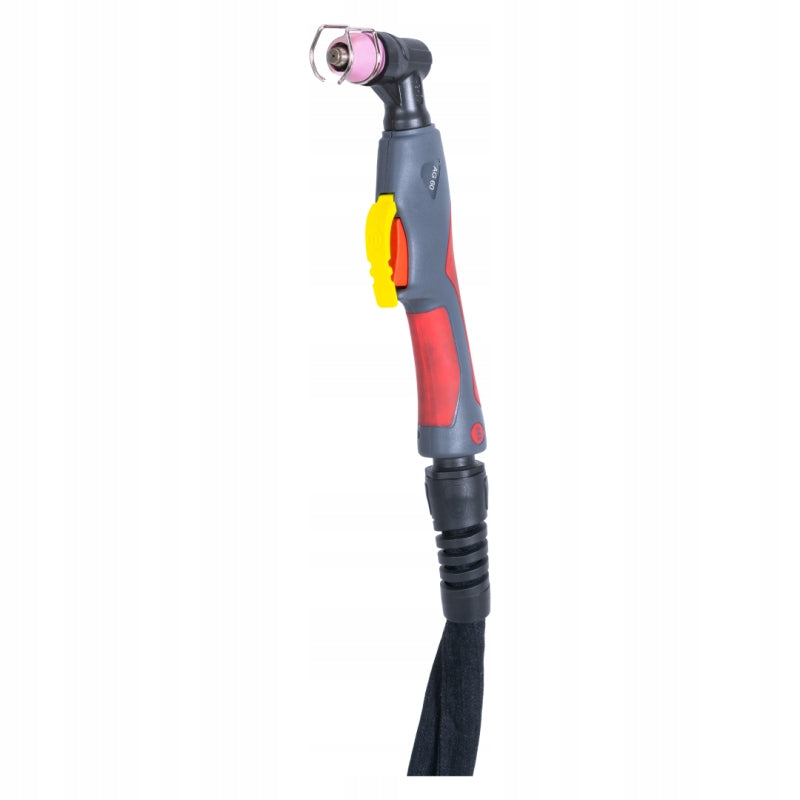

🔥Plasma cutting handle AG-60
🔥Air hose
🔥Bulk cable with clamp
🔥Reducer filter
The modern plasma cutter MAGNUM AIR PLASMA 45 HF is a compact and efficient device designed for manual and machine air plasma cutting. Ideal for workshop, production, renovation and scrap metal cutting.
The device enables precise cutting of electrically conductive materials:
✅carbon steel
✅alloy steel
✅Aluminium and aluminium alloys
✅brass
✅copper
✅cast iron
🔥Contactless arc HF – quick start, no tip wear
🔥Pilot arc – stable cutting also on painted / soiled surfaces
🔥IGBT technology – high efficiency, lower energy losses
🔥Low power consumption
🔥Smooth cutting current adjustment
🔥Regulation of gas outflow before / after cutting
🔥Thermal protection
🔥Low weight and compact size
✅Separating cutting of structural steel: max. 15 mm
✅Quality cutting: max. 8 mm
🔥Cutting current: 20 – 40 A
🔥Efficiency: 60%
🔥Power supply: 230 V / 50 Hz
🔥Power protection: 25 A
🔥Power consumption: 5,5 kW
🔥Arc glow: HF contactless + pilot arc
🔥Air pressure required: 4,5 – 5 bar
🔥Air consumption: 160 l/min
🔥Protection rating: IP21S
🔥Cooling: fan
🔥Idle voltage: 280 V🔥Net weight: 6,8 kg
✅locksmith workshops
✅production and industry
✅renovation work
✅service and maintenance
✅cutting scrap
✅hobby / DIY
🔥Stable arc and high cutting quality
🔥Modern IGBT technology
🔥Contactless HF glow
🔥Compact and lightweight design
🔥Very good value for money
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Welding methods | plasma cutting |
| Parametry | Power consumption | 5.4 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Device weight | 6.8 kg |
| Parametry | Welding range | 20–40 A |
| Parametry | Maximum cut width | 15 mm |
| Parametry | Air pressure | 5 bar |
| Parametry | Cutting current | 40 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 8 kg |
| Parametry | Manufacturer code | U P AIR 45 HF |
