Plastiko suvirinimo aparatas su kabučių tvirtinimo įrenginiu, 400 kabučių, 8786D

Trumpai apie prekę

Prekė: Plastiko suvirinimo aparatas su kabučių tvirtinimo įrenginiu, 400 kabučių, 8786D. Kategorija: Plastiko suvirinimo aparatai.

• Gamintojas: Technet
• Modelis: SPAWARKA I ZSZYWARKA DO PLASTIKU 8786D 960V

⭐8786D Plastic Welding Machine with Tip Soldering Iron ⭐ 85W⭐ 960V Stapler

⭐ Most popular plastics - 6 types of 300g. Each in 2 shapes: strip, triangle

⭐ Long nozzle bent at an angle of 45° for welding in hard-to-reach places

⭐ Staples for joining stainless steel plastics - 4 types 400pcs.

⭐ Guide "Welding plastics" in paper version

⭐ BUT nozzle for fast drawn welding

⭐ Additional T-K tip for pre-joining cracks

⭐ Grids strengthening the connection place 2pcs.

⭐ Solid staple cutters

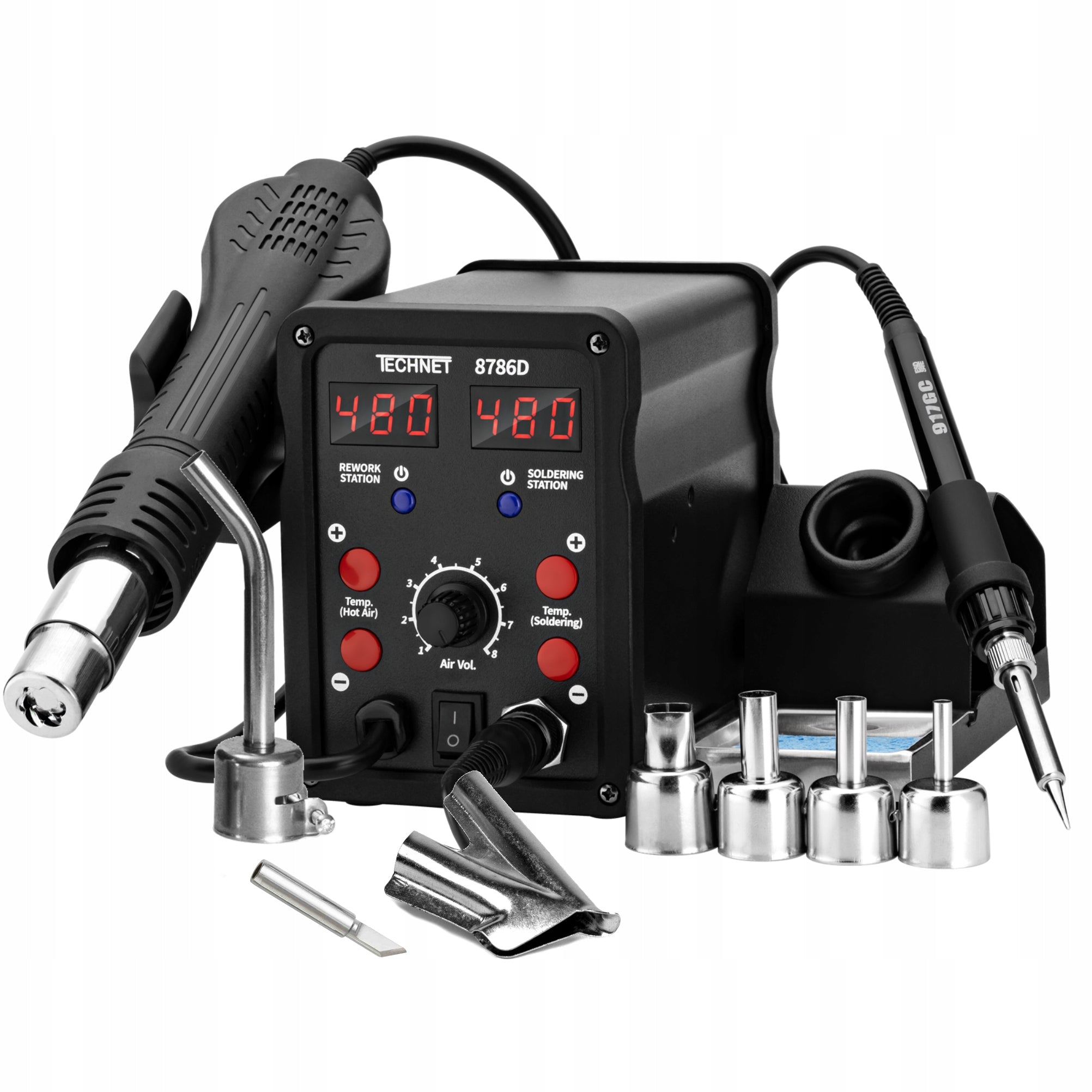

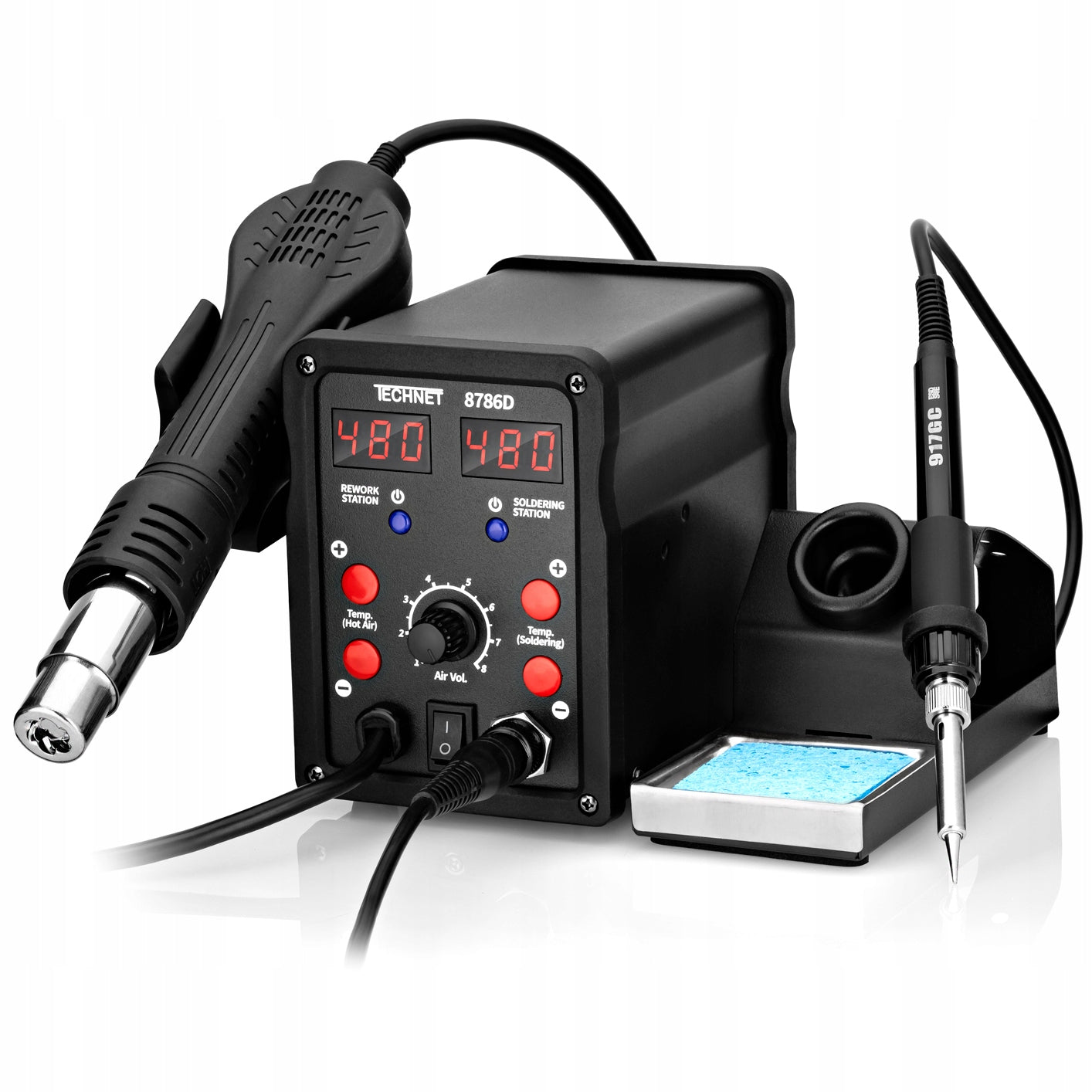

Plastic welding machine Technet 8786D

The plastic welding machine with smooth temperature control and air blowing 8786D is a powerful and versatile device that has shown its reliability in the workshop and in plastic repairs. Thanks to its small size and versatility - the 8786D is the best solution on the market for plastic welding machines with tip soldering iron.

• Durable ceramic heating element
• Two displays of set temperature and real LED
• Hot air handle - thanks to its light weight, welding does not cause fatigue
• Stepless electronic temperature and air blowing control
• Solid metal housing

The 8786D welding machine with LED temperature displays and a set of small diameter nozzles is also ideal for shrinking and soldering electronic and electrical connections and connectors.

Having a tip soldering iron 917GC with a power of 60W can also perform two tasks - solder electronic components, i.e. a traditional soldering iron or pre-connect plastic elements (details in the guide "Welding plastics")

✅ Technical data:

• Power consumption of the device: 750W (Hot-air+soldering iron)
• Weight of the device: 1,2 kg

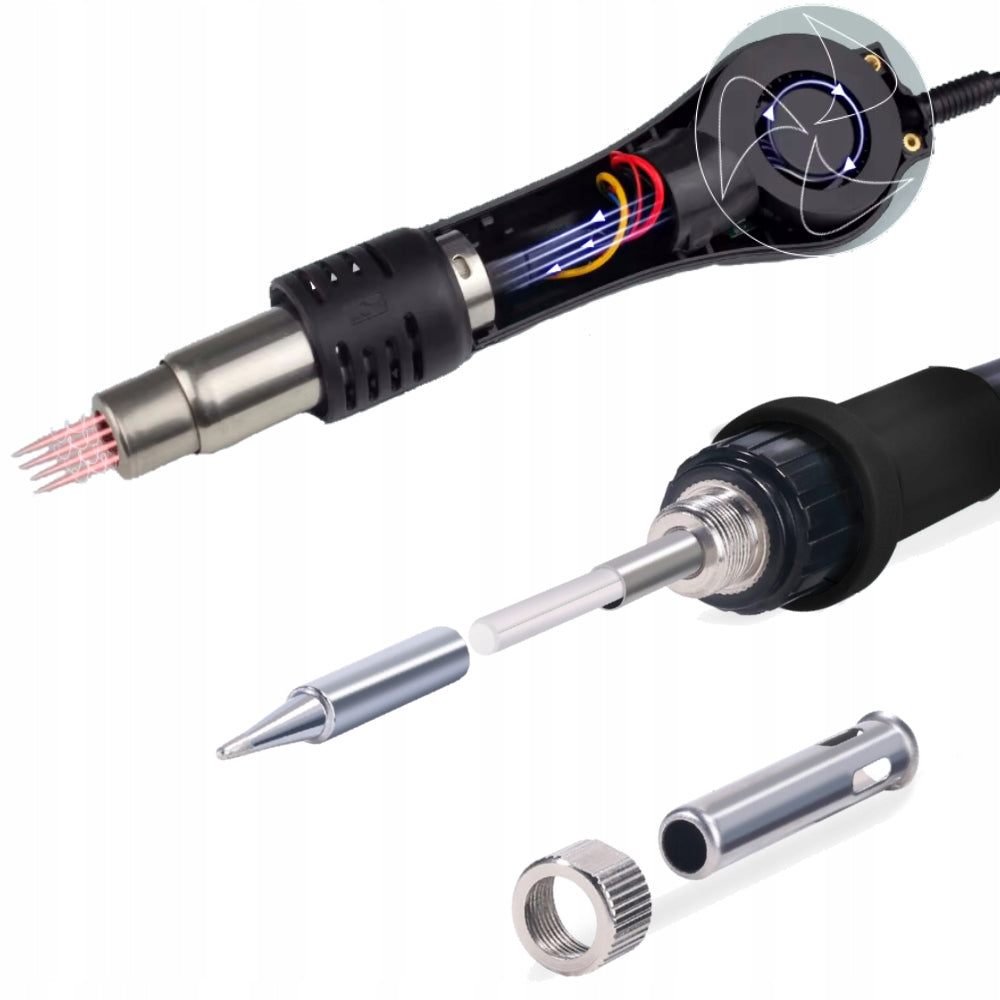

Hot air:

• Brushless motor air output with air jet: 120 l/min
• Air temperature: 100°C-480°C
• Real/set temperature display LED
• Ceramic heating element

Group soldering iron:

• Power of tip soldering iron heater: 60W (917GC flask)
• Grot T-B
• Soldering iron power supply: 24V AC
• Temperature range of tip soldering iron: 200°C-480°C
• Real/set temperature display LED
• Soldering iron after approx. 10 min immobility goes into state of standby

✅ Process

It is carried out by heating the plastic profile and the surface of the welded element, through hot air, to the temperature at which it will be plasticized. The connection is formed when the molten profile is pressed into the molten welded element. The clamping force should be about 2kg.

A well-made weld is characterized by the same physical properties as a homogeneous material.

✅ Application:

For the repair of all elements made of thermoplastic plastics, i.e. - plastics that soften during heating and harden after cooling.

With the help of a plastic welding machine, you can weld: bumpers, housings, covers, household appliances, spoilers, batteries, headlights, all kinds of tanks, radiators, garden equipment, etc.

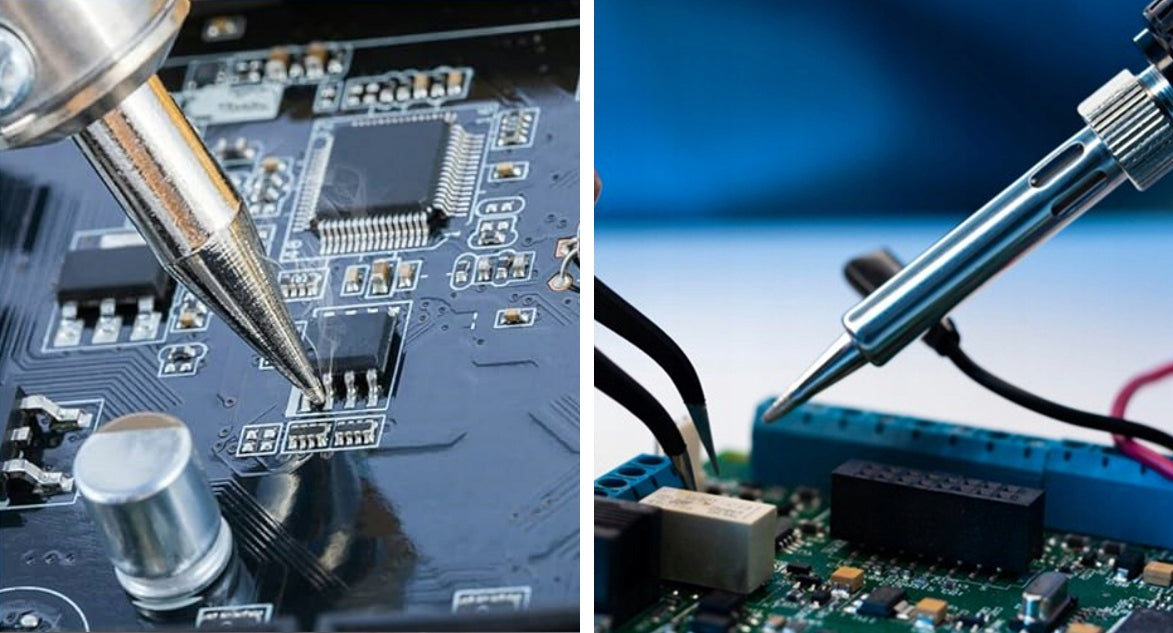

The tip soldering iron that is included with the device can perform two tasks - solder electronic components m.in.: SMD, BGA, PLCC, QFP, OIC, i.e. serve as a traditional soldering iron or pre-connect plastic elements (details in the guide "Welding plastics")

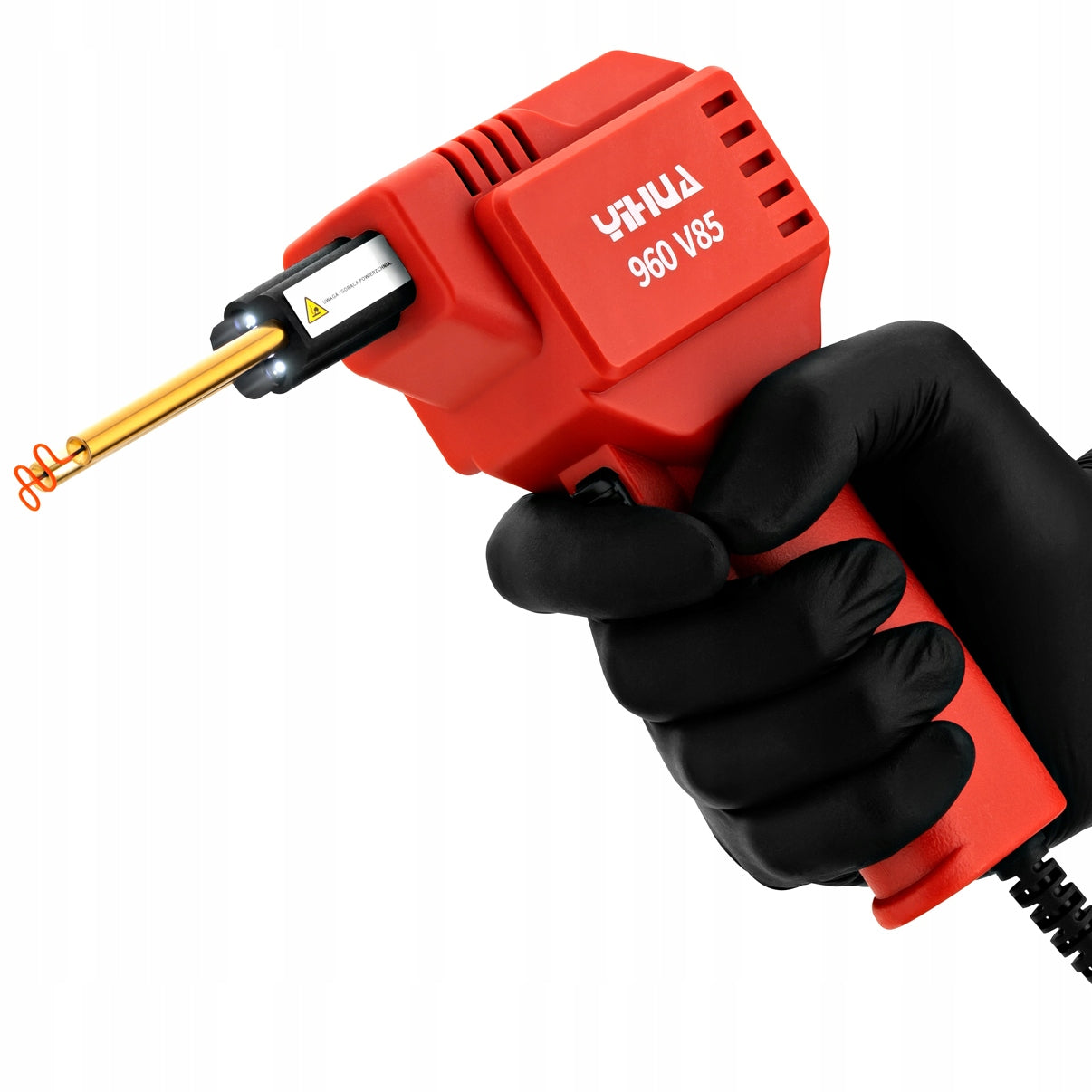

Plastic stapler Yihua 960V-85W

The 960V-85W stapler is a simple and reliable stapler for repairing plastic components. It supports repair after welding or gluing heavily loaded or mechanically vibrating elements. It has 2 LEDs for stapling site lighting, which allows the repair process in low-light conditions.

Ideally, it serves as a device for pre-joining plastics before welding, gluing or annealing. It replaces all other, less effective ways of joining materials, which is especially important when repairing components. It significantly speeds up and streamlines the repair process.

✅ Technical data:

• Voltage: 220-240V
• Output voltage: 3V
• Power: 85W
• Temperature: up to 750°C
• Power cord length: 1,3m
• Illuminating workplace 2 diodes
• Weight: 0,745 kg
• Dimensions: L180mm*W170mm*H50mm

✅ Process

It is carried out by melting into the material, to the appropriate depth of the heated staple, anchoring (slight horizontal twisting), cooling and removing the excess with the help of clippers.

Then, in target reinforcement, you can cut the appropriate size mesh strip and blend into the place of joining with an RS28 staple (large wave)

✅ Application:

For connecting all elements made of plastic so-called. thermoplast or - plastics that soften during heating and harden after cooling

• for connecting plastic elements: bumpers, covers, mirrors, lamps, etc.
• automotive industry
• home use

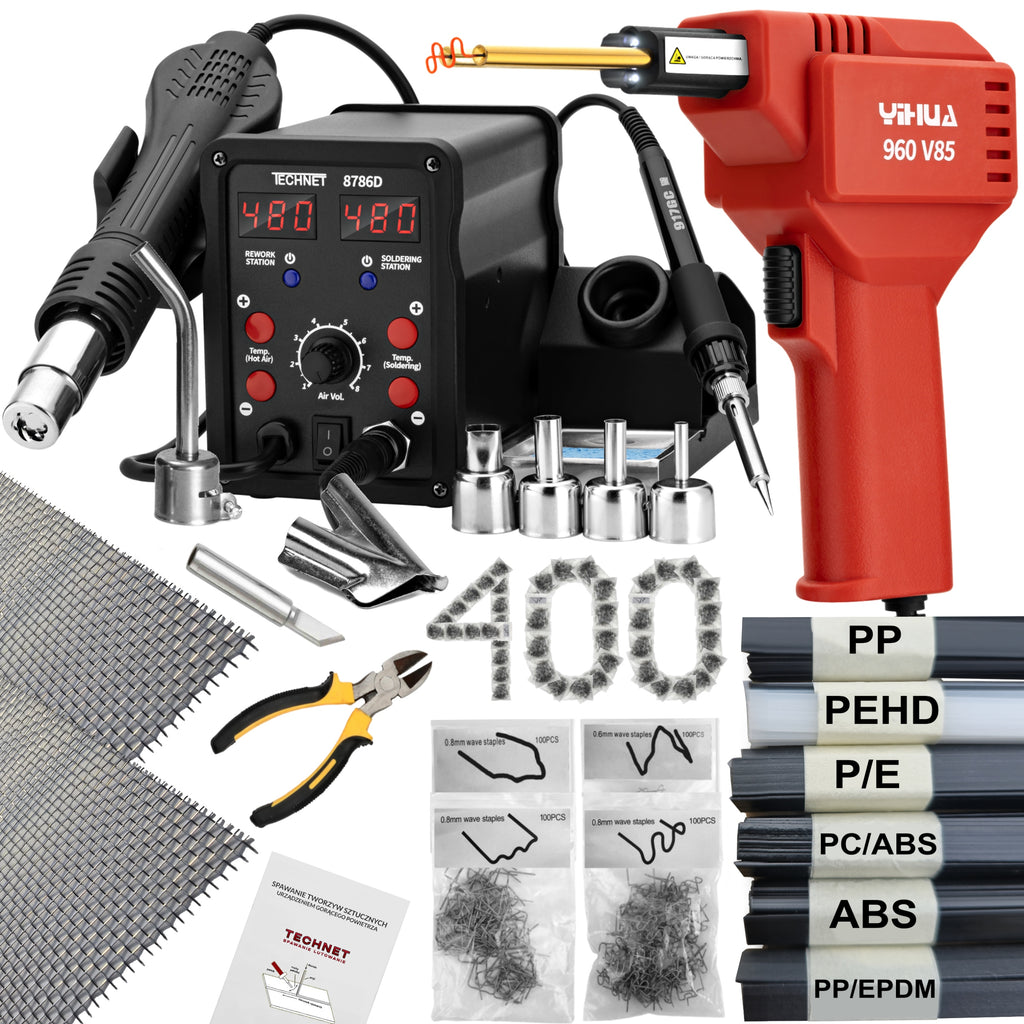

✅ The set includes:

✔ WELDER Technet 8786D

✔ HOT AIR KOLBE HOLDER

The flask stand has a sensor, which after putting the flask on it cools the heating element and then turns it off (so-called. wake status). Thanks to this, the user saves energy, which allows for a longer life of the heater and increased safety and comfort of work.

✔ NOZZLES:

• Long nozzle 7cm, Ø8mm, bent at an angle of 45°
• Short nozzle square Ø10x10mm
• Short nozzle Ø9mm
• Short nozzle Ø7mm
• Short nozzle Ø4mm

✔ NOZZLE BUT fast drawn welding

It enables fast and efficient welding using the drawn plastic method. The uniqueness of the nozzle lies in the fact that its design allows the binder to melt inside the nozzle and its simultaneous pressing to the welded element.

✔ SOLDERING IRON grotowa 907A "Black "Iron" with T-B tip

✔ METAL STAND for soldering iron with sponge for cleaning tips

✔ GROT T-K for pre-joining cracks

✔ STAPLER Yihua 960V-85W

✔ SOLID CUTTERS

✔ STAPLES stainless steel - x4 types:

• RS18 "small" wave, wire ∅ 0,8mm 100pcs
• RS28 "big" wave, wire ∅ 0,8mm 100pcs
• RS38 external angle, ∅ 0,8mm 100pcs
• RS46 inner angle, wire ∅ 0,6mm 100pcs

✔ GRIDS strengthening the welding site x 2pcs

Mesh made of the highest quality chrome-nickel stainless steel. They are ideal for reinforcing welds and recreating missing elements such as bumper parts, lamp holders, etc.

1 Flexible has a dimension of approximately 12,5cm x 17,5cm. Wire: Ø 0,2mm. Eyelet: 1mm

1 Hard has a dimension of approximately 12,5cm x 17,5cm. Wire Ø 0,32mm. Eyelet: 1,6mm.

✔ PLASTICS 300g

Welding profiles of plastics 6 types in two varieties: strip approx. 8x1,2mm and triangle with side approx 4mm. Length of profiles approx. 415mm.

1. >PC/ABS< 50g about 16 pieces including: 8 strips and 8 triangles. Bumpers (Ford and Mercedes), inlet grilles, headlight glasses, fairings, sunroofs, advertising elements, hubcaps. Welding temperature: 350°C
2. >P/E< 50g about 16 pcs including: 8 strips and 8 triangles. Washer expansion tanks, fenders, wheel arches. Welding temperature: 300°C
3. >PP/EPDM< 50g About 16 pieces including: 8 strips and 8 triangles. Bumpers. Welding temperature: 300°C
4. >PP< 50g about 16 pieces including: 8 strips and 8 triangles. Bumper, filter housing, bacon, headlight, wheel arches, reservoirs. Welding temperature: 300°C
5. >PEHD< 50g about 16 pieces including: 8 strips and 8 triangles. Expansion tanks, fuels, food containers). Welding temperature: 300°C
6. >ABS< 50g about 16 pcs including: 8 strips and 8 triangles. Enclosures, switches, door handles, motorcycle fairings, mirrors. Welding temperature : 350°C

✔ GUIDE "Welding plastics" in the form of a paper brochure

1. Recognition of plastics
2. Preparation of the external surface
3. Joint
4. Pre-merger
5. Welding
6. Pendulum welding
7. Welding errors
8. Welding seam treatment
9. Varnishing of plastics
10. Welding Process Technology
11. Welding rods for welds
12. General comments
13. Hand welding equipment
14. Manual Welding by Drawn Method
