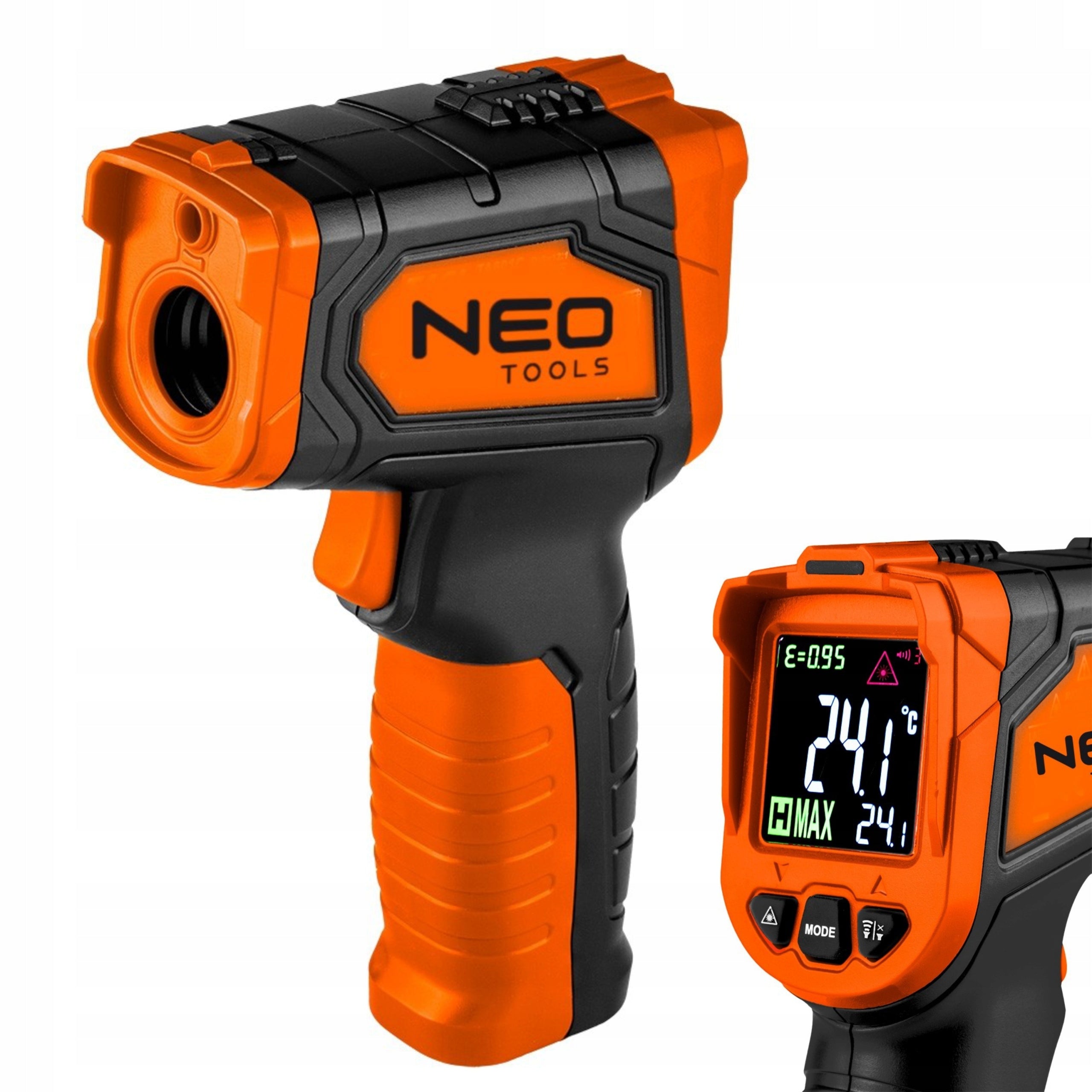

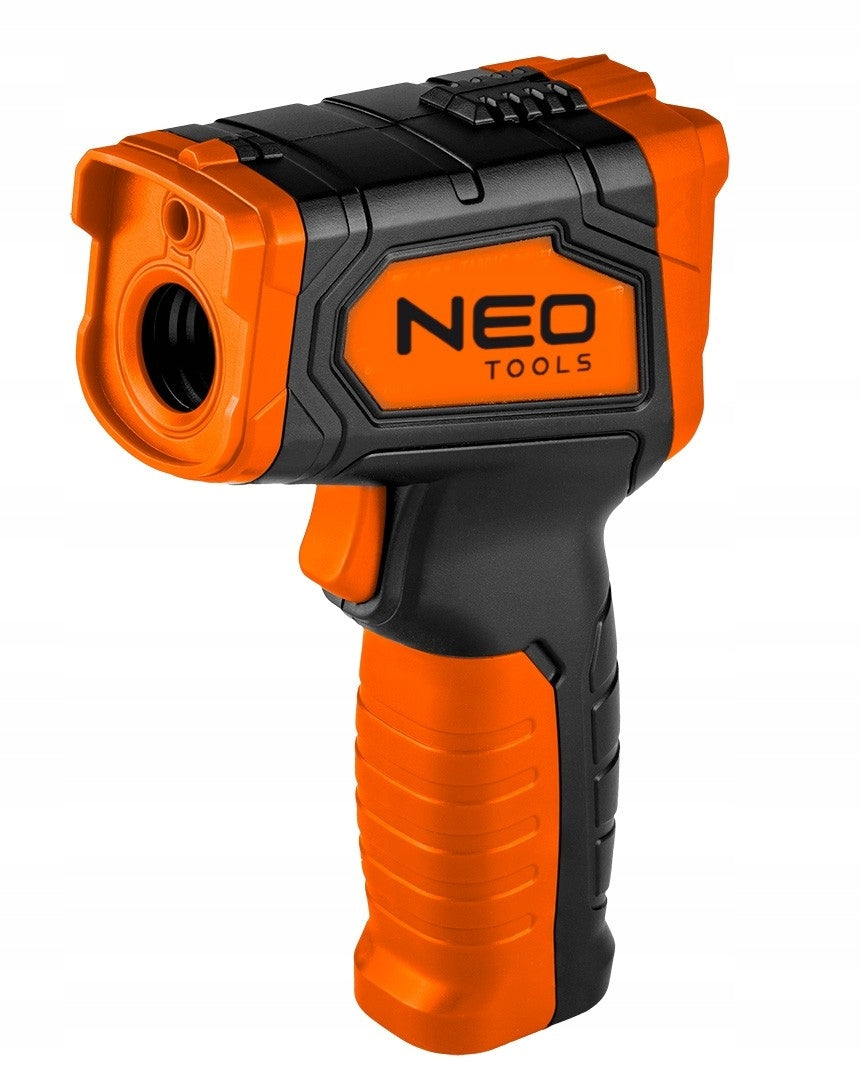

Pirometras NEO be kontakto, -50+880, 75-276

Trumpai apie prekę

Prekė: Pirometras NEO be kontakto, -50+880, 75-276. Kategorija: Termometrai, pirometrai.

• Gamintojas: NEO TOOLS
• Modelis: 75-276

• Pyrometer, temperature estimation instrument (C-50~880, F-58~1616) 75-276 NEO is a tool designed for precise temperature measurements (with an accuracy of +/- 1,5% + 1°C) of cold and hot surfaces.
• Its range is from -50°C ~ 880°C.
• The pyrometer as one of the few available on the market is characterized by regulation of the emission factor from 0,1 to 1,00.

  The device is often used in the food industry to measure food temperature, monitor in refrigerated counters, freezers or freezers. It is also necessary in industry – both automotive and machinery, to control the temperature of machine components, to verify heat in dangerous or hard-to-reach places, as well as to check electrical and electronic devices. This pyrometer model will also be useful for air conditioning, ventilation and refrigeration control. It will be invaluable in construction – for locating damp walls and ceilings or detecting drafts and thermal currents.

How does a pyrometer work?

The pyrometer consists of optics, temperature sensor, signal amplifier, processing circuit and display. The optics that collect the infrared energy emitted by the object focus it on the sensor. The sensor converts energy into an electrical signal. This one displays as a digital reading, informing about the temperature.

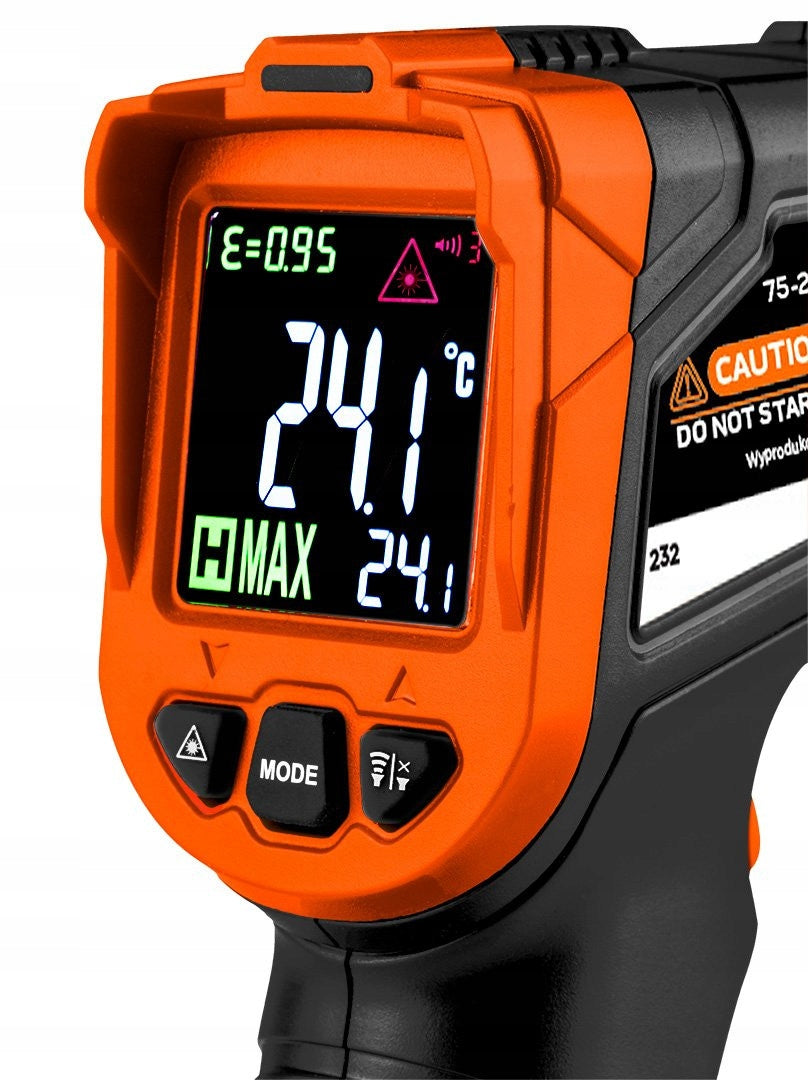

The NEO pyrometer has a backlit display and allows you to take a non-contact measurement. There are Celsius and Fahrenheit units to choose from. It is characterized by the degree of protection IP54. It is powered by two 1,5V AAA batteries included in the set. This is a professional device recommended for professionals. It is not a medical device.

Product Features:

• pyrometer – a device for estimating temperature,
• safe temperature measurement of cold and hot surfaces,
• the measuring range is from -50 to 880°C,
• regulation of the emission factor from 0,1 to 1,00,
• accuracy is +/- 1,5 + 1 °C,
• non-contact measurement,
• the possibility of choosing a unit: Celsius and Fahrenheit,
• automatic shutdown,
• easy to use,
• precise,
• degree of protection – IP54.

Precise parameters:

• type of power supply – 2x 1,5 V AAA battery,
• operating temperature 0°C to 50°C,
• storage temperature of the device is from -20°C to 60°C,
• laser power - < 1mW,
• laser wavelength – 650 nm,
• laser class – II,
• response time – 500 ms,
• optical resolution – 12:1,
• Spectral sensitivity - 8-14 μm.

The set includes:

• NEO brand pyrometer,
• 2x batteries.
