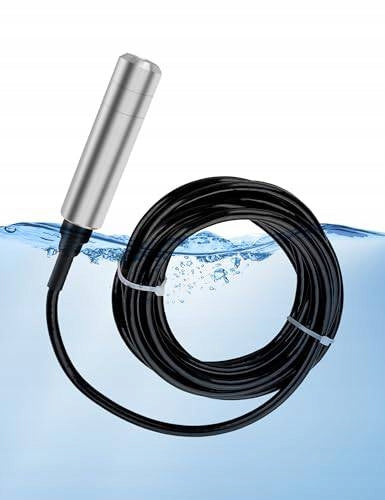

Panardinamas vandens lygio jutiklis, 5 m, nerūdijančio plieno zondas

Trumpai apie prekę

Prekė: Panardinamas vandens lygio jutiklis, 5 m, nerūdijančio plieno zondas. Kategorija: Matuokliai ir testavimo prietaisai.

• Gamintojas: no brand
• Modelis: yksshy

1. Input level transducer and precise silicon diffusion for more accurate water level monitoring.

1. Input level transducer and precise silicon diffusion for more accurate water level monitoring.

2. Fully digital conditioning circuit, 4-20mA signal output ensures more stable operation.

3. IP68 multi-layer waterproof ensures safe use and long working time.

4. 45 degree impact, detachable probe with anti-lock design.

Condition: 100% Brand New

Item Type: Liquid Level Transducer

Specification:

Measured medium: water (it is absolutely impossible to measure the corrosion-causing liquids of stainless steel, except water, it is not recommended to measure other liquids)

Condition: 100% Brand New

Item Type: Liquid Level Transducer

Material: 304 stainless steel

Measured medium: water (it is absolutely impossible to measure the corrosion-causing liquids of stainless steel, except water, it is not recommended to measure other liquids)

Air Guide Cable Length: About 5m / 16.4ft

Measuring range: 0-5m / 0- 197in

Measurement accuracy: 0.5%FS

Output signal: 4-20mA

Supply Voltage: 12-32VDC (the product surface is marked 24V, but can support 12-32V)

Operating temperature: -40-85℃

Storage temperature: -40~125℃

Temperature source offset: ±0.03%FS/℃

Overload capacity: 200%FS

Degree of protection: IP68

Temperature compensation: -10-70 ℃

Long-term stability: ±0,3% FS/year

Machine impact: 10gRMS ， (20~2000) Hz

Stay away from the place where the source of vibration is located;

List of packages:

1 x Liquid Level Transmitter

Note:

Installation method

Please note that the new and old type of this product will be sent randomly and please make sure that this will not interfere with your order before placing your order.

1. Input level transducer and precise silicon diffusion for more accurate water level monitoring.

2. Fully digital conditioning circuit, 4-20mA signal output ensures more stable operation.

3. IP68 multi-layer waterproof ensures safe use and long working time.

4. 45 degree impact, detachable probe with anti-lock design.

5. The measured medium is water, do not test liquids that can cause corrosion of stainless steel.

1 x Liquid Level Transmitter
