OBDII paskirstymo dėžutė GODIAG GT100+ GT100 Pro

Trumpai apie prekę

Prekė: OBDII paskirstymo dėžutė GODIAG GT100+ GT100 Pro. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: GT100 Pro

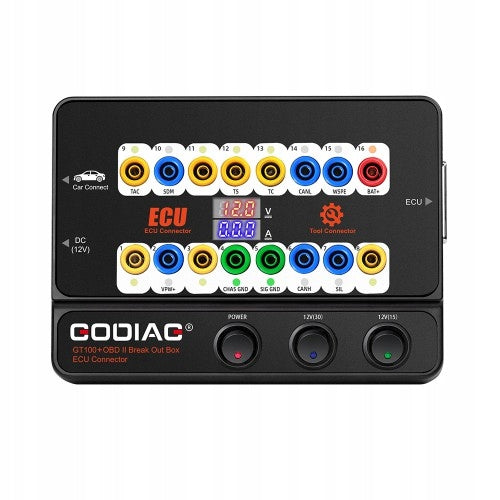

GODIAG GT100 + GT100 Pro OBDII Breakout Box ECU Bench Connector with Electronic Current Display Highlight

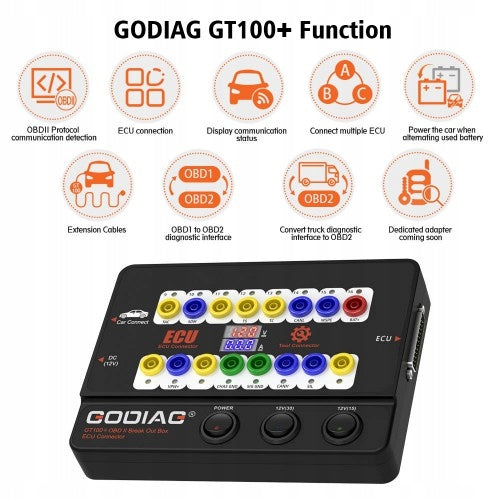

Features of GODIAG GT100+:

1.

The new generation GT100, adds an electronic current display. You can intuitively see the current ECU display by connecting the ECU module to the Banana or DB25 interface, which can make your work much easier.

2. ECU connection + OBDII protocol detector + electronic current display.

3. can be extended with an optional dedicated adapter.

4. Works with Xhorse VVDI2, Autel, Launch, Foxwell, etc.

5. Convert OBD1 diagnostic interface to standard OBD2 diagnostic interface.

6. One year warranty.

GODIAG GT100+ Details:

1. GT100+ adds an electronic current display.

On the table, connect the ECU module with a banana connector or a dedicated ECU db25 adapter, Godiag GT100+ will display electronic current.

Advantage of displaying electronic current value:

The user can intuitively see the current state of the ECU. There is no current display or the actual displayed current is inconsistent with the expected engineer current, then you can immediately check whether the wiring is wrong, if the wiring is correct, he can assess that the ECU can be damaged, so there is no need to perform diagnostic communication and can directly repair the ECU.

If it shows too much current, you can also determine if it is incorrectly connected or if the ECU is damaged.

2. GT100+ adds CANBUS communication

GT100+Pin 1, 9, 3, 11 12, 13, 8 [corresponding to the yellow banana connector on the machine], this custom obd2 protocol interface can display CAN BUS or K-Line communication protocol. The GT100 can only display the K-Line Pwm Vpw+ KWP 2000 protocol. GT100+ will display communication in CANBUS K-Line Pwm Vpw+ KWP 2000 protocol.

3. Reset the instrument/immobilizer after losing all keys

If you want to program the key for VW, Porsche, Mitsubishi and others with all the keys lost or program the Toyota ECU, you must first activate the dashboard (reset the instrument) or wake up the immobilizer module. Then you can operate directly with the GT100 GT100+.

for. To replace the ECU of a Toyota engine or use some key programmer to program Toyota when all keys are lost, shorten the PIN13-PIN4

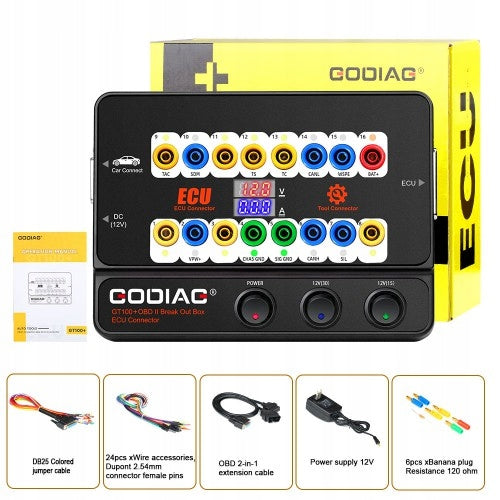

Package includes:

1x Host

1ks x OBD 2-in-1 Extension Cable

1x Colorful Jump Cable

1x 12V Power Supply

1x Resistance 120 ohm

6pcs x Banana Plug

24pcs x Akcesoria wire, Dupont connector 2.54mm female studs

Specifications
