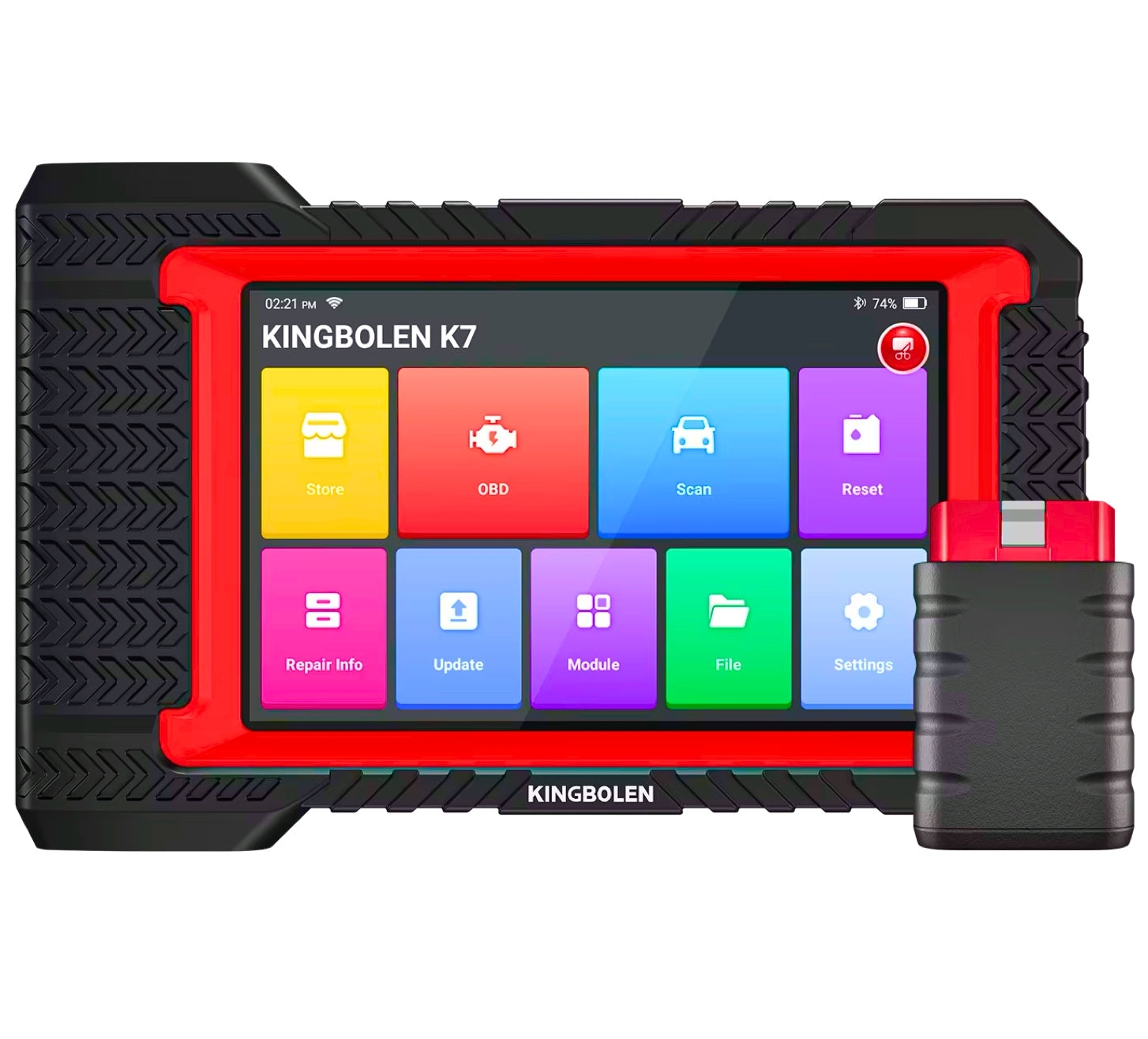

OBD2 diagnostikos testeris KINGBOLEN K7 CAN-FD su neribotais atnaujinimais

Trumpai apie prekę

Prekė: OBD2 diagnostikos testeris KINGBOLEN K7 CAN-FD su neribotais atnaujinimais. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Kingbolen
• Modelis: Kingbolen K7 Diagnostic Scanner OBD2 Tablet

Key features

• Polish
• NO SUBSCRIPTIONS - NO BLOCKAGES
• WORKS INDEFINITELY
• PASSENGER AND COMMERCIAL VEHICLES
• ECU ENCODING
• EXECUTIVE TESTS (two-way)
• 7 inch touch screen
• Support more than 100 car brands from the European, Asian, American, etc. market.
• PASSENGER AND COMMERCIAL VEHICLES
• 28 SERVICE FUNCTIONS
• SECURITY GATEWAY SGW

KINGBOLEN K7 VERSION 2025

Kingbolen K7 2025 new version received support for CAN-FD protocol, which includes wider vehicle models.

(Previously, it was just access to software, which means that if support for new models or features comes later, you can update for free. )

Supported 17 languages:

English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Hungarian, Persian, Greek, Slovak, Dutch, Swedish, Traditional Chinese.

The device has support for the Polish language, most of the devices have translated Polish. If no translation is required Internet access for online translation.

With each new software update, the translation functions into Polish are extended and support for online translation for Polish is added.

Technical data:

• Display: 7″ touch screen, 1280*720
• Memory: 2 GB RAM
• Hard Drive: 32 GB of built-in memory
• Battery: 3150mAh
• Processor: 4 core 1.8GHz
• Operating Voltage: 9V~18V
• Wifi 2.4GHz, 5.0Ghz dual frequency

It supports almost the full set of diagnostics required by auto repair shops.

The availability of diagnostics depends on whether the vehicle system is equipped with this component.

• Possible diagnosis:
• Engine components
• ABS (Anti-lock Braking System) components
• Transmission components
• Components of the airbag system
• ECU (Electronic Control Unit)
• Sensors and actuators
• Components of the fuel system
• Components of the ignition system
• Exhaust system components
• Components of the emission control system
• Components of the cooling system
• Components of electrical installation
• Battery and charging system
• Body control modules
• Steering components
• Suspension system components
• Components of the braking system
• CAN (Controller Area Network) communication modules
• Vehicle communication interfaces
• Components of the on-board diagnostic system
• Throttle body and throttle position sensor
• Mass Air Flow Sensor (MAF)
• Absolute Pressure Sensor in Collector (MAP)
• Oxygen sensors
• Crankshaft Position Sensor
• Camshaft Position Sensor
• Knocking sensors
• Fuel injectors
• High-pressure fuel pump
• And many more...

The availability of individual functions and tests depends on the make, model, year and equipment of the vehicle. Not all features are available for every car.

ECU coding

We use for reprogramming vehicle control modules, allows you to reprogram adaptive data for specific components after repairs or replacements. You can use KINGBOLEN K7 to simulate all the possibilities of vehicles.

After replacing control units, damaged actuators or certain parts, we must carry out coding so that the replaced parts are stored and recognized by the ECU. Almost all systems, including engine, fuel system, injectors, gear shifting, ABS, airbag system and others can be coded with this scanner. Before coding, please read and save the information about the original module.

Re-encoding of revised modules/ Vehicle performance optimisation/ Reprogramming/ Hidden functions/ Renewal of ECU coordination/ Reprogramming/ Adaptive data/ Improving fuel efficiency/ Reduction of power losses/ Improving durability of mechanical parts.

Active test (two-way control) 3 years free update

The KINGBOLEN K7 car scanning diagnostic tool offers full two-way control capability to send commands to vehicle systems/components to verify system input/output without the use of vehicle control, e.g.:

• switching on the radiator fan,
• modulation of throttle,
• opening/closing windows,
• operation of mirrors,
• injector buzzer test,
• switching on internal and external lights,
• the sound of the horn,
• Testing of door lock actuators
• and much more

Has access to 28 MOST IMPORTANT SERVICE PROCEDURES

1. reset service inspection, oil
2. full operation of the EPB electric parking brake (retracting terminals when replacing pads, setting the pressure force of pistons, thickness of pads)
3. ABS brake system venting
4. regeneration of DPF filter (checking dust status, firing, regeneration, adaptation)
5. airbag reset
6. adaptation of automatic transmission
7. training gears in automatic transmissions
8. calibration of the sensor steering angle
9. adaptation of the new battery
10. adaptation of the throttle
11. IMMO support (immobilizer)
12. injector encoding
13. regulation of reflectors
14. regulation of suspension
15. mileage correction ODOMETER
16. Resetting AFS reflectors
17. initialization of szyberdach
18. adaptation of the EGR
19. disabling transport mode
20. STOP/START system reset
21. NOX sensor reset
22. AdBlue reset
23. reset the size of mounted tires
24. calibration foteli
25. TPMS reset (pressure sensors)
26. venting of the refrigeration system
27. calibration of window system, glass
28. change of on-board language

Supported extensions

Additional components must be purchased separately.

• Print diagnostic report
• wideoscope
• Tyre Pressure Measurement System Extension (TPMS)
• oscilloscope
• Battery Testing Extension

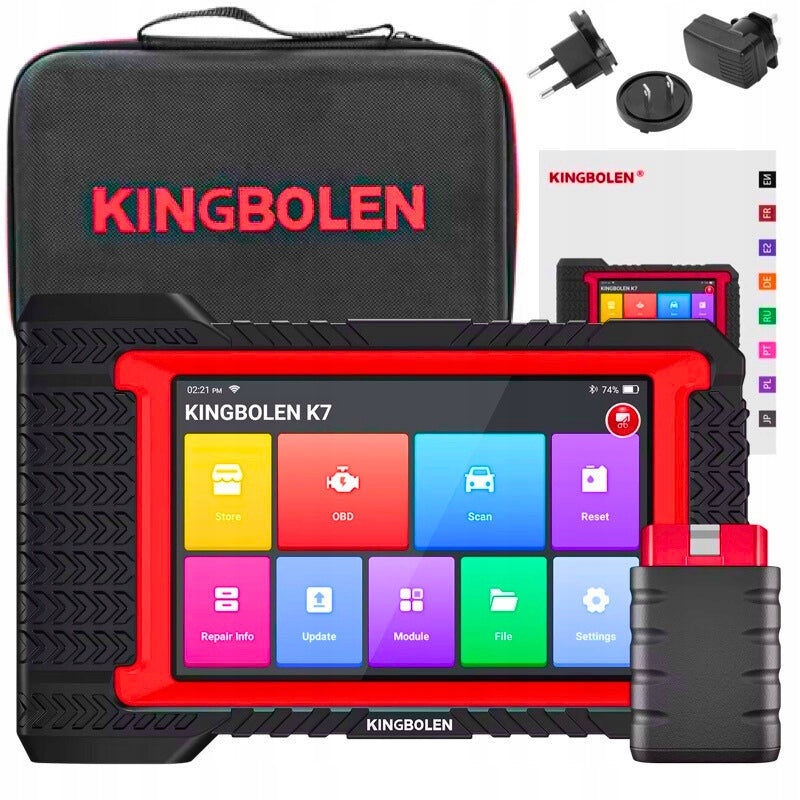

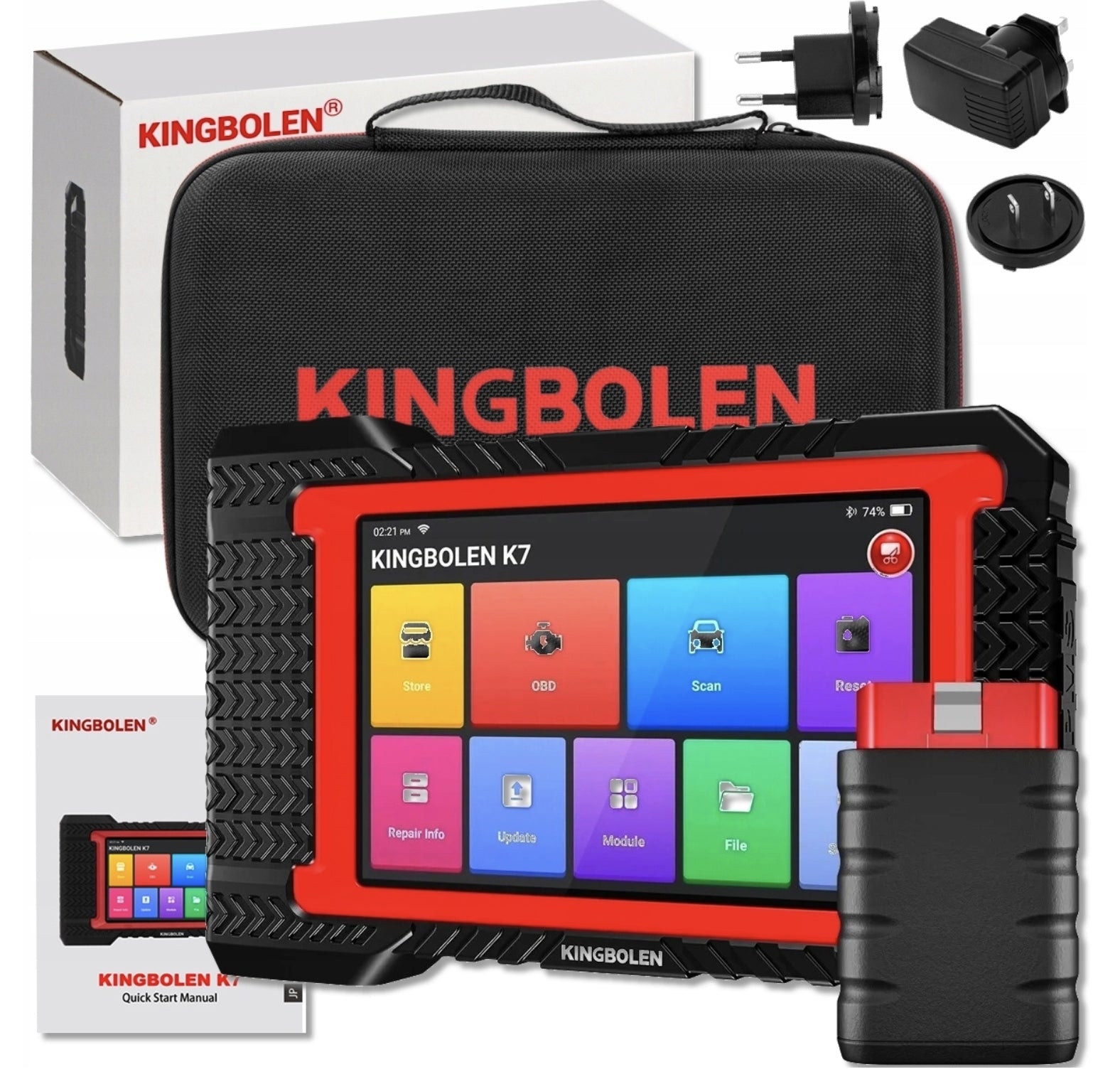

The set includes

1. Kingbolen K7
2. Bluetooth OBD2 (VCI) head
3. Power adapter
4. Travel Adapters
5. USB-A to USB-C cable
6. Portable Plastic Bag
7. User manual

KINGBOLEN K7 with more than 28 services and reset functions that allow you to reset various systems in your vehicle. It supports more features than other scanners at a similar price (updates constantly added).

1. Reset the oil. The lighting of the car service light indicates that the vehicle needs to be inspected. After the inspection, you will reset the mileage or driving time, and the service light will go out, and the system will start a new maintenance cycle.
2. Electric throttle adaptation. Electric throttle adaptation involves using a car decoder to initiate the throttle actuator so that the ECU learning value returns to its initial state. Thanks to this, the movement of the throttle (or engine at idle) can be controlled more accurately, thus adjusting the volume of intake.
3. Reset steering angle (SAS). To reset the steering angle, first find the relative zero point for driving straight ahead. Taking this place as a reference point, the ECU can calculate the exact turning angle left and right. After replacing the steering angle position sensor, replacing the mechanical parts of the steering system (such as the steering box, steering column, steering rod end, steering crossover), making the geometry of the wheels, or repairing the bodywork, you need to reset the steering angle.
4. Battery matching. This feature allows you to perform a reset operation on the vehicle battery monitoring unit, in which the original low battery voltage information will be removed and the battery adjustment will be carried out.
5. ABS venting. When there is air in the ABS system, an ABS venting procedure must be carried out to vent the braking system and restore the ABS braking sensitivity. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake hose or brake fluid are replaced, the ABS venting procedure must be carried out to vent the ABS.
6. Brake reset. If the brake lining wears the brake lining sensor line, the sensor line sends a signal to the on-board computer to replace the brake lining. After replacing the brake pad, you need to reset the brake lining. Otherwise, the car signals an alarm.
7. Regeneration of DPF. DPF regeneration is used to remove particulate matter (PM) from the DPF filter through a continuous combustion oxidation mode (such as high-temperature combustion, fuel additive or catalyst ignition PM reduction) to stabilize filter performance.
8. Learning how to operate the transmission. The crankshaft position sensor learns the tolerance of crankshaft tooth processing and writes it to your computer to more accurately diagnose engine ignition failure. If the transmission learning for a car equipped with a Delphi engine has not been done, the MlL lights up after starting the engine. Diagnostic device detects DTC P1336 error "no transmission learning". In this case, you need to use a diagnostic device to learn the operation of the transmission for the car. After successfully learning the operation of the transmission, MIL goes out. After replacing the ECU of the engine, crankshaft position sensor, crankshaft flywheel, or the occurrence of the error "no transmission learning", the transmission must be learned.
9. Support IMMO. To prevent unauthorized use of the car by unauthorized keys, an anti-theft key matching function must be carried out so that the immobilizer system in the car identifies and authorizes the remote control keys for normal use of the car. When the ignition key, ignition, integrated instrument panel, ECU, BCM, or remote control battery are replaced, the anti-theft key matching procedure must be carried out.
10. Coding of injectors. Save the actual injector code or rewrite the code in the ECU to the injector code of the corresponding cylinder to more accurately control or correct the amount of injection in the cylinder. After replacing the ECU or injector, the injector code of each cylinder must be confirmed or re-encoded so that the cylinders can better identify the injectors for accurate fuel injection control.
11. TPMS reset. After the tire pressure indicator light comes on and maintenance is performed, the tire pressure reset function must be performed to reset the pressure and turn off the indicator light. Tyre pressure reset must be performed after maintenance in the following cases: tire pressure is too low, tires are leaking, tire pressure monitoring device is replaced or installed, tires are replaced, tire pressure sensor is damaged, and tires are replaced for a car with tire pressure monitoring function.
12. Suspension adjustment. This function can adjust the height of the body. After replacing the body height sensor in the air suspension system or control module, or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor to the level calibration.
13. Reset AFS. This function is used to initialize an adaptive headlight system. Depending on the intensity of the outdoor light, the adaptive headlight system can decide whether to automatically turn on the headlights and then adjust the illumination angle of the headlights accordingly, monitoring the vehicle speed and body posture.
14. A/T learning. This feature can complete the gearbox self-learning process to improve the quality of gear shifting. When the gearbox is stripped or repaired (after disconnecting the power supply in some cars), this can lead to delays or impacts when changing gears. In this case, this function is needed so that the gearbox can automatically compensate according to driving conditions, which allows you to achieve a more comfortable and better quality of shifting.
15. Initialization of the sunroof. This feature allows you to set the sunroof lock, close it in the rain, the sunroof tilt/slide memory function, the temperature thresholds outside the vehicle, etc.
16. EGR adoption. This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it has been cleaned or replaced.
17. Reset ODO. a) ODO reset consists of copying, saving or rewriting the odometer values in the meter chip using the car diagnostic computer and data cable so that the meter shows the actual mileage. b) Usually, when the mileage is not correct due to damage to the vehicle speed sensor or meter failure, it is necessary to reset the ODO after maintenance.
18. Resetting the airbag. This feature resets the airbag data to clear the crash indicator of the airbag. When the vehicle collides and the airbag is started, the corresponding crash data error code appears, the airbag indicator lights up and the error code cannot be cleared. Since the data in the airbag computer is one-time, it is required that all new parts be replaced, but after performing this function, the airbag computer data can be recovered, and the error code can be cleared, the airbag light will go out, and the airbag computer can still be used.
19. Transport mode. To reduce energy consumption, the following functions may be disabled, including limiting the speed of the vehicle, not waking up the door opening network and disabling the remote control key, etc. In this case, the transport mode must be deactivated to restore the vehicle to its normal state.
20. Reset A/F. This function is used to set or learn the parameters of the air/fuel ratio.
21. Stop/Start reset. This function is used to open or close the automatic start and stop function by setting the hidden function in the ECU (provided that the vehicle has a hidden function and is supported by equipment).
22. Reset the NOx sensor. The NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in the engine exhaust gases. If a NOx error occurs and the NOx catalyst is replaced, it is necessary to reset the learned catalyst value stored in the motor ECU.
23. Reset AdBlue (diesel engine exhaust filter). After replacing or replenishing the diesel exhaust aftertreatment fluid (car urea), a urea reset operation is necessary.
24. Seat calibration. This feature is used to match seats with memory function that have been replaced and repaired.
25. Cooling system venting. Use this function to activate the electronic water pump before venting the cooling system.
26. Reset tires. This function is used to set the size parameters of the modified or replaced tire.
27. Calibration of windows. This feature is designed to match the door windows to restore the initial ECU memory and restore the automatic function of lifting and lowering the windows.
28. Change of language. This function is used to change the language of the vehicle system on the vehicle control panel.
