OBD2 adapteris VAG KKL 409.1 USB VW SEAT SKODA

Trumpai apie prekę

Prekė: OBD2 adapteris VAG KKL 409.1 USB VW SEAT SKODA. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: CCY
• Modelis: 200196

POLISH PRODUCT - ON THE ORIGINAL FTDI CHIP

We offer you a professional OBD2 VAG KKL diagnostic interface of POLISH PRODUCTION in the USB version with software . This interface is used for professional and comprehensive diagnostics, coding and adaptation of VAG group cars up to 2004 inclusive. The device is made in SMD technology on high-quality printed circuits. The most important element of the device is a high-quality original FTDI FT230XS chip, which guarantees a high-quality signal, which, in combination with a specialized communication controller (ISO), ensures many years of trouble-free operation. All electronics of the device are assembled in Poland. Any PC computer is enough to operate it

This interface is fully compliant with the OBD2 communication standard. Communication with the car is via the K line. The interface is based on a FTDI brand chip, which ensures trouble-free communication.

THE MOST IMPORTANT FEATURES OF THE DEVICE

• General diagnosis until 2004
• Adaptations and coding

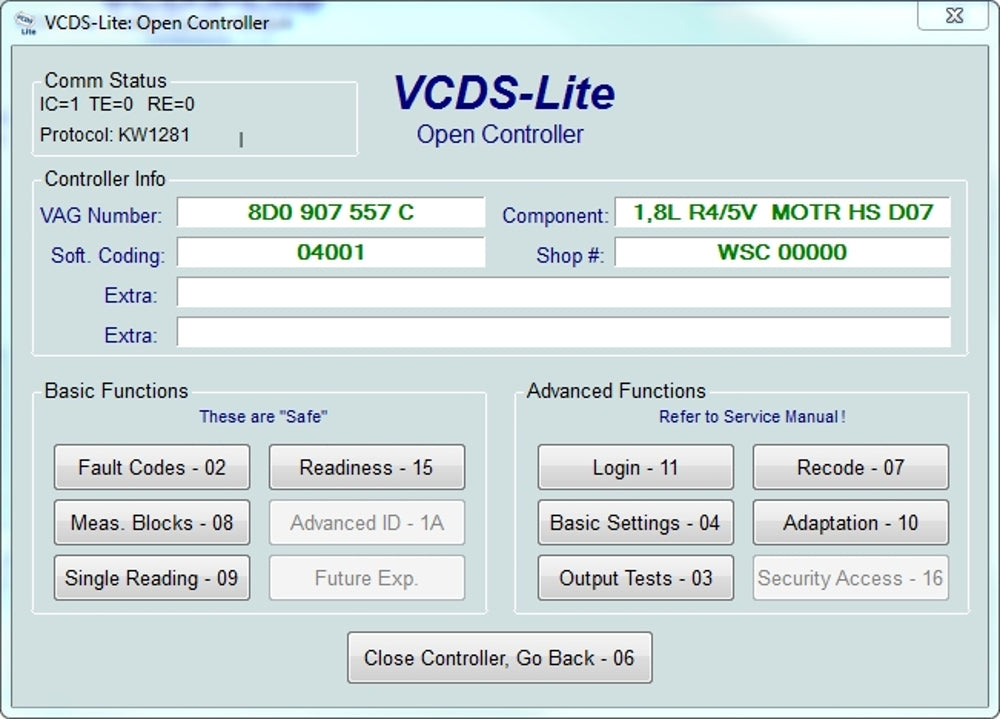

• Live data reading
• Actuator tests

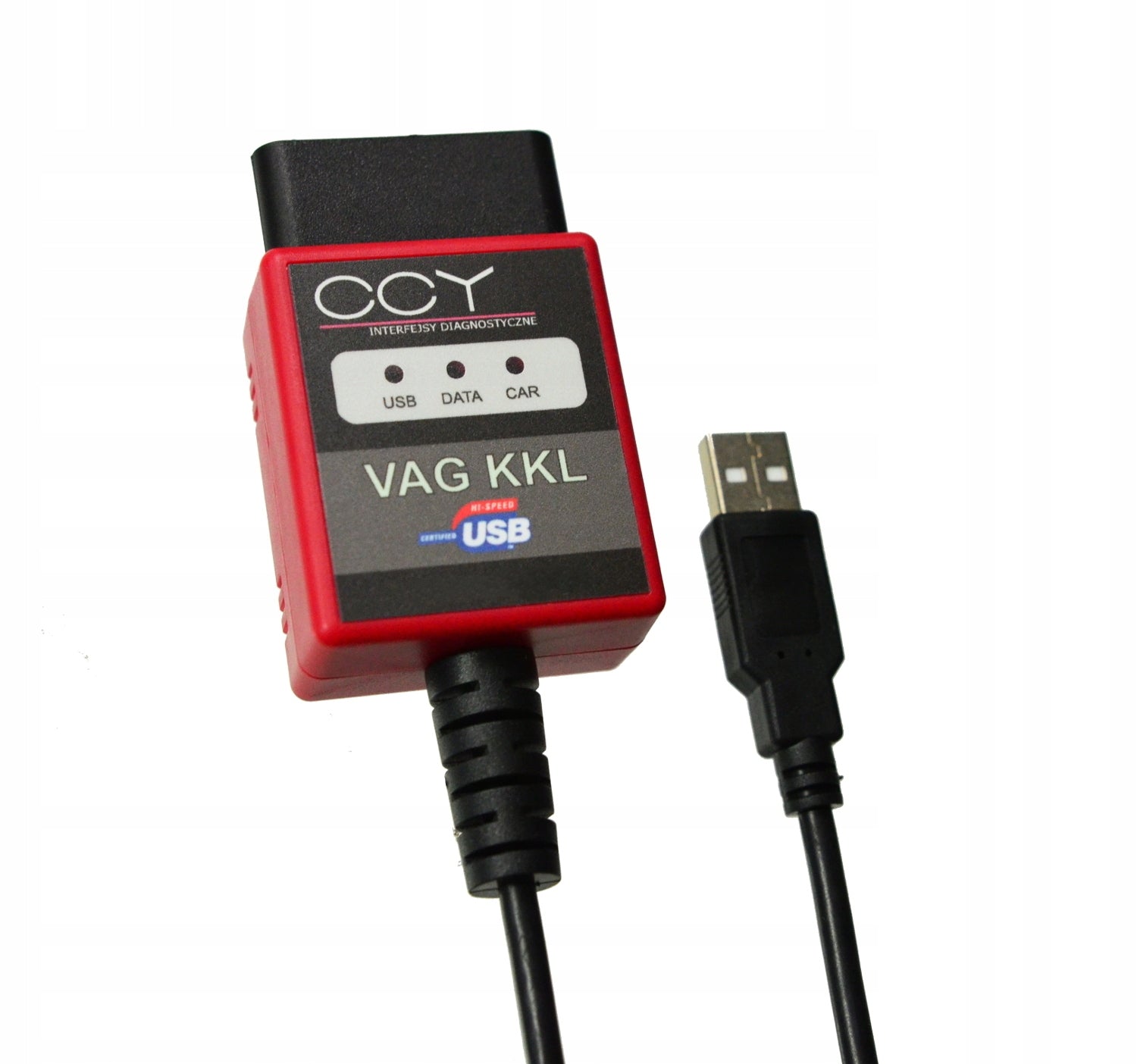

SIGNALING 3X LED SMD

Connecting to the power supply - the red diode lights up

Installing the driver - the red diode dims

Correct communication - LEDs in out are flashing

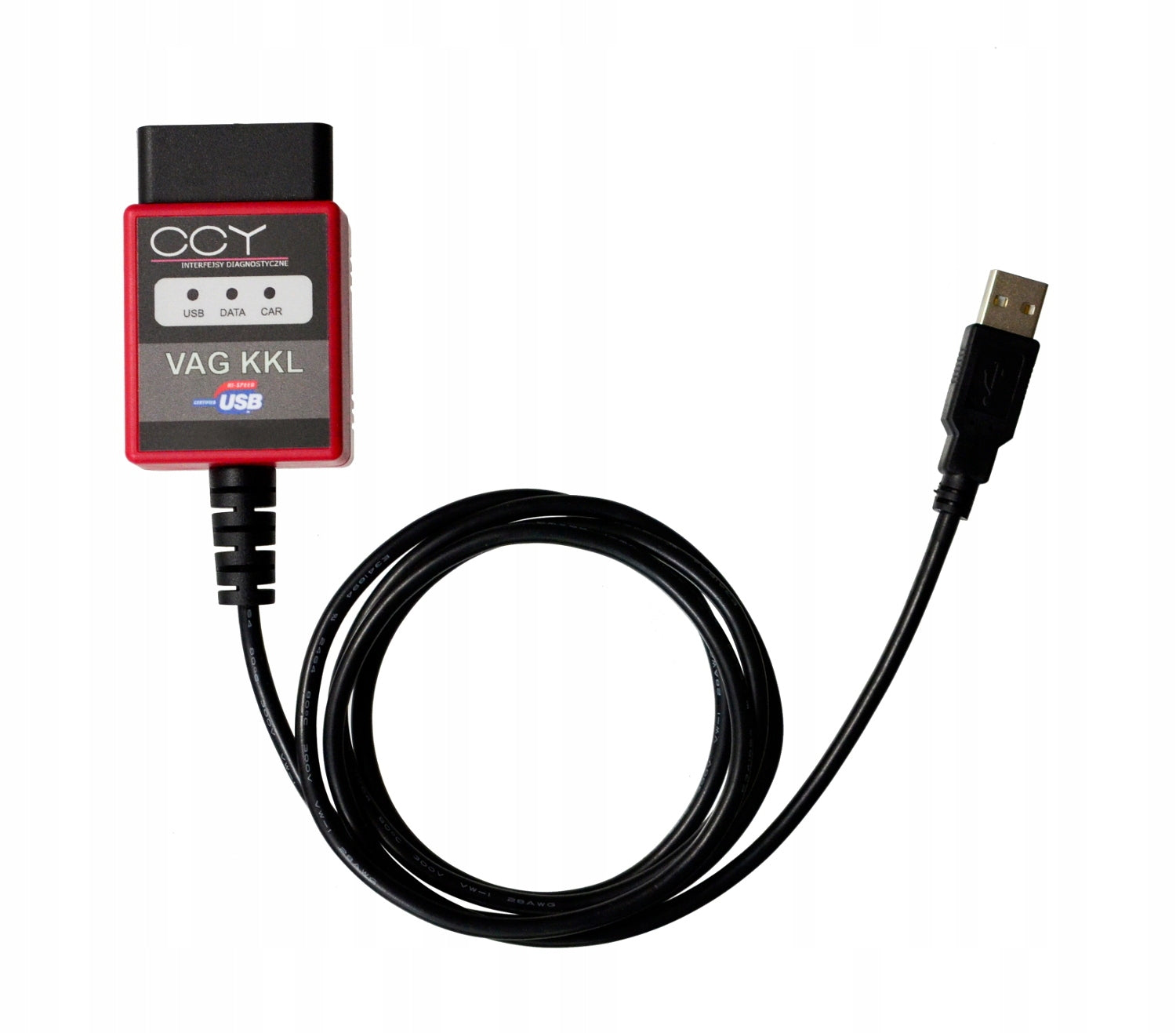

VAG KKL INTERFACE FROM CCY

• TRANSMISSION CHIP : FT230XS
• K-LINE COMMUNICATION CONTROLLER : Specialized IC (ISO CONTROLLER)
• LEDS : THREE: Power, Receive, Send
• CONNECTOR PINS : FULL HIGH QUALITY PINS
• PRINTED CIRCUITS : Made of original components in SMD technology on a high-quality printed circuit
• CABLE QUALITY : Double shielded cable (foil + copper braid)
• HOUSING MANUFACTURE : housing made of durable plastic and a well-fitting connector
• APPLICATION : professional
• COUNTRY OF PRODUCTION Poland

CHINESE VAG KKL INTERFACE

• TRANSMISSION CHIP : FT232R - usually not original
• K-LINE COMMUNICATION CONTROLLER : Transistor
• LED DIODES : ONE - power
• CONNECTOR PINS : Full pins of medium quality
• PRINTED CIRCUITS : Made correctly, often based on transistors
• CABLE QUALITY : Unshielded cable
• HOUSING QUALITY : Housing made of good quality, thick plastic, but sometimes the connector has to be pressed firmly to fit into the socket
• APPLICATION : Amateur - for home use
• COUNTRY OF PRODUCTION China

VAG KKL INTERFACE FROM THE COMPETITION

• TRANSMISSION CHIP : FT231X
• K-LINE COMMUNICATION CONTROLLER : Specialized IC (ISO CONTROLLER)
• LEDS : TWO: power supply, reception
• CONNECTOR PINS : Only 4 pins out of 16 full
• PRINTED CIRCUITS : Made of good quality components, but the thin plate makes it more susceptible to damage
• CABLE QUALITY : Shielded cable (foil)
• CABINET MANUFACTURING QUALITY : Large hollow casing, made of thinner plastic than the others, less resistant to crushing, good quality connector fitting without any problems
• APPLICATION : Semi-professional
• COUNTRY OF PRODUCTION Poland

INCLUDED SOFTWARE

In the file sent by e-mail after purchase you will find:

• Drivers for the interface
• Driver installation instructions
• Installation and operating instructions for the program
• OBD2 error code list
• VAG error code list
• Location of OBD sockets
• Description of the OBD2 socket pins
• Driver pinout
• Different brands inspection erase
• Fault codes
• ECU list and self diagnosis
• Tire markings

• VAG KKL USB FTDI interface made in Poland
• Polish manual (delivered electronically) and lifetime technical support from the manufacturer CCY
• Electronically delivered software

The items in this offer do not infringe any copyright or intellectual property. All names, photographs, trademarks or trademarks not owned by iPlum and appearing in the offer and in the documentation, in accordance with the PWP Act, art. 156 point 1 sec. 3 belong to their owners and have been used only for informational purposes - in order to select the right device for a given vehicle. The digital content received with this product is either our authorship or licensed under the GNU General Public License. Copying, reproduction and publication in any form of the received material is prohibited.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	CCY
Parametry	Product weight with unit packaging	0.095 kg
Parametry	EAN (GTIN)	5908258861433
Parametry	Manufacturer code	200196
