Nuotolinio valdymo jungiklis 230V, veikimo nuotolis iki 70 m, 1 pultelis

Trumpai apie prekę

Prekė: Nuotolinio valdymo jungiklis 230V, veikimo nuotolis iki 70 m, 1 pultelis. Kategorija: Nuotolinio valdymo pultai.

• Gamintojas: Blow
• Modelis: 26-139#

• Power supply voltage: 230V
• Number of channels: 1
• Range of operation: up to 70 meters
• Relay load capacity: 10A (3000W resistive, 1500W inductive)
• Working frequency: 433 MHz
• Memory: up to 16 remote controls

✅ This universal radio controller works great in many areas – from home automation to industry. Thanks to it, you can easily control gates, blinds, lighting, water pumps or electric doors.

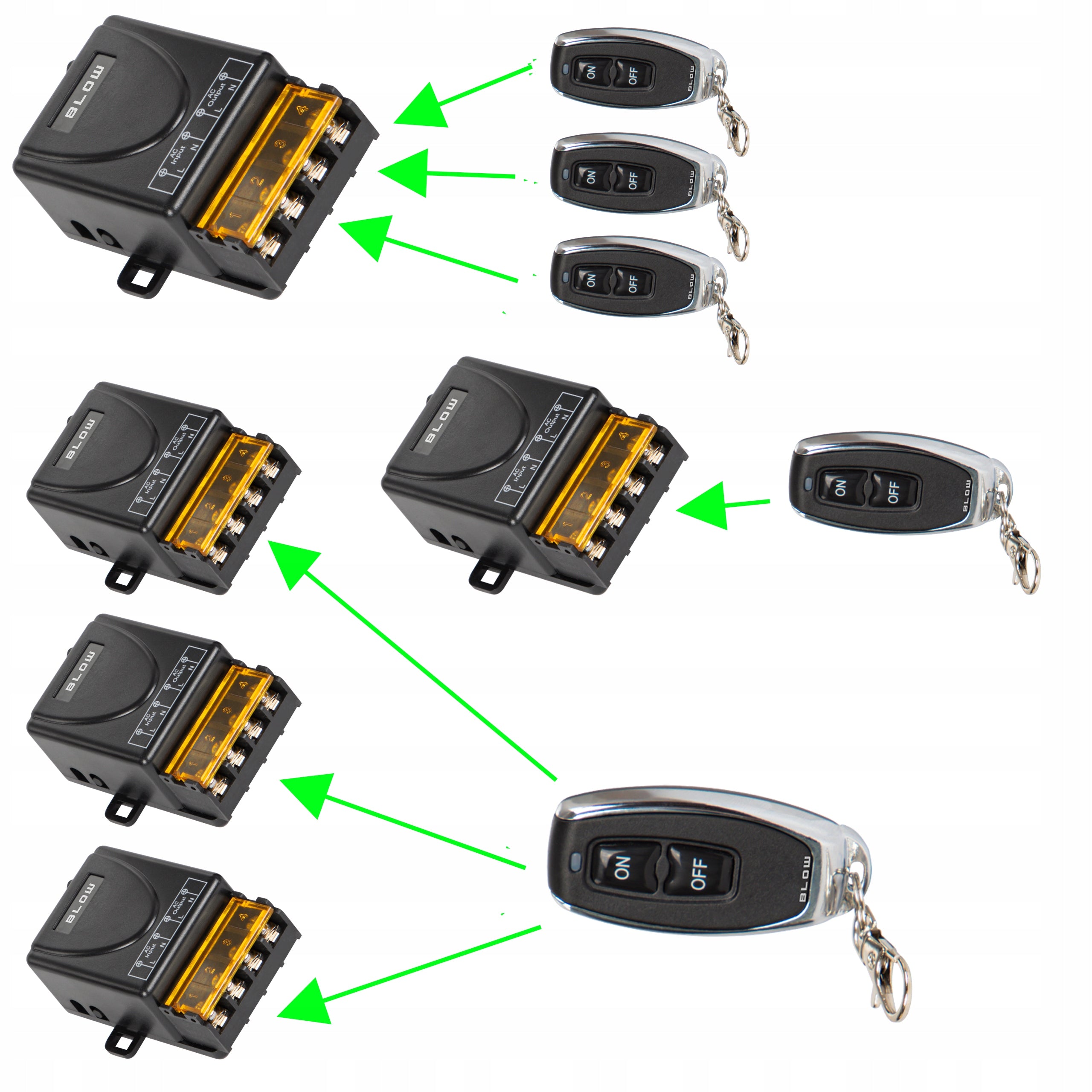

✅ Works with 433 MHz pilots, allowing to connect multiple devices. One remote control can support several receivers, and one receiver – multiple remotes. The ideal solution for those who are looking for a flexible control system.

✅ The device offers six programmable modes of operation, including instantaneous, bipolar (ON/OFF) and time-delayed modes (from 5 to 20 seconds). This allows you to match the functionality to the specifics of the connected device.

✅ Programming is simple – just press the button and watch the LED flash. Thanks to this, configuration of the driver is fast and does not require specialized knowledge.

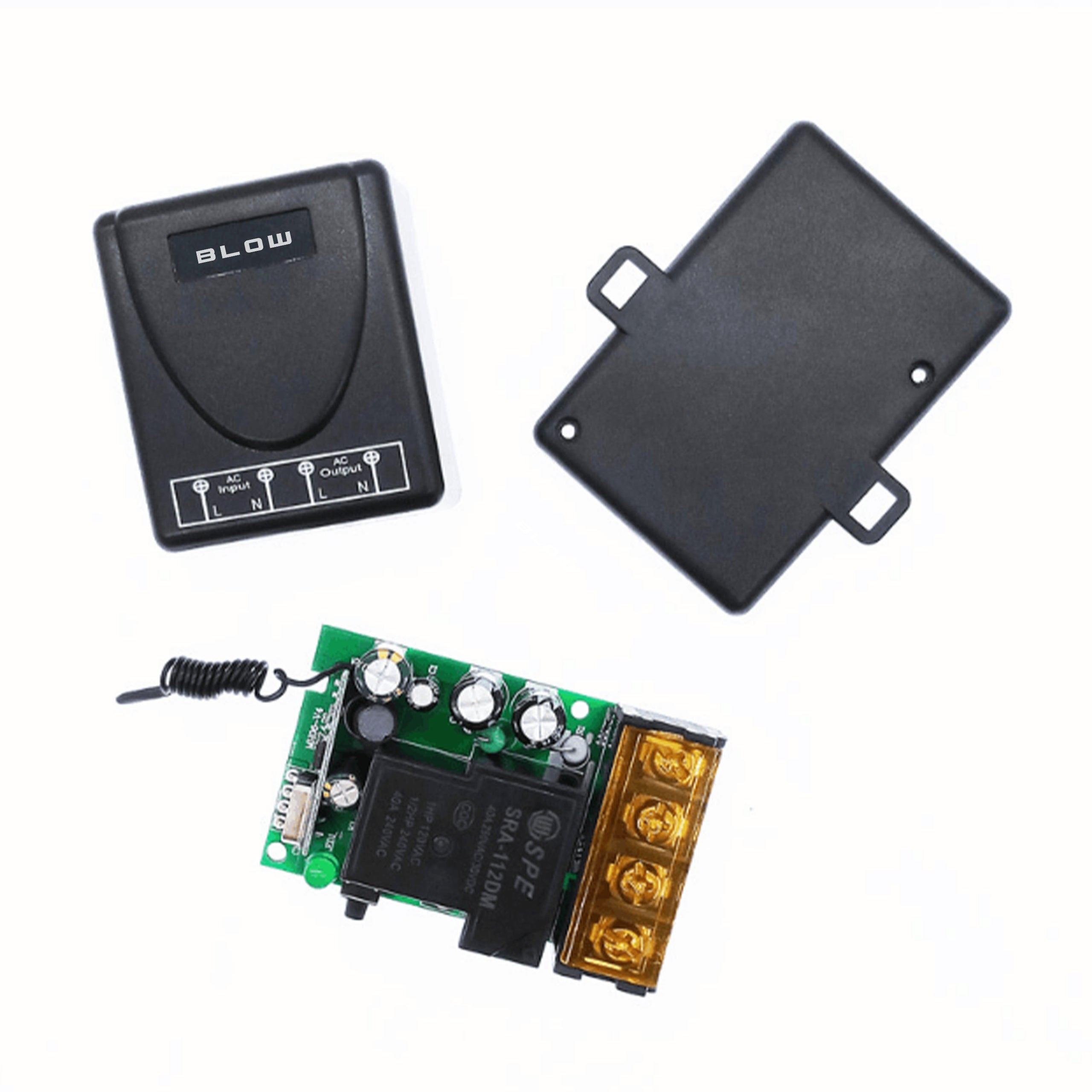

✅ Equipped with strong 30A relay, the controller supports loads up to 3000W for bulbs and 1500W for motors or water pumps. Thanks to this, it will work in diverse installations, also with high power consumption.

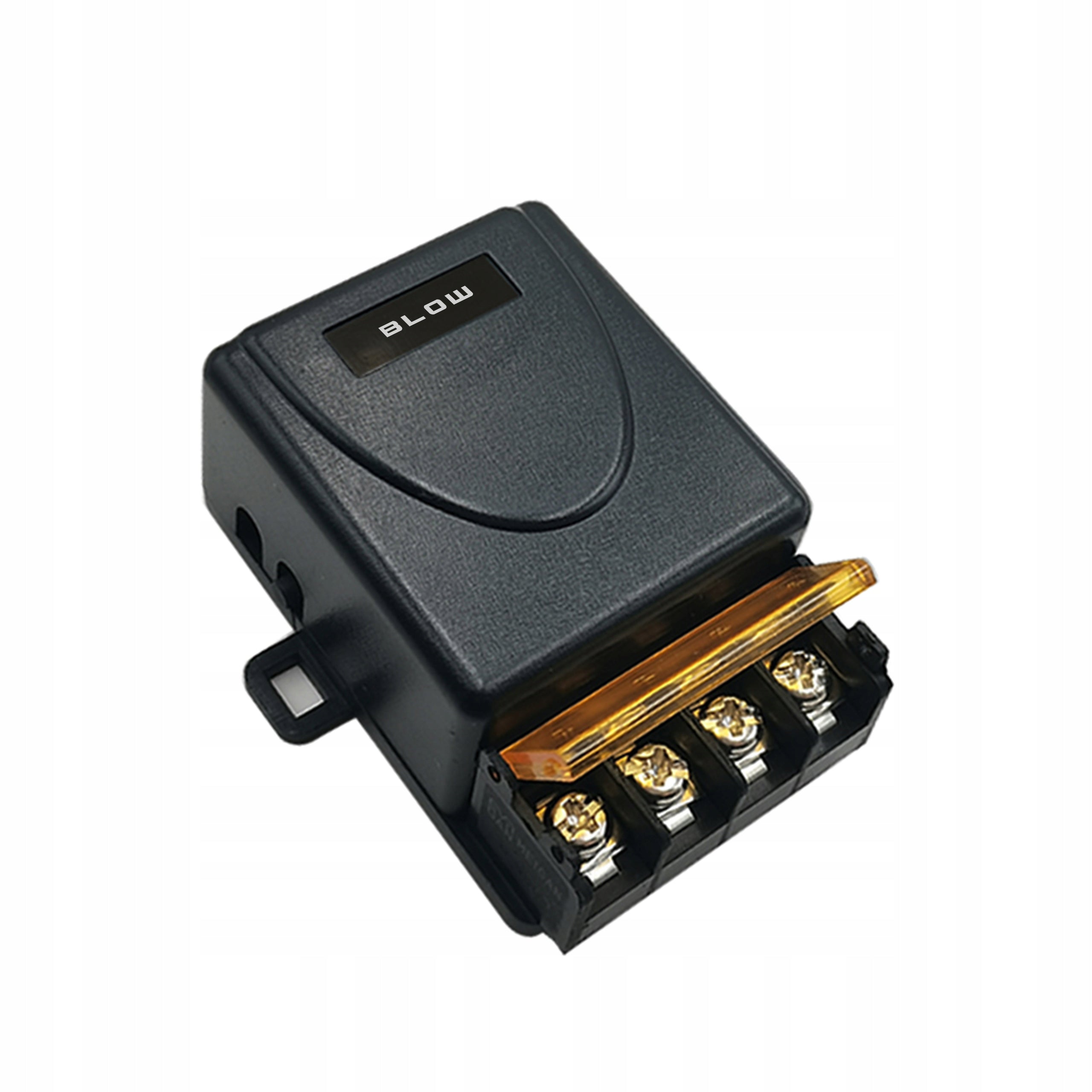

✅ The housing includes an integrated antenna, a signal diode and a programming button, which simplifies installation and operation diagnostics.

✅ The controller remembers up to 16 remote controls, which means that it can be used in larger installations or jointly by several people. Ideal for use in single-family homes, businesses or residential communities.

✅ Operating temperature range from -10°C to +50°C ensures reliable operation in various atmospheric and environmental conditions.

• Power supply voltage: 230V
• Power consumption: 0,1 A
• Relay load capacity: 10A (3000W resistive, 1500W inductive)
• Working frequency: 433 MHz
• Working temperature: from -10°C to +50°C
• Number of channels: 1
• Pilot range: up to 70 meters
• Memory capacity: up to 16 remote controls
• Device dimensions: 105 x 51 x 30 mm

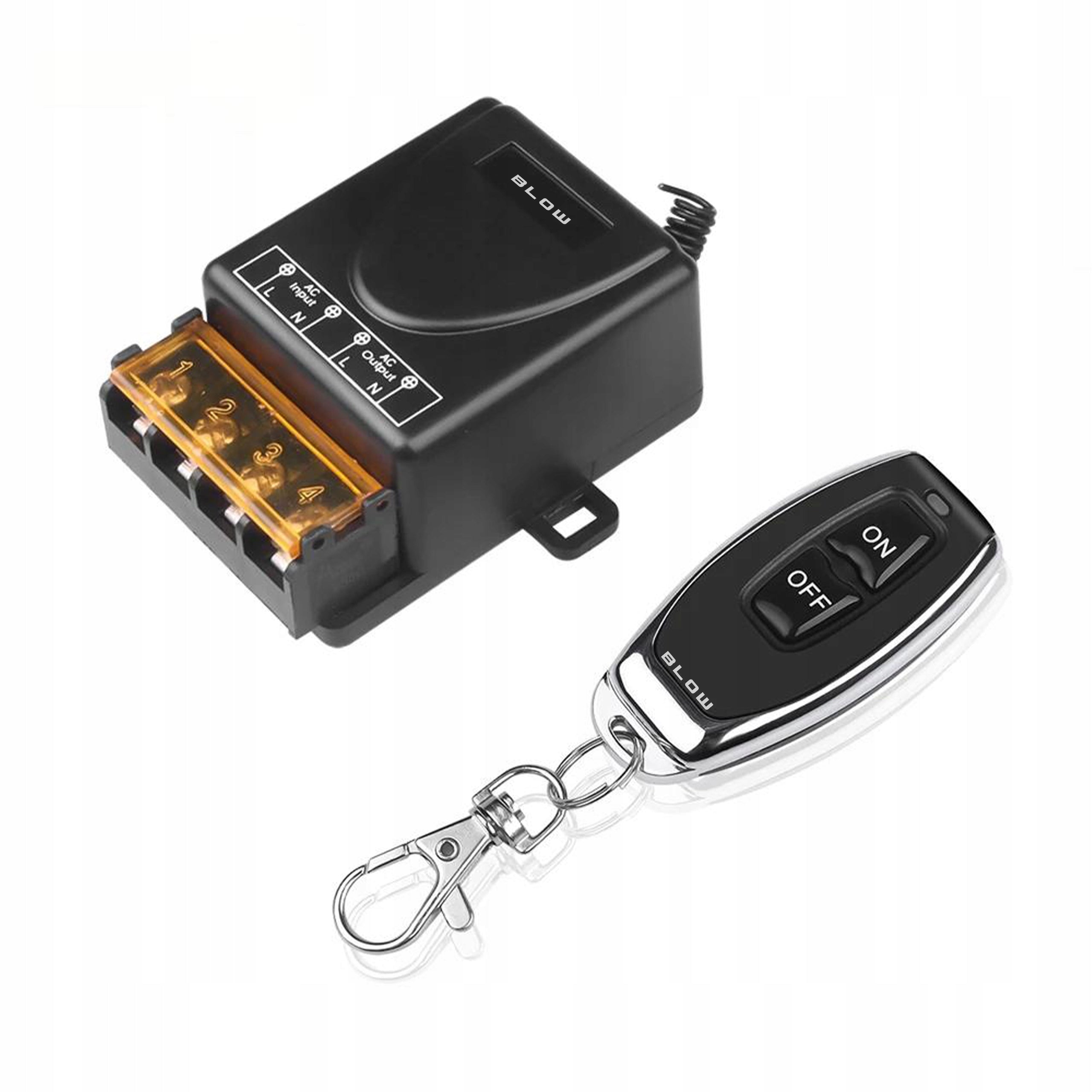

1x receiver

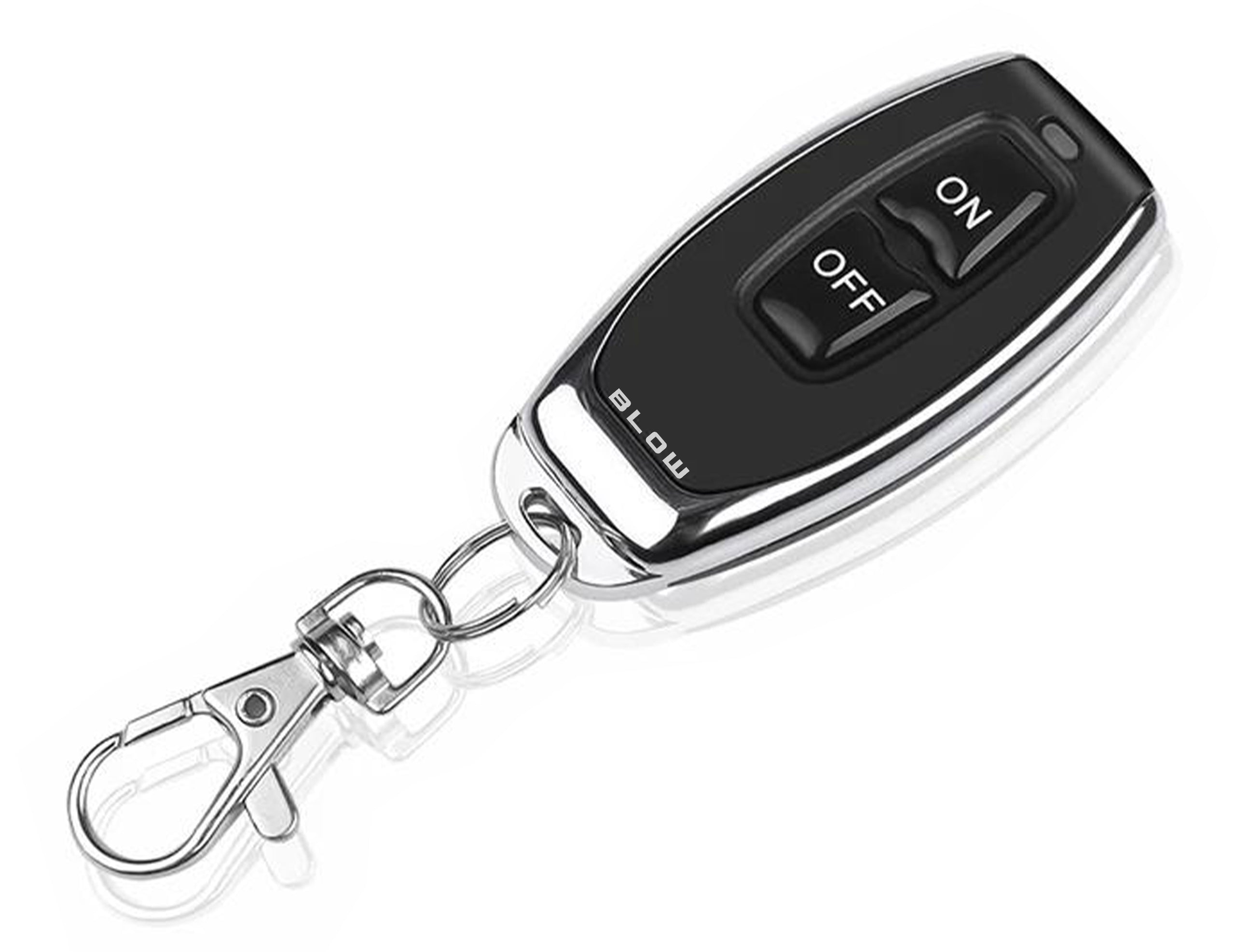

1x Remote control with battery

1x User Manual

1x Packaging

Cleaning remote control settings

To remove all programmed remotes and restore the device to factory settings:

• Press the programming button 9 times
• The cleaning process will be automatically completed

⏱ Momentary mode programming

This mode causes the receiver to work only when holding the button of the remote control.

1. Press the programming button 1 time
2. LED flashes 1 time
3. Press the button on the remote you want to program
4. LED flashes 3 times – programming completed

Bipolar mode programming (ON/OFF)

In this mode, one button turns on and the other turns off the receiver.

1. Press the programming button 3 times
2. The LED flashes 3 times
3. Press the ON button – the LED flashes 3 times
4. Press the OFF button – the LED flashes 3 times
5. After about 3 seconds the diode will go out – programming completed

Bipolar mode programming (ON/ON)

Both buttons can be used to turn on the receiver – depending on your needs.

1. Press the programming button 2 times
2. The LED flashes 2 times
3. Press the selected button on the remote control
4. LED flashes 3 times – programming completed

❓Frequently Asked Questions

Can I use one remote control for multiple controllers?

Yes, one 433 MHz remote can be programmed to work with multiple receivers.

How long does it take to program the remote?

Programming is very quick – it usually takes a few seconds and involves simply holding down a button.

Does the controller work in low temperatures?

Yes, the device operates in temperatures from -10°C to +50°C, making it suitable for outdoor applications.

Can I set a delay in operation?

Yes, the controller offers modes with an activation delay from 5 to 20 seconds, which is useful, for example, for automatic lighting.

How many remotes can be programmed?

Up to 16 remotes can be assigned to one controller, which is sufficient for most home and business applications.
