Nešiojamas keturkanalis adatų elektrostimuliatorius AS SUPER 4 DIGITAL

Trumpai apie prekę

Prekė: Nešiojamas keturkanalis adatų elektrostimuliatorius AS SUPER 4 DIGITAL. Kategorija: Masažuokliai.

• Gamintojas: no brand
• Modelis: ERP-001511

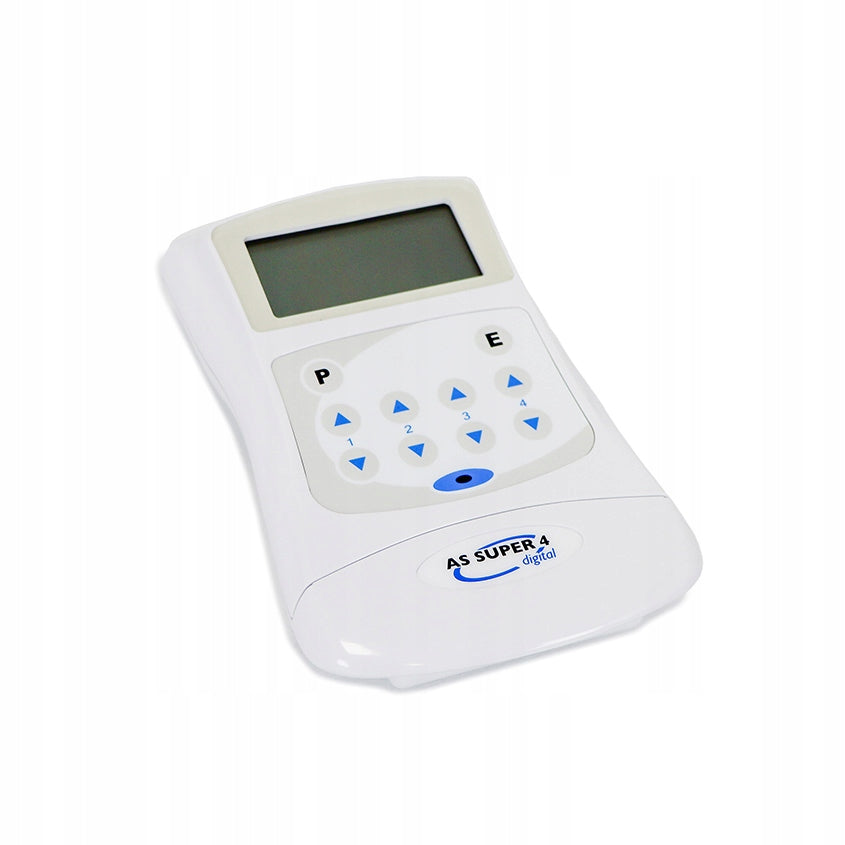

AS Super 4 Digital Needle Electrostimulator

AS Super 4 Digital is a high-quality, portable needle electrostimulator for electroacupuncture and anesthetic treatments that uses percutaneous stimulation – using a constant electric current, transmitted to acupuncture needles. This device has up to 4 independent channels with the possibility of performing the procedure on 8 needles at the same time. In addition, it offers the possibility of applying 2 treatment programs at the same time.

AS Super 4 Digital is a simple and intuitive device – thanks to defined 30 therapeutic protocols grouped in 9 treatment programs and displaying the progress of therapy on an ongoing basis on a easy-to-read LCD screen.

❗ The AS Super 4 Digital electrostimulator is a medical device intended for use only by trained personnel.

The user has the option to define up to 7 own treatment protocols – in groups of programs 1 and 3. The needle electrostimulator is powered by an AC adapter or 4 AAA batteries.

Precautions:

❗ If during or after the procedure there are disturbing changes, you should stop using electrostimulation and seek the advice of a doctor or physiotherapist.

❗ ATTENTION! When deploying needles, care should be taken to ensure that the current does not run through or near the heart. The electrostimulator cannot be used simultaneously with other devices, while driving or while sleeping.

Which needles are compatible with the electrostimulator?

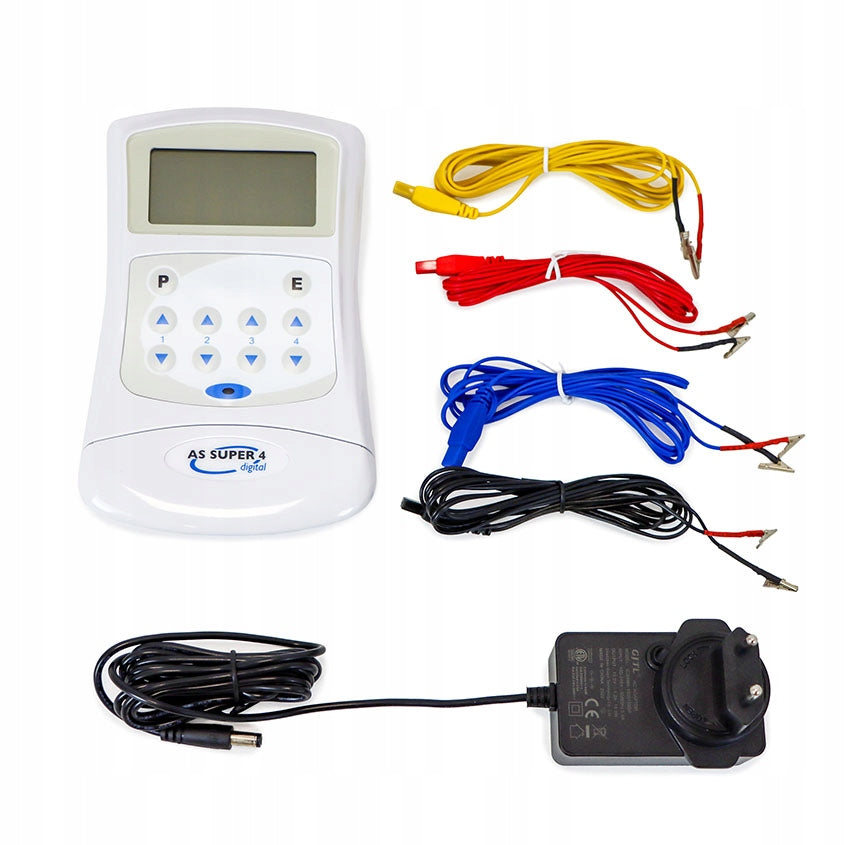

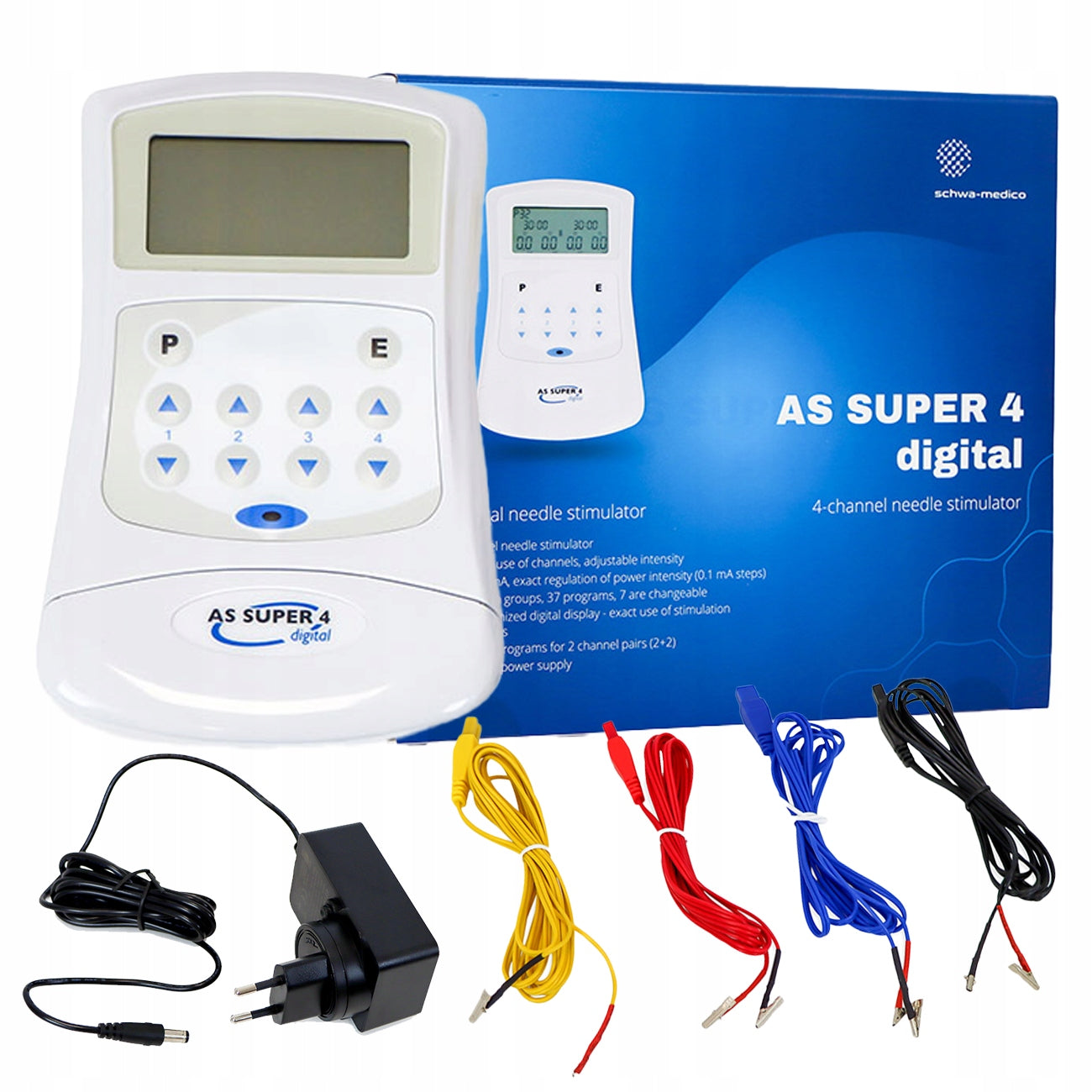

➡ The box contains:

• AS Super 4 Digital needle electrostimulator,
• cable 7.10 white with crocodiles for fastening needles,
• cable 7.12 red with crocodiles for fastening needles,
• cable 7.13 yellow with crocodiles for fastening needles,
• cable 7.14 grey with crocodiles for fastening needles,
• AC adapter 12-1250 type B,
• 4 batteries 1,5 V type AAA,
• instruction manual in English and German.

➡ Contraindications for the use of needle electrostimulator:

• Electronic implants, e.g. pacemaker,
• abnormal heart rhythm,
• epilepsy,
• skin diseases, e.g. eczema, wounds, damage at the electrode application site,
• cancer,
• infections caused by pathogens (tuberculosis, osteomyelitis),
• neurological diseases,
• thrombophlebitis, thrombosis,
• increased tendency to bleed (caused by diseases or medications),
• intolerance or allergy to electrode material.

❗ Electrostimulation during pregnancy or breastfeeding should always be consulted with a doctor.

Treatment groups in AS 4 Super Digital:

➡ Group 1 – standard, continuous stimulation with fixed pulse frequency and length

➡ Group 2 – Han stimulation, 2 different phases (different pulse frequencies and lengths) alternately every few seconds

➡ Group 3 – user Han stimulation, 2 different phases (different pulse frequencies and lengths) alternately every few seconds)

➡ Group 4 – frequency modulation (FM), frequency is automatically modified within a specified range, and pulse length is constantly adjusted to frequency

➡ Group 5 – pulse length modulation at constant frequency

➡ Group 6 – burst, pulse packets alternate with intervals of the same length

➡ Group 7 – stimulation according to Nogier, for special frequencies

➡ Group 8 – random pulse generation for all 4 channels

➡ Group 9 – TSEA (Traditional and Scientific approach to Electro-Acupuncture) stimulation according to De Vilder and Wauters.

➡ Parameters:

• Power supply: 4 × 1,5 V AAA batteries or external power supply
• Channels: 4 independent channels
• Pulse frequency: 1 Hz to 146 Hz
• Pulse width: 50 µs to 300 µs
• Weight: approx. 191 g
• Dimensions:
• Length: 17,5 cm
• Width: 11,3 cm
• Height: 4,5 cm

AS Super 4 Digital:

✅ extremely simple and intuitive to use – through a comfortable keyboard,

✅ possibility to perform 2 treatment programs at the same time,

✅ unique combination of currents,

✅ 4 independent treatment channels – treatments for 8 needles at the same time,

✅ 30 defined protocols in 9 treatment groups,

✅ 7 user programs,

✅ easy-to-read LCD display showing the parameters of therapy,

✅ control of all treatment parameters from the front keyboard,

✅ AKS system strengthening patient protection,

✅ automatic shutdown system after 2 minutes of inactivity,

✅ power supply directly from the mains or from the battery,

✅ control of the battery status of the device,

✅ automatic detection system for connected needles.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	ERP-001511
Parametry	Kind	electrostimulator
Parametry	EAN (GTIN)	04060086000833
