Trumpai apie prekę

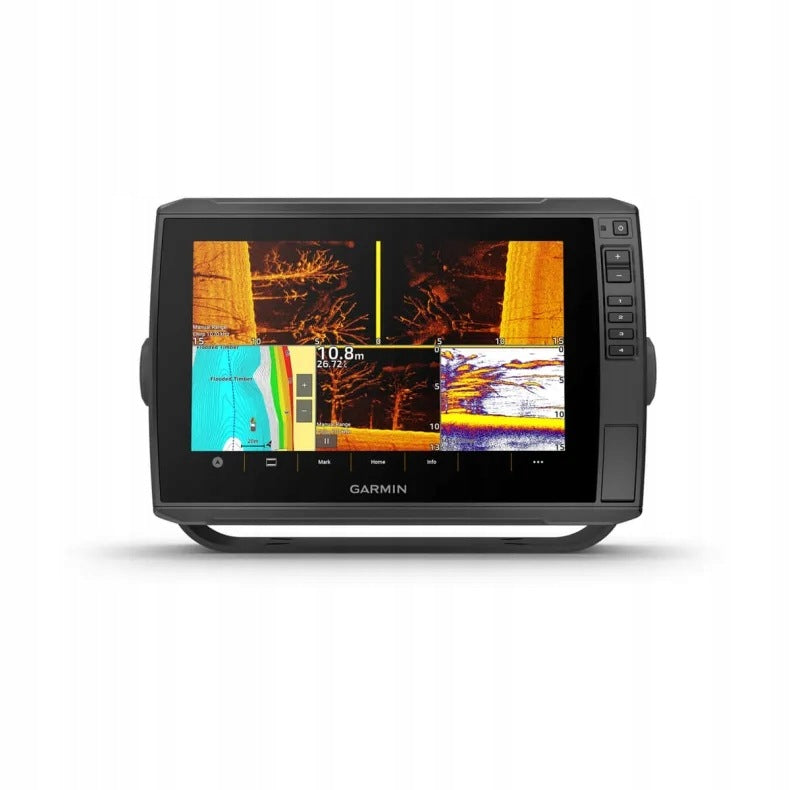

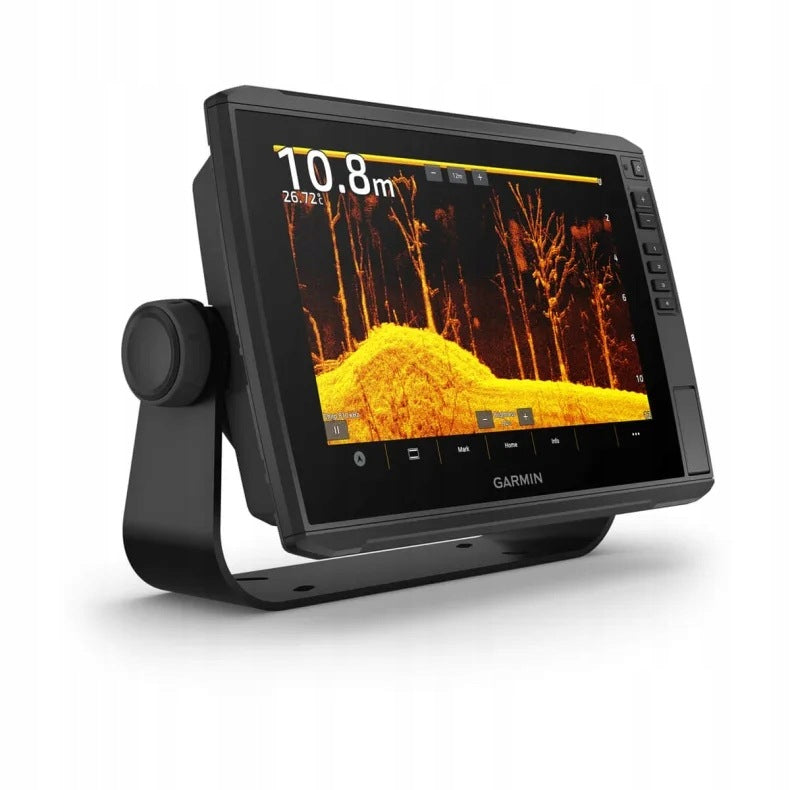

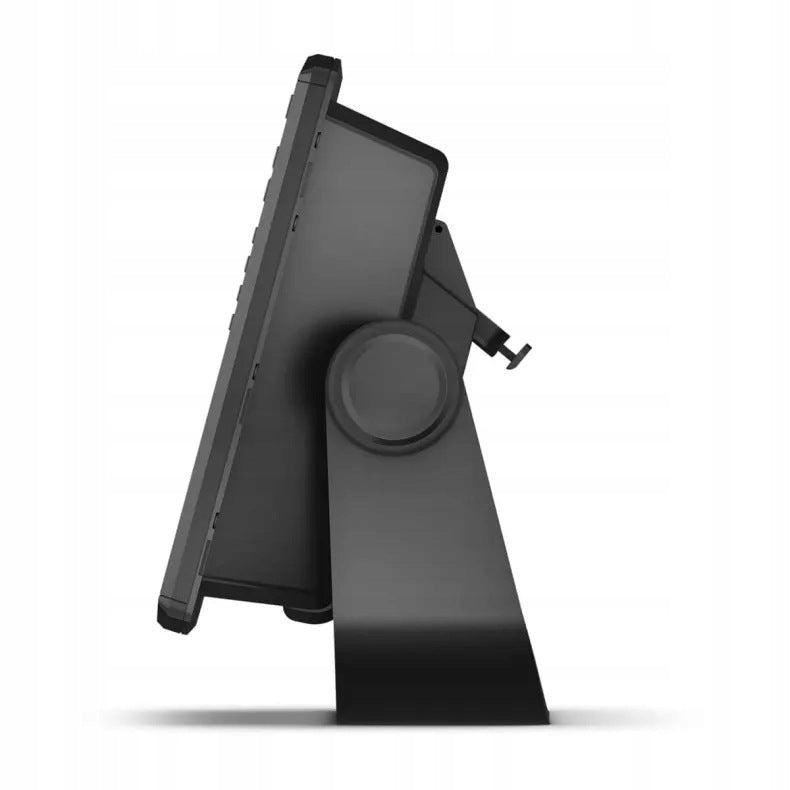

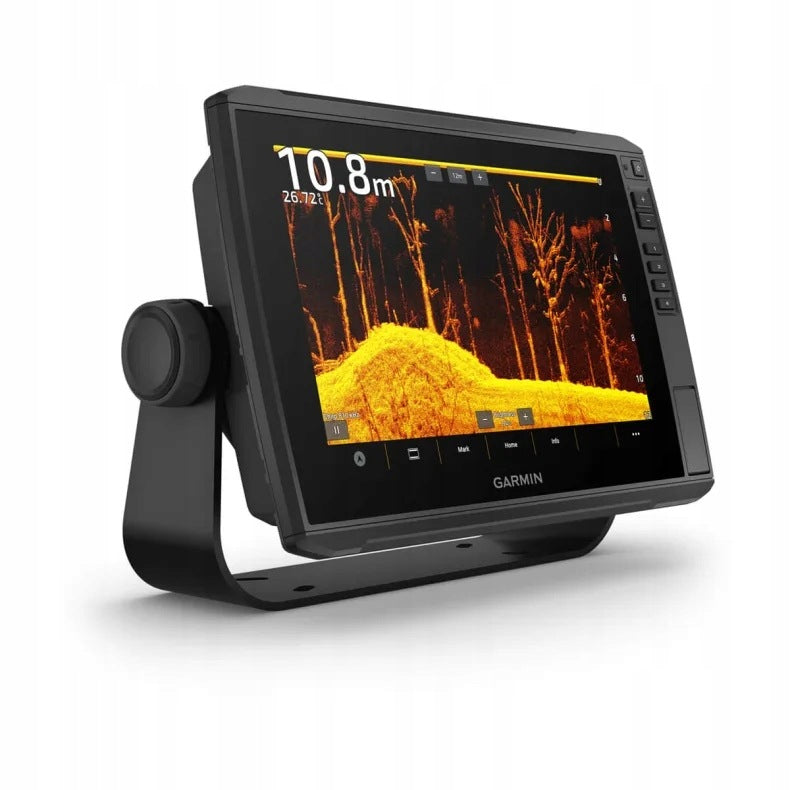

Prekė: Navigacijos ploteris 10″ ECHOMAP Ultra 2 102sv Marinero. Kategorija: Echolotai.
- Gamintojas: Garmin
- Modelis: Ultra 2 10″102sv bez przetwornika
SUPPORT FOR THE LIVESCOPE™ ECHO SOUNDER
The ECHOMAP Ultra 2 series supports the full range of LiveScope real-time scanning echo sounders (transducers to be purchased separately).
BUILT-IN UHD SONAR
Select models are supplied with the GT56 transducer, thanks to which traditional Garmin CHRIP sonars and Ultra High-Definition ClearVü™ and SideVü™ scanning sonars generate photographic quality images of objects below the water surface.
COLOR PALETTES VIVID
The vibrant, high-contrast color image makes it easy to distinguish between fish and objects.
Sea and inland maps
Give your navigation plotter a fresh new look with optional Garmin Navionics+™ maps or high-quality Garmin Navionics Vision+™ maps with integrated coastal/inland area data, access to daily updates, Auto Guidance+™ technology and more.
WIRELESS NETWORKS
If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 navigation plotter on your boat, you can wirelessly share information — such as sonar data3, route points, and routes — with each other.
General
- Physical dimensions: 29,5 x 19,5 x 9,8 cm (11,6″ x 7,7″ x 3,9″)
- Weight: 1,8 kg (4 lbs)
- Water resistance class: IPX7
- Touch screen: ✔
- Display type: WXGA, IPS
- Display dimensions, width x H : 21,7 × 13,6 cm; diagonal 21,7 cm (8,5″ × 5,4″; diagonal 10″)
- Display resolution, width x H : 1280 × 800 pixels
- Modes of mounting: Headband holder or recessed mounting bracket
- With push button and touch screen: Touch screen with push button operation
Maps and memory
- Ability to use data cards: 2 microSD cards
- Indicative points: 5000
- Tracking points: 50,000
- Traces: 50 saved traces
- Routes: 100
Sensors
- GPS: ✔
- GLONASS: ✔
- Galileo: ✔
- BeiDou: ✔
- It has a built-in receiver: ✔
- RECEIVER: 10 Hz
- Compliance with NMEA 2000®: ✔
- Supports WAAS: ✔
- Allows support for multi-band and multi-system location systems: ✔
Optional map support
- BlueChart g3: ✔
- BlueChart g3 Vision: ✔
- Garmin Navionics+™: ✔
- Garmin Navionics Vision+™: ✔
- TOPO 100K: ✔
- Standard mapping: ✔
- Garmin Quickdraw Contours: ✔
Navigation plotter functions
- AIS support (tracking the position of the target vessel): ✔
- Support DSC (displaying positions from VHF radio with DSC support): ✔
- Compatibility with FUSION-Link™ enabled radios: ✔
- Compatibility with ActiveCaptain: Yes
- Sailing functions: ✔
Electrical
- Input power: 9 to 18 V DC
- Typical current consumption at 12 V DC: 2,3 A
- Max. power consumption at 12 V DC: 5 A
- Max. energy consumption at 10 V DC: 34 W
Functions and specifications of sonar
- Displays sonar: ✔
- Output power: 600 W
- Traditional echo sounder (two-frequency/two-beam): Built-in (single-channel CHIRP frequency, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in frequency 260/455/800/1000/1200 kHz
- SideVü: Built-in frequency 260/455/800/1000/1200 kHz
- Echo sounder Panoptix™: ✔
- LiveScope: ✔
Connections
- NMEA ports 2000®: 1
- Ports Garmin Marine Network: 2 (large connectors)
- 12-pin transducer ports: 12-pin scanning sonar
- ANT® (Connectivity): ✔
- Wi-Fi® network of Garmin (local connection): ✔
Without transducer
- ECHOMAP Ultra 102sv
- Power cord
- Headband holder with quick disconnect mechanism
- Protective sunshade
- Equipment
- Documentation
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Garmin |
| Parametry | Manufacturer code | 010-02879-00 |
| Parametry | Model | Ultra 2 10″102sv bez przetwornika |
| Parametry | Product weight with unit packaging | 3 kg |
| Parametry | EAN (GTIN) | 753759325480 |
| Parametry | Batteries included | no |
| Parametry | Packaging status | original |
