Montavimo rinkinys Uniwoda, 2 m, fi 160, SP20 juosta ir varžtai

Trumpai apie prekę

Prekė: Montavimo rinkinys Uniwoda, 2 m, fi 160, SP20 juosta ir varžtai. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: UniWoda
• Modelis: SP20 55x180 + żyłka 30m x 2,0mm + ZESTAW1
• Talpa: 1 l

DIY KIT for pipe 2m fi 160 well net SP20 tape and screws Uniwoda

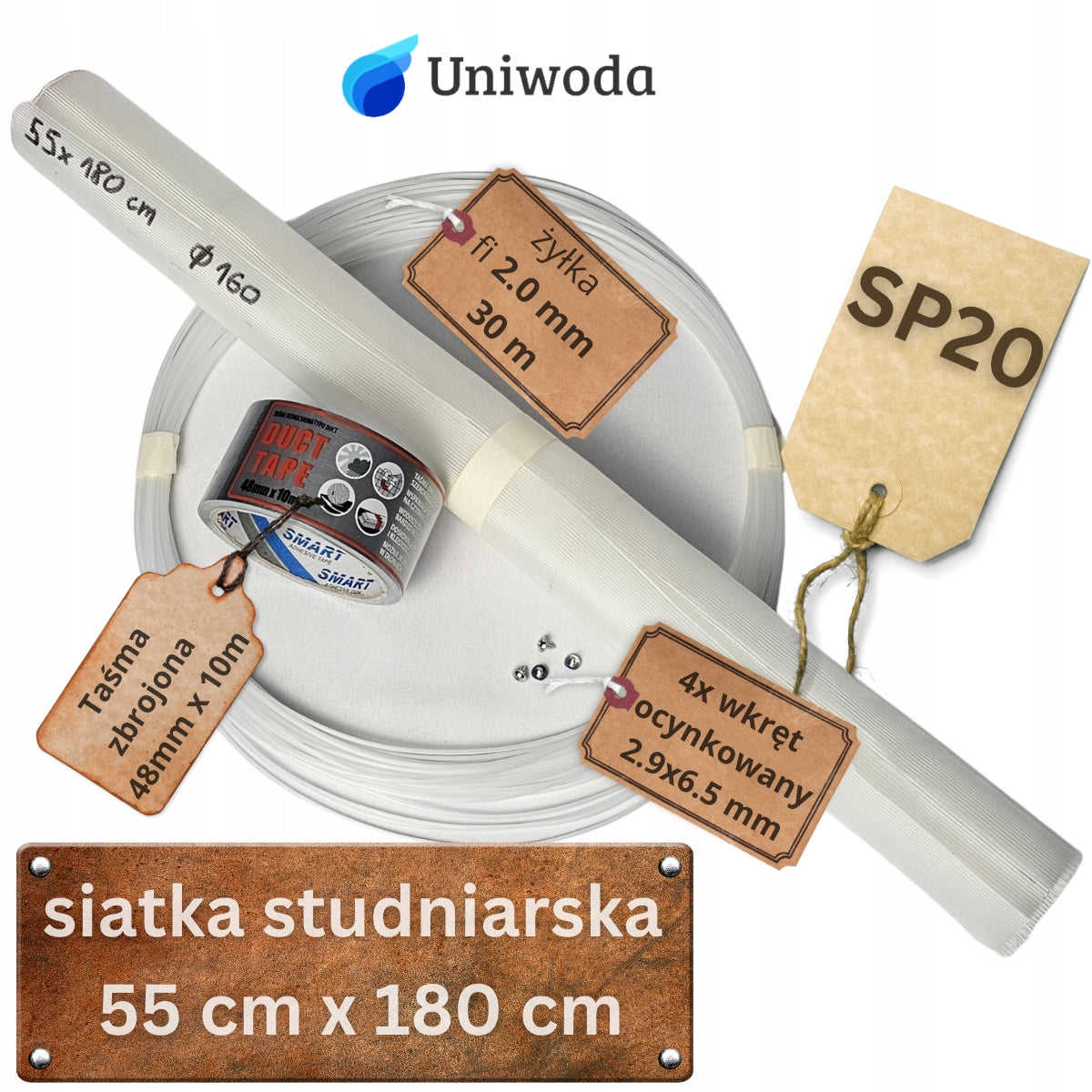

Set of SP20 well net with dimensions 55x180 cm + fishing line (2,0 mm thick) 30 meters FREE + reinforced tape (48mmx10m) + 4 fixing screws !

• Mesh made of polyamide line, is used to make a water filter, e.g. on PVC pipe. Its task is to prevent sand grains and other impurities from entering the filter.
• The line is used to fix the mesh on the pipe, but it is recommended to wind the line also under the mesh, which significantly increases the surface of the filter.
• The tape is used to secure the ends of the mesh to prevent the mesh from rolling up when driving in the pipe.
• Screws are used to secure the ends of the line so that it is tight all the time and does not move.

The price is for 1 piece of the set - a section of mesh measuring 55cm x 180 cm and 30 meters of line, tape and screws.

When buying more than 1 piece, the net and fishing line will be divided into pieces. When buying 5 pieces you will get: 5 sections of mesh, 5 sections of line, 5 tapes and 20 screws (5x4 = 20).

The mesh in the package is usually bent and folded due to the size of the box and shipment, however, this does not affect its properties. When unfolded, it fully fulfills its task.

Technical description of the grid:

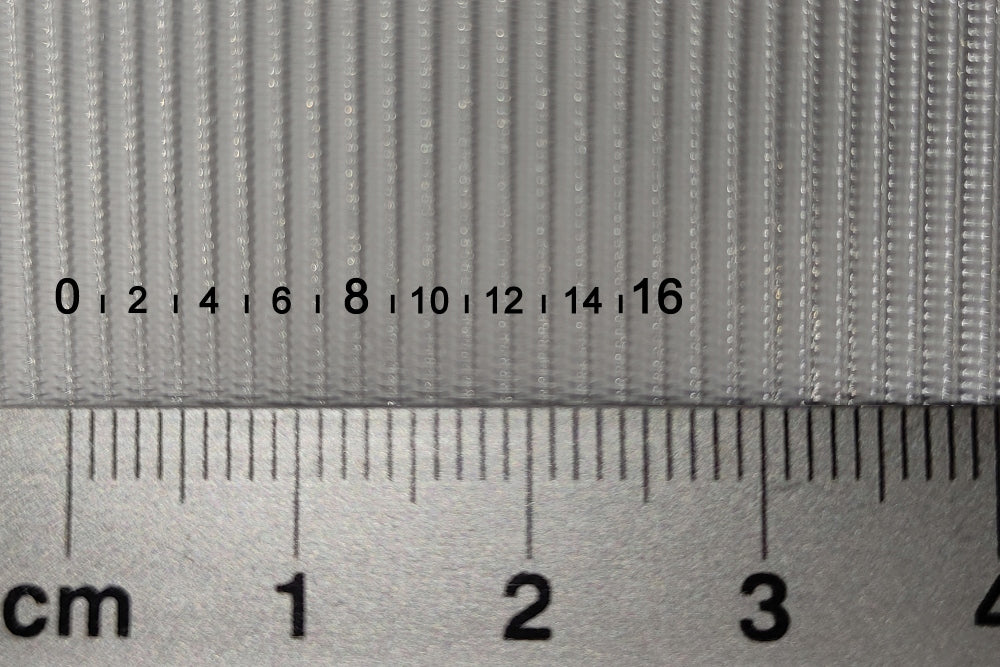

• density: 20 strands per inch (1 inch to 2,54 cm)
• Material: polyamide PA6
• Width: 55 cm
• length: 180 cm

Mesh made of polyamide line, is used to make a water filter, e.g. on PVC pipe. Its task is to prevent sand grains and other impurities from entering the filter.

Technical description of the line:

• diameter: 2,0 mm
• Material: polyamide PA6
• length: 30 meters

The line is used to fix the mesh on the pipe, but it is recommended to wind the line also under the mesh, which significantly increases the surface of the filter.

When you buy several pieces of items on this listing, you will receive the same number of pieces of fishing lines and each 30 meters long.

Technical data of the tape:

• Inner layer: white rubber adhesive
• Reinforcement: synthetic mesh
• Outer layer: laminated polyethylene
• Width: 48 mm
• Length: 10 m
• Producer: Total Market Holding Sp. z o.o. Sp. K

The tape is used to secure the ends of the mesh to prevent the mesh from rolling up when driving in the pipe.

Technical description Screw for metal galvanized steel white 2.9x6.5mm washer:

• Type: washer
• Diameter: 2,9mm
• Length: 6,5 mm
• Material: galvanized steel white
• Color: silver

1 pack = 4pcs. screw

Screws are used to secure the ends of the line so that it is tight all the time and does not move.

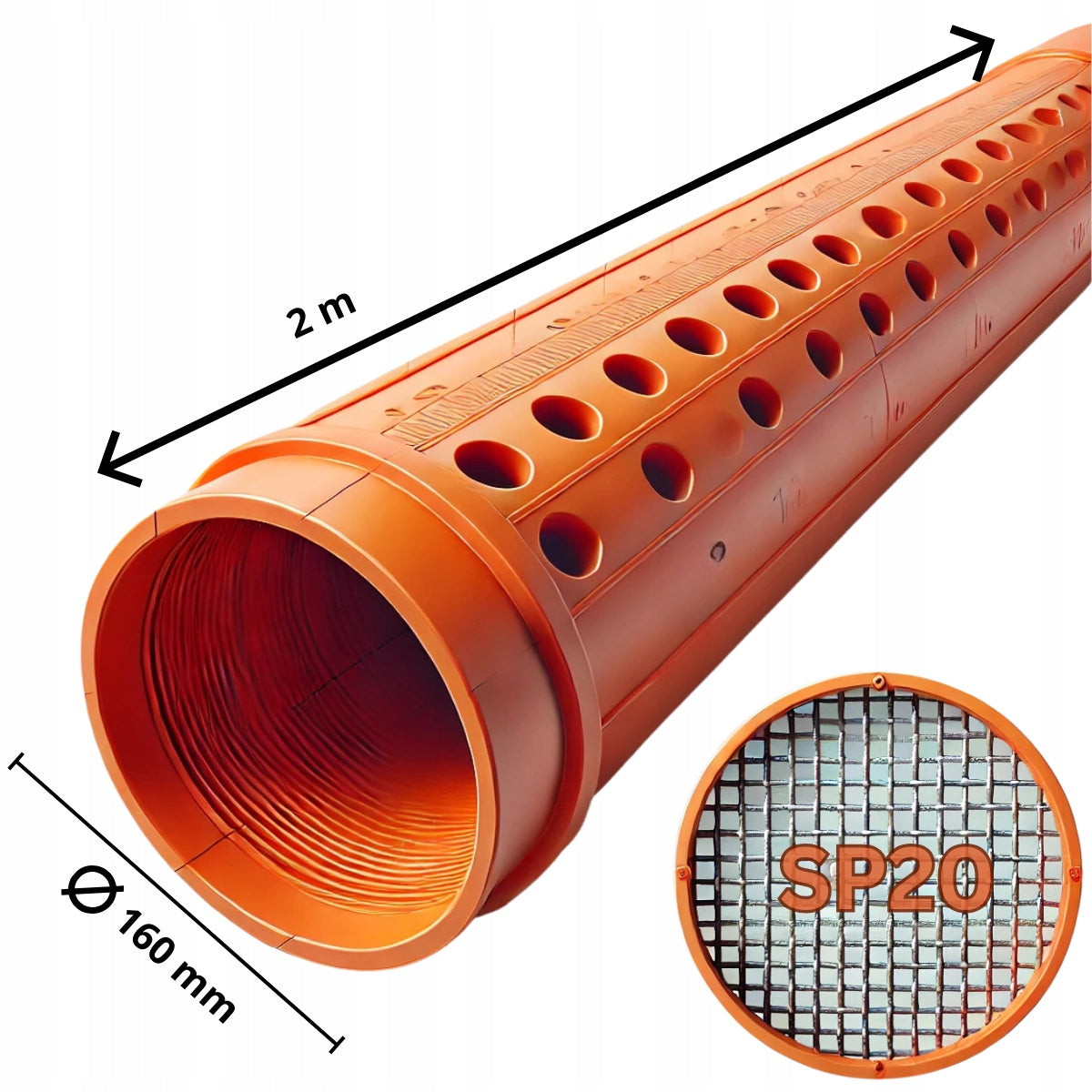

An example of making a filter on a 2 meter PVC pipe from a standard mesh size, so it is visible to combine the mesh in the middle of filtra.Na of this auction you buy a mesh in one piece dedicated to the PVC pipe fi 160mm lengths 2m.

At other auctions we offer mesh in different densities, dimensions, fishing line of different diameters and tape.

Example of line attachment.

How many nets for pipe fi 110mm 2m❓

✔ just a fragment measuring 41 cm x 180 cm - the tab is 3,2cm (we have ready sets from the offer)

How many nets for pipe fi 125mm 2m❓

✔ just a fragment measuring 55 cm x 180 cm (the same size as for the 160mm pipe) - the tab is 8cm (we have ready sets from the offer)

How many nets for pipe fi 160mm 2m❓

✔ just a fragment measuring 55 cm x 180 cm - the tab is 2,5cm (we have ready sets from the offer)

How many nets for pipe fi 200mm 2m❓

✔ just a fragment measuring 69 cm x 180 cm - the tab is 3,1cm (we have ready sets from the offer)

What is the number when SP is designated, e.g. SP16❓

✔ This is the number of strands per inch (2,54 cm). The larger the number, the more weaves, and the better the filtration.

✔ Please note that when improving filtration, we reduce the water flow.

Which grid to choose❓

✔ We offer the most popular mesh SP16, it combines good filtration and proper water flow.

✔ We offer DIY kits for pipe (mesh, line, tape, screws) with mesh gradation SP12, SP16, SP20

✔ We offer meshes SP10, SP12, SP14, SP16, SP18, SP20 (in standard dimension 110cm)

✔ The densest net available is SP20

What a grid on the so-called. wart❓

✔ We offer the densest mesh or SP20

✔ To improve the effect, the filter can be wrapped several times

• ⌀ 110 mm -> 41 cm
• ⌀ 125 mm -> 55 cm
• ⌀ 160 mm -> 55 cm
• ⌀ 200 mm -> 69 cm

Maybe you prefer compensated knowledge in PDF format, you can download it here:

https://bit.ly/InstrukcjaPdf

https://www.youtube.com/watch?v=kzrX6agwlEI

Copy the link and paste it into your browser.

Our clients also use as:

Strong filter mesh

The best well netting

set for making a filter

well filter

strong well fishing line

line for filter

mesh for filter

strong well netting

best line for filter

✉ If you have any questions the fastest please click on the "Send message" section.
