Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę
Prekė: Mobilus žirklinis keltuvas TECH1200N 3,5T 1200mm su guma 230V. Kategorija: Žirkliniai keltuvai.
- Gamintojas: no brand
- Modelis: TECH1200N

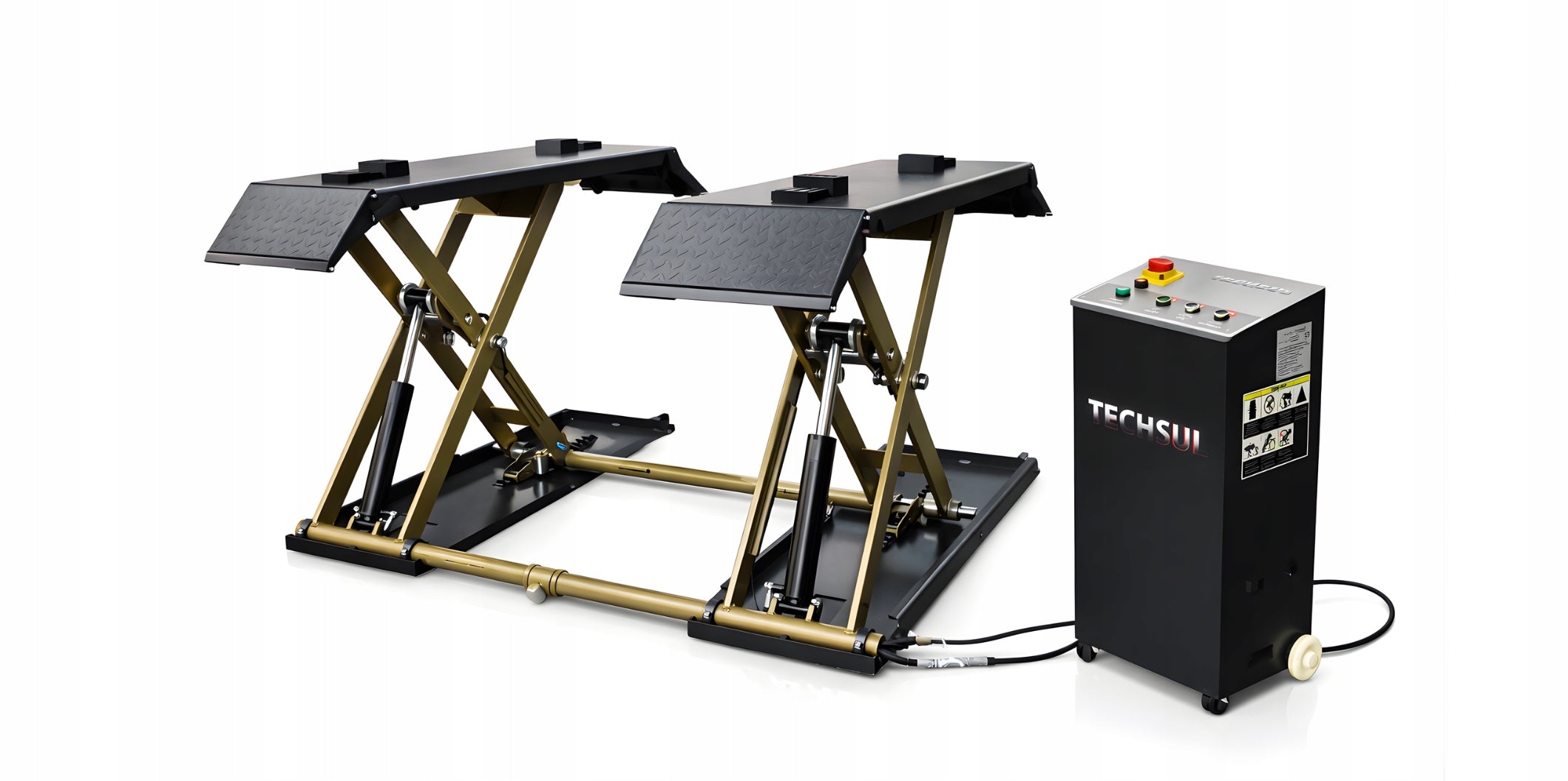

MOBILE SCISSOR LIFT TECH1200N
NEW 3.5T LIFTING VERSION AT 1200 MM
+ wide between inruns.
Reinforced and designed to work in the toughest conditions
230V POWER SUPPLY!!! ELECTROMAGNETIC BLOCKAGES!!!

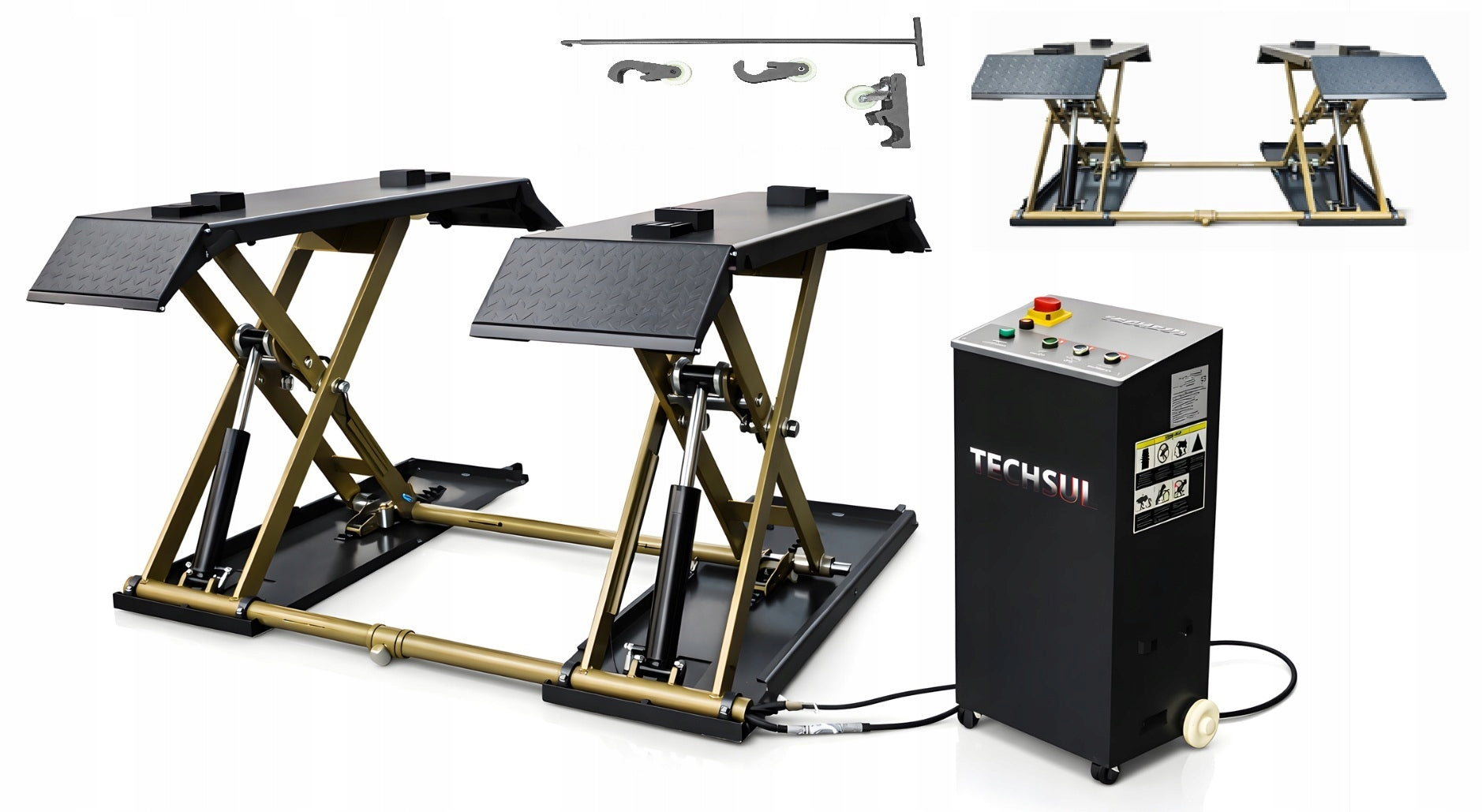

MOBILE SET FOR MOVING THE LIFT
SUPPORT OF THE LIFT
+ 2 sets of lift rubber height included
+ mounted steel roller guide!
+ mounted steel pins connecting shears!
METAL ROLLERS INSTEAD OF STANDARD SLIDES
Thanks to the use of an additional "short shear" on each actuator, the lift operates at full power from the very bottom without causing trouble when lifting low sports cars, which is usually problematic with standard lifts.
Technical data:
Total load capacity [kg]: 3500 kg
Lifting height of the car max. [mm]:1200 mm
Lifting height min. [mm]:110 mm
Overall Width: 1910mm
Lifting time [s]: 50 s
Falling time [s]: 40 s
Powered [V]: 220V
Engine power [kW]: 2,2 kW
Drive Type: Hydraulic
Ratcheting System: Electromagnetic
Noise: 70db
Weight [kg]: 580 kg
Rubber blocks: 8 pcs.
Operating temperature: -25 / +55C
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | TECH1200N |
| Parametry | EAN (GTIN) | 5907150300316 |
| Parametry | Overall width | 1910 mm |
| Parametry | Overall height | 1200 mm |
| Parametry | Power supply | 230 V |
| Parametry | Engine power | 2.2 kW |
| Parametry | Lifting capacity | 3500 kg |
| Parametry | Minimum lifting height | 110 mm |
| Parametry | Maximum lifting height | 1200 mm |
